Description

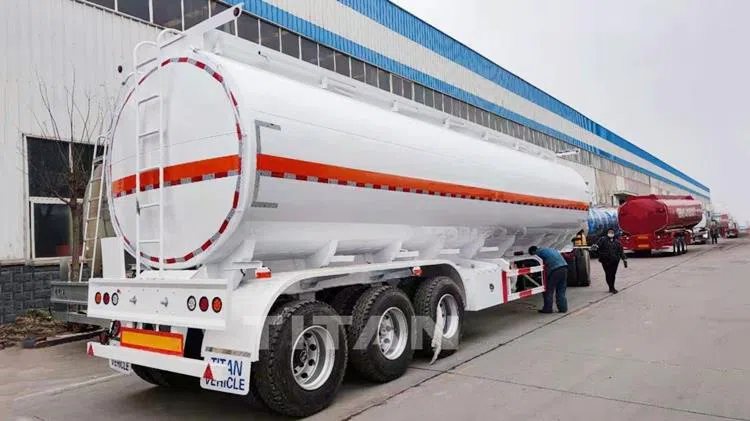

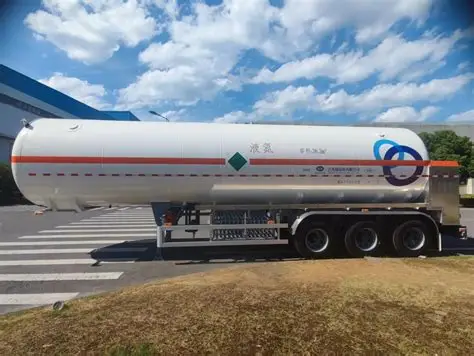

The fuel tank semi trailer is dangerous goods special semi trailer used for road transportation of diesel, gasoline and other petroleum based liquid fuels. Tank body can adopt carbon steel or lightweight aluminum alloy material. Internal anti wave partition plates are welded inside tank to reduce liquid fuel sloshing impact during driving and enhance vehicle stability. Multi compartment structure is optional to transport several different oil products simultaneously. It is equipped with oil loading & unloading pipeline system, manhole cover, flow meter, emergency shut off valve, static conducting device and fire extinguisher mounting base, complying with basic dangerous goods transportation safety specifications. Chassis adopts heavy duty 3 axle semi trailer frame, matched with ABS braking system for hazardous cargo transport.
Configuration sheet
Model:Fuel Tank Semi‑trailer | |
CHASSIS SPECS | |
Curb weight | 8900 kg |
Total weight | 42000 kg |
Drive style | / |
Engine: | / |
Transmission: | / |
Cabin: | / |
Color: | Silver / Grey (optional) |
Wheelbase: | 7400+1310+1310 mm |
Tire: | 12.00R20 18PR, 12 pcs + 1 spare tire |
Front axle: | / |
Rear axle: | 3×13T heavy‑duty trailer axle |
Capacity of oil tank: | / |
Others | 90# king pin, ABS, anti‑static system, emergency shut‑off valve, fire extinguisher bracket |
CARRIAGE BODY SPECS | |
Size and Specs: | 42CBM carbon steel / aluminum alloy tank, multi‑compartment, oil pump, flow meter, manhole cover |
Package | Tank pressure‑tested, nude packing, accessories fixed and packed separately |
Advantages
We have been special truck manufacturer for more than 32 years. We has professional German Kogel technology, combined with Shacman, to create first-class special vehicles, provide trucks owners with the best quality, best price, and the most timely after-sale professional services.
Shipping
We usually adopt shipping by bulk cargo, flat rack, and Roro ship. We will arrange the most cost-effective transportation mode according to the quantity of products. All trucks will be polished with wax before shipping. We guarantee that all products have gone through strict inspection and are in good condition before shipment. We strive for 100% customer satisfaction on every sale we close.
Delivery time
20-40 working days after payment receipt confirmed (based on actual quantity).
Packing
Standard export packing, orcustomized packing as your request.
Professional goods shipping forwarder.
After-sales Service
1.12months or 100,000km for main parts (engine, axle, body and beam, etc).
2.Technical Support by phone Whatsapp or email around the clock.
3.Lifelong Parts Supports
4.Engineer available service oversea.
