Description

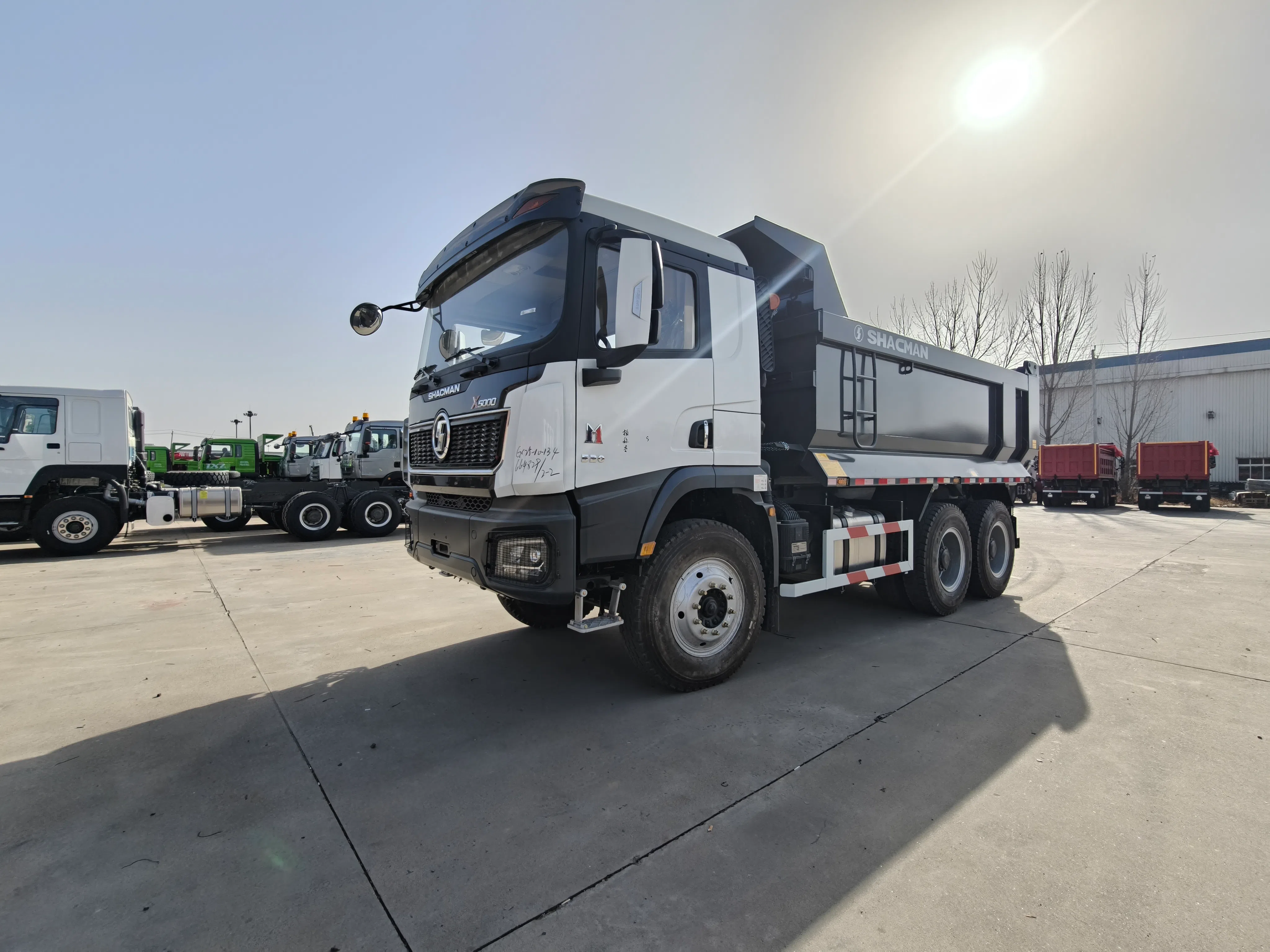

Whether it's heavy-load mining haulage, aggregate and earthwork transportation on construction sites, or bulk material delivery under harsh and complex road conditions, the SHACMAN X5000 6×4 dump truck delivers outstanding performance with reliable power, strong bearing capacity and Euro 6 emission compliance.
Its high-torqueengine with 410-550 HP and built-in cylinder brake, fully compliant with Euro 6 emission standards, provides powerful climbing performance and stable full-load running, ensuring continuous and reliable operation on muddy construction roads, rugged slopes and heavy-duty working conditions. The robust 6×4 drive configuration guarantees excellent traction and superior adaptability for engineering and mining scenarios.
Adopting a high-strength thickened chassis structure of 850×300mm (8+5 layers), the vehicle withstands long-term heavy impact and frequent loading and unloading fatigue, fully meeting the transportation demands of sand, gravel, coal and ore. Matched with 12JSD200TA-B heavy-duty transmission with aluminum housing and QH50 power take-off, as well as 11.5T HD single-stage reduction drive axle with a 4.625 gear ratio, it achieves stable power output, strong overload resistance and higher operational efficiency.
Equipped with HD 7.5T front axle and front & rear multi-leaf spring suspension with dual main pieces and double U-bolts, the truck features solid load-bearing performance and excellent shock resistance. The standard cargo box dimension of 5000×2300×1300mm provides large loading volume for bulk material transportation.

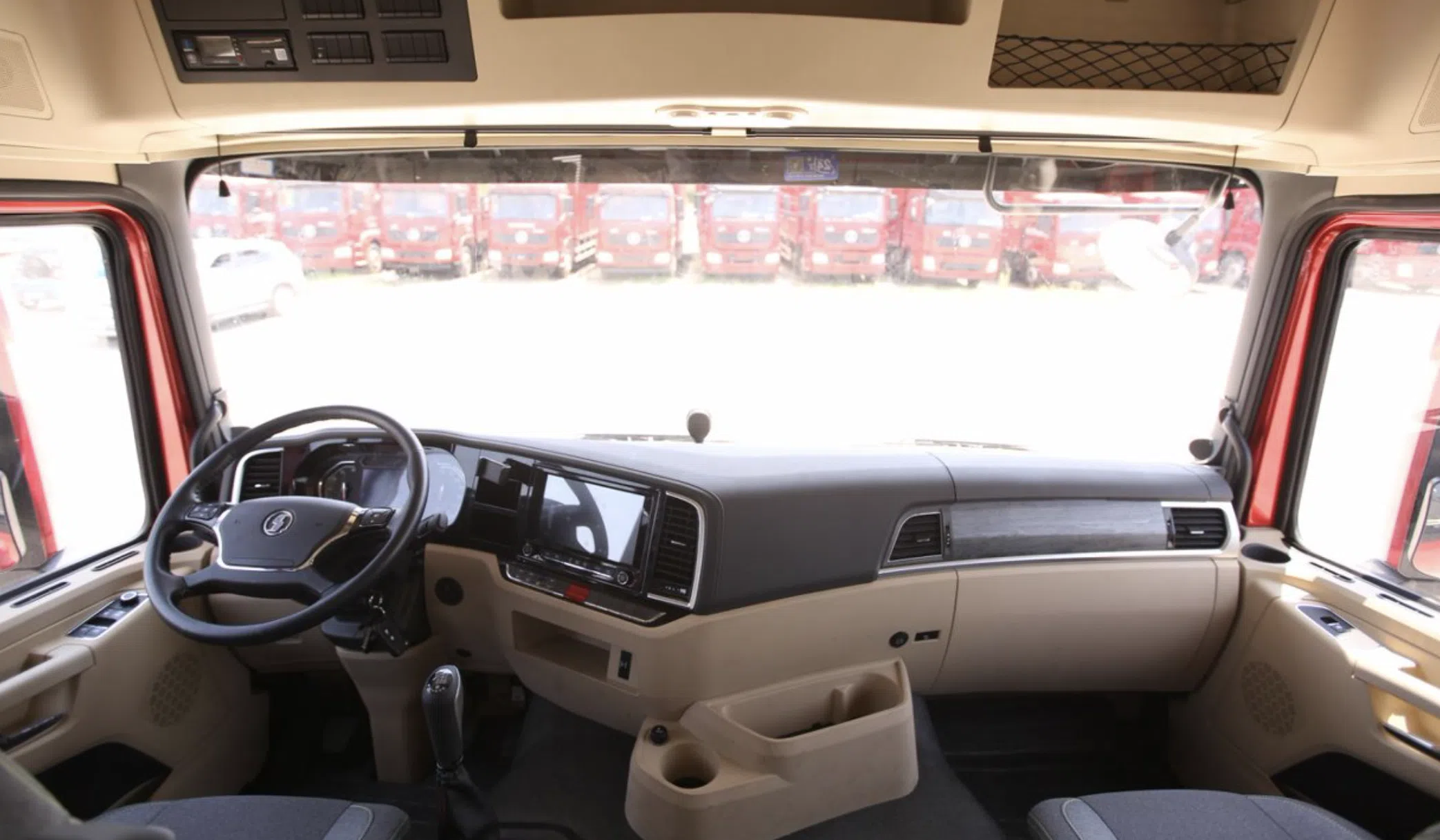

The practical and ergonomically designed medium-long flat roof cabin offers superior comfort, with effective vibration reduction and premium noise insulation to minimize driver fatigue during long working hours and high-intensity construction operations. Large view windows and practical storage spaces further greatly enhance the overall driving experience and operational convenience.
Choose the SHACMAN X5000 6×4 dump truck for a powerful, eco-friendly, durable and high-efficiency solution—your trusted partner in heavy-duty engineering and mining transportation!
Configuration sheet
Model: SX32596U354C | |
CHASSIS SPECS | |
Curb weight | 14500 kg |
Total weight | 25000 kg |
Drive style | 6×4 |
Engine | X12EVIE410 (in-cylinder brake), 410 PS, Euro VI |
Transmission | 12JSD200TA-B aluminum housing + QH50 PTO |
Cabin | Medium-long flat roof |
Color | Not provided |
Wheelbase | 3575+1400 mm |
Tire | Front: 385/65R22.5; Rear and spare: 315/80R22.5 (West Lake brand; front AT557 pattern, rear and spare MD777 pattern), aluminum alloy wheels |
Front axle | HD 7.5T |
Rear axle | 11.5T HD single-reduction axle, ratio 4.625 |
Capacity of oil tank | 300L aluminum alloy |
Others | Frame: 850×300 (8+5) mm; Rear overhang: 725 mm; Suspension: front and rear multi-leaf springs (two main leaves, two U-bolts); Cargo box size: 5000×2300×1300 mm; |
CARRIAGE BODY SPECS | |
Size and Specs: | Cargo box size: 5000×2300×1300 mm |
Package | Nude |
Advantages
We have been special truck manufacturer for more than 32 years. We has professional German Kogel technology, combined with Sinotruk, to create first-class special vehicles, provide trucks owners with the best quality, best price, and the most timely after-sale professional services.
Shipping
We usually adopt shipping by bulk cargo, flat rack, and Roro ship. We will arrange the most cost-effective transportation mode according to the quantity of products. All trucks will be polished with wax before shipping. We guarantee that all products have gone through strict inspection and are in good condition before shipment. We strive for 100% customer satisfaction on every sale we close.
Delivery time
20-40 working days after payment receipt confirmed (based on actual quantity).
Standard export packing, orcustomized packing as your request.
Professional goods shipping forwarder.
After-sales Service
1.12months or 100,000km for main parts (engine, axle, body and beam, etc).
2.Technical Support by phone Whatsapp or email around the clock.
3.Lifelong Parts Supports
4.Engineer available service oversea.
