Description

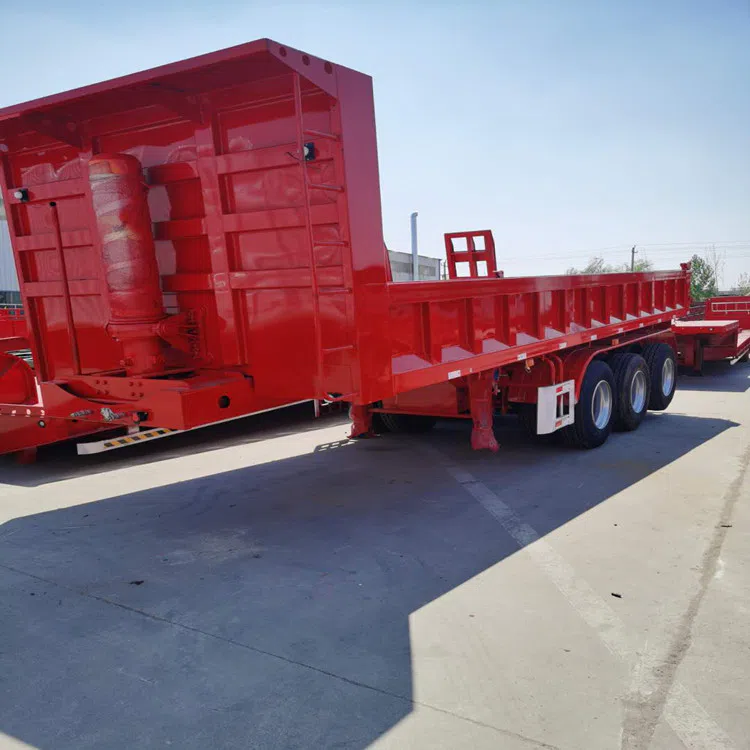

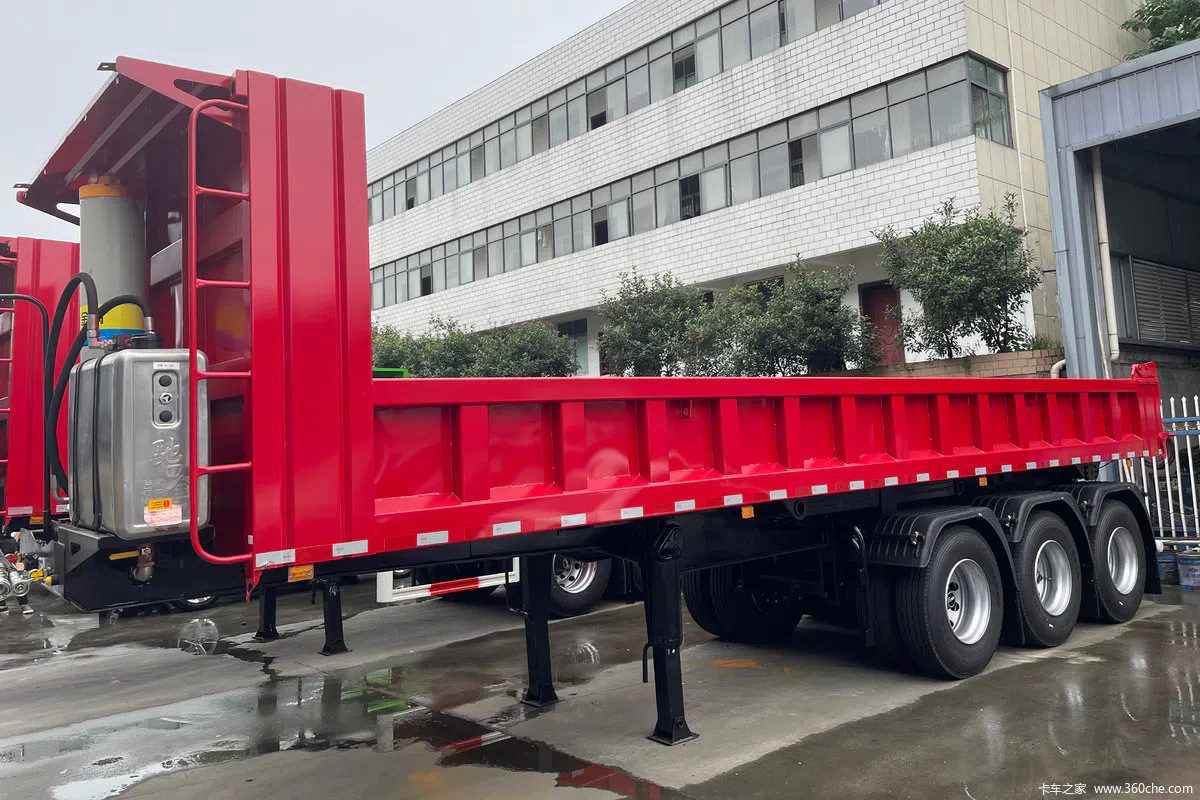

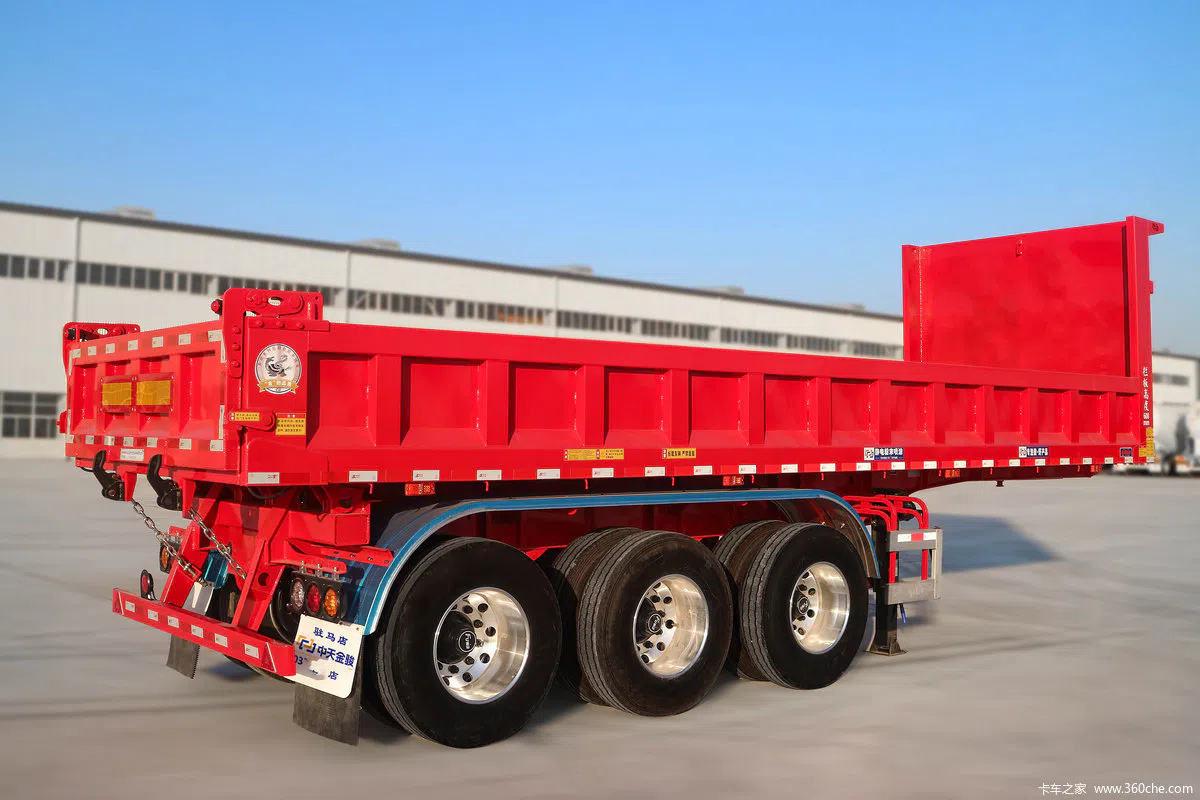

The dump semi trailer (tipper semi trailer) is special engineering transport semi trailer integrating heavy load carrying and automatic unloading function, mainly used for transporting sand, gravel, ore, earthwork and construction waste in mines, quarries and infrastructure construction sites. Relying on hydraulic multi stage lifting cylinder, the cargo box can realize rear tipping dumping action without manual unloading labor. Main frame and tipper cargo box adopt high manganese wear resistant steel plate to resist continuous abrasion and impact from granular mineral materials. Reinforced heavy duty axle and heavy load suspension system are configured to adapt severe working conditions of mining area. Hydraulic power is obtained from tractortruck power take off output. Large diameter multi stage hydraulic cylinder ensures stable and safe lifting movement under full load status.
Configuration sheet
Model: Dump Semi‑trailer | |
CHASSIS SPECS | |
Curb weight | 11200 kg |
Total weight | 45000 kg |
Drive style | / |
Engine: | / |
Transmission: | / |
Cabin: | / |
Color: | Yellow / Black / Red (optional) |
Wheelbase: | 7800+1310+1310 mm |
Tire: | 12.00R20 18PR, 12 pcs + 1 spare tire |
Front axle: | / |
Rear axle: | 3×16T heavy‑duty trailer axle |
Capacity of oil tank: | / |
Others | Hydraulic tipping cylinder, 90# king pin, ABS, heavy‑duty suspension |
CARRIAGE BODY SPECS | |
Size and Specs: | 12500×2400×1600mm tipper body, high‑manganese wear‑resistant steel, rear‑tipping structure |
Package | Anti‑rust coating, nude packing, hydraulic cylinder wrapped with plastic film |
Advantages
We have been special truck manufacturer for more than 32 years. We has professional German Kogel technology, combined with Shacman, to create first-class special vehicles, provide trucks owners with the best quality, best price, and the most timely after-sale professional services.

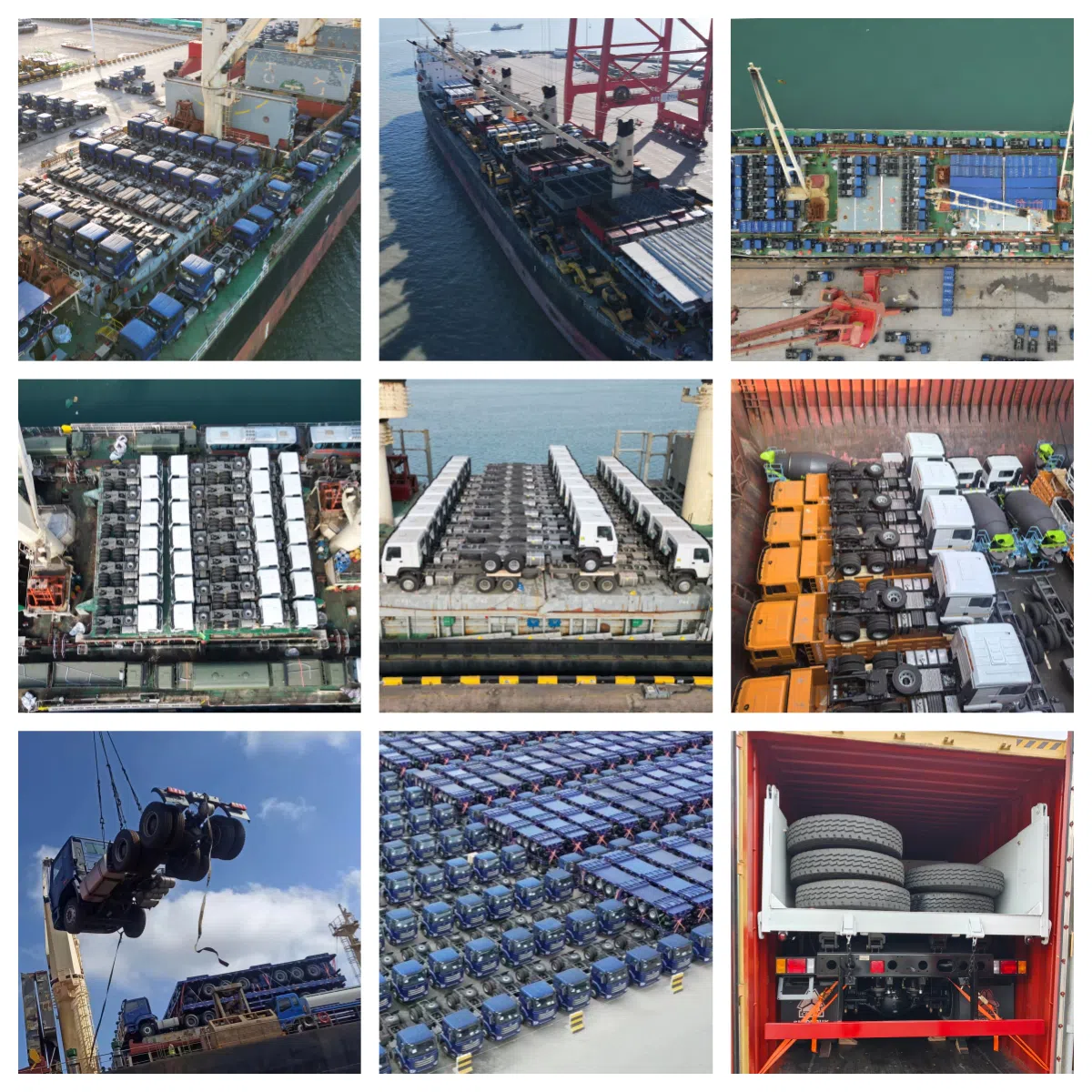

Shipping
We usually adopt shipping by bulk cargo, flat rack, and Roro ship. We will arrange the most cost-effective transportation mode according to the quantity of products. All trucks will be polished with wax before shipping. We guarantee that all products have gone through strict inspection and are in good condition before shipment. We strive for 100% customer satisfaction on every sale we close.
Delivery time
20-40 working days after payment receipt confirmed (based on actual quantity).
Packing
Standard export packing, orcustomized packing as your request.
Professional goods shipping forwarder.
After-sales Service
1.12months or 100,000km for main parts (engine, axle, body and beam, etc).
2.Technical Support by phone Whatsapp or email around the clock.
3.Lifelong Parts Supports
4.Engineer available service oversea.
