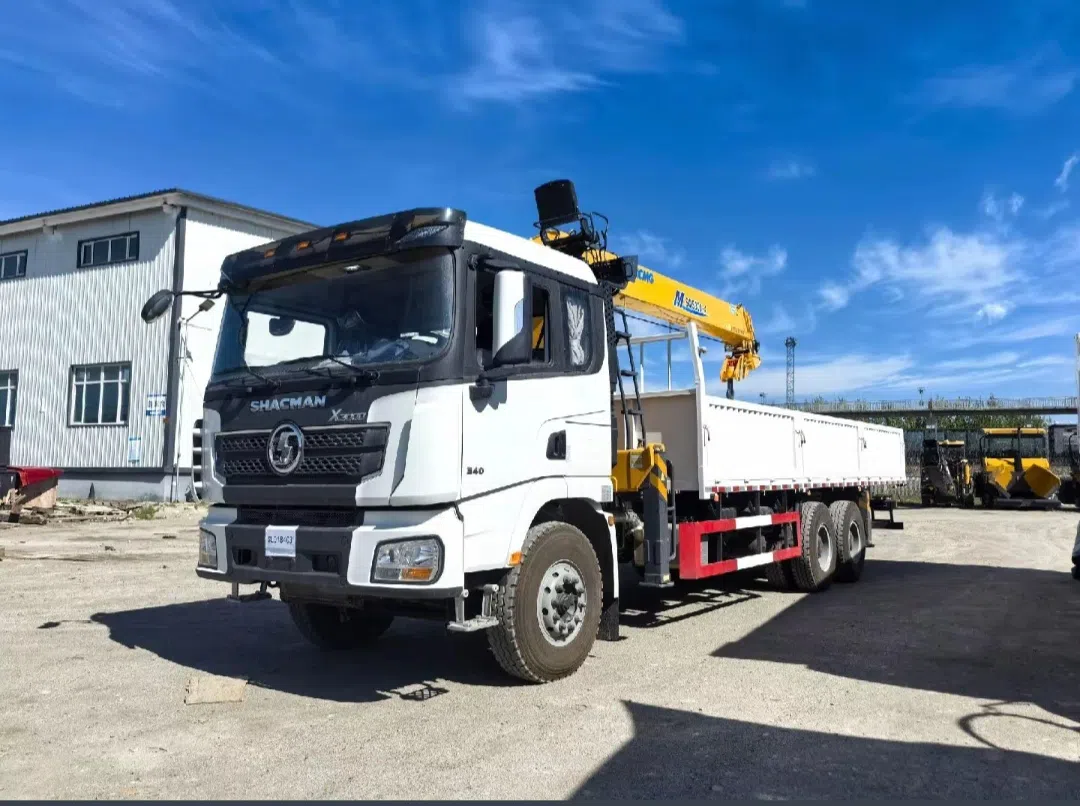

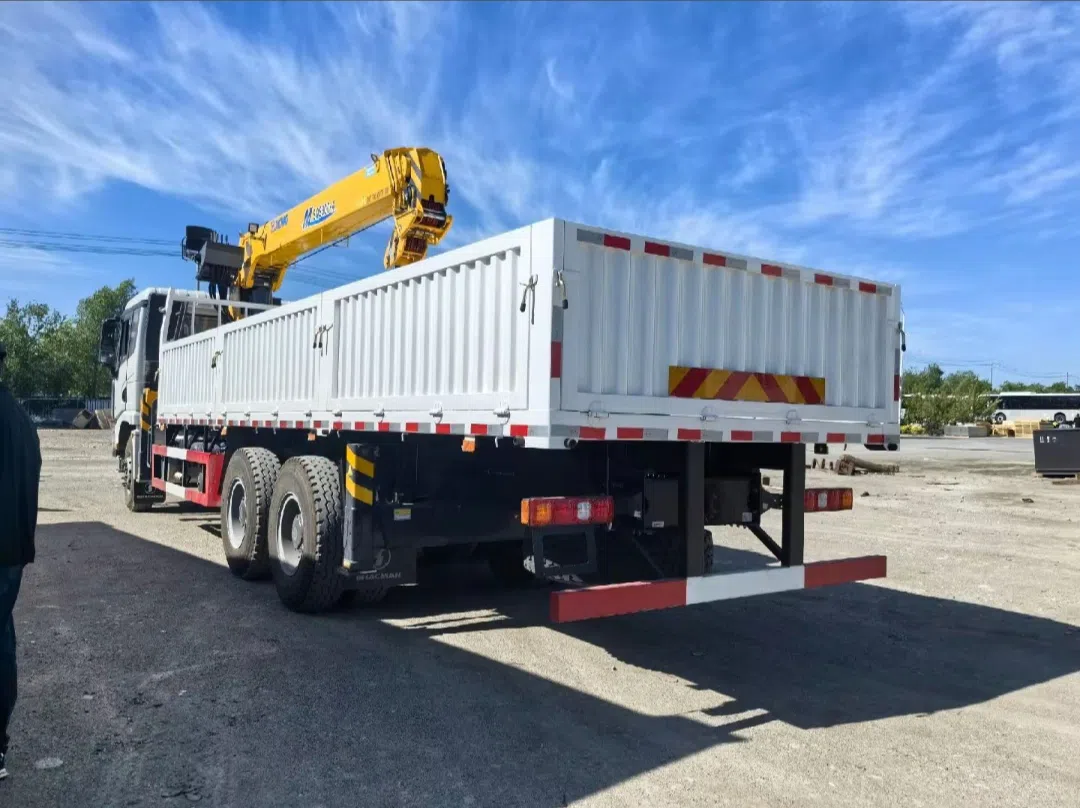

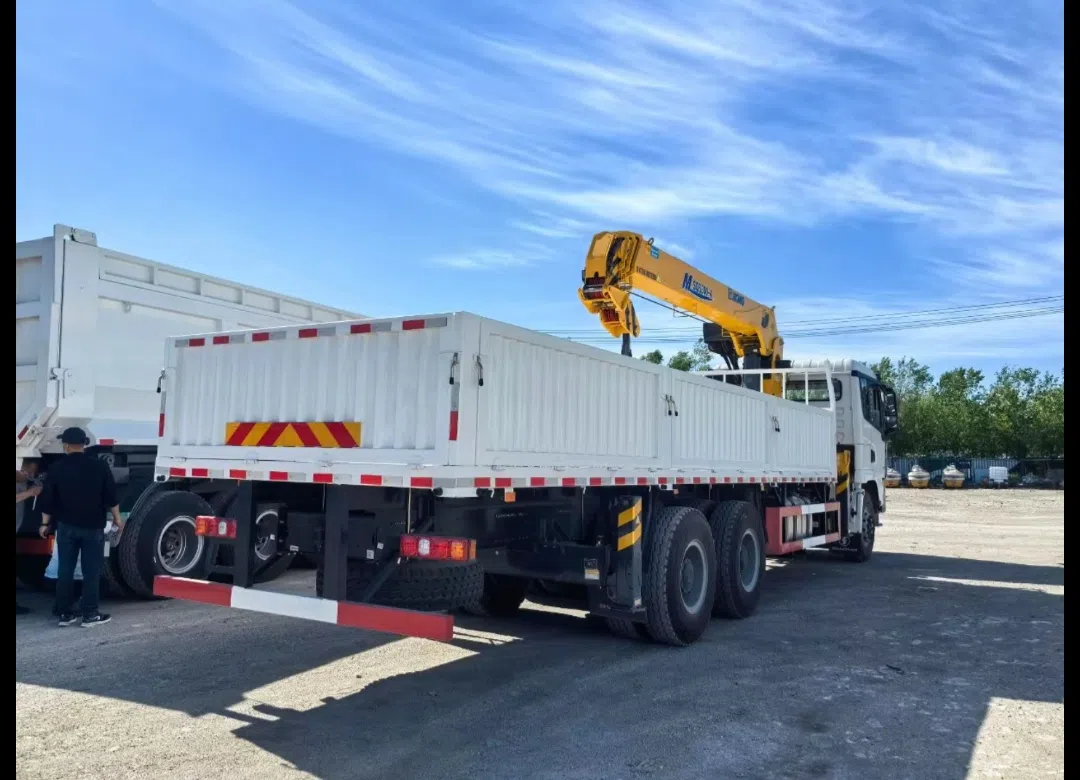

Description
A crane truck, also called truck mounted crane, integrates a cargo carrying chassis and a hydraulic crane arm. It can drive on public roads like an ordinary cargo truck, and carry out lifting operation at working sites. It is widely used for loading unloading construction steel, containers, heavy machinery parts, forest timber and mining equipment. Different crane tonnage from 5 ton up to 25 ton can be selected. This multi functional special vehicle greatly saves the cost for renting separate mobile cranes.
SHACMAN provides high load capacity chassis for truck mounted crane refitting. The X3000 series chassis has optimized frame strength to bear the torsion force generated during crane lifting. Our cooperative modification factory will install the hydraulic crane arm strictly according to mechanical stress calculation. Each finished crane truck will complete real load lifting test before delivery. SHACMAN branded crane trucks are popular among engineering contractors because of chassis durability.
SHACMAN crane truck’s competitive advantages are multi fold. The heavy duty chassis guarantees stability during high tonnage lifting. The hydraulic crane arm can extend multi sections. Operators can choose wireless remote control or manual lever control. Outrigger legs can stretch out for wider support area to prevent overturning. The rear cargo platform can still load goods when the crane arm is folded. One truck realizes both cargo transport and hoisting work. Most chassis spare parts are universal with other SHACMAN heavy trucks.
Configuration sheet

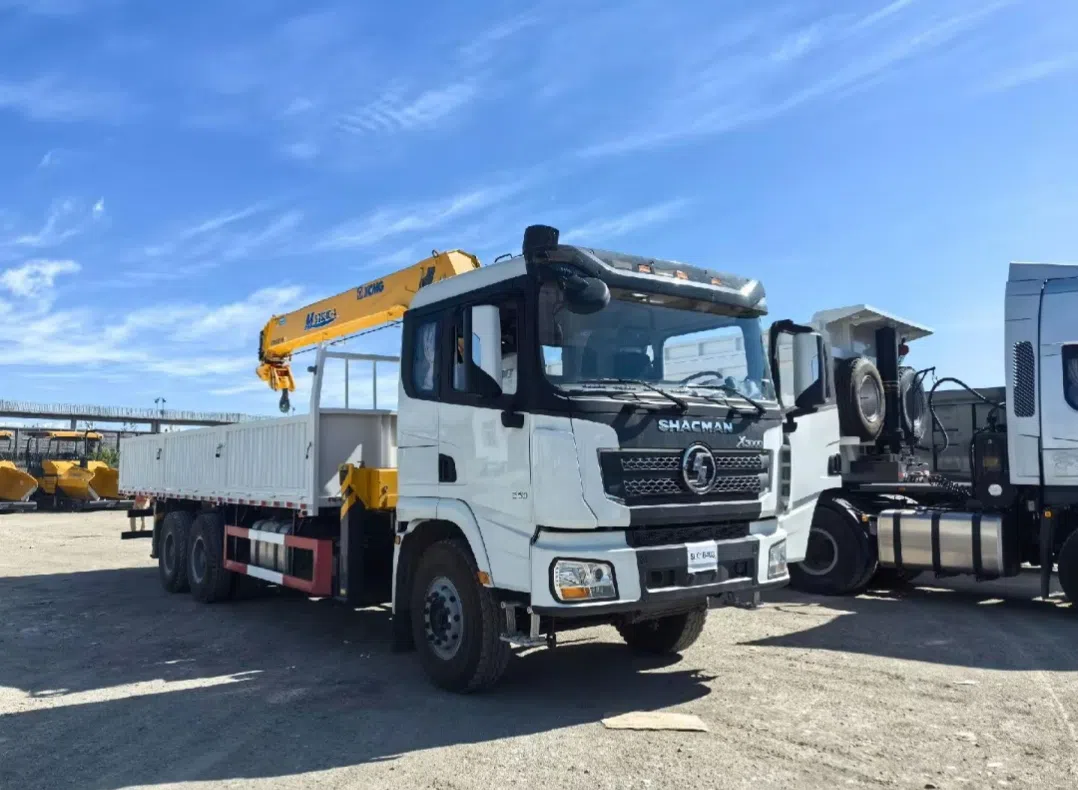

| Model: SHACMAN 6×4 Crane Truck (12Ton Truck Mounted Crane) | |
| CHASSIS SPECS | |
| Curb weight | 13200 kg |
| Total weight | 25000 kg |
| Drive style | 6×4 |
| Engine: | WEICHAI WP10.340E201,340HP, Euro II |
| Transmission: | FAST 10-speed manual |

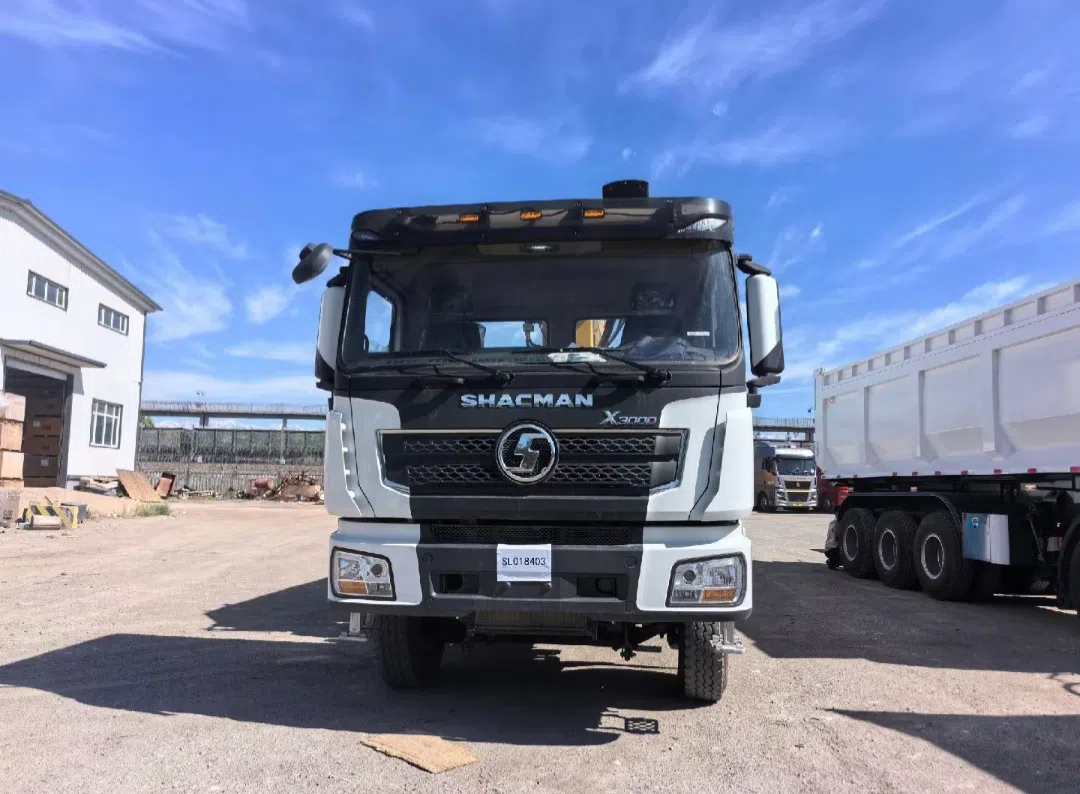

| Cabin: | X3000 sleeper cabin with A/C |
| Color: | White / Blue (optional) |
| Wheelbase: | 4200+1400 mm |
| Tire: | 12.00R20 18PR,10 pcs +1 spare tire |
| Front axle: | 7.5T |
| Rear axle: | 13T |
| Capacity of oil tank: | 300L fuel tank |
| Others | Air brake, ABS, PTO |
| CARRIAGE BODY SPECS | |
| Size and Specs: | Cargo box 7200×2450×600mm, 12 ton straight boom crane |
| Package | Nude packing |
Advantages
We have been special truck manufacturer for more than 32 years. We has professional German Kogel technology, combined with Shacman, to create first-class special vehicles, provide trucks owners with the best quality, best price, and the most timely after-sale professional services.
Shipping
We usually adopt shipping by bulk cargo, flat rack, and Roro ship. We will arrange the most cost-effective transportation mode according to the quantity of products. All trucks will be polished with wax before shipping. We guarantee that all products have gone through strict inspection and are in good condition before shipment. We strive for 100% customer satisfaction on every sale we close.
Delivery time
20-40 working days after payment receipt confirmed (based on actual quantity).
Packing
Standard export packing, orcustomized packing as your request.
Professional goods shipping forwarder.
After-sales Service
1.12months or 100,000km for main parts (engine, axle, body and beam, etc).
2.Technical Support by phone Whatsapp or email around the clock.
3.Lifelong Parts Supports
4.Engineer available service oversea.
