Description：
Whether you're tackling large-scale mining projects, managing massive construction site workloads, or handling bulk cargo logistics under the toughest road conditions, the HOWO 8×4 dump truck is built for strength, stability, and high efficiency.
High-Power Engine Performance
Powered by a high-torque engine available up to 430 HP, this dump truck delivers exceptional climbing ability and smooth full-load starts. It performs reliably on rugged terrain and steep slopes, keeping your operations running without interruption.
Robust 8×4 Drive Configuration
The 8×4 drive system with multiple heavy-duty axles provides superior traction and load-bearing capacity, effortlessly handling sand, gravel, coal, and ore transportation in the most demanding environments.
Reinforced & Wear-Resistant Cargo Box
Constructed from high-strength, wear-resistant steel, the cargo box withstands severe impact and heavy abrasion. It is built for long-term durability under extreme loading conditions.
World-Class Hydraulic Lifting System (Optional HYVA)
Equipped with a premium hydraulic lifting system — with HYVA available as an option — it ensures rapid, safe, and efficient unloading, significantly boosting productivity and reducing cycle times.

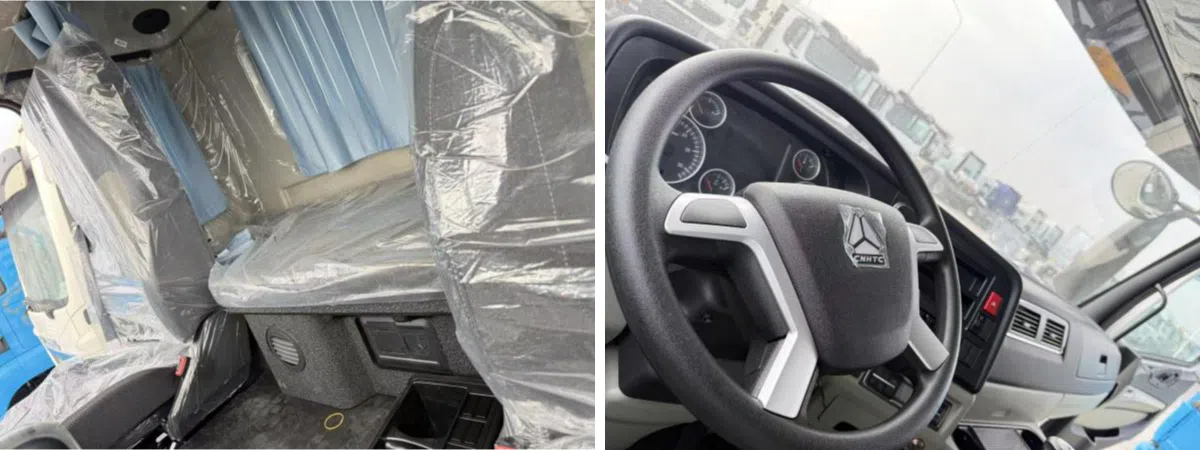

Driver-Friendly Cab Design
The spacious, ergonomically designed cab features optimized seating, advanced vibration dampening, and effective noise insulation to reduce driver fatigue during long shifts. Large front and side windows provide excellent visibility for maneuvering in tight job sites.
Heavy-Duty Frame & Suspension
Built on a heavy-duty, double-layer frame with robust suspensions, the HOWO 8×4 dump truck is engineered for maximum longevity and reliability in extreme working conditions.
Smart Fleet Management System
Integrated with intelligent vehicle systems, it enables real-time vehicle diagnostics, operational monitoring, and maintenance alerts — helping you reduce downtime, lower maintenance costs, and maximize uptime.
Why Choose the HOWO 8×4 Dump Truck?
It combines immense power, unwavering durability, and smart technology. Whether you need a mining dump truck, construction hauler, or all-terrain logistics solution, the HOWO 8×4 is your ultimate partner for heavy-duty transportation.
Configuration sheet：
| Model: ZZ3317V3567B1 | |
| CHASSIS SPECS | |
| Curb weight | 14,350kg |
| Total weight | 31,000 kg (GVW) |
| Drive style | 8×4 |
| Engine: | WP12S400E201, 336/340/371/400/420HP, Euro II |
| Transmission: | HW19710, 10 forward & 2 reverse speeds, with PTO |
| Cabin: | HW76, with one sleeper and A/C |
| Color: | Standard ( e.g. White, Red) |
| Wheelbase: | 1800+3500+1350 / 1800+3800+1350 mm |
| Tire: | 12.00R20/12.00R24/13R22.5, radial (12+1) |
| Front axle: | VGD95, 9.5T capacity |
| Rear axle: | MCX16ZG, 16T capacity double-reduction, ratio ~5.73 |
| Capacity of oil tank: | 400L |
| Others | / |
| CARRIAGE BODY SPECS | |
| Size and Specs: | 7300X2300X1700mm, 28.54Cubic Meters Thickness: Floor 8 mm, Side 6 mm Front Lifting System |
| Package | Wax |
Advantages:
We have been special truck manufacturer for more than 32 years. We has professional German Kogel technology, combined with Sinotruk, to create first-class special vehicles, provide trucks owners with the best quality, best price, and the most timely after-sale professional services.
Shipping:
We usually adopt shipping by bulk cargo, flat rack, and Roro ship. We will arrange the most cost-effective transportation mode according to the quantity of products. All trucks will be polished with wax before shipping. We guarantee that all products have gone through strict inspection and are in good condition before shipment. We strive for 100% customer satisfaction on every sale we close.
Delivery time:
20-40 working days after payment receipt confirmed (based on actual quantity).
Packing:
Standard export packing, orcustomized packing as your request.
Professional goods shipping forwarder:
After-sales Service:
1.12months or 100,000km for main parts (engine, axle, body and beam, etc).
2.Technical Support by phone Whatsapp or email around the clock.
3.Lifelong Parts Supports
4.Engineer available service oversea.
