Description:
Anyone aiming for sustained success in long-distance transportation must boost operational efficiency and effectively cut operating costs.

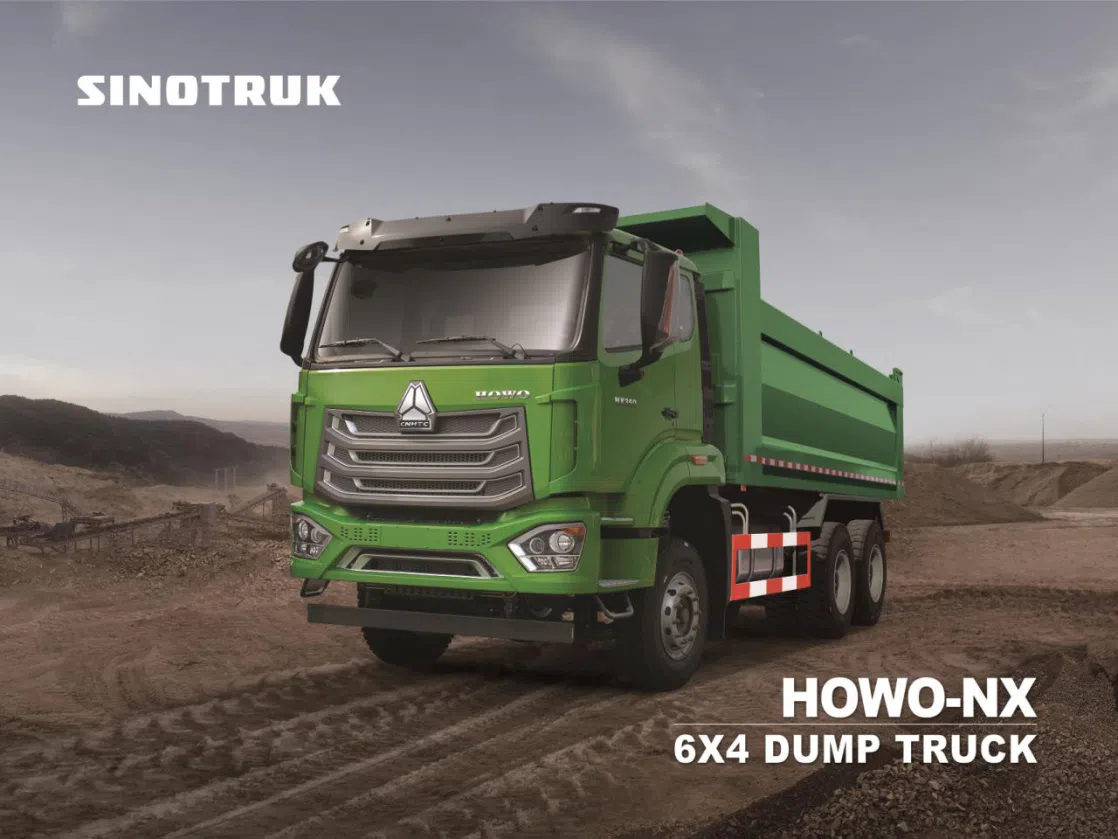

The HOWO NX series is tailor-made to meet such demands. Adopting cutting-edge technologies, it boasts excellent fuel economy, strong load-bearing capacity and superb body matching performance. Its cab has been upgraded to top-tier standards, integrating advanced technology and mature design concepts from MAN and Benz. We firmly believe that HOWO NX series vehicles can fully satisfy your transportation needs, help you hit profit goals, and elevate your business to new heights with our well-matched supporting services.
Equipped with multiple mature and reliable engine options, HOWO dump trucks offer power outputs ranging from 371HP to 430HP. Fitted with HW series transmissions that adopt world-class design principles, the main gearbox applies double countershaft structure while the auxiliary gearbox uses planetary gear structure. This design simplifies power take-off and gear shifting operations, and greatly improves overall vehicle reliability and service.
Configuration sheet:
| Model: ZZ3257V384JB1/ZZ3257V384JB1R | |
| CHASSIS SPECS | |
| Curb weight | 15200kgs |
| Total weight | 40000kgs |
| Drive style | Left/Right hand drive |
| Engine: | WD615.47, 371HP, with EURO 2 engine emission, 9.726L, 6 cylinders In-line |
| Transmission: | HW19710+HW50direct-drivePTO；(10 forward 2 reverse) |
| Cabin: | Howo H77L Cab, with A/C |
| Color: | White |
| Wheelbase: | 3400/3600/3800/4000mm |
| Tire: | 12.00R20/12.00R24/13R22.5 tyres(10+1) |
| Front axle: | 9.5T(drum) |
| Rear axle: | 16T(drum) |
| Capacity of oil tank: | 300L/400L |
| Others | Power steer，Exhaust brake and spring brake |
| CARRIAGE BODY SPECS | |
| Size and Specs: | 5200 × 2300 × 1500mm/5400 × 2300 ×1500mm/5600 × 2300 ×1500mm/5800 × 2300 ×1500mm , rectangular box, bottom 8 side 6mm ， rear container door and no side door |
| Package | Wax |
Advantages:
We have been special truck manufacturer for more than 32 years. We has professional German Kogel technology, combined with Sinotruk, to create first-class special vehicles, provide trucks owners with the best quality, best price, and the most timely after-sale professional services.
Shipping:
We usually adopt shipping by bulk cargo, flat rack, and Roro ship. We will arrange the most cost-effective transportation mode according to the quantity of products. All trucks will be polished with wax before shipping. We guarantee that all products have gone through strict inspection and are in good condition before shipment. We strive for 100% customer satisfaction on every sale we close.
Delivery time:20-40 working days after payment receipt confirmed (based on actual quantity).
Standard export packing, orcustomized packing as your request.
Professional goods shipping forwarder.
After-sales Service:
1.12months or 100,000km for main parts (engine, axle, body and beam, etc).
2.Technical Support by phone Whatsapp or email around the clock.
3.Lifelong Parts Supports
4.Engineer available service oversea.
