Description

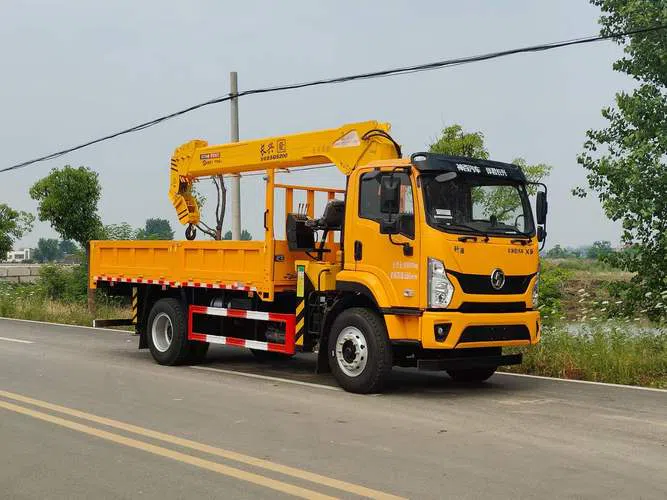

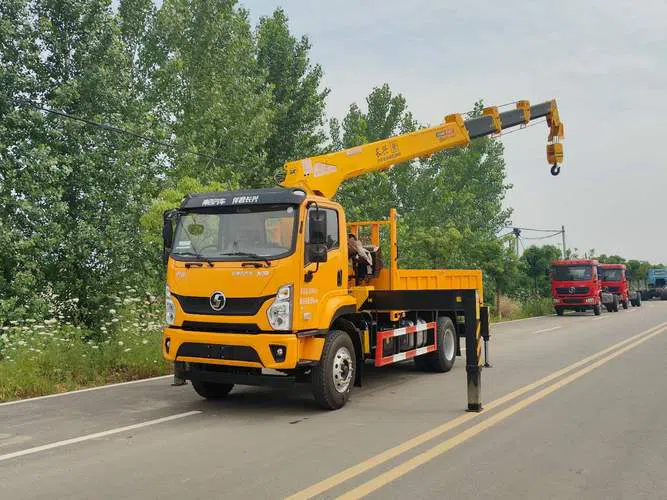

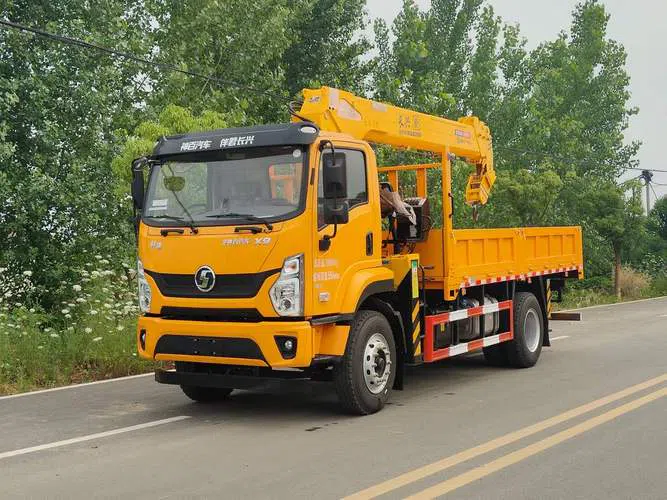

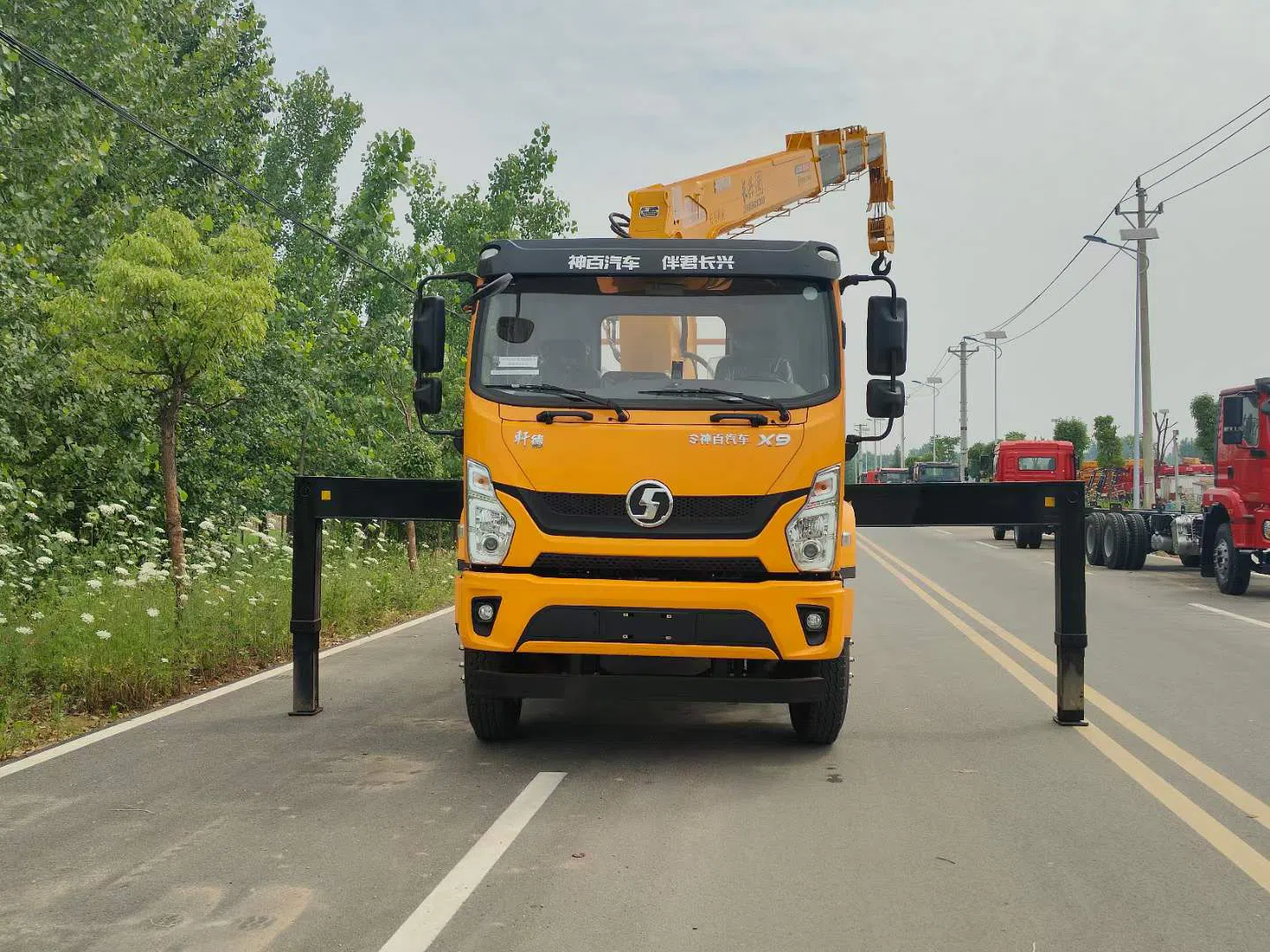

SHACMAN Light truck X9 4×2 crane truck (truck mounted crane / lorry crane) represents multi functional engineering vehicle integrating flat bed cargo transport and hydraulic hoisting capacity together. Equipped with 5 ton rating 360 degree continuously rotary hydraulic crane mounted upon high strength flat bed platform, one single vehicle can accomplish both cargo material conveyance and on site hoisting loading unloading tasks, removing dependence on separate mobile crane equipment. This vehicle serves wide range application scenarios including construction material distribution, power utility equipment installation, farm machinery relocation and small project equipment handling. Gross vehicle weight is 8200 kg. YUCHAI YCY24160 60 160 horsepower diesel engine matches 6 speed manual transmission; power take off provides power source for hydraulic crane assembly. X9 single row cabin supports optional air conditioning installation. Lashing hooks are pre reserved on flat bed surface for fast cargo fixing operation.
SHACMAN supplies optimized structure X9 light truck chassis specially adapted for truck mounted crane modification. Chassis frame receives local reinforcement processing to counter bending torque generated during crane hoisting working cycles. Cooperating modification factories strictly control crane mount base welding quality, hydraulic circuit layout standard and complete vehicle safety load testing procedure. SHACMAN X9 crane truck products are popular among engineering sub contractors and utility maintenance teams across African countries. The brand provides overseas end users with operation and maintenance technical guidance, and maintains sufficient inventory supply for chassis parts and hydraulic crane consumable accessories.
Configuration sheet
| Model: SHACMAN Light truck X9 Crane Truck | |
| CHASSIS SPECS | |
| Curb weight | 3550 kg |
| Total weight | 8200 kg |
| Drive style | 4×2 |
| Engine: | YUCHAI YCY24160-60 diesel engine,160HP |
| Transmission: | 6-speed manual gearbox |
| Cabin: | X9 single row cab, A/C optional |
| Color: | White / Blue |
| Wheelbase: | 4200 mm |
| Tire: | 8.25R16 radial tyre, 6 pcs |
| Front axle: | 3.5T |
| Rear axle: | 6.8T |
| Capacity of oil tank: | 140L |
| Others | Power steering |
| CARRIAGE BODY SPECS | |
| Size and Specs: | 4500×2100mm flatbed + 5Ton 360° rotary hydraulic crane, cargo lashing hooks |
| Package | Crane boom fixed, chassis anti-rust coating |
Advantages
We have been special truck manufacturer for more than 32 years. We has professional German Kogel technology, combined with Shacman, to create first-class special vehicles, provide trucks owners with the best quality, best price, and the most timely after-sale professional services.
Shipping
We usually adopt shipping by bulk cargo, flat rack, and Roro ship. We will arrange the most cost-effective transportation mode according to the quantity of products. All trucks will be polished with wax before shipping. We guarantee that all products have gone through strict inspection and are in good condition before shipment. We strive for 100% customer satisfaction on every sale we close.
Delivery time
20-40 working days after payment receipt confirmed (based on actual quantity).
Packing
Standard export packing, orcustomized packing as your request.
Professional goods shipping forwarder.
After-sales Service
1.12months or 100,000km for main parts (engine, axle, body and beam, etc).
2.Technical Support by phone Whatsapp or email around the clock.
3.Lifelong Parts Supports
4.Engineer available service oversea.
Cooperative Commemoration
