Description

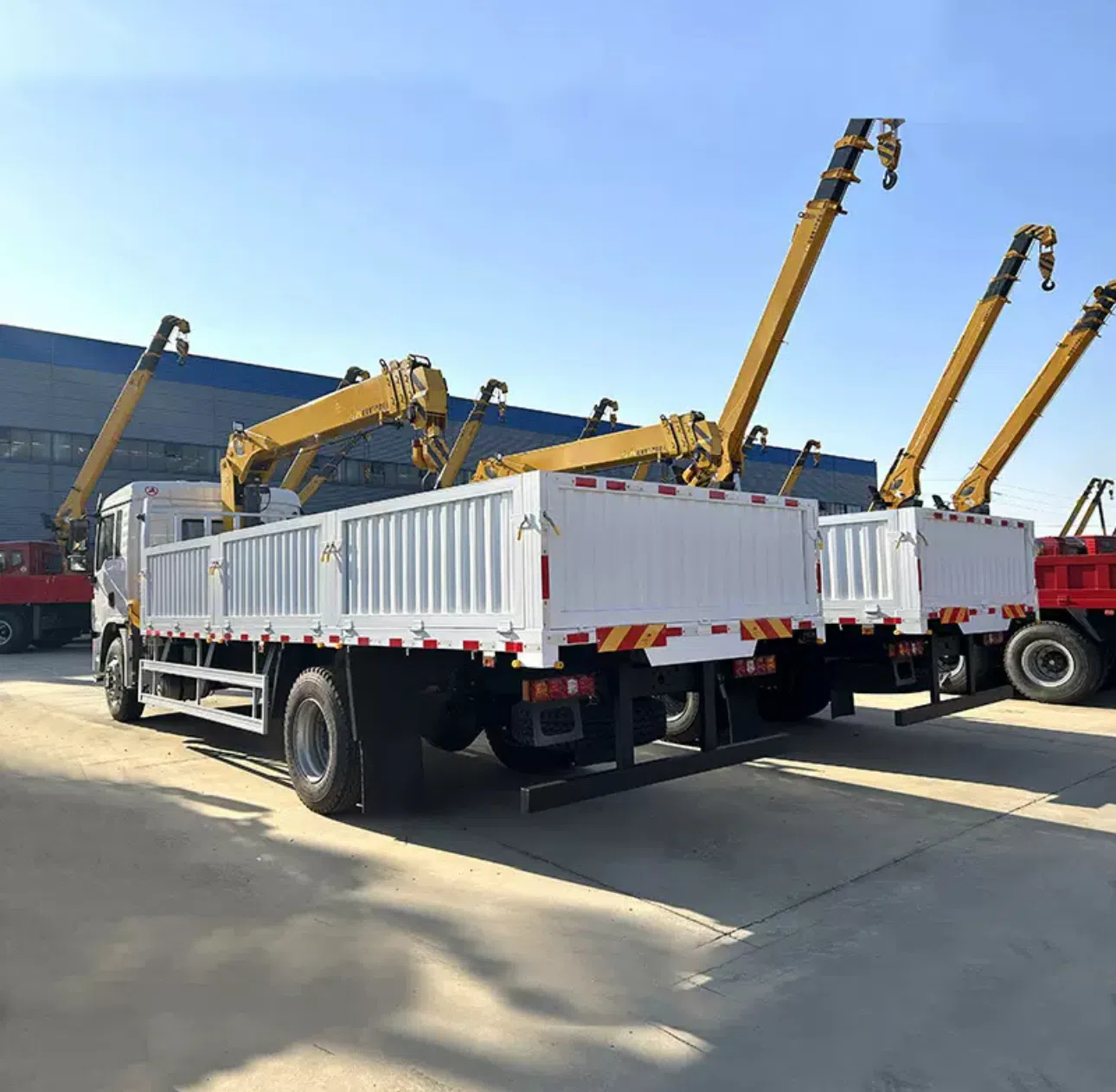

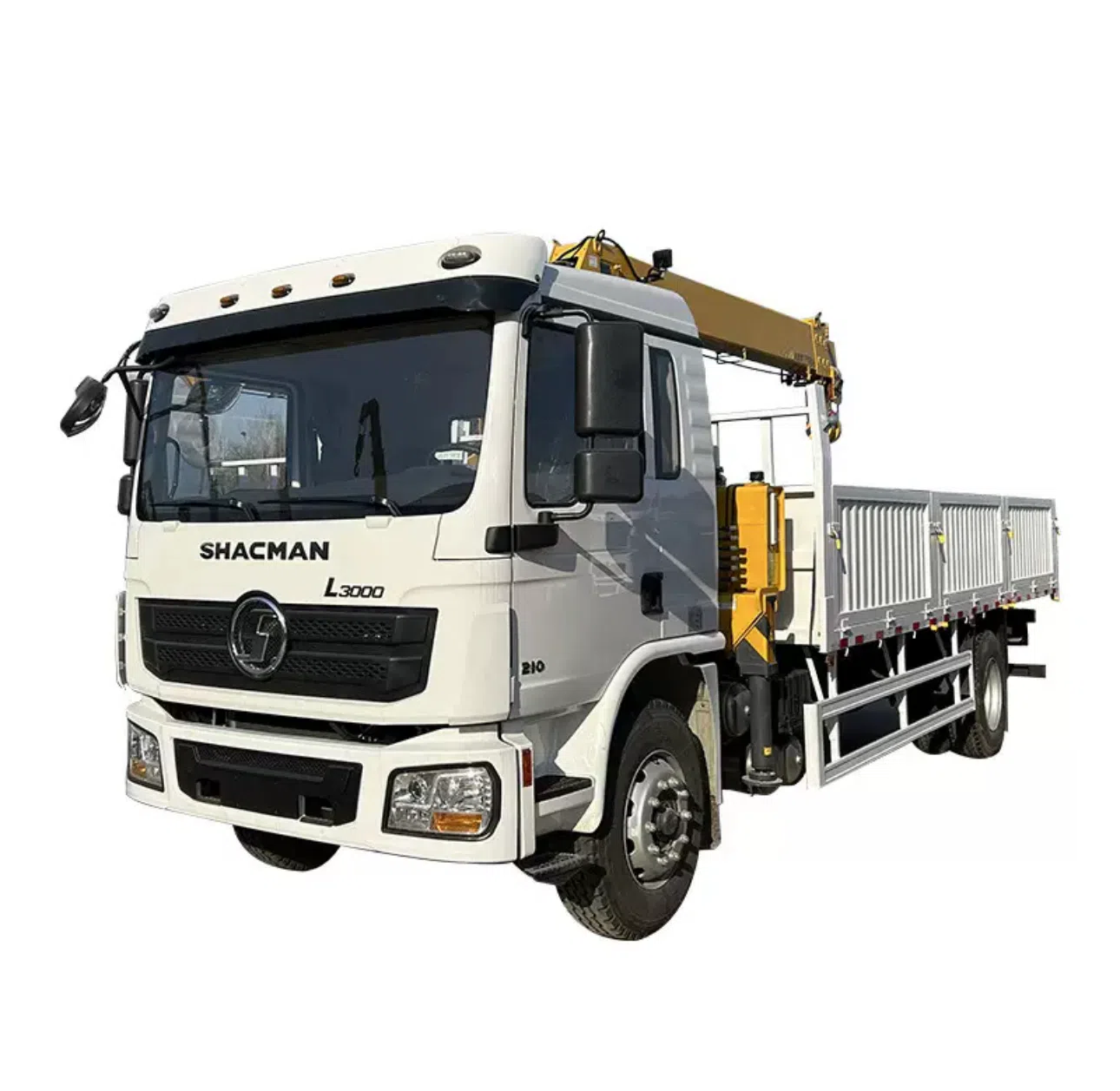

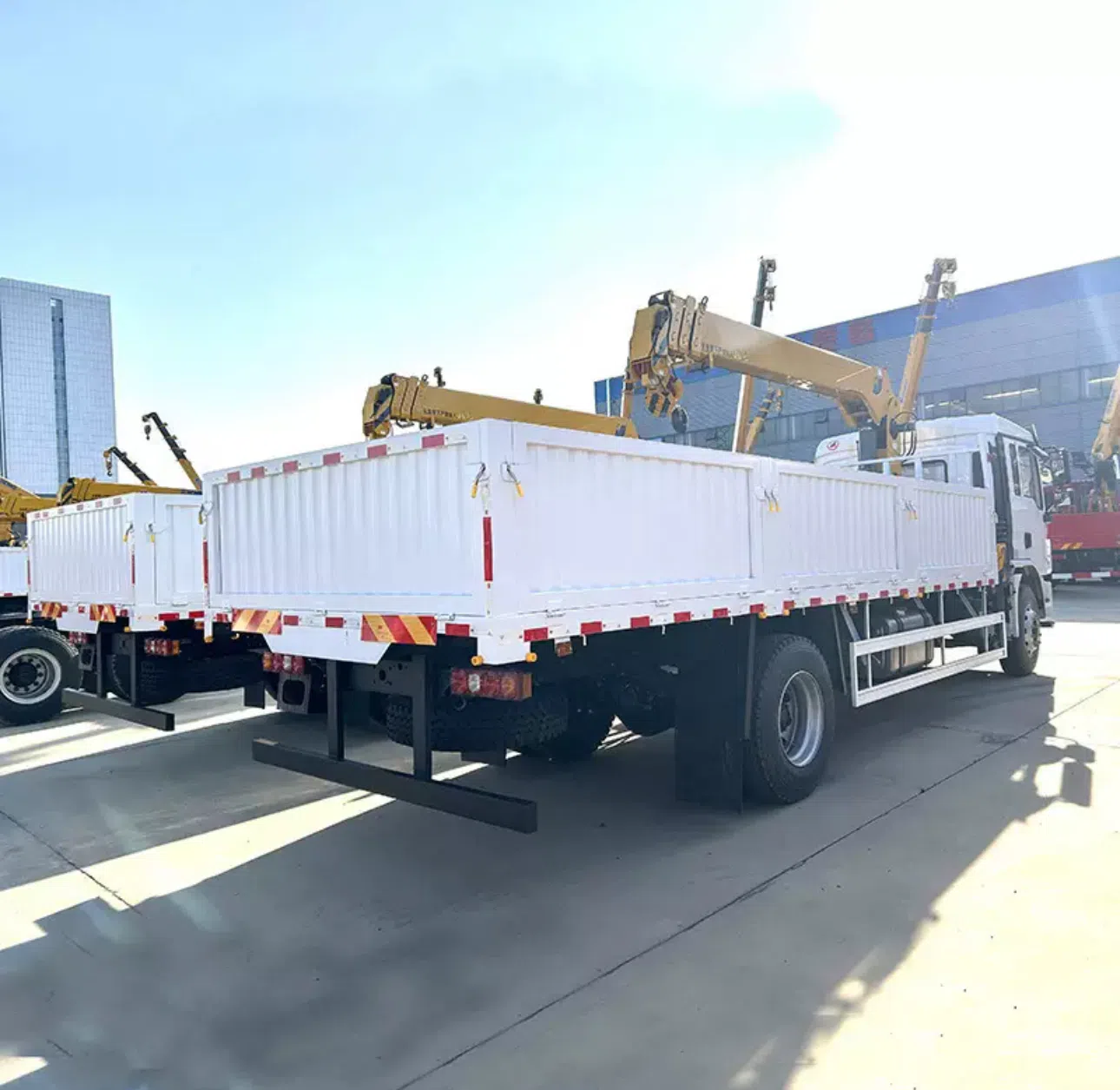

This truck delivers excellent handling and fast job-site mobility. Its crane features an extendable boom and multi-directional rotation, which boosts lifting capacity and enables heavier loads, greatly improving overall work productivity.
I. Easy to Operate, Flexible to Use (Control Benefits)
Multiple operating modes: Equipped with both upper-position controls and a wireless remote, it offers a broader view and a more adaptable lifting range, suiting a wide variety of work conditions.
Quick power on/off: Supports one-button start and stop from the lower-position control, which lowers running costs and cuts unnecessary fuel use while idling.
Obstruction-free operation: The cab and cargo body can be detached when needed, removing the limits of the working radius and allowing the machine to handle more challenging site environments.
II. Powerful Lifting, Strong Output (Performance Benefits)
Trusted crane brand: The mounted crane comes from a well-known domestic manufacturer, ensuring high lifting capacity and dependable quality.
Rapid operation: Quick lifting and boom extension actions shorten hoisting time significantly and raise working efficiency.
III. Stronger Materials, Higher Payload (Load-Carrying Benefits)
Reinforced cargo box: The cargo box is built from Shanghai Baosteel BS700 high-strength steel plate, providing superior material strength and greater carrying capacity to handle heavy-duty transport tasks.
IV. Quality Details, Safe and Long-Lasting (Safety and Reliability)
Smart temperature control: An intelligent temperature-controlled radiator helps prevent hydraulic oil from overheating during prolonged continuous use, keeping the system running smoothly.
Travel safety: A manual pin locking device on the crane slewing platform keeps the crane firmly secured during transport on rough roads, preventing accidental movement or tipping.
Configuration sheet
| Model: SHACMAN L3000 CRANE TRUCK | |
| CHASSIS SPECS | |
| Curb weight | 11,500 kg |
| Total weight | 18,000 kg |
| Drive style | 4×2 |
| Engine: | Weichai WP6.220E50 / WP6H245E61 (220–245 hp, Euro V / Euro VI) |
| Transmission: | Fast 8-speed manual (e.g., 8JS85E-C / 8JS118TB-B) |
| Cabin: | L3000 half-row cab |
| Color: | Red cab with yellow crane |
| Wheelbase: | 5,000 mm / 5,100 mm |
| Tire: | 10.00R20 steel wire tire (6 tires) |
| Front axle: | HANDE 4.8 t disc brake front axle |
| Rear axle: | HANDE MAN 10 t single-stage reduction axle |
| Capacity of oil tank: | 200 L (iron/aluminum) |
| Others | Frame: 250–280 mm (7+4+6) three-layer reinforced; ABS; driving recorder; air conditioning |
| CARRIAGE BODY SPECS | |
| Size and Specs: | Cargo box: 5,650 × 2,450 × 600 mm; Overall vehicle: 9,000 × 2,550 × 3,900 mm; Crane: 8-ton straight boom (e.g., SPS20000), max lifting height 20.1 m, max working radius 18.1 m |
| Package | Wax |
Advantages
We have been special truck manufacturer for more than 32 years. We has professional German Kogel technology, combined with Shacman, to create first-class special vehicles, provide trucks owners with the best quality, best price, and the most timely after-sale professional services.
Shipping
We usually adopt shipping by bulk cargo, flat rack, and Roro ship. We will arrange the most cost-effective transportation mode according to the quantity of products. All trucks will be polished with wax before shipping. We guarantee that all products have gone through strict inspection and are in good condition before shipment. We strive for 100% customer satisfaction on every sale we close.
Delivery time
20-40 working days after payment receipt confirmed (based on actual quantity).
Packing
Standard export packing, orcustomized packing as your request.
Professional goods shipping forwarder.
After-sales Service
1.12months or 100,000km for main parts (engine, axle, body and beam, etc).
2.Technical Support by phone Whatsapp or email around the clock.
3.Lifelong Parts Supports
4.Engineer available service oversea.
