Description:

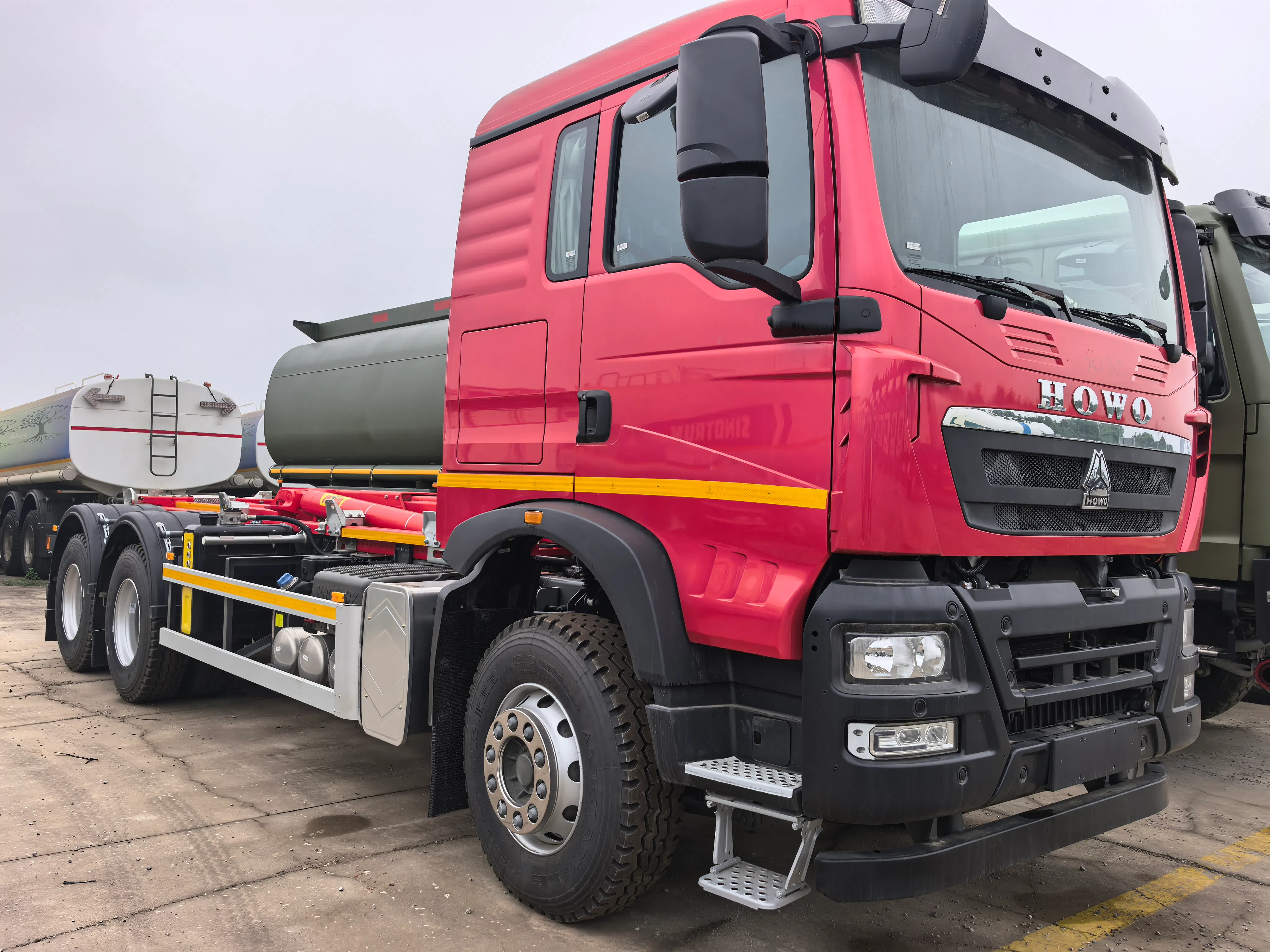

At urban waste transfer stations, large residential communities, commercial plazas, and industrial parks, the HOWO TX 6*4 Hook arm garbage truck operates efficiently every day, quickly completing the hoisting, transfer, and unloading of garbage containers. It is primarily used for the collection and transportation of municipal solid waste and commercial waste, and is also suitable for non-toxic, non-corrosive, and non-radioactive industrial waste. One truck can be equipped with multiple containers for reuse, significantly improving operational efficiency..

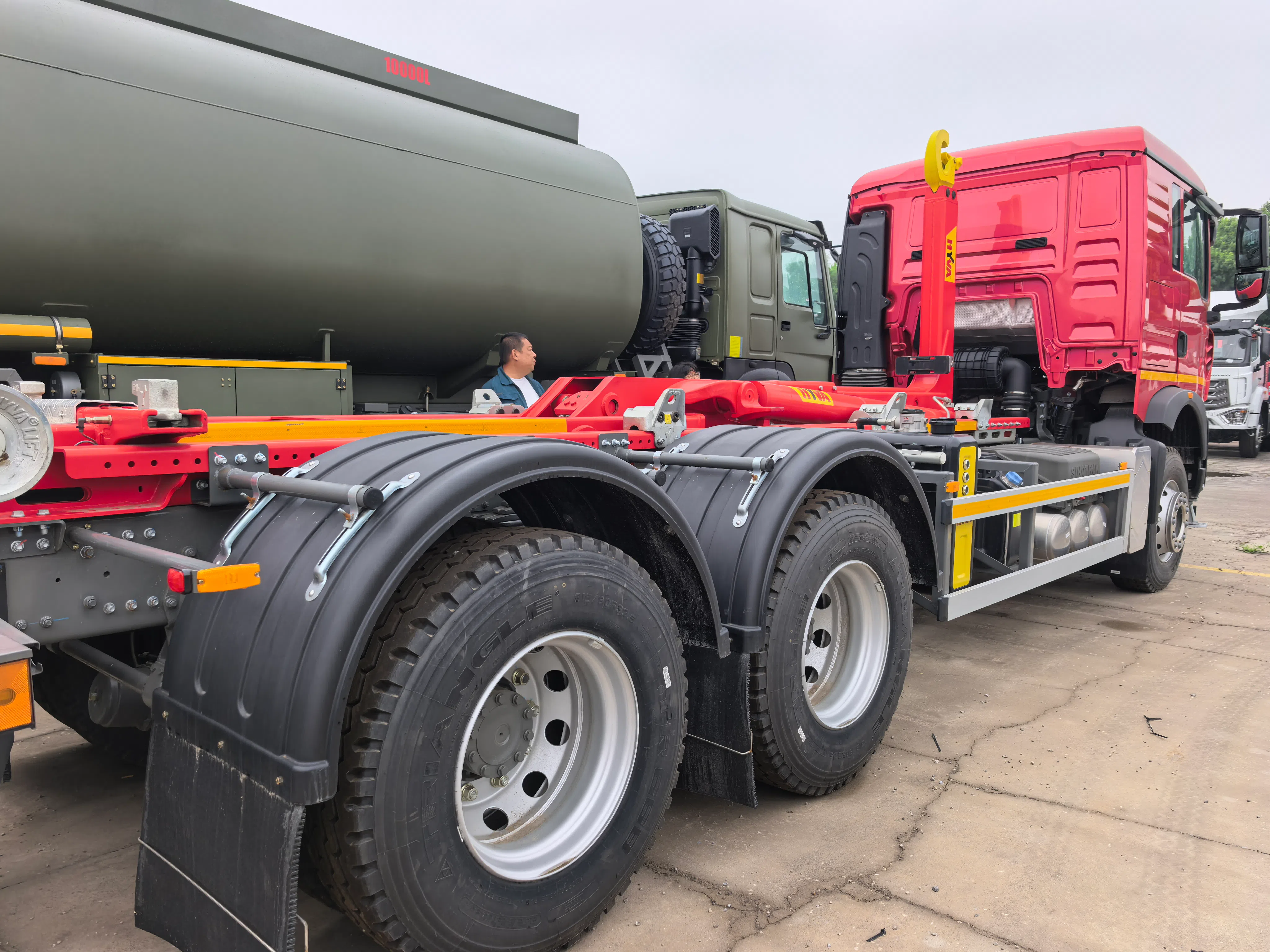

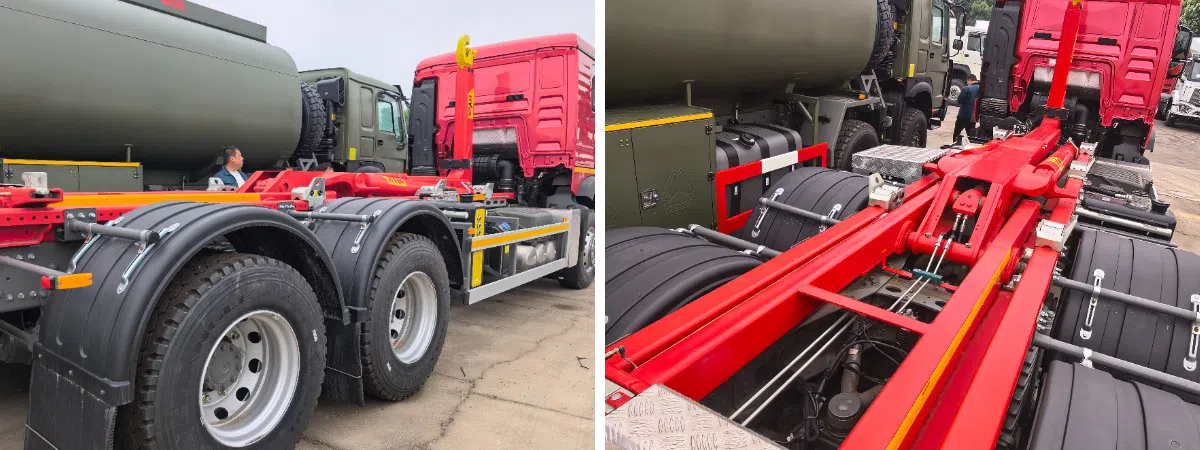

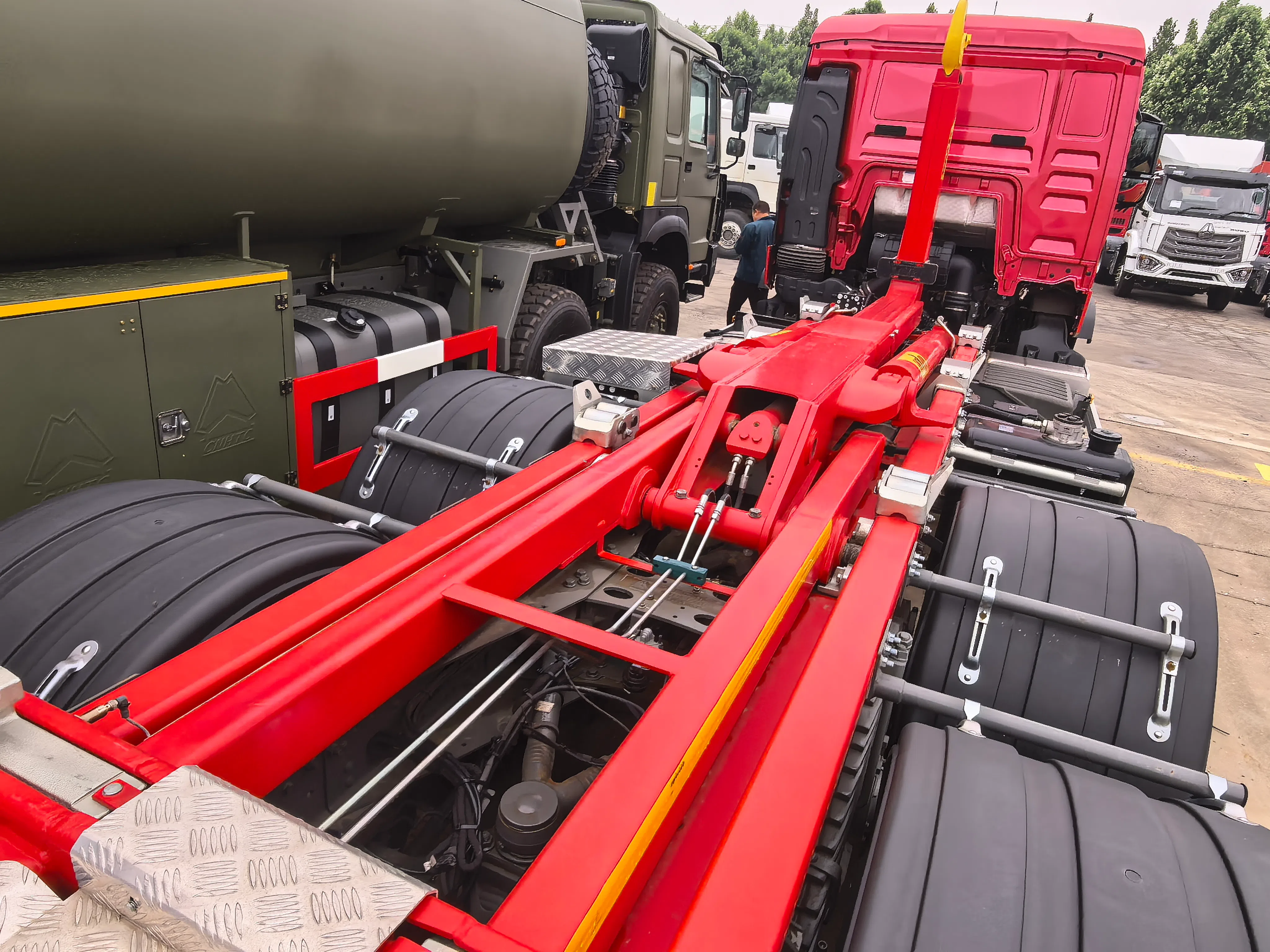

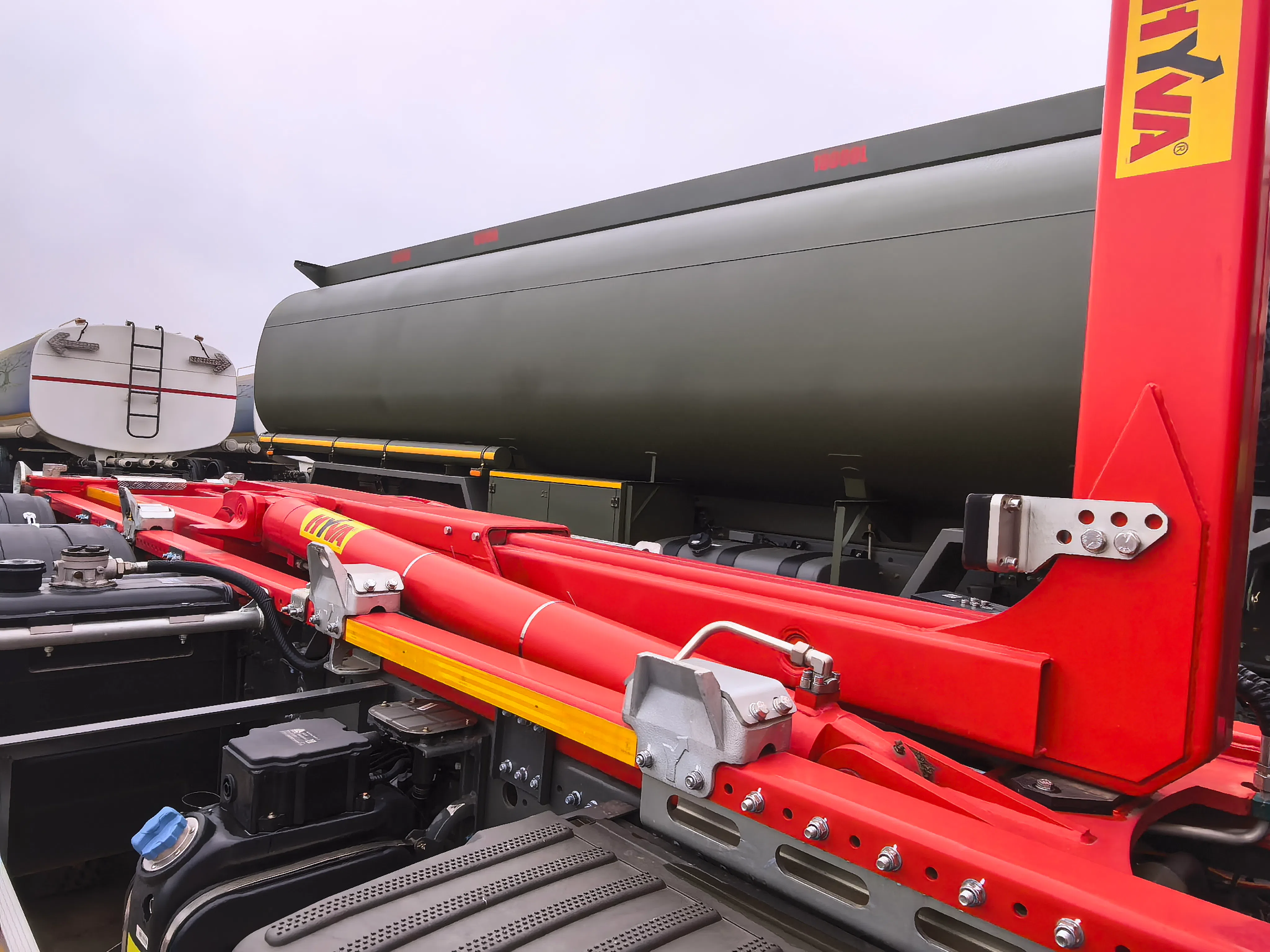

The lifting capacity of the hook arm assembly ranges from 14 to 26 tons, and it comes standard with a HYVA high-strength hook arm, equipped with a mechanical gravity safety device and a lateral locking system. The entire vehicle features a standard rear roller support structure to distribute the load when lifting heavy-duty containers, preventing the chassis from tilting and ensuring smooth and safe loading and unloading. It also comes standard with a hydraulically operated rear door, which can be controlled from the cab or the side of the vehicle, enabling quick locking and sealing of the garbage container for unloading.
Configuration sheet:
| Model: ZZ1257N464GB1 | |
| CHASSIS SPECS | |
| Curb weight | 15200kgs |
| Total weight | 40000kgs |
| Drive style | 6×4 |
| Engine: | WD615.47, 371HP, Euro Ⅱ |
| Transmission: | HW19710, 10F&2R |
| Cabin: | TX-F, single berth with A/C |
| Color: | White |
| Wheelbase: | 4600mm |
| Tire: | 12.00R20 |
| Front axle: | VGD95 |
| Rear axle: | MCX16ZG |
| Capacity of oil tank: | 300L |
| Others | Double-layer chassis (8+8/300), TX PRO(new interior) |
| UPPER SPECS | |
| Size and Specs: | 14~26TONS, HYVA hook arm, a well-known brand. Compatible with various types of trash cans, which greatly improves vehicle utilization and operational efficiency, and reduces equipment procurement and maintenance costs. |
| Package | Wax |
| There are options for engine,tire,wheelbase,capacity,etc.Please contact us for suitable configurations. | |
Advantages:
We have been special truck manufacturer for more than 32 years. We has professional German Kogel technology, combined with Sinotruk, to create first-class special vehicles, provide trucks owners with the best quality, best price, and the most timely after-sale professional services.
Shipping:
We usually adopt shipping by bulk cargo, flat rack, and Roro ship. We will arrange the most cost-effective transportation mode according to the quantity of products. All trucks will be polished with wax before shipping. We guarantee that all products have gone through strict inspection and are in good condition before shipment. We strive for 100% customer satisfaction on every sale we close.
Delivery time:
20-40 working days after payment receipt confirmed (based on actual quantity).
Packing:
Standard export packing, orcustomized packing as your request.
Professional goods shipping forwarder:
After-sales Service:
1.12months or 100,000km for main parts (engine, axle, body and beam, etc).
2.Technical Support by phone Whatsapp or email around the clock.
3.Lifelong Parts Supports
4.Engineer available service oversea.
