Description

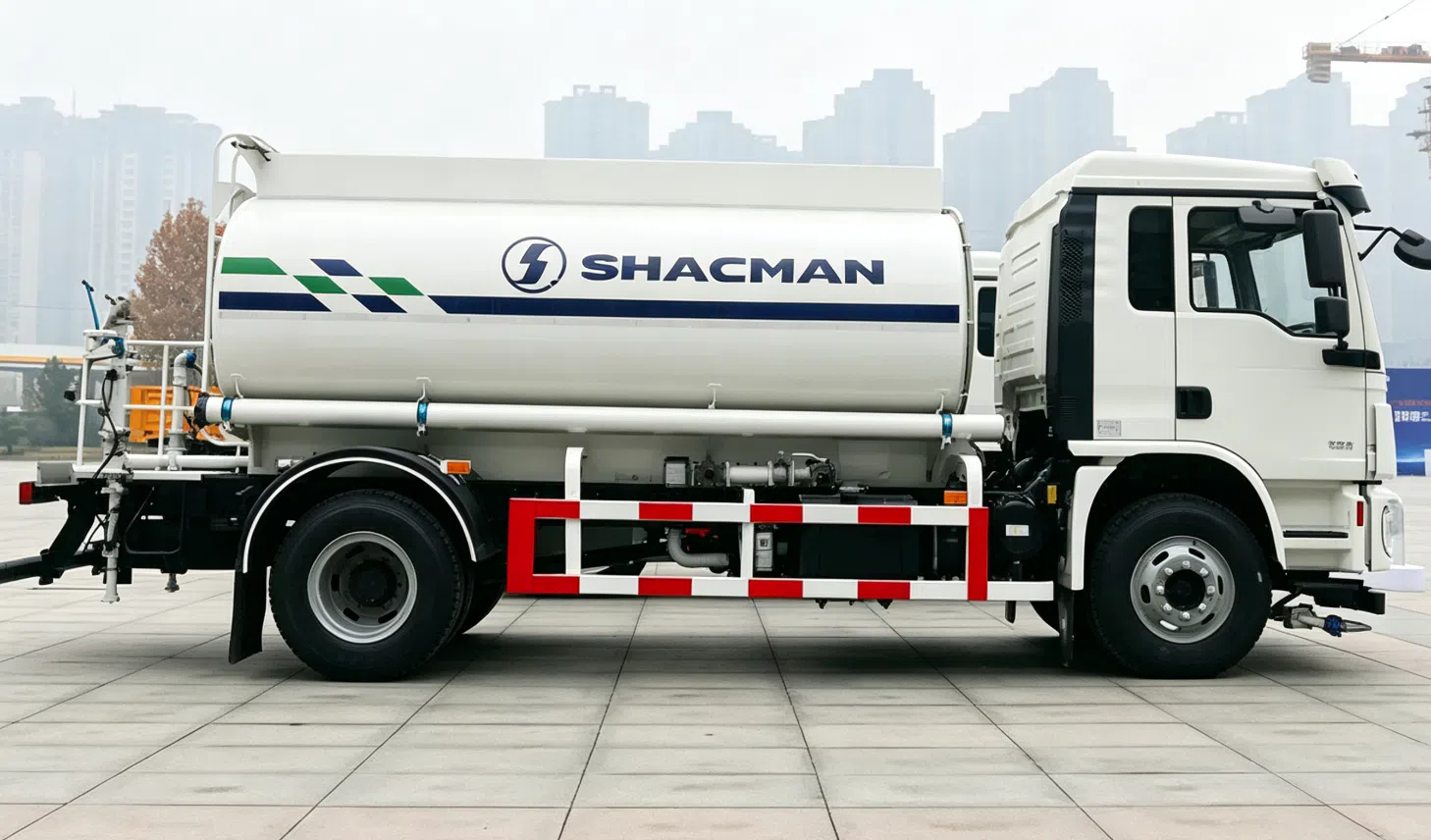

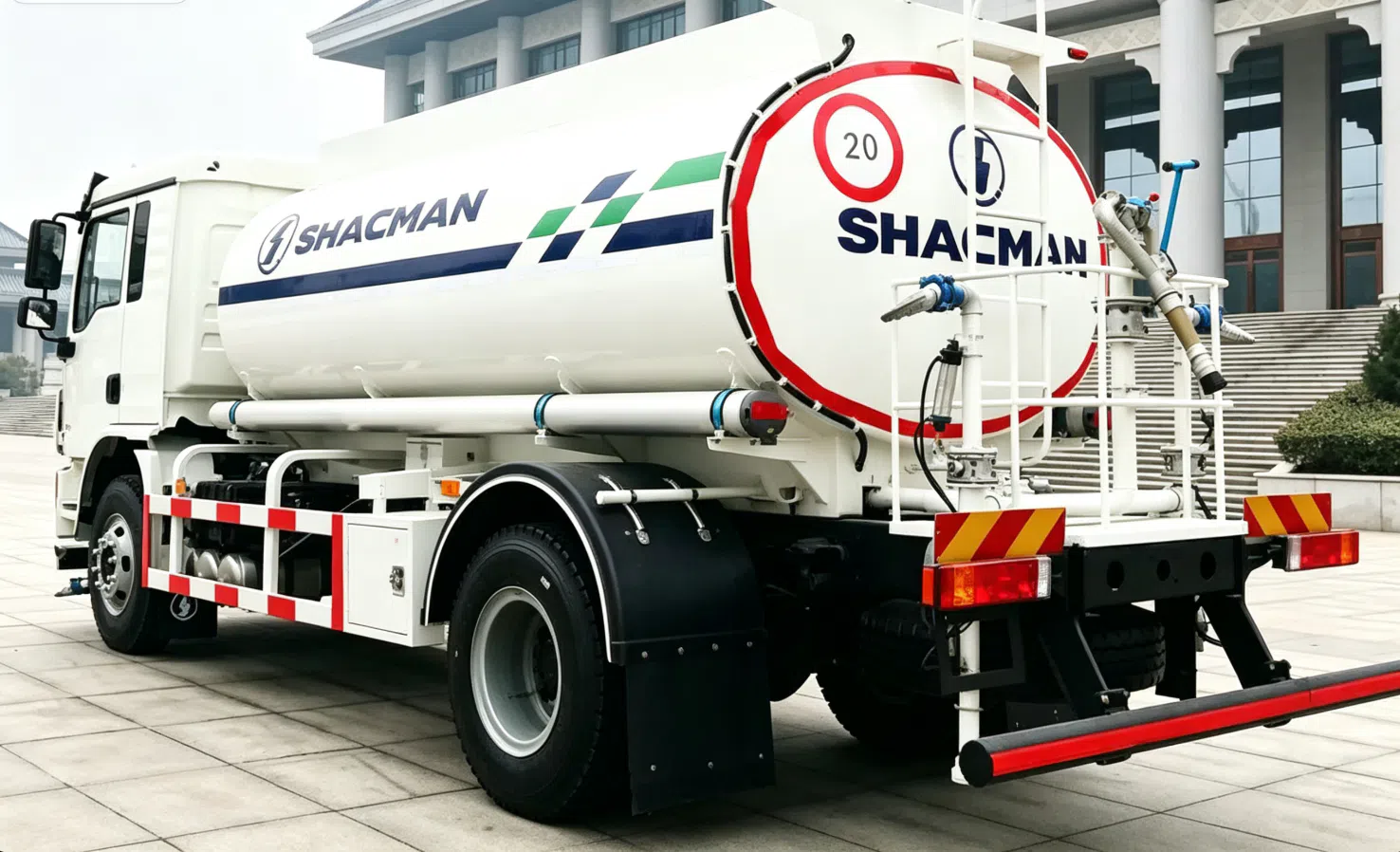

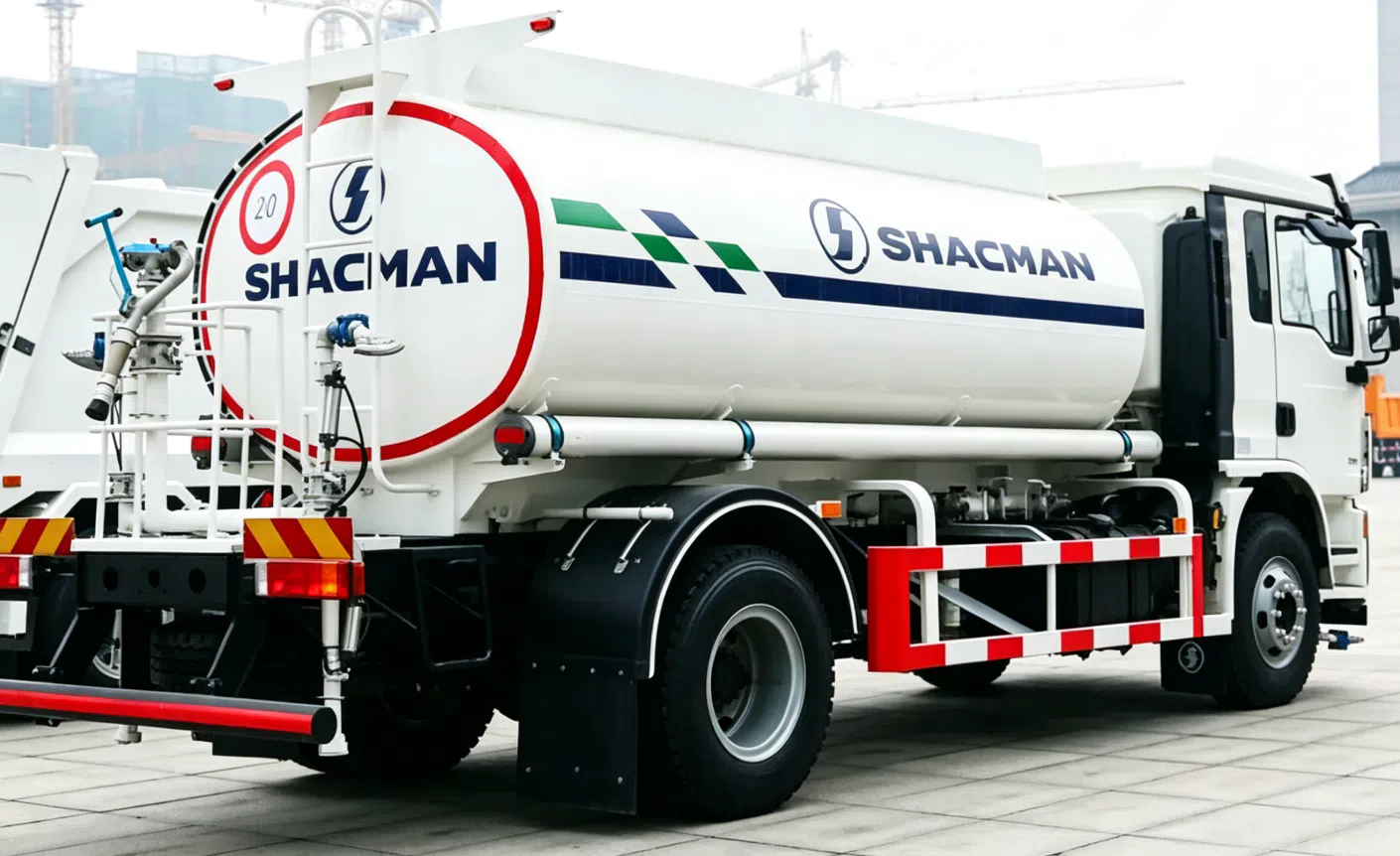

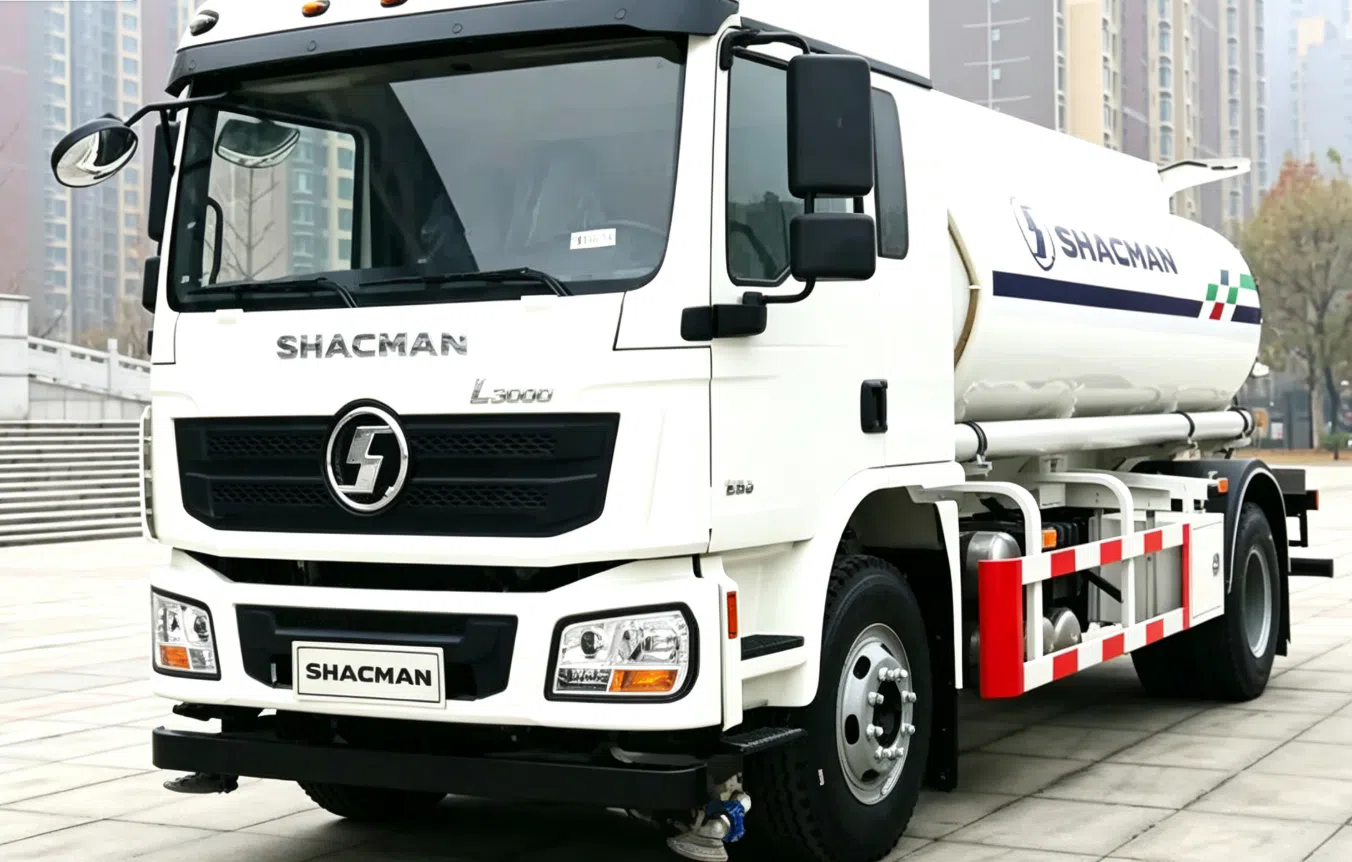

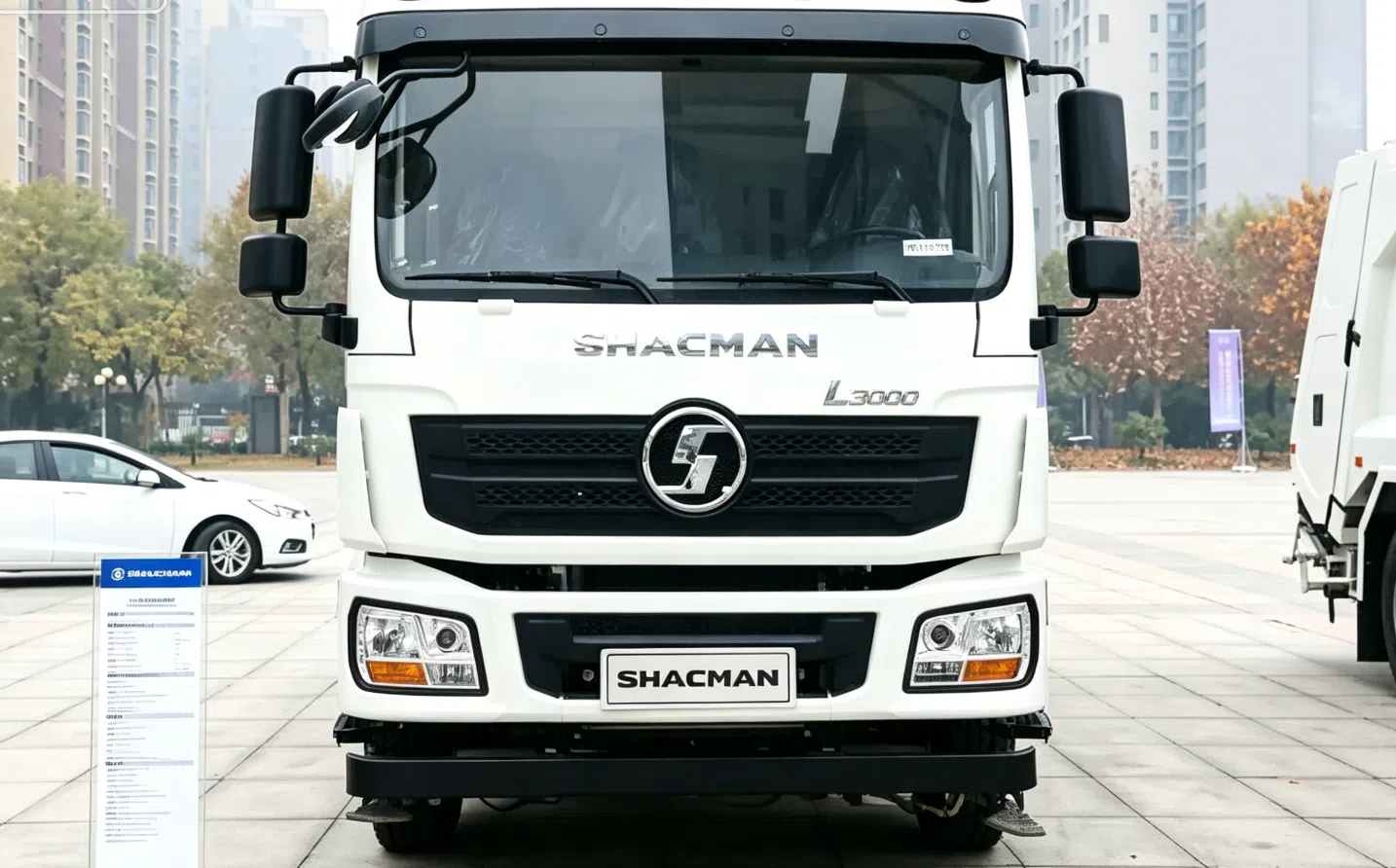

The Shacman L3000 Sprinkler Truck is a versatile medium-duty water tanker and sprinkler vehicle engineered for municipal road cleaning, dust suppression, and urban greening. Built on the dependable L3000 platform, it combines an efficient water delivery system with durable construction to meet the varied demands of urban management and environmental protection projects.
Powering the truck is a Weichai WP6/WP10 diesel engine with outputs ranging from 210 to 300 HP, paired with a FAST manual transmission whose gear ratios are optimized for urban operation.
The vehicle complies with Euro 2/3 emission standards, and higher standards are available in select markets. With maximum torque of up to 1,200 Nm, it delivers reliable performance in both urban and suburban environments.
In terms of dimensions and capacity, the wheelbase can be customized to accommodate different tank sizes and configurations. Overall dimensions vary by configuration, with a typical 4×2 model measuring 7500mm × 2500mm × 3300mm. Water tank capacity ranges from 5,000L to 15,000L, and payload capacity reaches up to 15 tons, including the tank and equipment.
The sprinkler system provides a sprinkling width of up to 14m with adjustable spray patterns. It offers 8–12m of horizontal coverage and 4–6m of vertical spray height. An optional high-pressure water cannon can extend the range to 30m, while the flow rate ranges from 40 to 80 L/min depending on nozzle configuration.
Configuration sheet
| Model: SHACMAN L3000 SPRINKLER TRUCK | |
| CHASSIS SPECS | |
| Curb weight | 7.5 tons |
| Total weight | About 18 tons |
| Drive style | 4X2 |
| Engine: | Yuchai YC4EC185-50,185 hp / 136 kW |
| Transmission: | FAST 8JS85TE-C |
| Cabin: | Standard cab |
| Color: | Standard color,options |
| Wheelbase: | 3800mm |
| Tire: | 10.00R20 |
| Front axle: | 4.8T |
| Rear axle: | 10T single-stage |
| Capacity of oil tank: | 200L-300L |
| Others | Number of leaf springs:10/9+6 |
| CARRIAGE BODY SPECS | |
| Size and Specs: | 8140×2550×3200mm |
| Package | Wax |
Advantages
We have been special truck manufacturer for more than 32 years. We has professional German Kogel technology, combined with Shacman, to create first-class special vehicles, provide trucks owners with the best quality, best price, and the most timely after-sale professional services.
Shipping
We usually adopt shipping by bulk cargo, flat rack, and Roro ship. We will arrange the most cost-effective transportation mode according to the quantity of products. All trucks will be polished with wax before shipping. We guarantee that all products have gone through strict inspection and are in good condition before shipment. We strive for 100% customer satisfaction on every sale we close.
Delivery time
20-40 working days after payment receipt confirmed (based on actual quantity).
Packing
Standard export packing, orcustomized packing as your request.
Professional goods shipping forwarder.
After-sales Service
1.12months or 100,000km for main parts (engine, axle, body and beam, etc).
2.Technical Support by phone Whatsapp or email around the clock.
3.Lifelong Parts Supports
4.Engineer available service oversea.
