Description

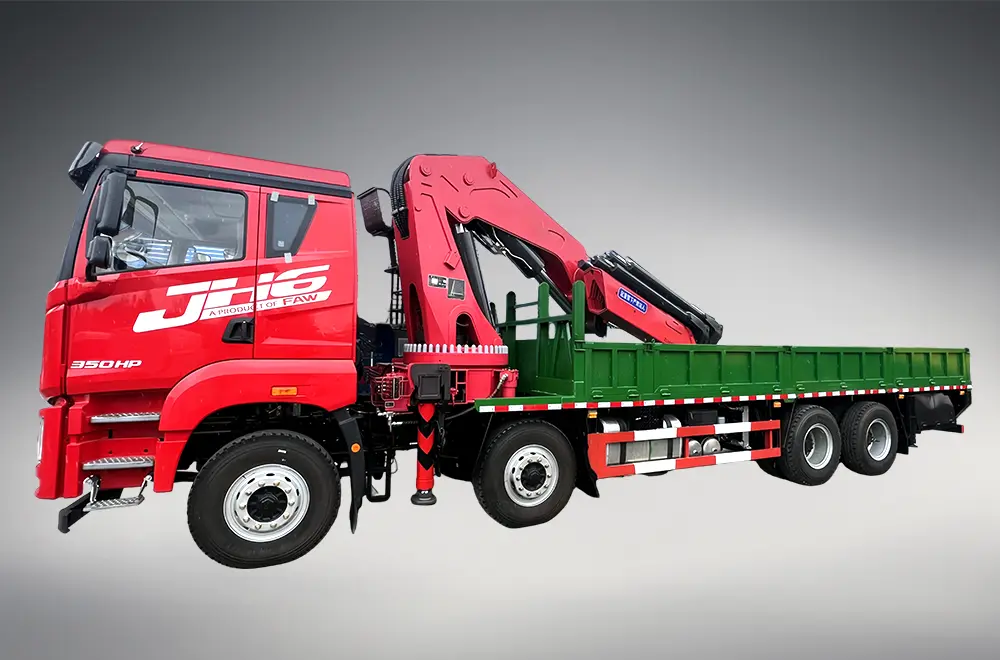

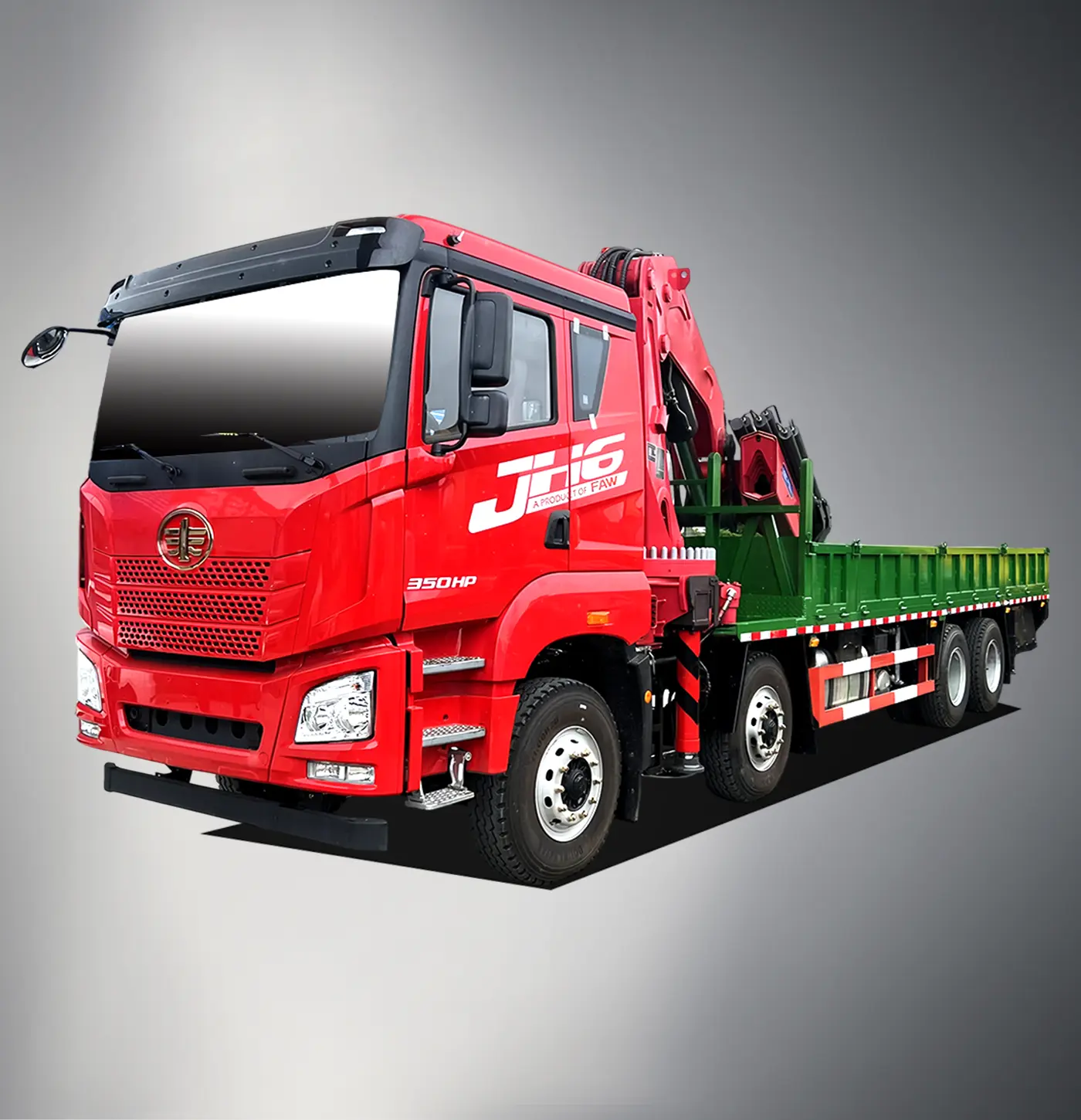

This FAW JH6 truck mounted crane is built on the mature JH6 heavy-duty truck chassis platform, positioned for diverse operation scenarios including infrastructure hoisting, building material loading & transportation, mechanical & electrical equipment installation, municipal facility maintenance and landscape transplantation, serving as multifunctional integrated equipment for engineering construction, logistics handling and municipal operation & maintenance.
With strong load-bearing performance and a stable, reliable powertrain, the chassis easily adapts to various working conditions including unpaved construction sites, mountain slopes and urban roads, with outstanding durability and availability for high-intensity continuous operation. The upper body is available with straight boom or knuckle boom cranes in mainstream lifting capacities, featuring large operating radius, high lifting height and precise flexible operation. Multiple sets of hydraulic outriggers are equipped to ensure excellent body stability during work. It integrates both cargo transportation and hoisting functions in one vehicle, enabling convenient site transfer, greatly improving operation efficiency and reducing comprehensive operating costs.
The spacious engineering cab features ergonomic design and comprehensive comfort configurations, effectively relieving fatigue from long hours of operation and driving on complex road conditions. With high compatibility between chassis and upper body, low failure rate, easy maintenance and economical energy consumption, it ensures controllable total life cycle operating costs, making it a cost-effective choice for engineering construction, logistics and municipal units, especially suitable for multifunctional operation demands of various infrastructure, municipal and maintenance projects overseas.
Configuration sheet
| CHASSIS SPECS | |
| Curb weight | 17800kgs |
| Total weight | 31000kgs |
| Drive style | 8×4 |
| Engine: | Xichai CA6DM2 series / Weichai WP12 series, 370-460PS, Euro 2 emission |
| Transmission: | Shaanxi Gear 12JSDX220TA-B / FAW CA12TAX160F (half-aluminum shell) |

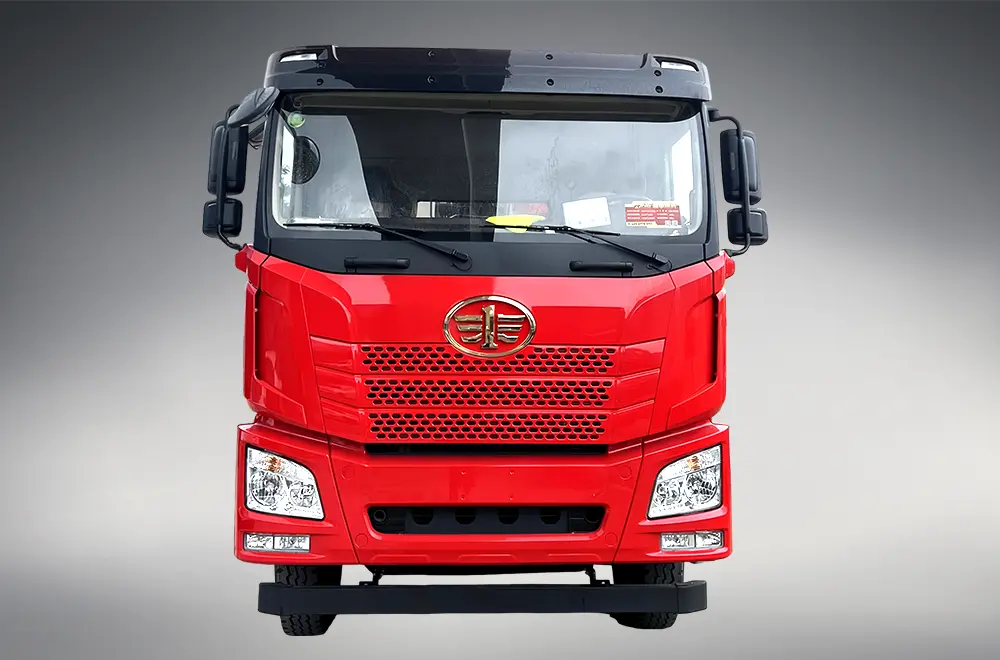

| Cabin: | JH6 raised-floor right-hand drive semi-flat cab, 4-point air suspension |
| Color: | Multiple options available |
| Wheelbase: | 2300+4200+1350mm / 1900+4900+1350mm / 2300+5865+1350mm |
| Tire: | 12.00R20 18PR / 315/80R22.5 18PR |
| Front axle: | 2020 front axle (FAW original) |
| Rear axle: | 457 upgraded welded axle (with inter-wheel differential lock) / 300 reducer axle, ratio 4.26-5.921 |
| Capacity of oil tank: | 400L steel fuel tank |
| Others | Φ430 clutch, 150Ah battery, TRW steering gear, WABCO valves, power cab lift, electric mirrors & windows, automatic A/C, 9/9/10 leaf springs, 220V power supply, multi-function steering wheel, dedicated chassis for truck-mounted crane |
| CARRIAGE BODY SPECS | |

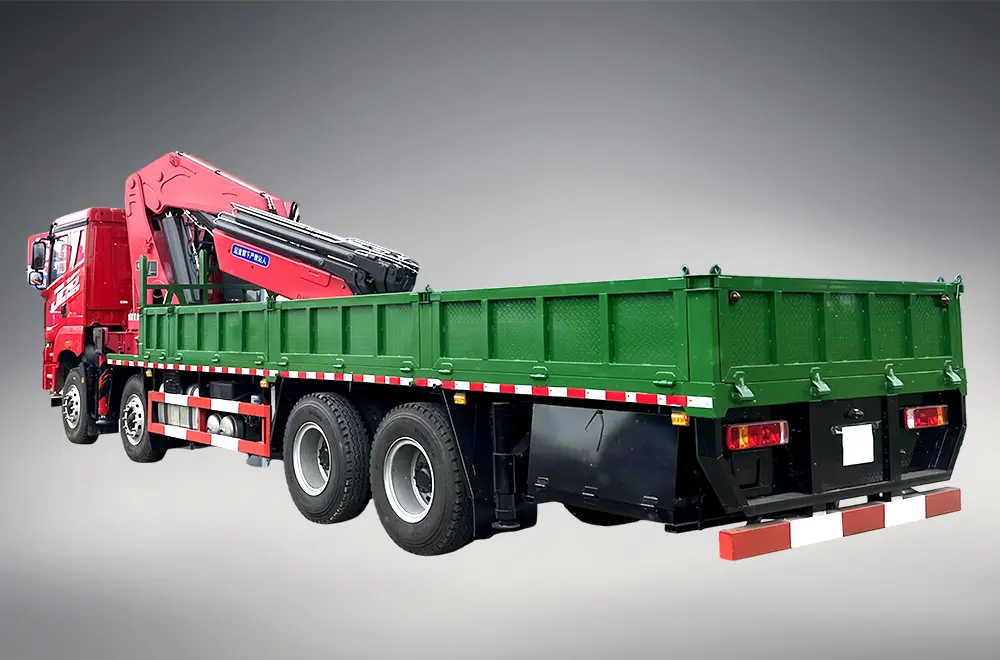

| Size and Specs: | 20000kg max lifting capacity, 520kN·m max lifting torque, 23.7m max boom length; straight / knuckle boom optional; 5.8-7.8m cargo bed, 10-16t payload; 4-point outriggers, imported hydraulic system |
| Package | Wax |
Advantages
We have been special truck manufacturer for more than 32 years. We has professional German Kogel technology, combined with Shacman, to create first-class special vehicles, provide trucks owners with the best quality, best price, and the most timely after-sale professional services.
Shipping

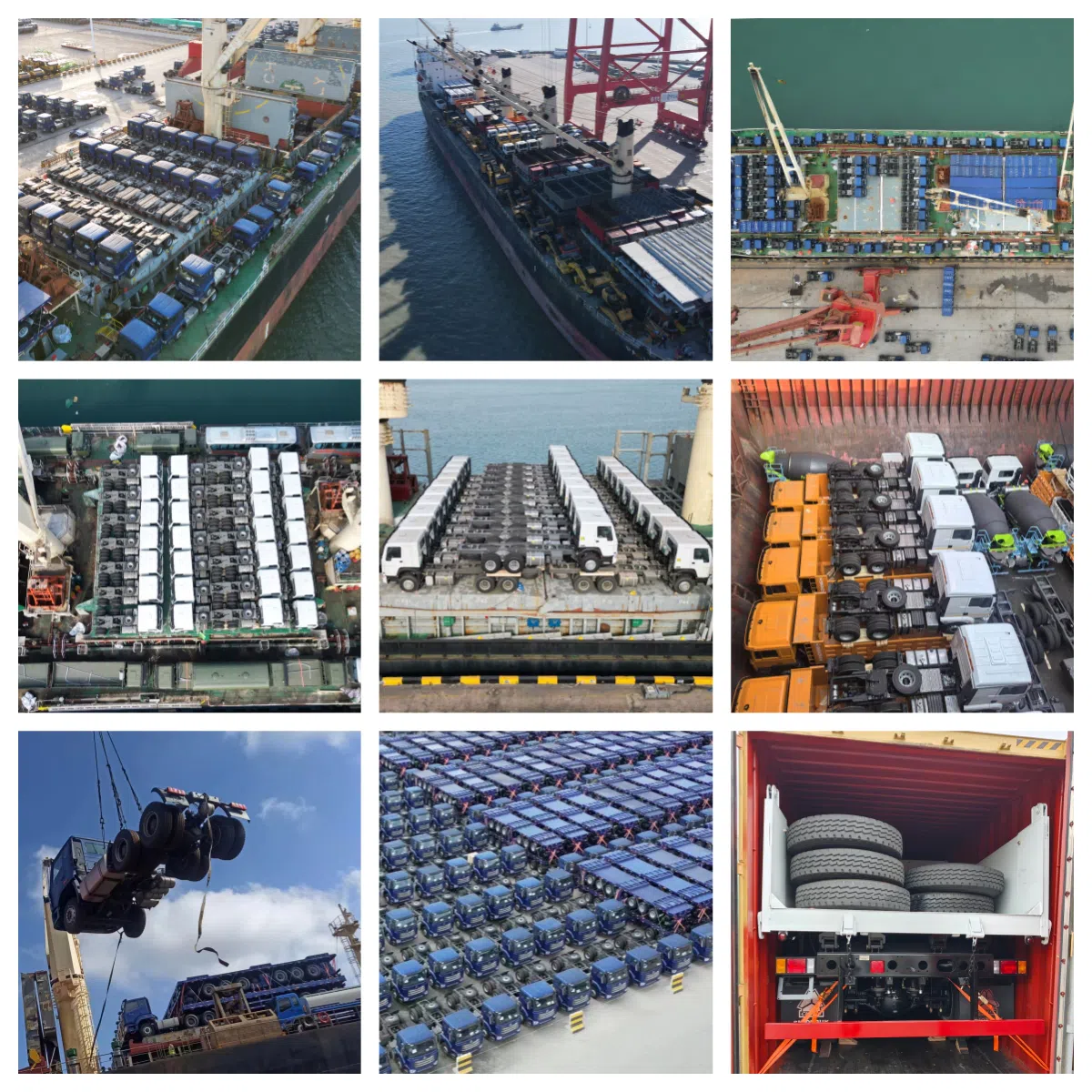

We usually adopt shipping by bulk cargo, flat rack, and Roro ship. We will arrange the most cost-effective transportation mode according to the quantity of products. All trucks will be polished with wax before shipping. We guarantee that all products have gone through strict inspection and are in good condition before shipment. We strive for 100% customer satisfaction on every sale we close.
Delivery time
20-40 working days after payment receipt confirmed (based on actual quantity).
Packing
Standard export packing, orcustomized packing as your request.
Professional goods shipping forwarder.
After-sales Service
1.12months or 100,000km for main parts (engine, axle, body and beam, etc).
2.Technical Support by phone Whatsapp or email around the clock.
3.Lifelong Parts Supports
4.Engineer available service oversea.
