Description:

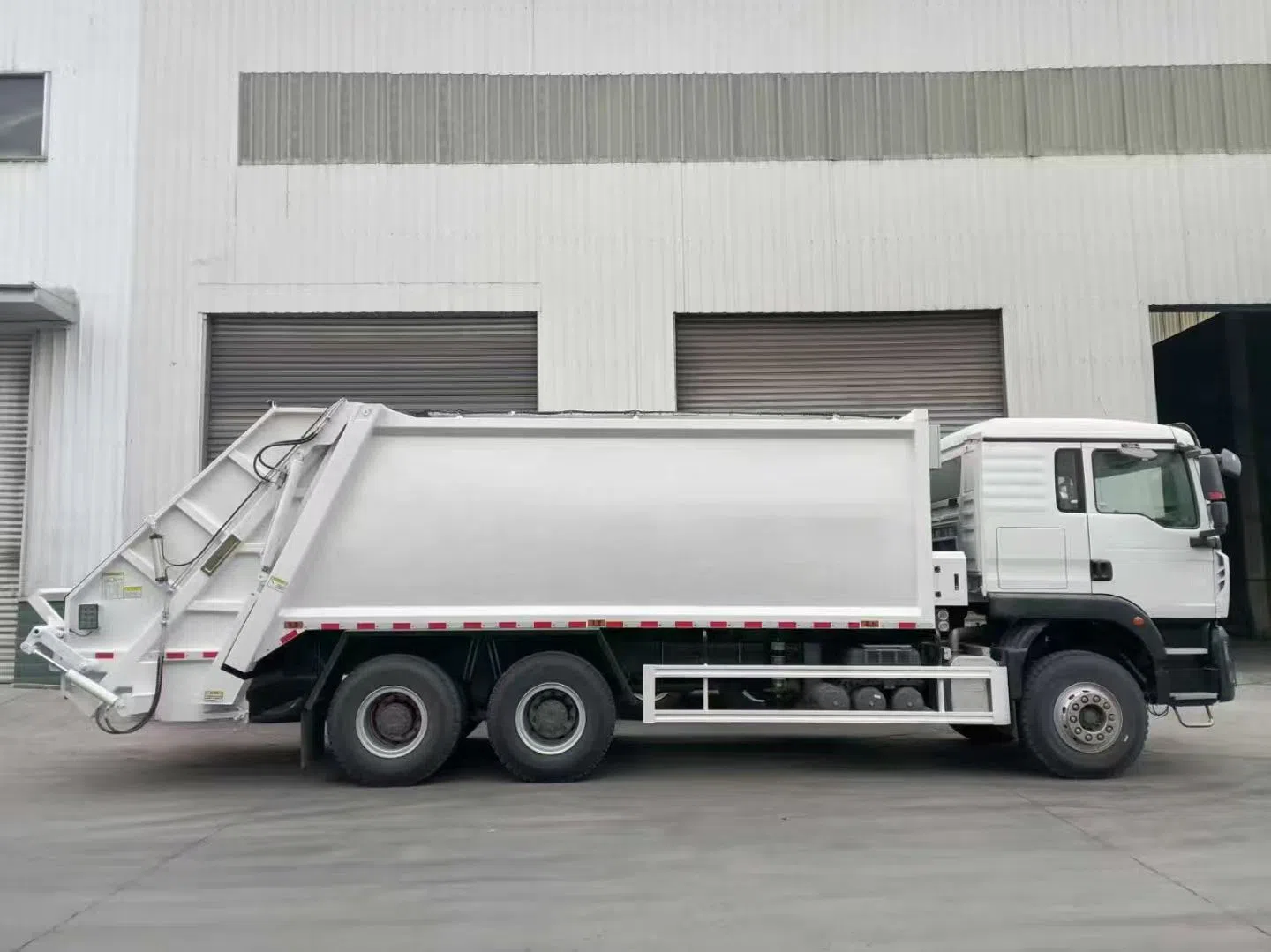

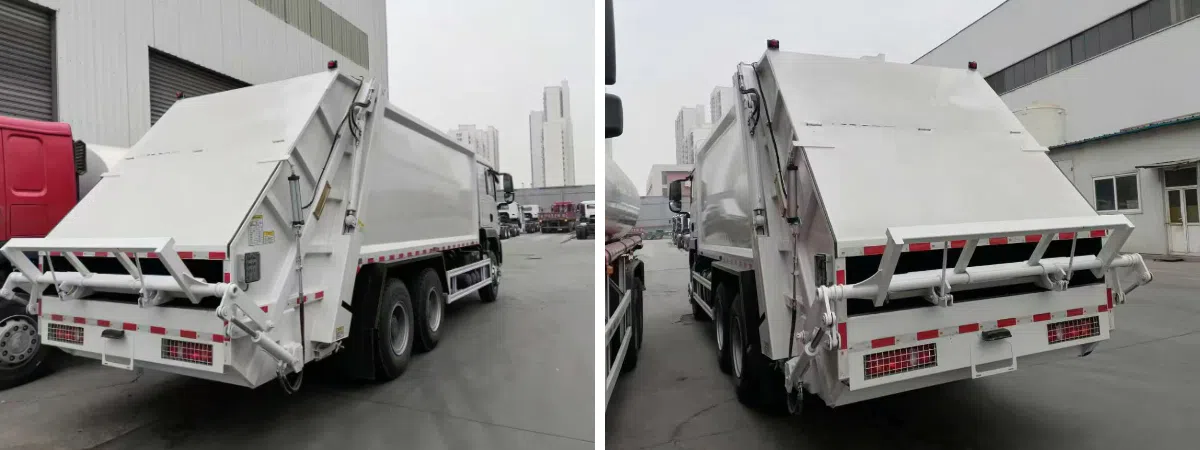

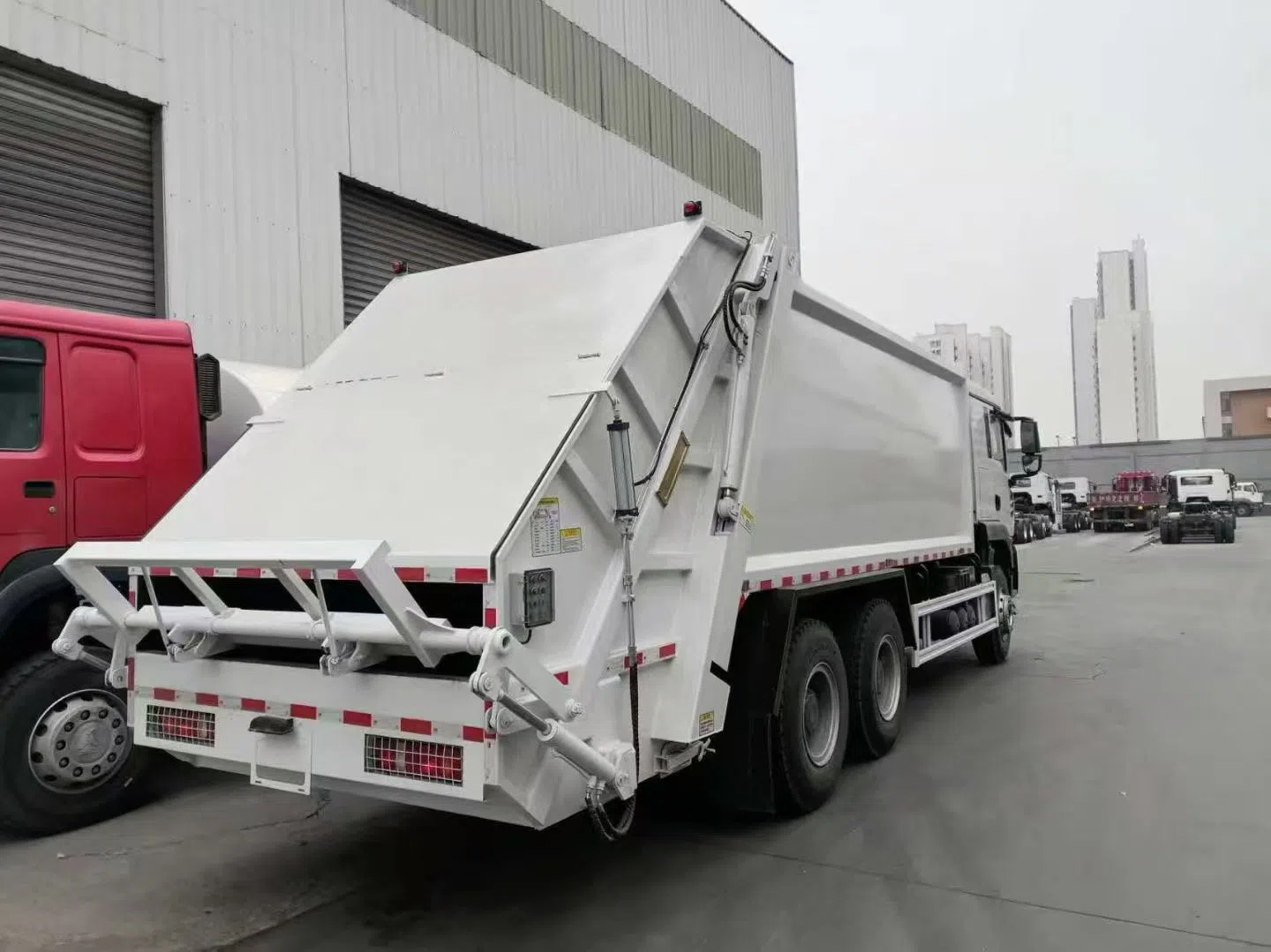

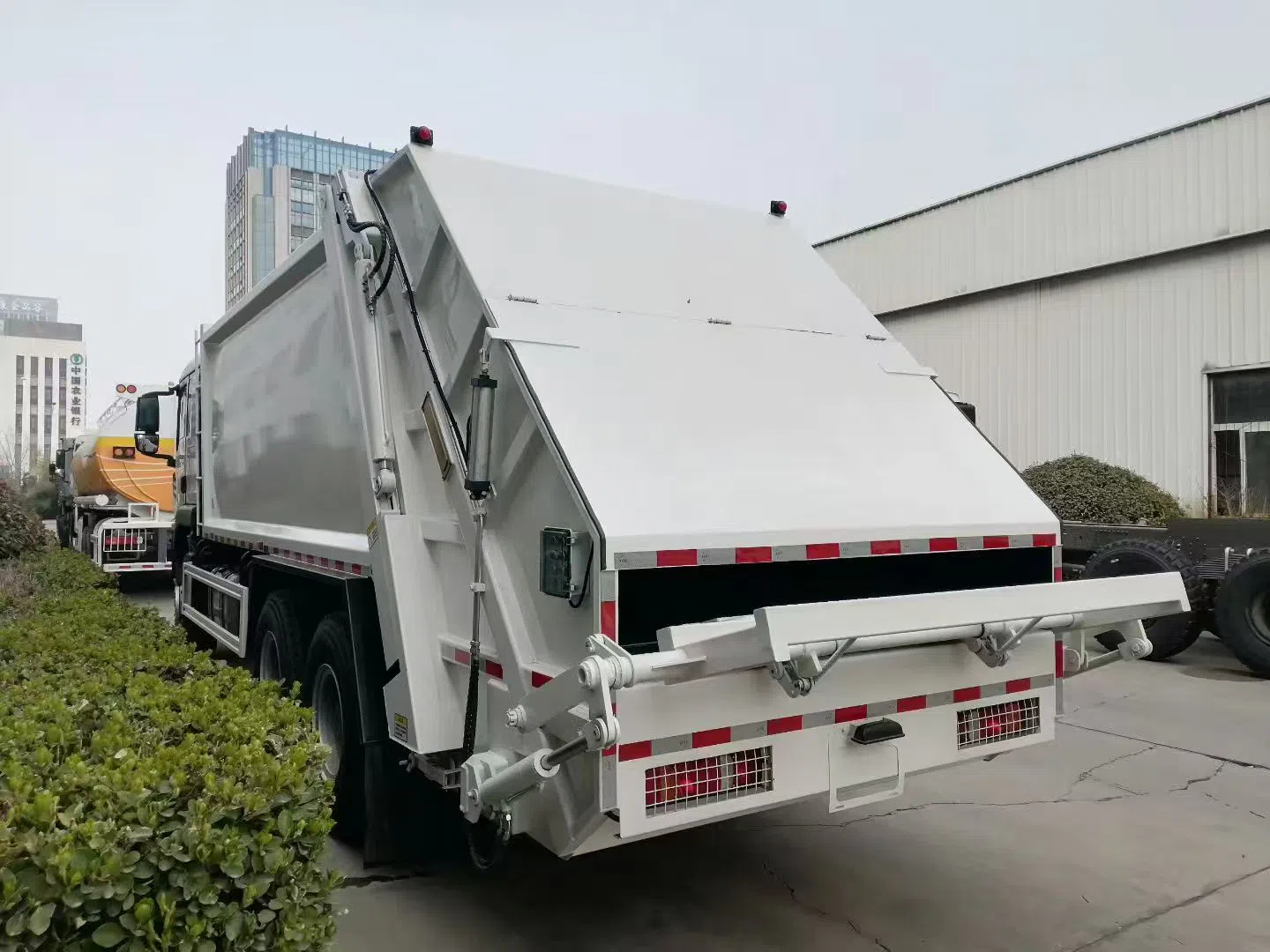

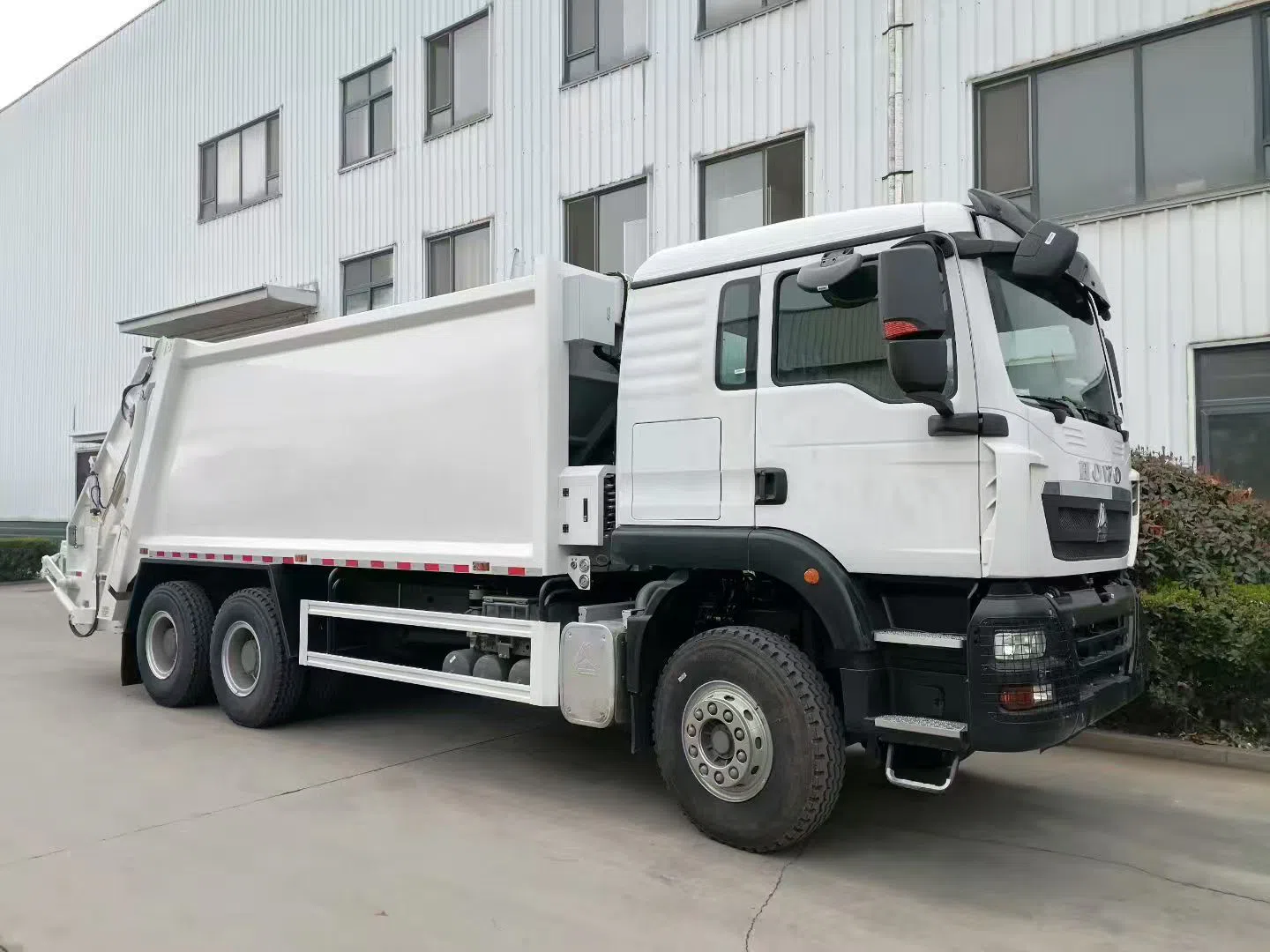

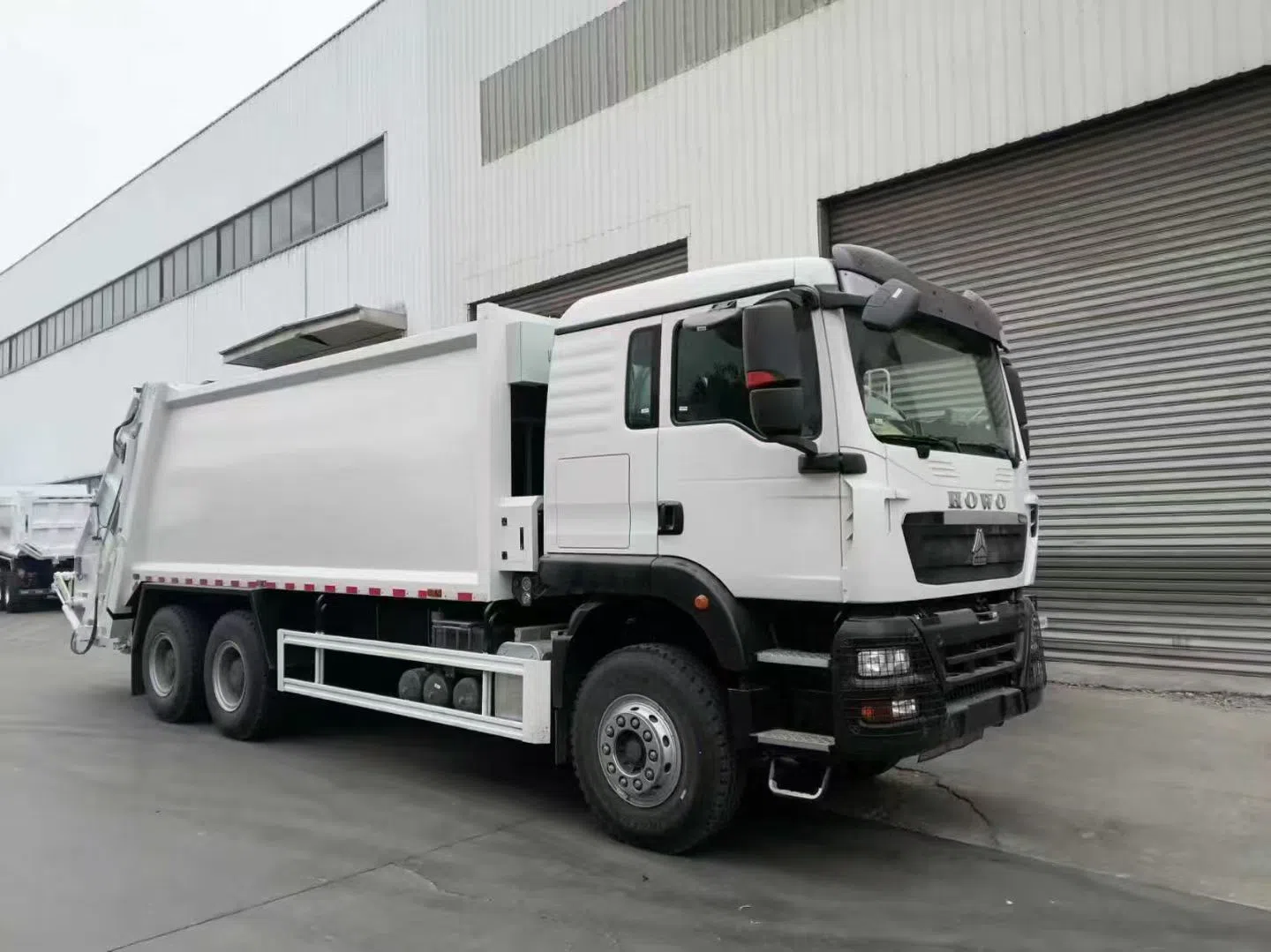

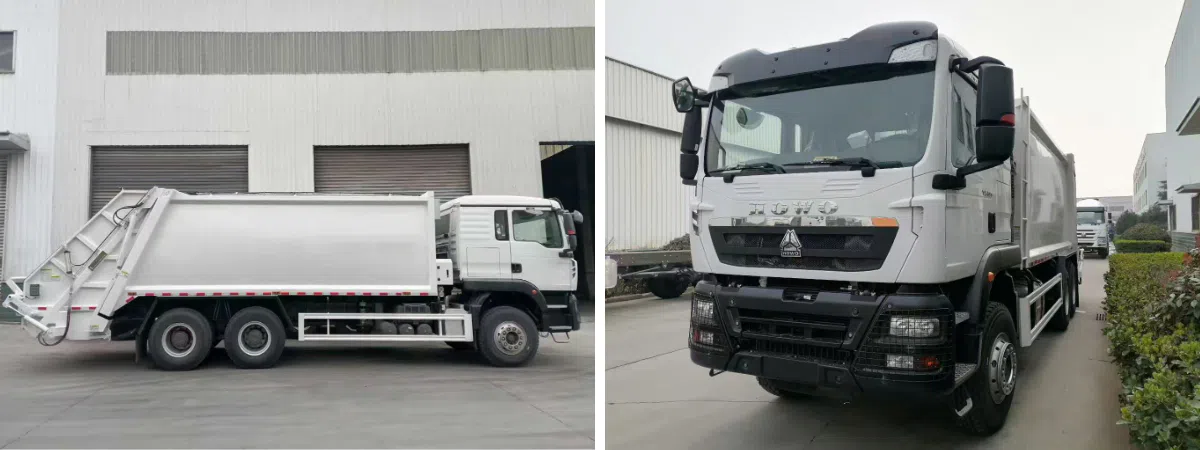

The HOWO TX compressed garbage truck is a mainstay vehicle for urban sanitation, integrating garbage collection, compression, and transportation into one efficient unit. It can be directly unloaded at transfer stations, making it a reliable sanitation guardian for municipal sanitation departments, residential communities, industrial parks, and mining enterprises.
Optimized Tank Capacity for Various Scales
The tank (compaction body) capacity ranges from 10 to 16 cubic meters, meeting the needs of sanitation operations of different scales – from small residential routes to large municipal collection zones.
High-Efficiency Bidirectional Compression System
The compression system adopts bidirectional compression pusher technology, achieving a compression ratio of over 1:3. This significantly increases loading capacity, allowing the truck to carry more waste per trip. Its single-transfer efficiency far exceeds that of ordinary garbage trucks of the same tonnage, reducing the number of trips to the transfer station or landfill.
Fast Cycle Times for Higher Productivity
Short filling cycle time – minimizes wait time at each collection point
High compression cycle efficiency – reduces energy consumption per ton of waste
Fast loading and unloading speed – improves overall operational efficiency for fleet managers
Fully Sealed Design for Hygiene & Pollution Control
The compression body is fully sealed to prevent odor leakage and secondary pollution during collection and transport, ensuring compliance with urban environmental standards and improving public acceptance.

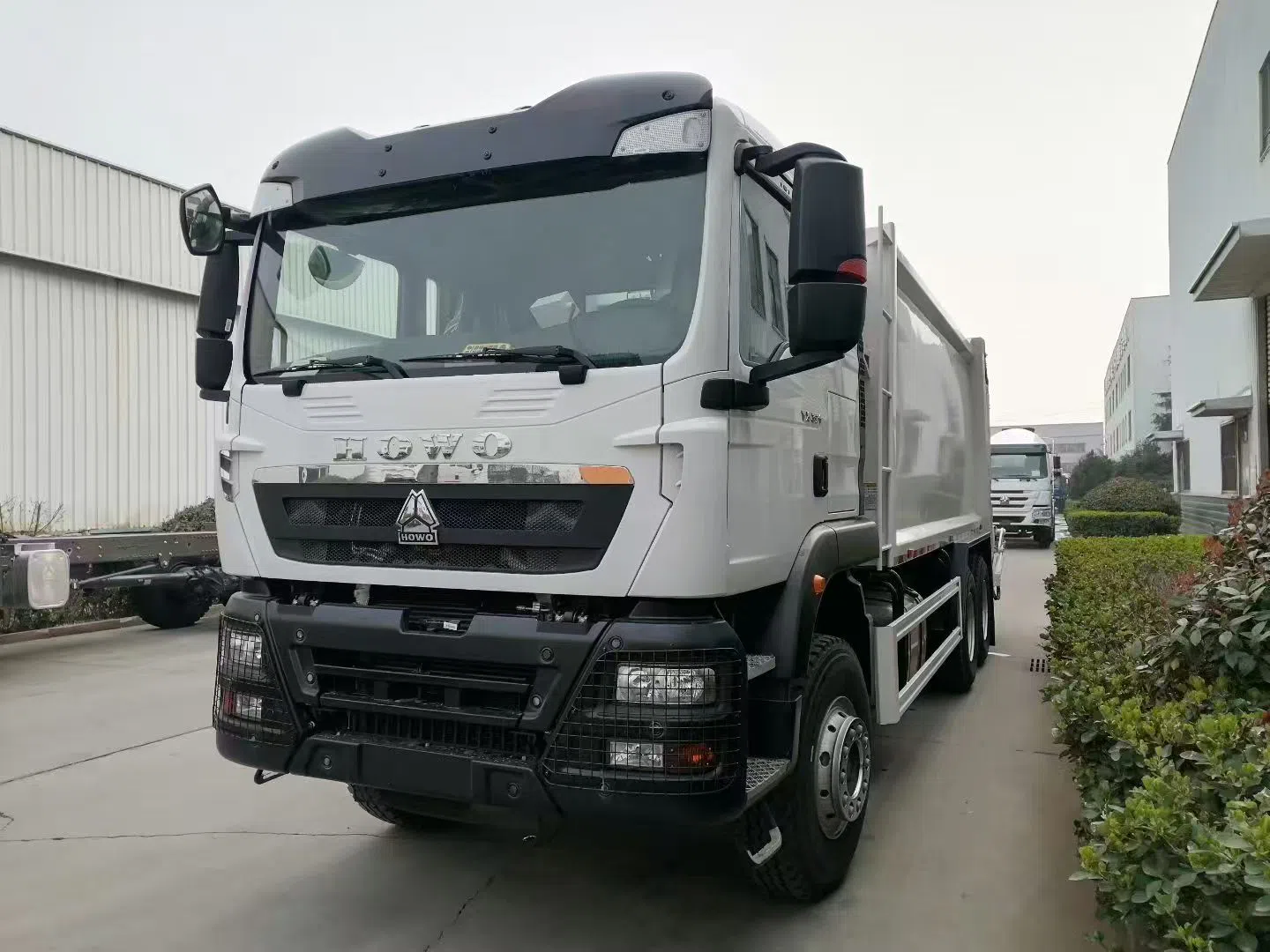

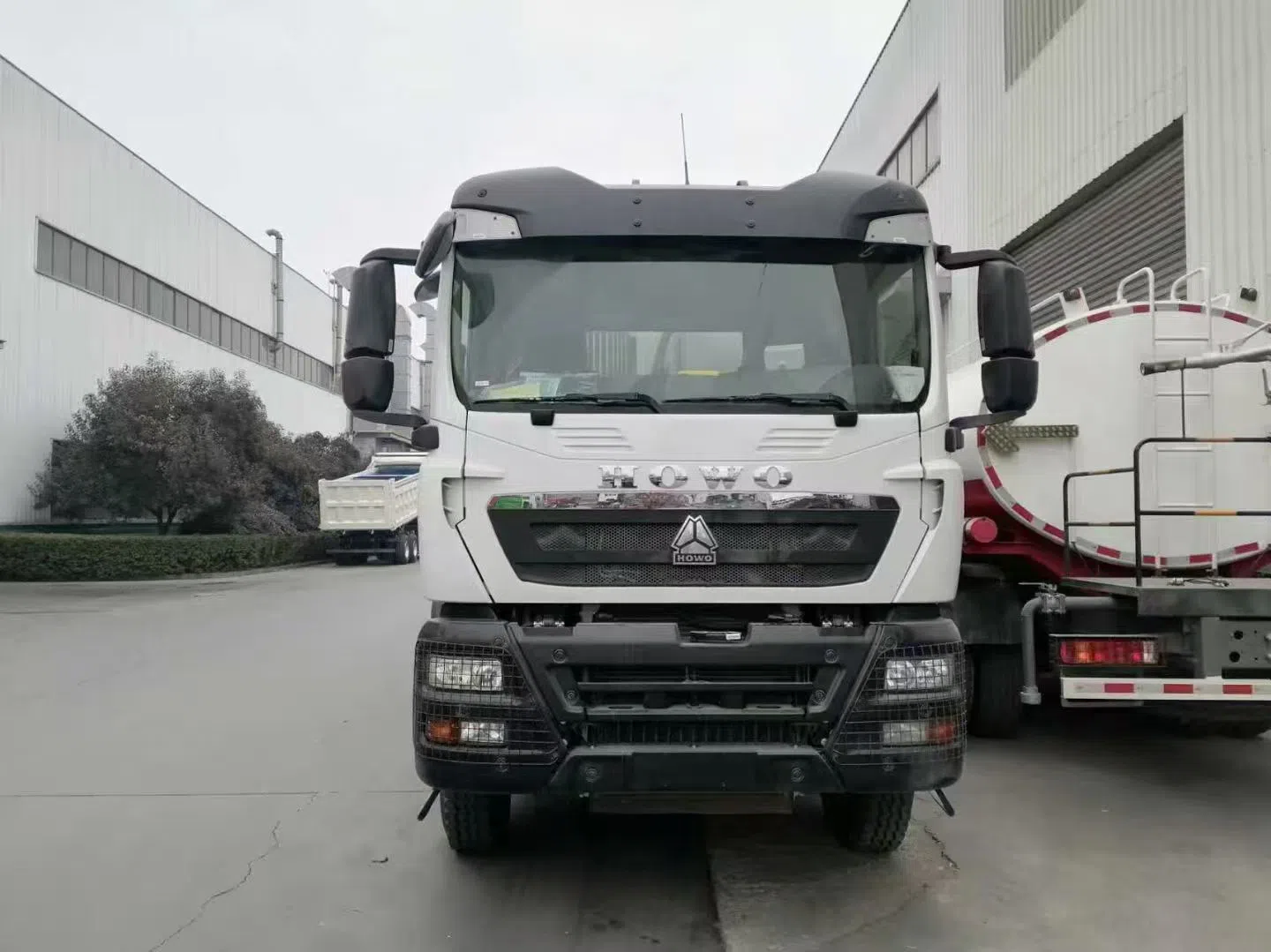

Heavy-Duty HOWO TX Chassis
Built on the durable HOWO TX chassis (available in 6×4 or 8×4 configurations), the truck features a high-strength steel frame, a powerful engine (290–371 HP), and proven MAN-engineered driveline components. It delivers strong climbing ability and stable operation on congested city streets or rough landfill access roads.
Driver-Friendly Cabin & Sanitation Controls
The spacious, ergonomically designed cabin reduces driver fatigue. Intuitive hydraulic controls allow the operator to manage the loading hopper, compaction cycle, and ejection discharge efficiently from the cab or rear position, improving safety and ease of use.
Why Choose the HOWO TX Compressed Garbage Truck?
It combines bidirectional compression technology (>1:3 ratio), a choice of 10–16 m³ body, fast cycle times, and a fully sealed design – all on a rugged HOWO TX chassis. Whether you need a reliable truck for municipal waste collection, community sanitation, or industrial refuse management, the HOWO TX compressed garbage truck delivers efficiency, durability, and cleanliness – your trusted partner for modern waste management.
Configuration sheet:
| Model: ZZ3257N384GB1 | |
| CHASSIS SPECS | |
| Curb weight | 15200kgs |
| Total weight | 40000kgs |
| Drive style | 6×4 |
| Engine: | WD615.47, 371HP, Euro Ⅱ |
| Transmission: | HW19710, 10F&2R |
| Cabin: | TX-F, single berth with A/C |
| Color: | White |
| Wheelbase: | 3800mm |
| Tire: | 12.00R20 |
| Front axle: | VGD95 |
| Rear axle: | MCX16ZG |
| Capacity of oil tank: | 300L |
| Others | Double-layer chassis (8+8/300), TX PRO(new interior) |
| CARRIAGE BODY SPECS | |
| Size and Specs: | 10~16CBM, thickness 4mm,Q345, Bidirectional compression, domestic oil pump, imported valve assembly, domestic oil cylinder, imported seals. |
| Package | Wax |
| There are options for engine,tire,wheelbase,capacity,etc.Please contact us for suitable configurations. | |
Advantages:
We have been special truck manufacturer for more than 32 years. We has professional German Kogel technology, combined with Sinotruk, to create first-class special vehicles, provide trucks owners with the best quality, best price, and the most timely after-sale professional services.
Shipping:
We usually adopt shipping by bulk cargo, flat rack, and Roro ship. We will arrange the most cost-effective transportation mode according to the quantity of products. All trucks will be polished with wax before shipping. We guarantee that all products have gone through strict inspection and are in good condition before shipment. We strive for 100% customer satisfaction on every sale we close.
Delivery time:
20-40 working days after payment receipt confirmed (based on actual quantity).
Packing:
Standard export packing, orcustomized packing as your request.
Professional goods shipping forwarder:
After-sales Service:
1.12months or 100,000km for main parts (engine, axle, body and beam, etc).
2.Technical Support by phone Whatsapp or email around the clock.
3.Lifelong Parts Supports
4.Engineer available service oversea.
