Description

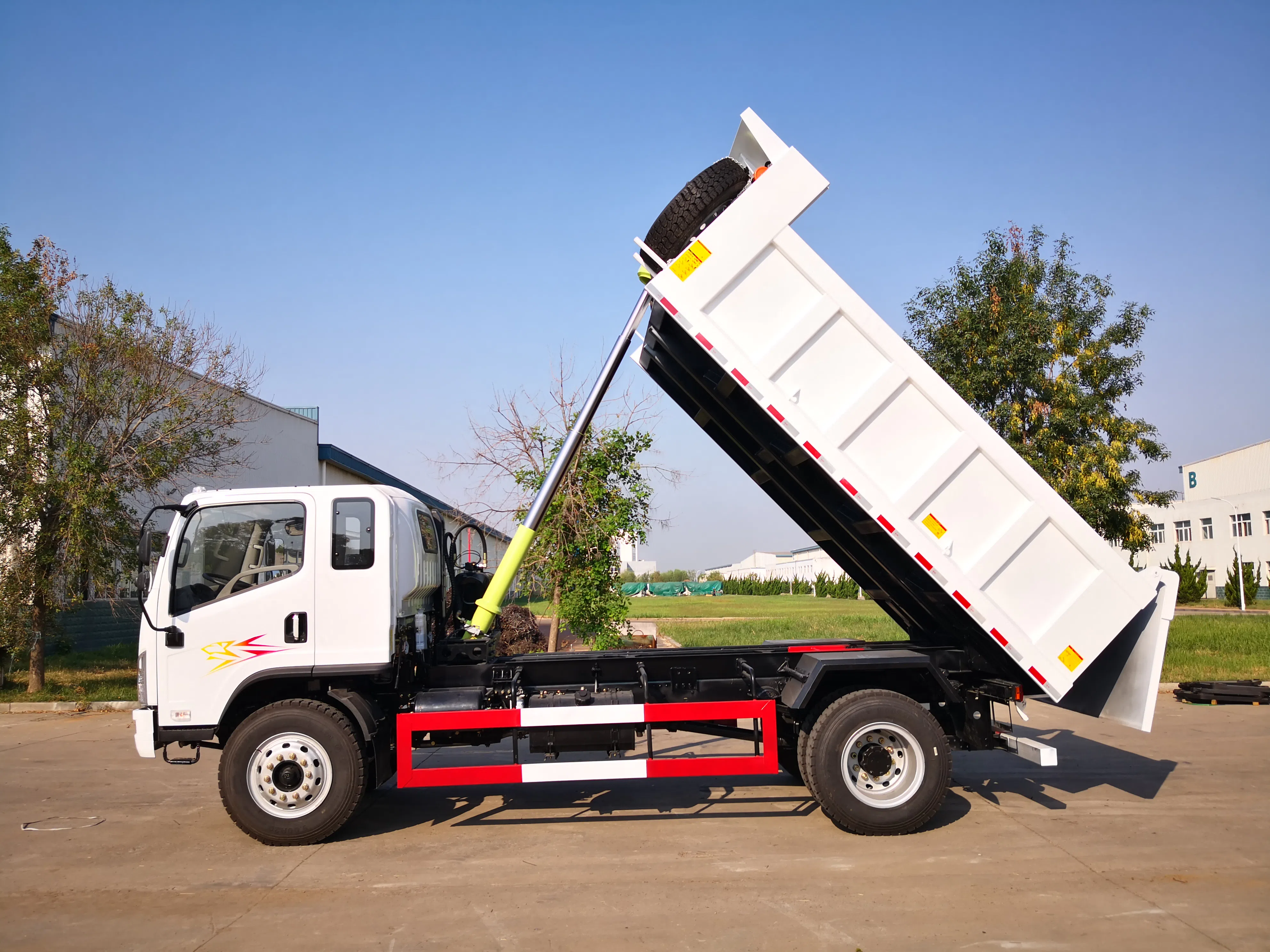

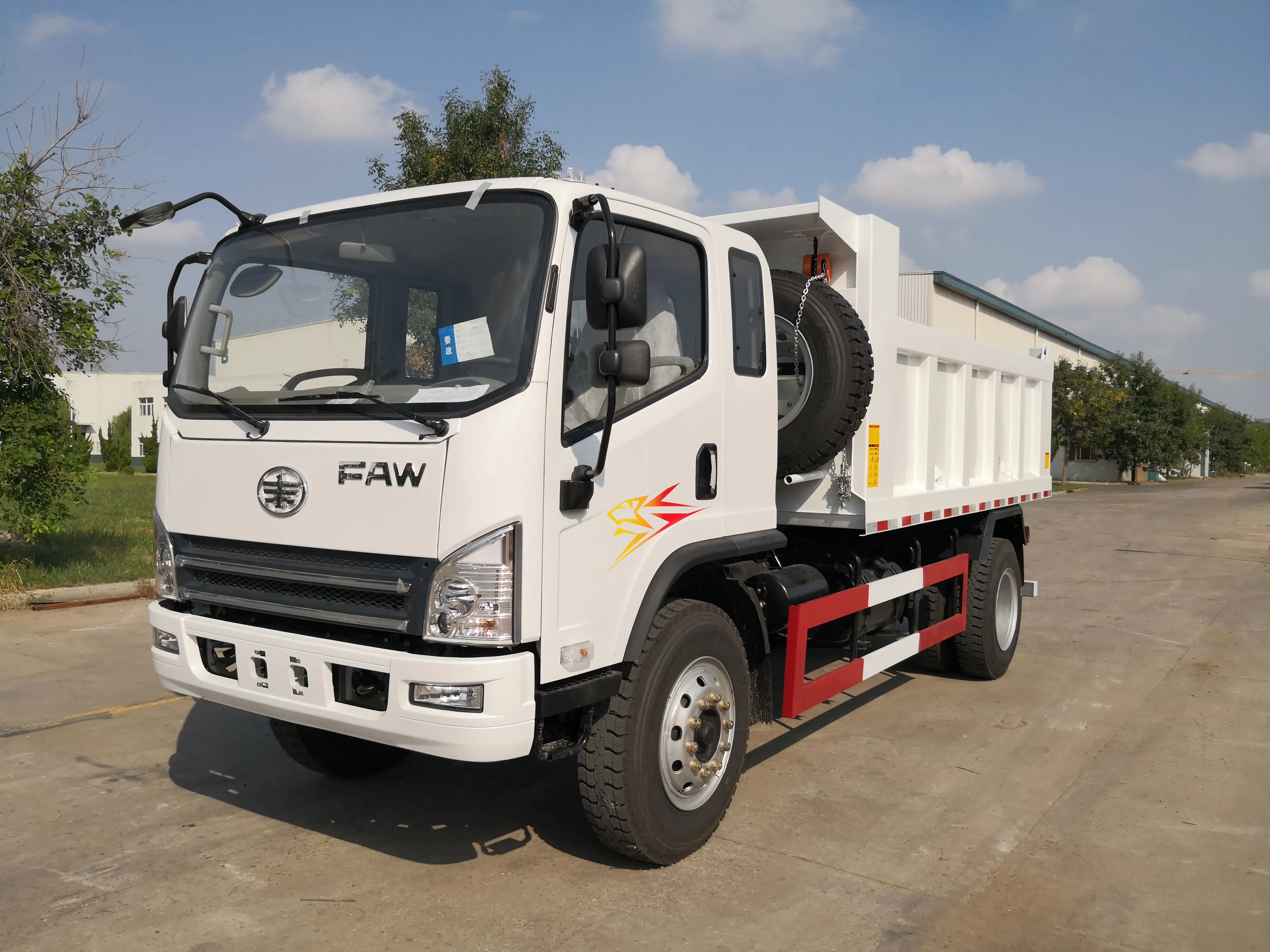

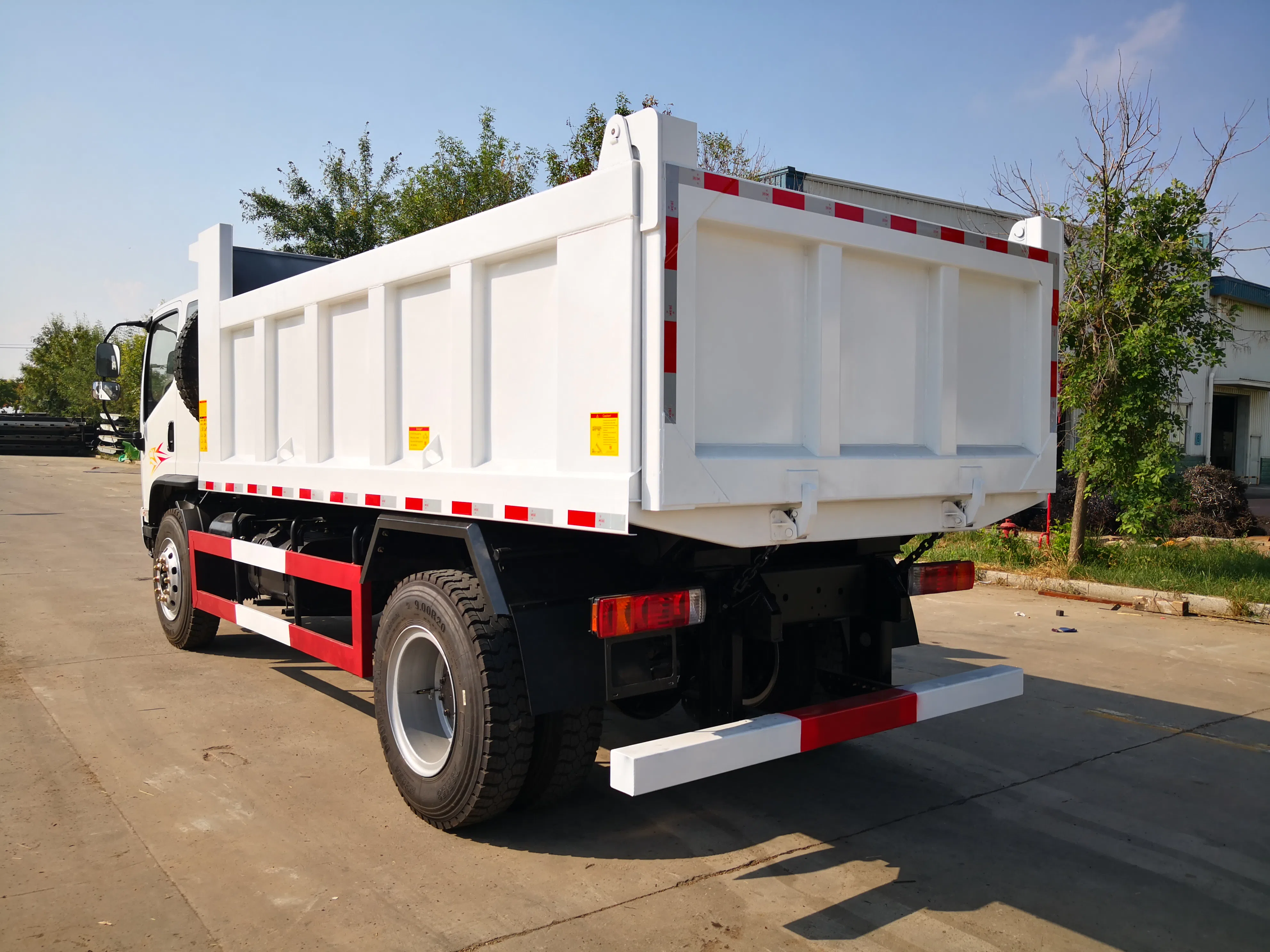

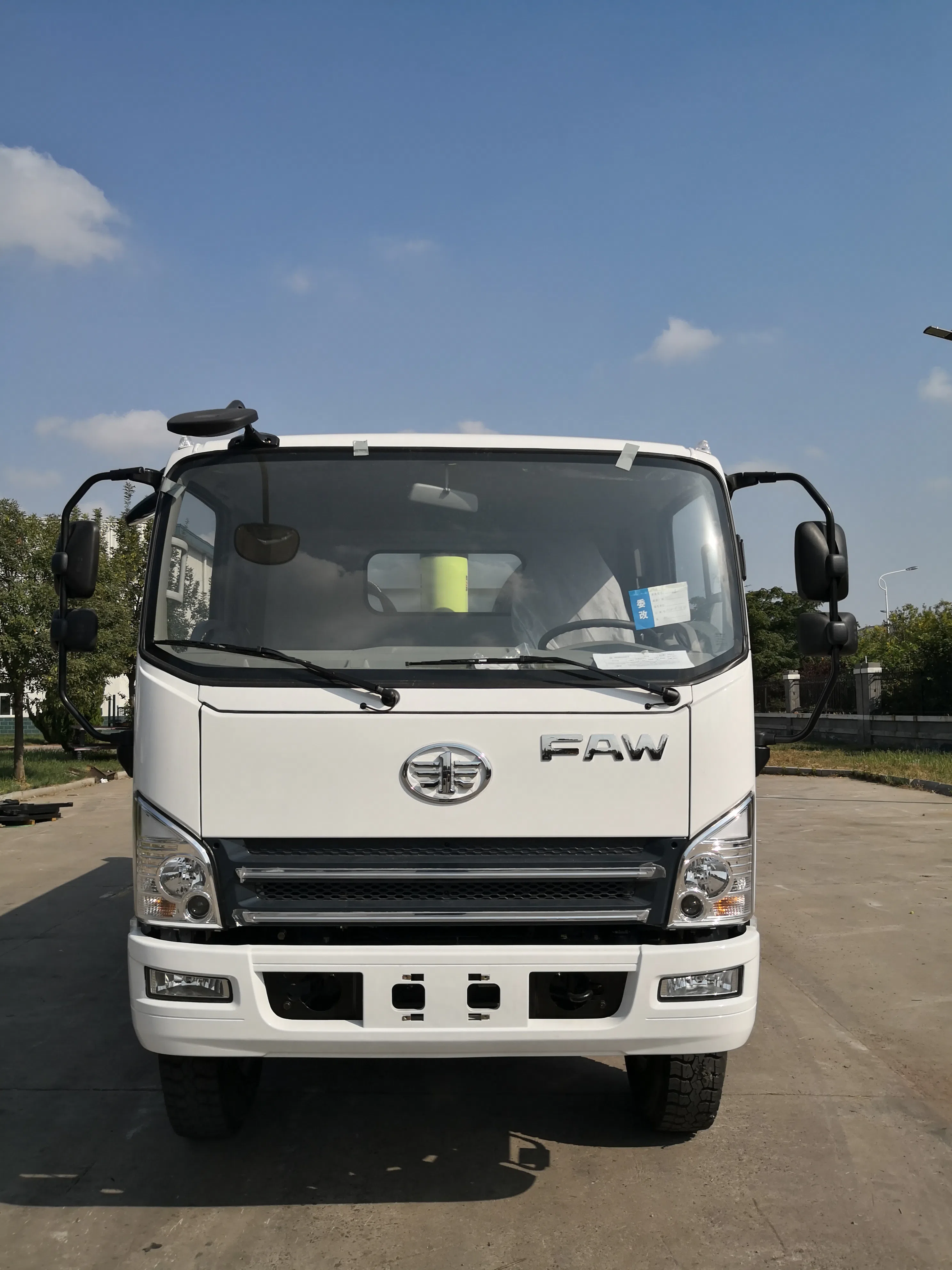

This FAW Tiger V (Huwei) 4×2 dump truck is a standard on road light duty dumper designed for engineering transportation on urban and rural paved roads, focusing on compliant load capacity and cost efficient operation. It adopts an engineering specific high strength frame and thickened multi leaf spring suspension, with load capacity fully matching the conventional material transportation needs of urban and rural infrastructure. The powertrain is matched with mainstream diesel engines and high torque manual transmissions, delivering smooth linear power output, excellent fuel economy and controllable daily operating costs. The cargo body is made of high strength wear resistant steel plate, supporting customization of various lengths and thicknesses. Matched with a mature hydraulic lifting system, it features stable and powerful lifting, large dumping angle and low residual rate. With a compact body and flexible steering, the truck can efficiently pass and transfer on urban streets, rural paved roads and small and medium sized construction sites. The cab is designed with ergonomic optimization, featuring wide vision and complete basic comfort configurations, which effectively reduces driver fatigue during long time driving. With highly universal spare parts and convenient, economical maintenance, it is a cost effective mainstay model in urban and rural municipal administration and small scale infrastructure construction. Application scenarios: municipal muck removal, urban construction waste transfer, rural infrastructure sand & gravel delivery, short distance haulage in building material markets, and small earthwork projects.
Configuration sheet
Model: CA3075P40K2E5A84 | |
CHASSIS SPECS | |
Curb weight | 4200kgskgs |
Total weight | 7500kgs |
Drive style | 4×2 |
Engine: | Weichai WP3.7Q130E50, 130PS, Euro 5 emission |
Transmission: | Wanliyang 6TS40 gearbox |
Cabin: | Tiger VH flat-top single-row cab (J6F front face) |
Color: | Multiple options available |
Wheelbase: | 3300mm |
Tire: | 8.25R16 16PR |
Front axle: | Qingte X349 front steering axle |
Rear axle: | Qingte 340 welded rear axle, final drive ratio 6.333 |
Capacity of oil tank: | 150L aluminum fuel tank |
Others | Φ330 clutch, 216×75×6mm frame, maintenance-free battery, air brake with exhaust brake, air conditioner, leaf springs 7/10+3, 1000mm rear overhang, internal spline PTO with control mechanism, updated version |
CARRIAGE BODY SPECS | |
Size and Specs: | 3500*2100*800 |
Package | Wax |
Advantages
We have been special truck manufacturer for more than 32 years. We has professional German Kogel technology, combined with Shacman, to create first-class special vehicles, provide trucks owners with the best quality, best price, and the most timely after-sale professional services.
Shipping
We usually adopt shipping by bulk cargo, flat rack, and Roro ship. We will arrange the most cost-effective transportation mode according to the quantity of products. All trucks will be polished with wax before shipping. We guarantee that all products have gone through strict inspection and are in good condition before shipment. We strive for 100% customer satisfaction on every sale we close.
Delivery time
20-40 working days after payment receipt confirmed (based on actual quantity).
Packing
Standard export packing, orcustomized packing as your request.
Professional goods shipping forwarder.
After-sales Service
1.12months or 100,000km for main parts (engine, axle, body and beam, etc).
2.Technical Support by phone Whatsapp or email around the clock.
3.Lifelong Parts Supports
4.Engineer available service oversea.
