Description

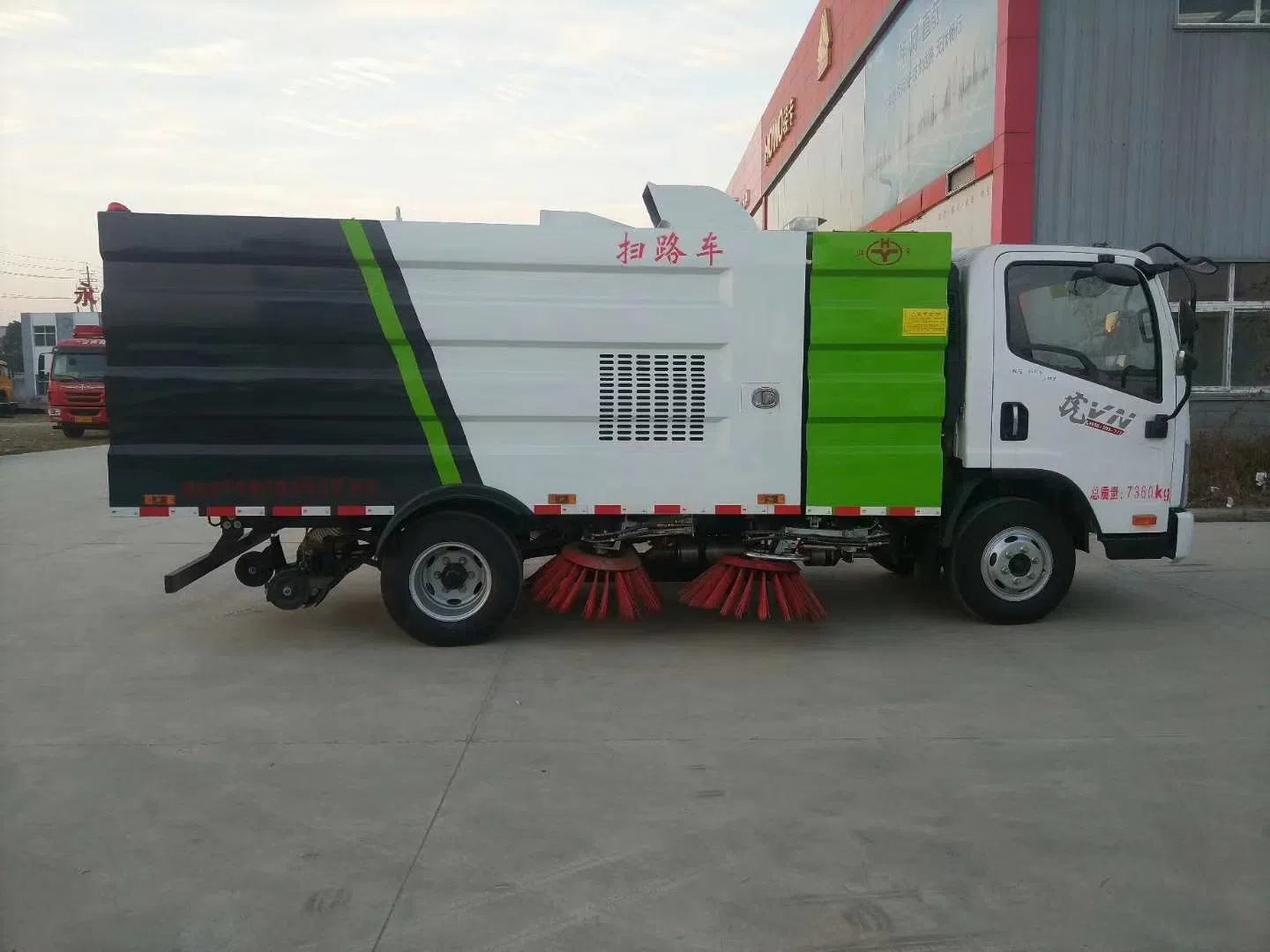

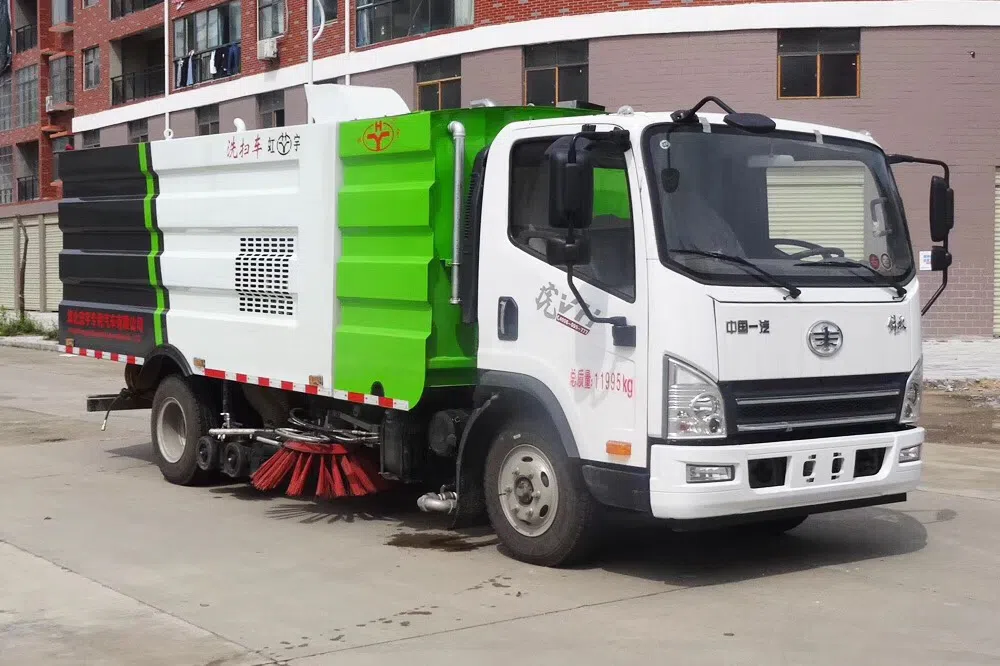

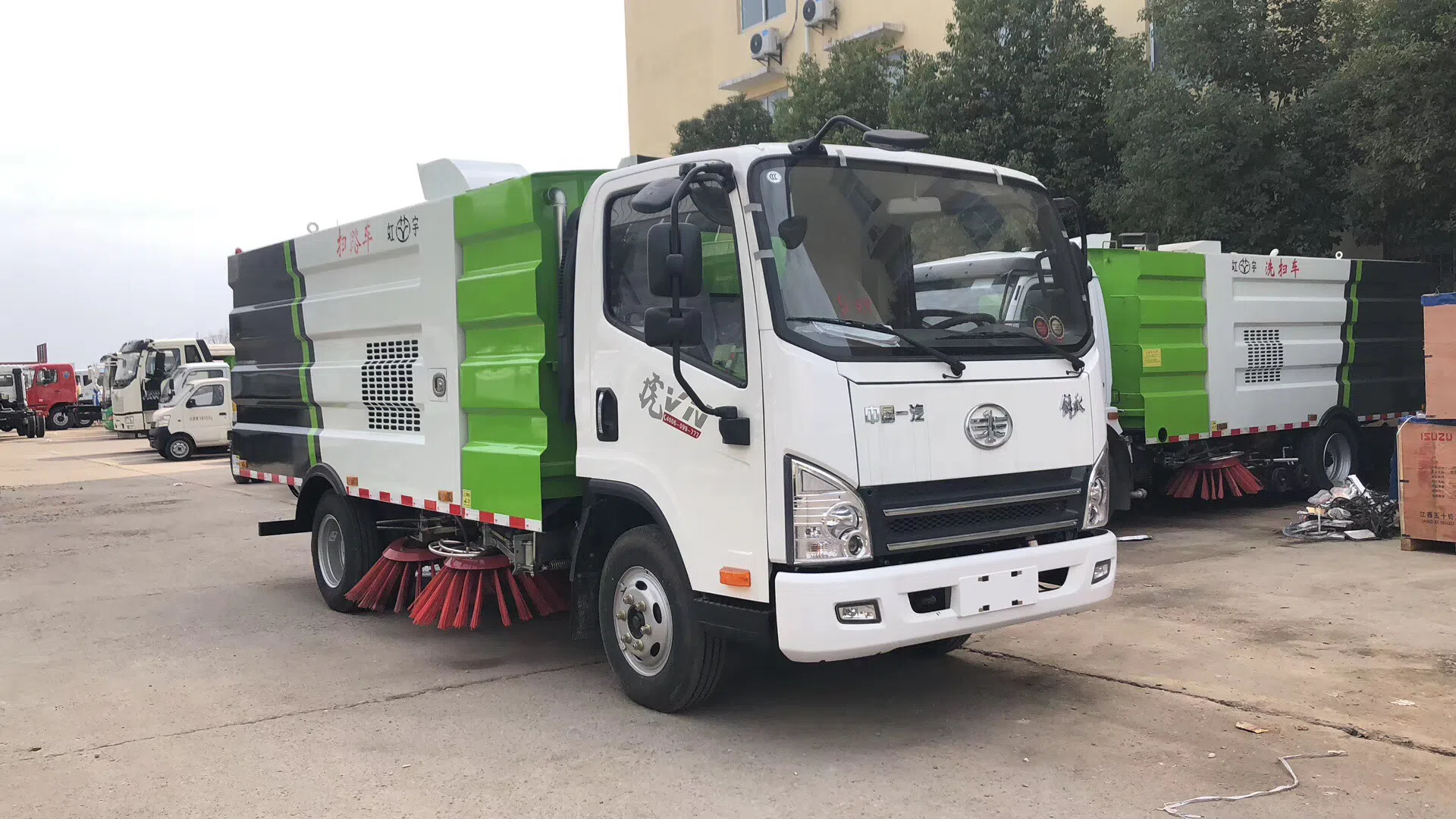

FAW Tiger V (commonly known as Huwei) road sweeper truck is a medium and small-sized sanitation cleaning equipment modified on the dedicated Tiger VH light truck chassis. It integrates road sweeping, dust suction and water dust suppression, and is widely suitable for daily road cleaning in urban branch roads, communities, township roads, industrial parks and scenic areas.
The vehicle is equipped with a mature and stable diesel powertrain with a reliable load-bearing chassis. Its compact, agile body and small turning radius allow smooth access to narrow sections that large sweepers cannot reach, realizing full coverage of refined cleaning. The upper body adopts a composite operation system of "disc brush sweeping + negative pressure dust suction + spray dust suppression", which can effectively remove road dust, gravel, fallen leaves and domestic waste. It suppresses dust synchronously during sweeping to avoid secondary dust pollution. The large-capacity sealed garbage bin has a built-in sewage collection structure, which stores waste and sewage in separate zones with convenient and residue-free dumping.
The operation modes and sweeping width can be flexibly adjusted to adapt to different cleaning demands, delivering high efficiency and excellent cleaning performance. The cab is equipped with an integrated electric control platform with clear parameters and intuitive operation, effectively reducing the work intensity of cleaning staff. With highly universal spare parts and economical maintenance costs, it is a cost-effective road cleaning solution for urban and rural sanitation departments, property management and factory cleaning services.
Configuration sheet
| CHASSIS SPECS | |
| Curb weight | 7200kgs |
| Total weight | 12000kgs |
| Drive style | 4×2 |
| Engine: | Weichai WP2.3NQ160E61, 118kW (160PS), diesel fuel, Euro 6 emission |
| Transmission: | Wanliyang 6-speed manual gearbox |
| Cabin: | Tiger VH single-row cab, A/C, power windows, central locking, multi-function steering wheel |
| Color: | Multiple options available |
| Wheelbase: | 3800 mm |
| Tire: | 7.50R16 16PR, 6 units |
| Front axle: | 3.6T steering axle, 1740mm wheel track |
| Rear axle: | 150L aluminum fuel tank + 15L urea tank |
| Capacity of oil tank: | 220L |
| Others | Reinforced frame 865×216×75×6mm; leaf spring suspension 3/7+3; air brake system; domestic ABS; power steering; max speed 95km/h |
| CARRIAGE BODY SPECS | |
| Size and Specs: | 2.5m³ clean water tank + 7m³ sealed dustbin; 4 disc brushes (2 on each side); sweeping width 2.8 – 3.2m; working speed 3 – 15km/h; cleaning efficiency ≥95%; integrated sweeping, suction and dust suppression system; hydraulic tipping discharge; built-in sewage collection structure to avoid secondary pollution |
| Package | Wax |
Advantages
We have been special truck manufacturer for more than 32 years. We has professional German Kogel technology, combined with Shacman, to create first-class special vehicles, provide trucks owners with the best quality, best price, and the most timely after-sale professional services.
Shipping
We usually adopt shipping by bulk cargo, flat rack, and Roro ship. We will arrange the most cost-effective transportation mode according to the quantity of products. All trucks will be polished with wax before shipping. We guarantee that all products have gone through strict inspection and are in good condition before shipment. We strive for 100% customer satisfaction on every sale we close.
Delivery time
20-40 working days after payment receipt confirmed (based on actual quantity).
Packing
Standard export packing, orcustomized packing as your request.
Professional goods shipping forwarder.
After-sales Service
1.12months or 100,000km for main parts (engine, axle, body and beam, etc).
2.Technical Support by phone Whatsapp or email around the clock.
3.Lifelong Parts Supports
4.Engineer available service oversea.
