Description

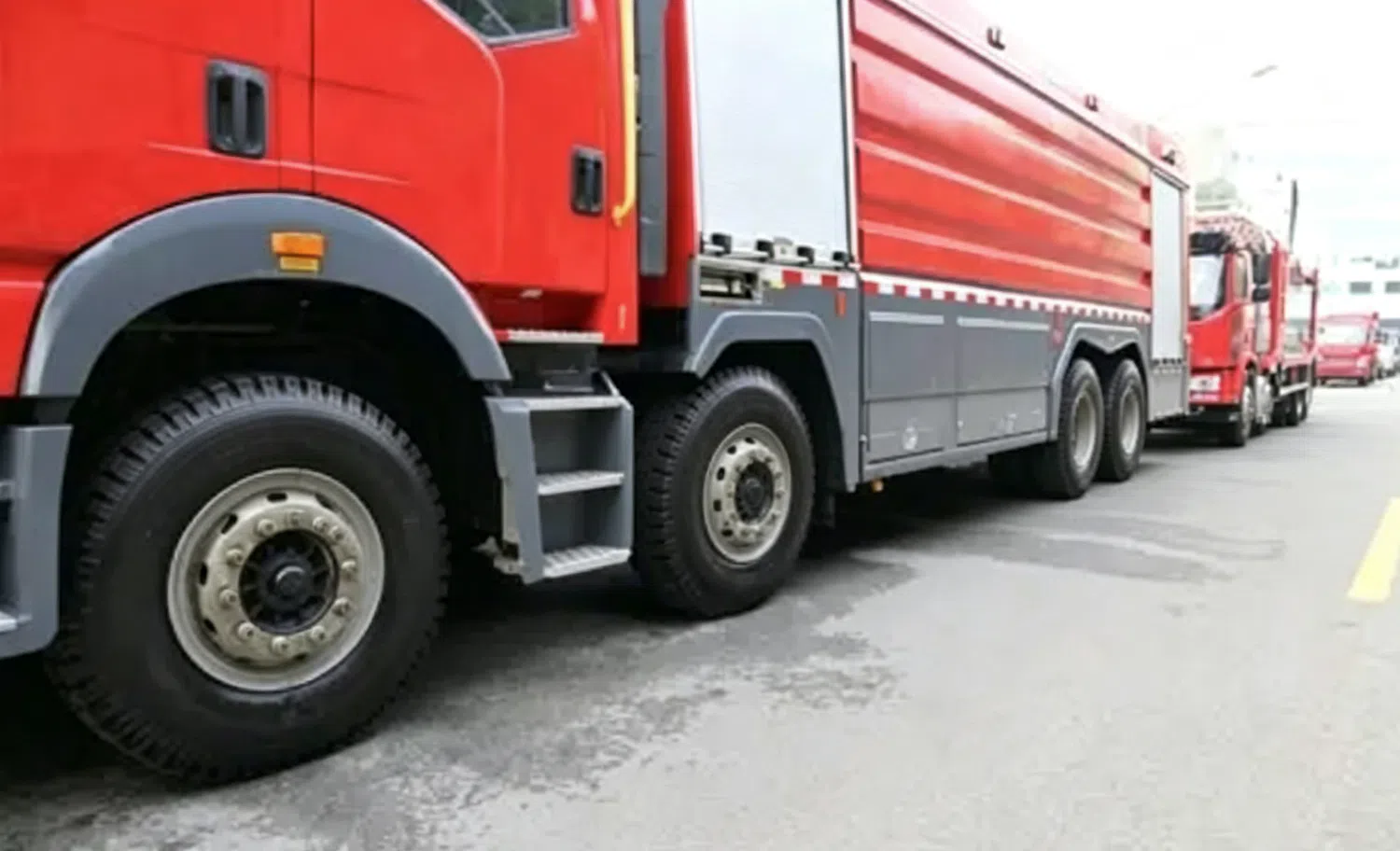

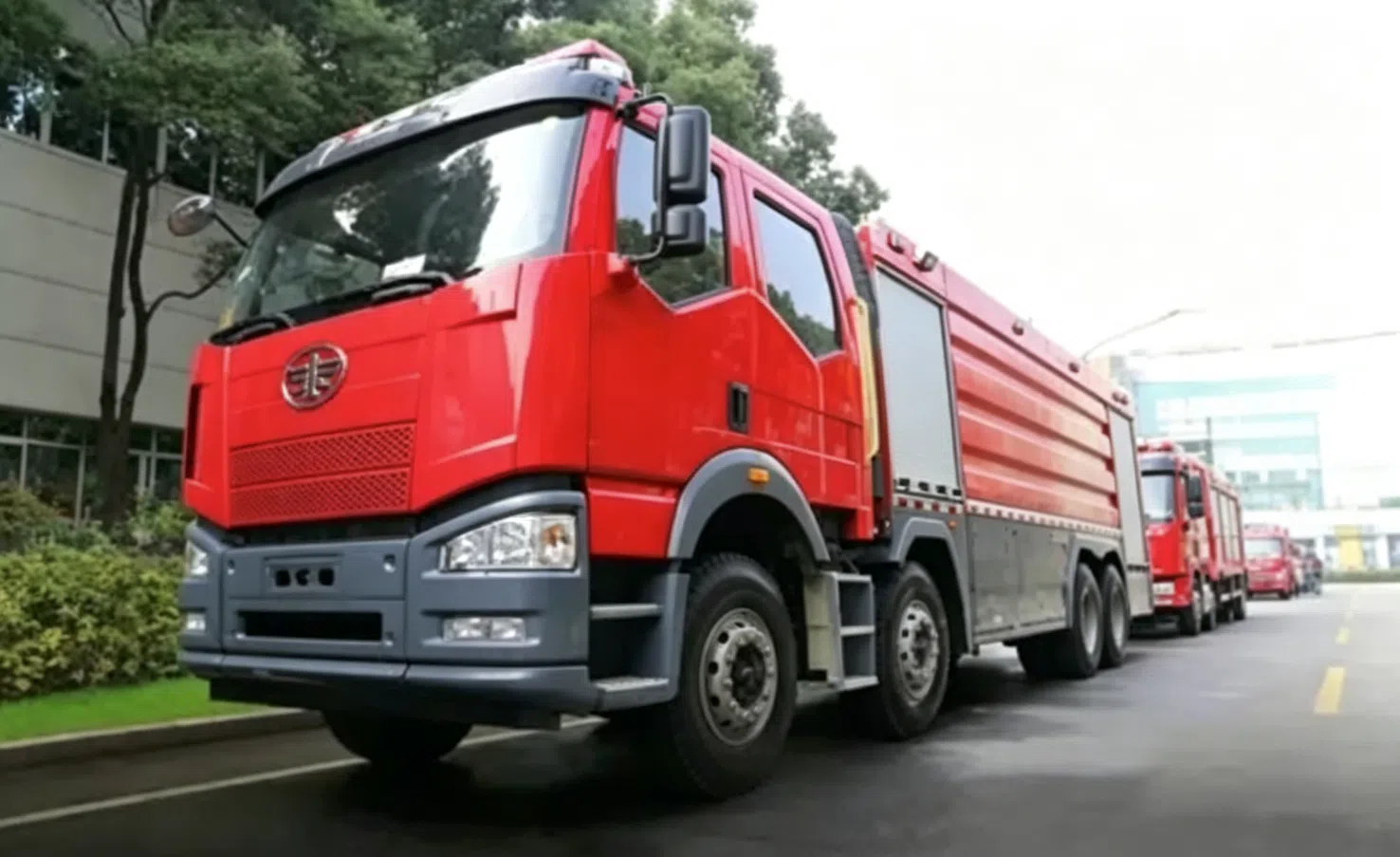

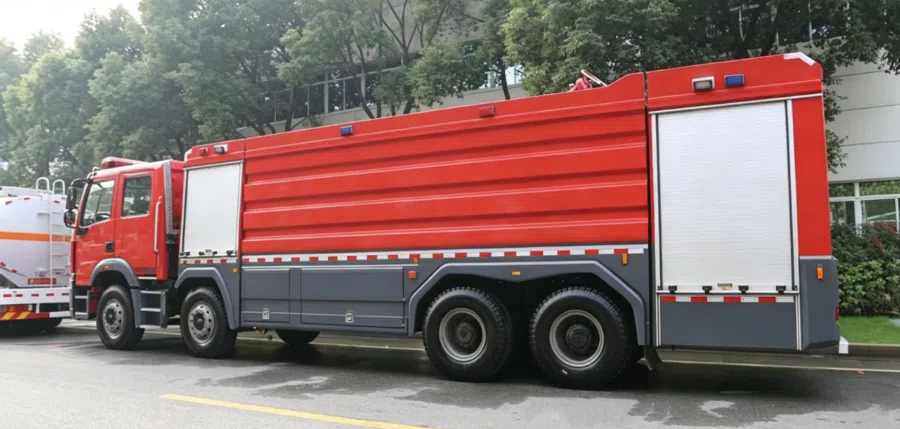

The J6P 8 × 4 water tank fire truck is a heavy-duty firefighting vehicle designed to handle large-scale firefighting and rescue missions. Equipped with a large capacity water tank of 18-20 cubic meters, equipped with professional fire pumps and fire monitor systems, the water supply is stable and the spraying range is long. Built on the Liberation J6P 8 × 4 heavy-duty chassis, the 420 horsepower engine is paired with a 12 speed gearbox with a PTO, providing excellent load-bearing and off-road performance, suitable for urban roads, industrial parks, and complex terrains.
Equipped with a Xichai 420 horsepower engine and a 12 speed gearbox with a PTO power take-off; Φ 300 wheel side deceleration rear axle, 18-20 cubic water tank, CB10/60 fire pump, PS60 fire monitor, 8 × 4 chassis, J6P multi seat fire cab.
Configuration sheet
| Model: CA5310GXFP66K24L6T4E | |
| CHASSIS SPECS | |
| Curb weight | 18600 kg |
| Total weight | 31000 kg |
| Drive style | Left hand drive |
| Engine: | Xichai CA6DM2-42E3F,420HP，Euro3 |
| Transmission: | CA12TAX210M |
| Cabin: | J6P double row fire cab |
| Color: | White |
| Wheelbase: | 1950+4600+1350 mm |
| Tire: | 12.00R20 tyres |
| Front axle: | 7T |
| Rear axle: | Φ 300 wheel side deceleration double rear axle |
| Capacity of oil tank: | 400L |
| Others | Air conditioning, dual circuit air brake, drum brake, optional ABS |
| CARRIAGE BODY SPECS | |
| Size and Specs: | 11800 × 2550 × 3750 mm |
| Package | Wax |
Advantages
We have been special truck manufacturer for more than 32 years. We has professional German Kogel technology, combined with Shacman, to create first-class special vehicles, provide trucks owners with the best quality, best price, and the most timely after-sale professional services.
Shipping
We usually adopt shipping by bulk cargo, flat rack, and Roro ship. We will arrange the most cost-effective transportation mode according to the quantity of products. All trucks will be polished with wax before shipping. We guarantee that all products have gone through strict inspection and are in good condition before shipment. We strive for 100% customer satisfaction on every sale we close.
Delivery time
20-40 working days after payment receipt confirmed (based on actual quantity).
Packing
Standard export packing, orcustomized packing as your request.
Professional goods shipping forwarder.
After-sales Service
1.12months or 100,000km for main parts (engine, axle, body and beam, etc).
2.Technical Support by phone Whatsapp or email around the clock.
3.Lifelong Parts Supports
4.Engineer available service oversea.
Cooperative Commemoration
