Description

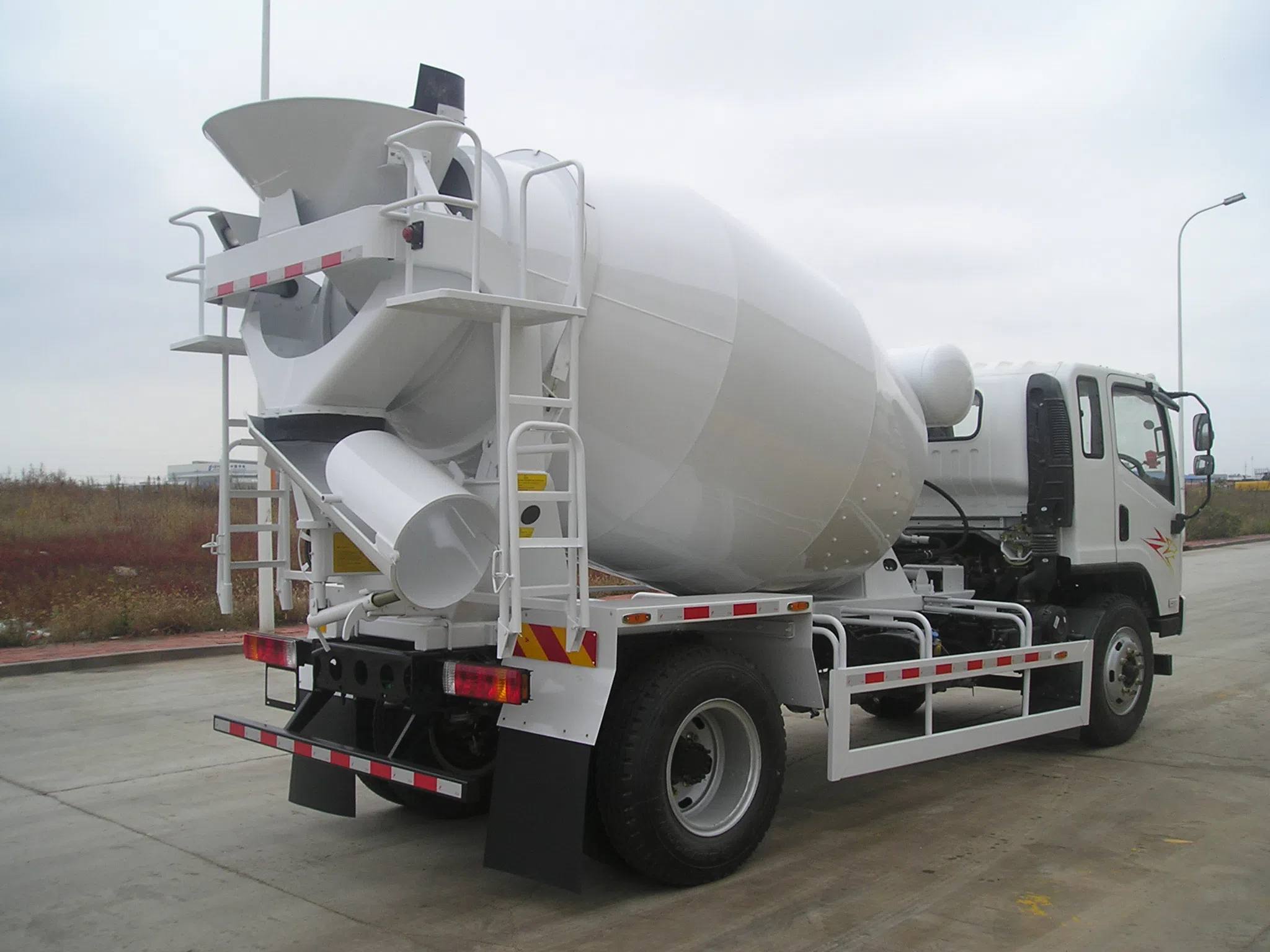

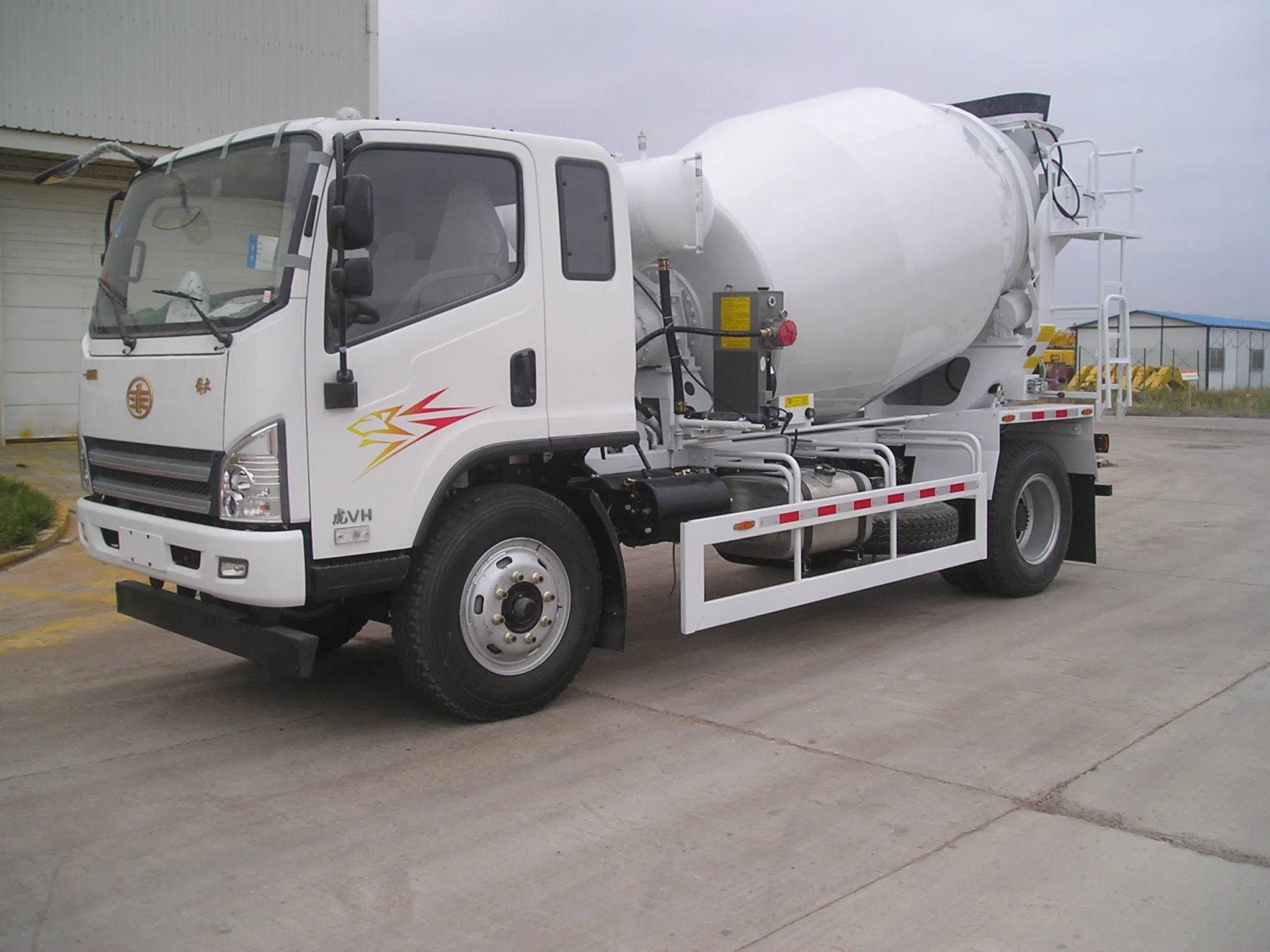

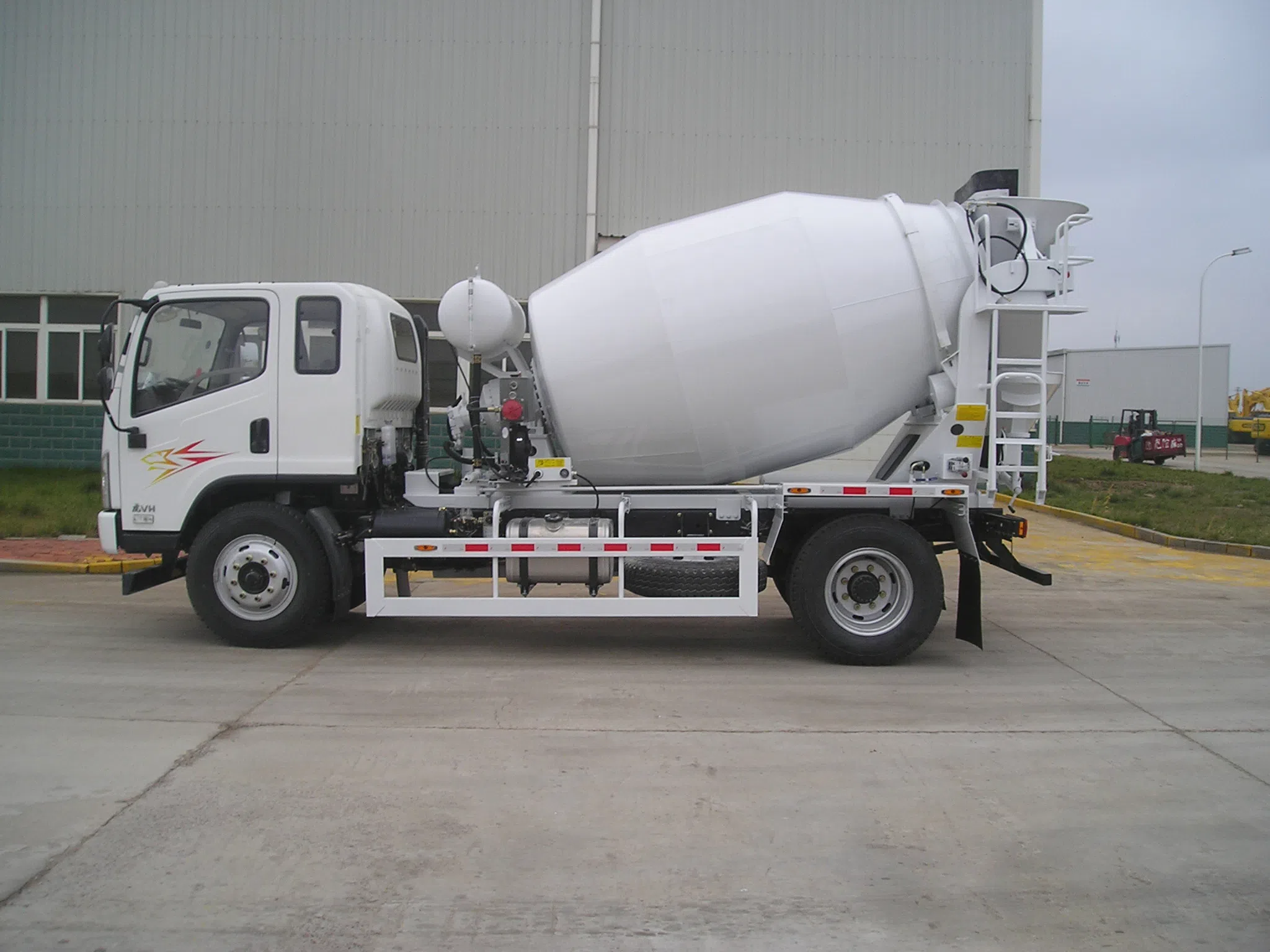

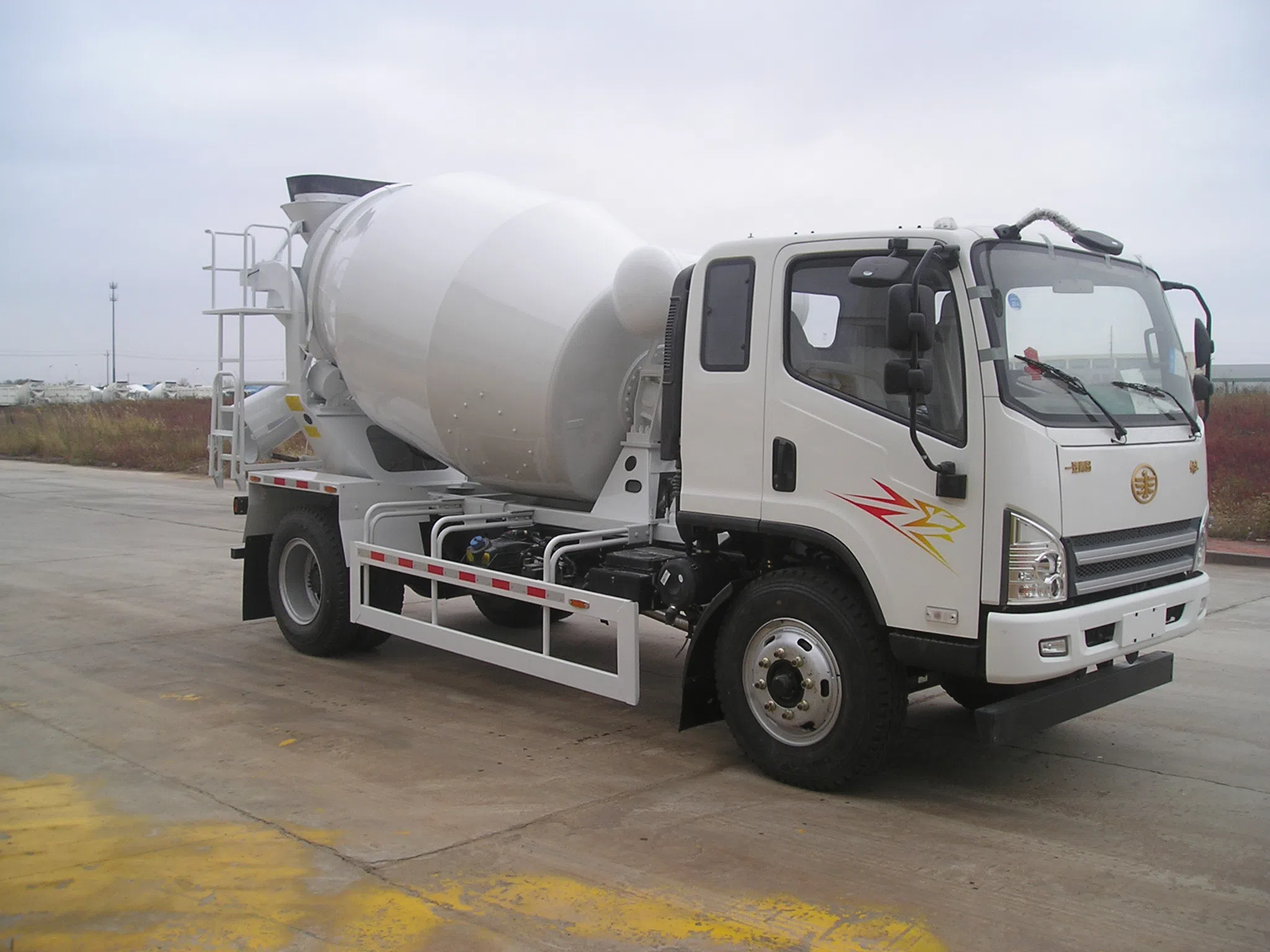

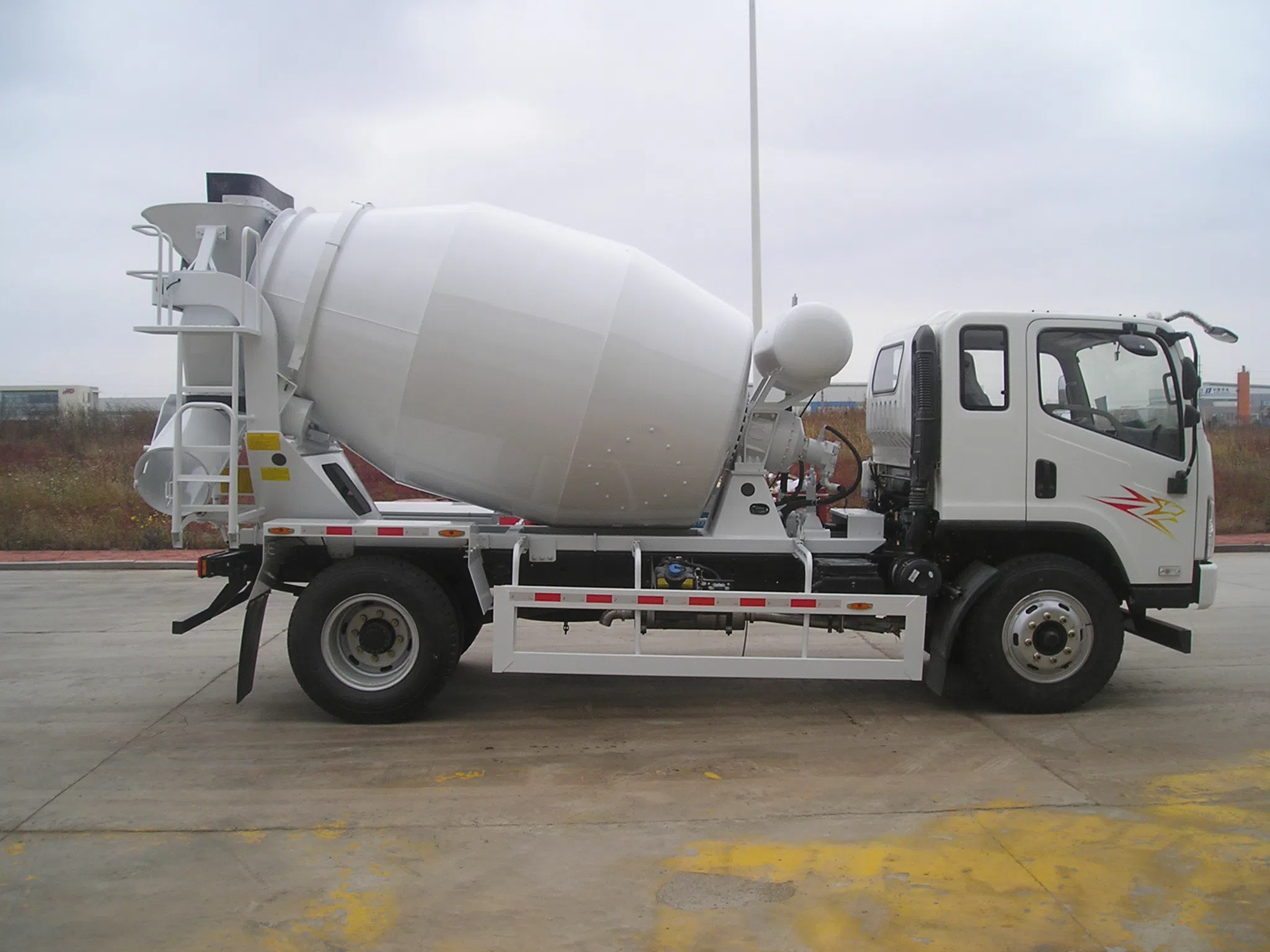

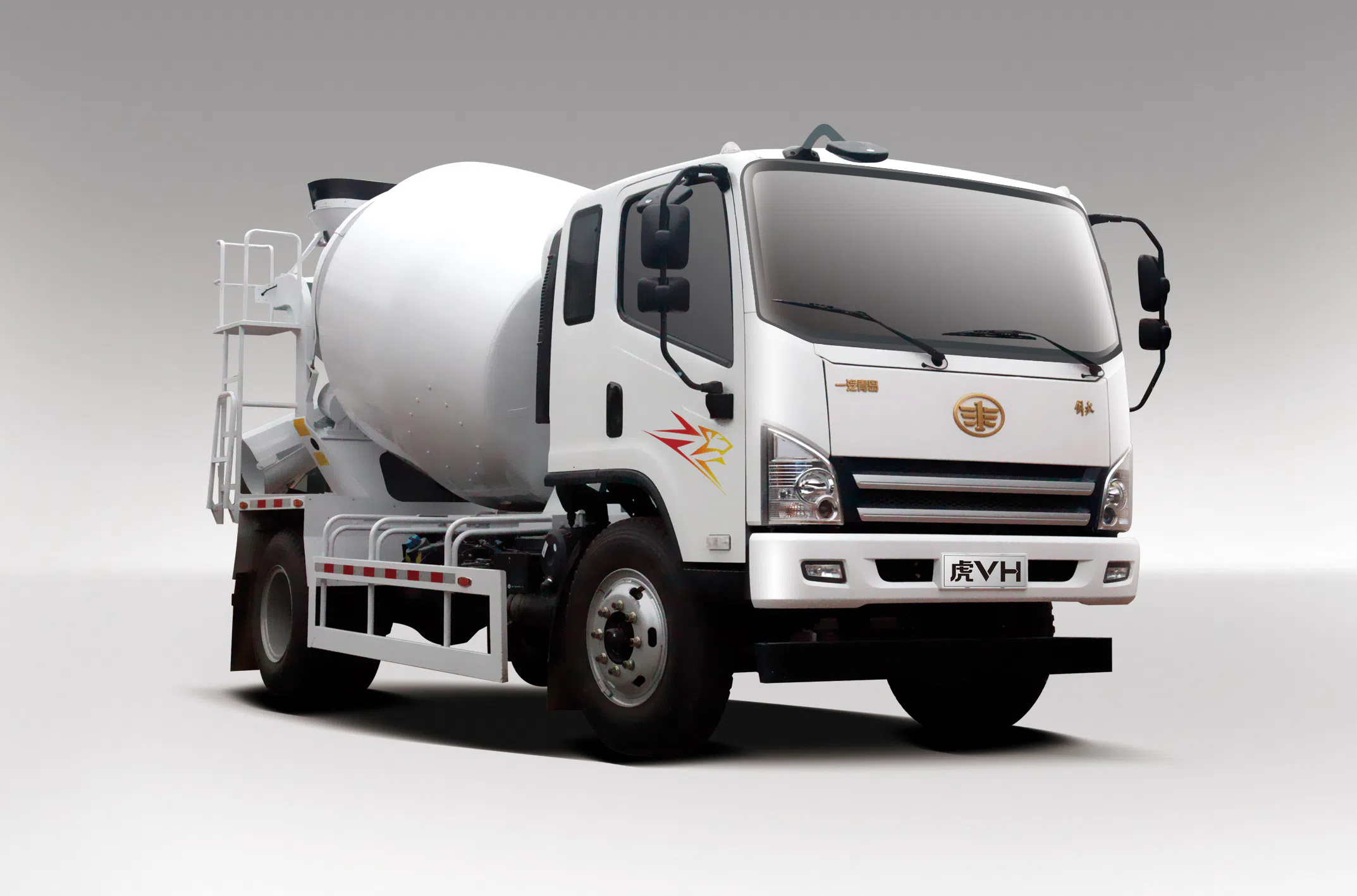

FAW Tiger V (commonly known as Huwei) concrete mixer truck is a small-volume concrete mixing transporter modified on the Tiger VH light-duty truck chassis, with a mainstream mixing capacity of 3–4 m³. It is purpose-built for township infrastructure, small-scale construction projects and narrow-site operations. It is fitted with a proven and reliable diesel powertrain, delivering solid chassis load capacity. Its compact footprint and agile manoeuvrability allow smooth access to rural roads, urban alleys and confined construction site roads, enabling fast and flexible site transfers. The mixing drum is constructed from high-strength wear-resistant steel with built-in anti-segregation spiral blades, paired with a stable hydraulic drive system. The drum rotates smoothly in both directions, ensuring uniform concrete mixing, fast discharge and low material residue. Its small drum volume is perfectly sized for small-scale concrete pouring, avoiding the wasted capacity and restricted access of larger mixer trucks. The cab offers excellent visibility and an intuitive control layout for mixing operations, effectively reducing operator fatigue. With highly universal spare parts and cost-effective maintenance, it is a highly economical concrete transport solution for township construction, municipal maintenance, small piling works and rural self-building projects.
Configuration sheet
| Model: CA3180P40K15L3E6A90 | |
| CHASSIS SPECS | |
| Curb weight | 4700kg |
| Total weight | 18000kg |
| Drive style | 4×2 |
| Engine: | Weichai WP4.1NQ190E61, 190PS, Euro 6 emission |
| Transmission: | Fast 8JS85F gearbox, direct drive |
| Cabin: | Tiger VH 2020 flat-top half-row cab, mechanical semi-floating suspension, manual torsion bar tilt, driver airbag damping seat, multi-function steering wheel, reserved wiring for telematics & dashcam, A/C, power windows, central locking, cruise control, EOL instrument cluster, overhead storage box, phone holder, heated side mirrors |
| Color: | Multiple options available |
| Wheelbase: | 3800mm |
| Tire: | 10.00R20 18PR |
| Front axle: | Q1150S front steering axle, 3.6T load capacity, wheel track 1768mm |
| Rear axle: | 435 upgraded shortened welded rear axle, 13T load capacity, wheel track 1750mm, hub bearing oil lubrication, final drive ratio 5.571, with differential lock |
| Capacity of oil tank: | 200L aluminum fuel tank + 20L urea tank |
| Others | Φ395 clutch, frame 865mm(front)/800mm(rear) × 260 × 80 × (7+4) mm, T24 dedicated mixer chassis |
| CARRIAGE BODY SPECS | |
| Size and Specs: | he rated effective mixing volume is about 4 cubic meters, the total geometric volume of the drum is about 5.5 cubic meters |
| Package | Wax |
Advantages
We have been special truck manufacturer for more than 32 years. We has professional German Kogel technology, combined with Shacman, to create first-class special vehicles, provide trucks owners with the best quality, best price, and the most timely after-sale professional services.
Shipping

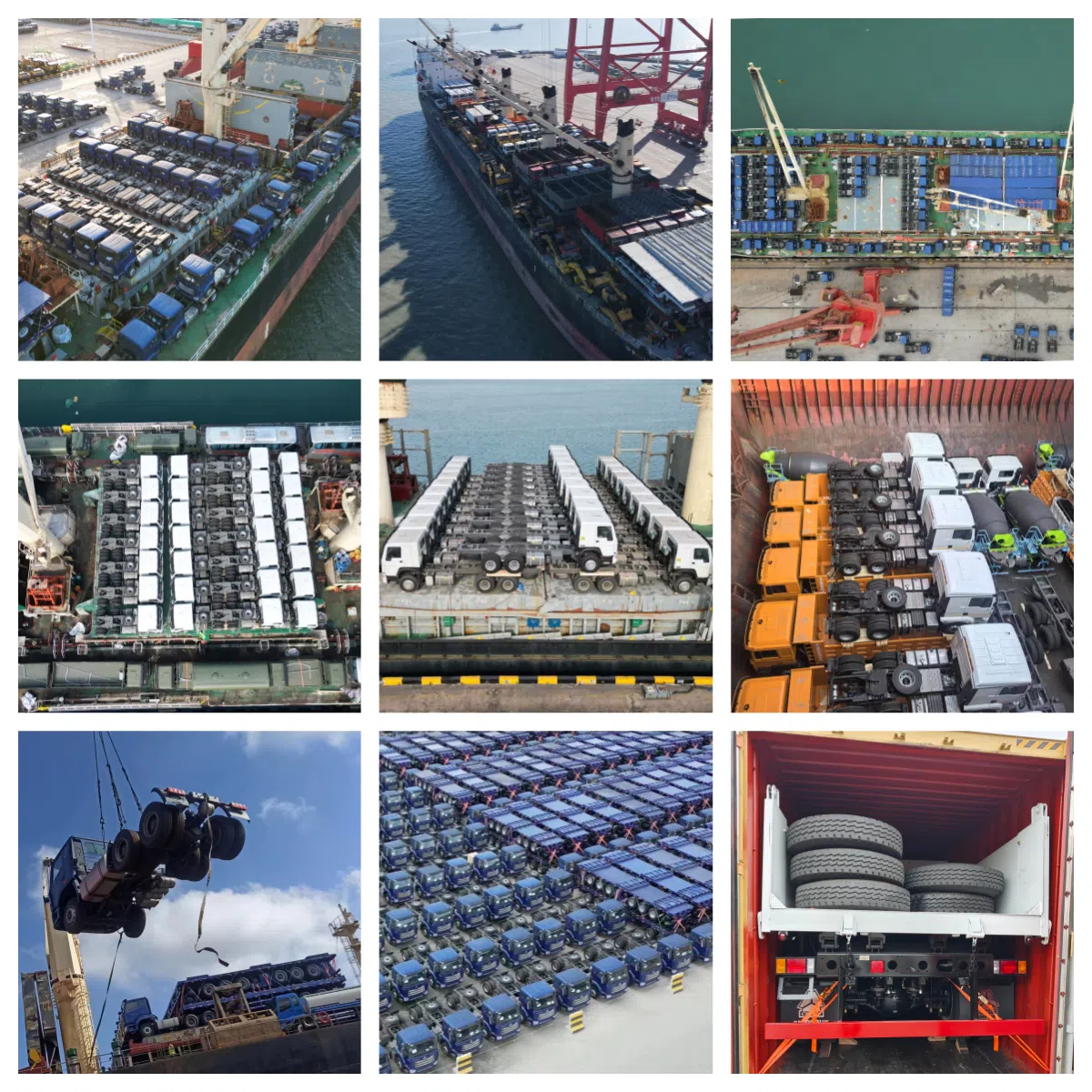

We usually adopt shipping by bulk cargo, flat rack, and Roro ship. We will arrange the most cost-effective transportation mode according to the quantity of products. All trucks will be polished with wax before shipping. We guarantee that all products have gone through strict inspection and are in good condition before shipment. We strive for 100% customer satisfaction on every sale we close.
Delivery time
20-40 working days after payment receipt confirmed (based on actual quantity).
Packing
Standard export packing, orcustomized packing as your request.
Professional goods shipping forwarder.
After-sales Service
1.12months or 100,000km for main parts (engine, axle, body and beam, etc).
2.Technical Support by phone Whatsapp or email around the clock.
3.Lifelong Parts Supports
4.Engineer available service oversea.
