Description

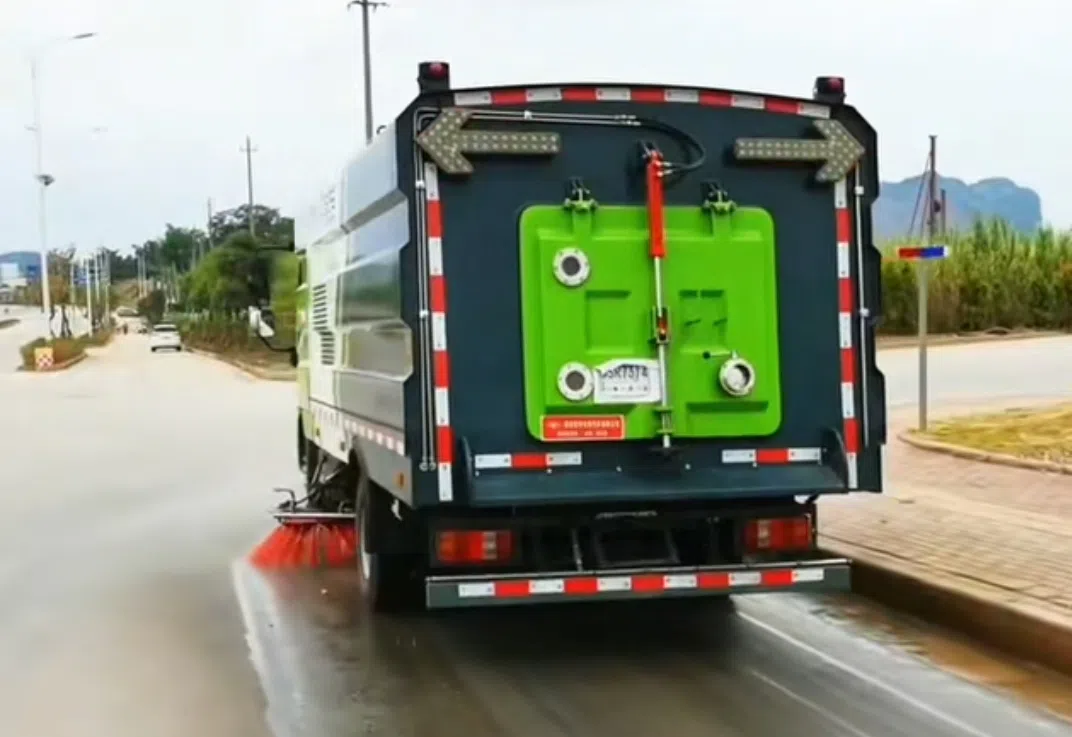

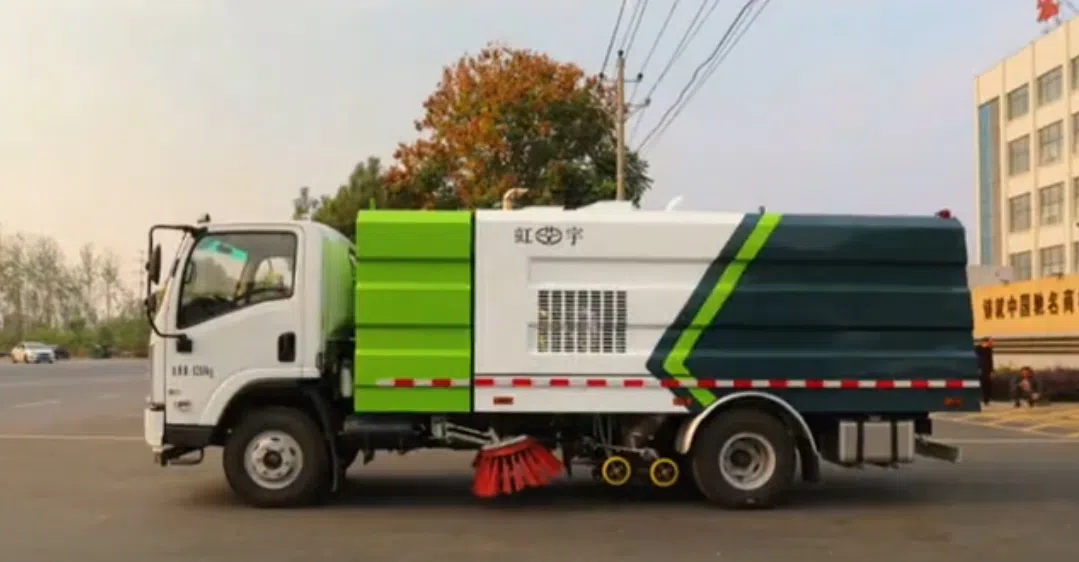

The SHACMAN Light truck X9 4×2 road sweeper truck is multi functional municipal cleaning special purpose vehicle refitted based on X9 light truck chassis, integrating road sweeping, dust suction and water spray dust suppression functions into one complete unitSHACMAN GR.... This sweeper vehicle is equipped with 4 sets of rotating sweeping brushes, high power suction fan assembly, 4 cubic meter dust bin and matched water spray system. It can complete cleaning work for dust, fallen leaves, sand and scattered small garbage on urban roads, township streets, factory plant roads and parking lots. While sweeping operation proceeds, water spray nozzles spray fine water mist to restrain secondary dust raising. Its gross vehicle weight reaches 8200 kg.
Power system configuration adopts YUCHAI YCY24160 60 160 horsepower diesel engine mated with 6 speed manual gearbox. Power take off provides power source for sweeping brushes, suction fan and water spray pump. X9 single row cabin supports optional air conditioning installation for driver comfort improvement during long time continuous sanitation operation. Compact whole vehicle outline secures good passing ability on narrow town and community roads.
Configuration sheet
| Model:SHACMAN Light truck X9 Sweeper Truck | |
| CHASSIS SPECS | |
| Curb weight | 3700 kg |
| Total weight | 8200 kg |
| Drive style | 4×2 |
| Engine: | YUCHAI YCY24160-60 diesel engine,160HP |
| Transmission: | 6-speed manual gearbox |
| Cabin: | X9 single row cab, A/C optional |
| Color: | White / Green |
| Wheelbase: | 4200 mm |
| Tire: | 8.25R16 radial tyre, 6 pcs |
| Front axle: | 3.5T |
| Rear axle: | 6.8T |
| Capacity of oil tank: | 140L |
| Others | Power steering |
| CARRIAGE BODY SPECS | |
| Size and Specs: | Road sweeping system, 4 sweeping brushes, water spraying system, 4CBM dust bin |
| Package | Sweeping brushes protected, whole vehicle cleaning |
Advantages
We have been special truck manufacturer for more than 32 years. We has professional German Kogel technology, combined with Shacman, to create first-class special vehicles, provide trucks owners with the best quality, best price, and the most timely after-sale professional services.
Shipping
We usually adopt shipping by bulk cargo, flat rack, and Roro ship. We will arrange the most cost-effective transportation mode according to the quantity of products. All trucks will be polished with wax before shipping. We guarantee that all products have gone through strict inspection and are in good condition before shipment. We strive for 100% customer satisfaction on every sale we close.
Delivery time
20-40 working days after payment receipt confirmed (based on actual quantity).
Packing
Standard export packing, orcustomized packing as your request.
Professional goods shipping forwarder.
After-sales Service
1.12months or 100,000km for main parts (engine, axle, body and beam, etc).
2.Technical Support by phone Whatsapp or email around the clock.
3.Lifelong Parts Supports
4.Engineer available service oversea.
