Description:

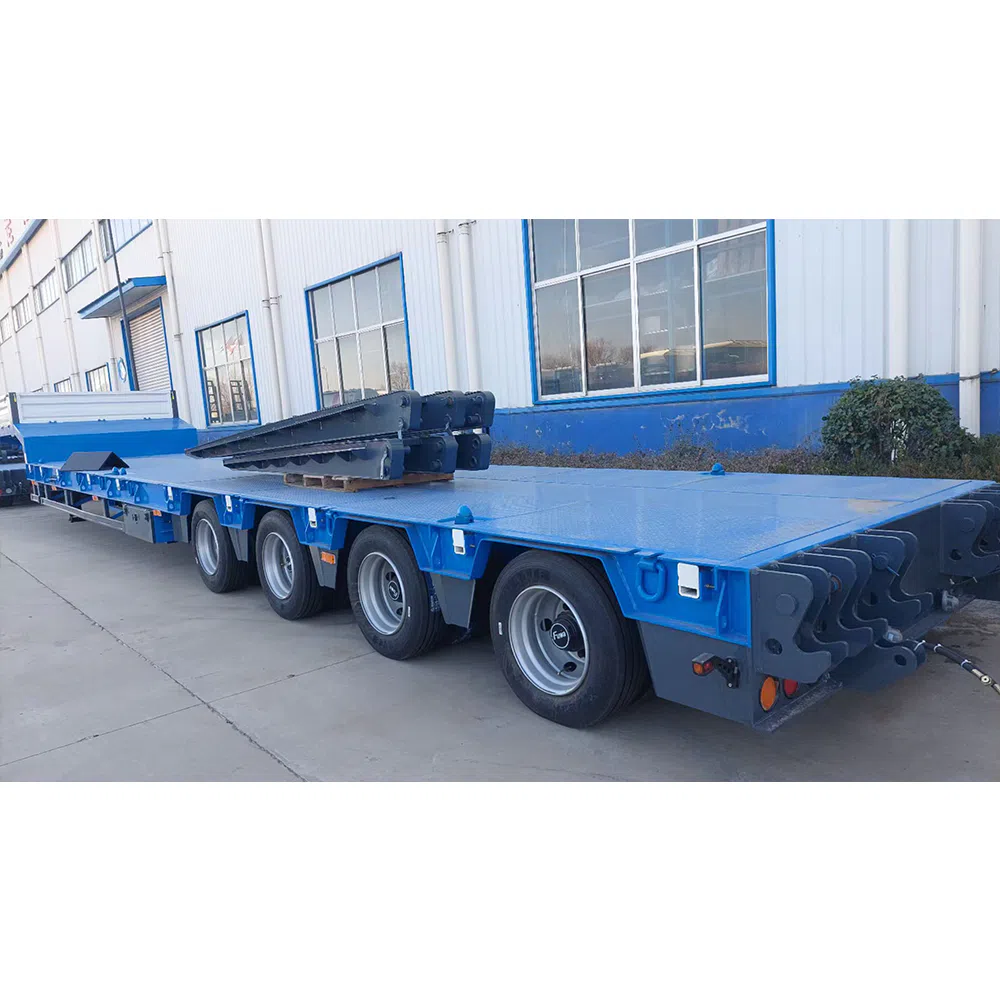

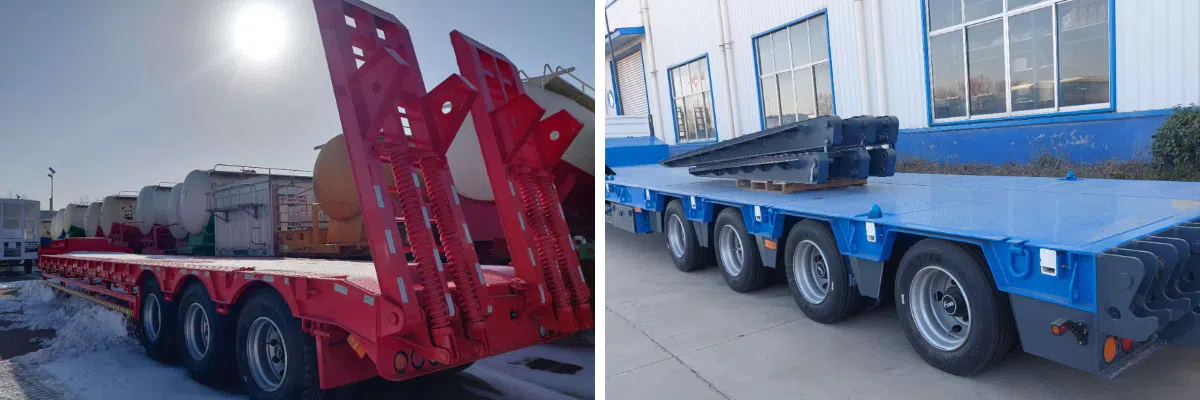

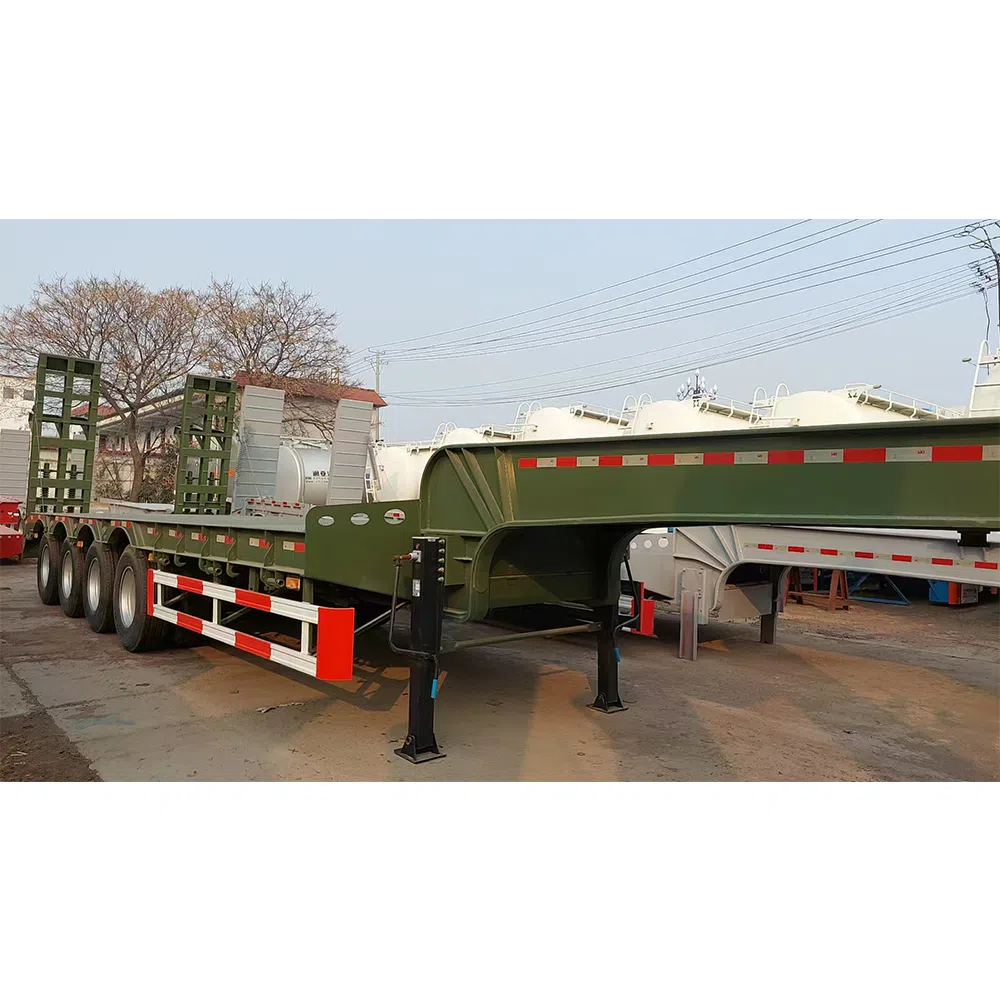

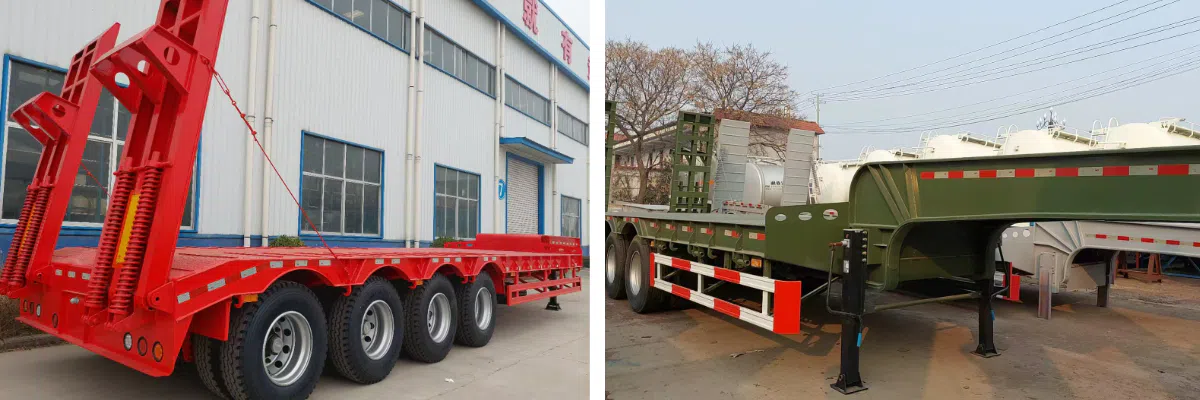

Whether it's transporting excavators and bulldozers to construction sites, delivering mining machinery to remote operations, or moving heavy industrial equipment across regions, the lowbed semi-trailer delivers outstanding performance with strength and reliability.
Reinforced Main Beam & Heavy-Duty Structure
The main beam is fabricated from high-strength steel with dimensions up to 500 mm height and 18/20 mm flange plates, providing exceptional load-bearing capacity and resistance to bending under heavy loads. The entire structure is built with Q235 steel, ensuring durability in the toughest working conditions.
Low Deck Height for Easy Loading

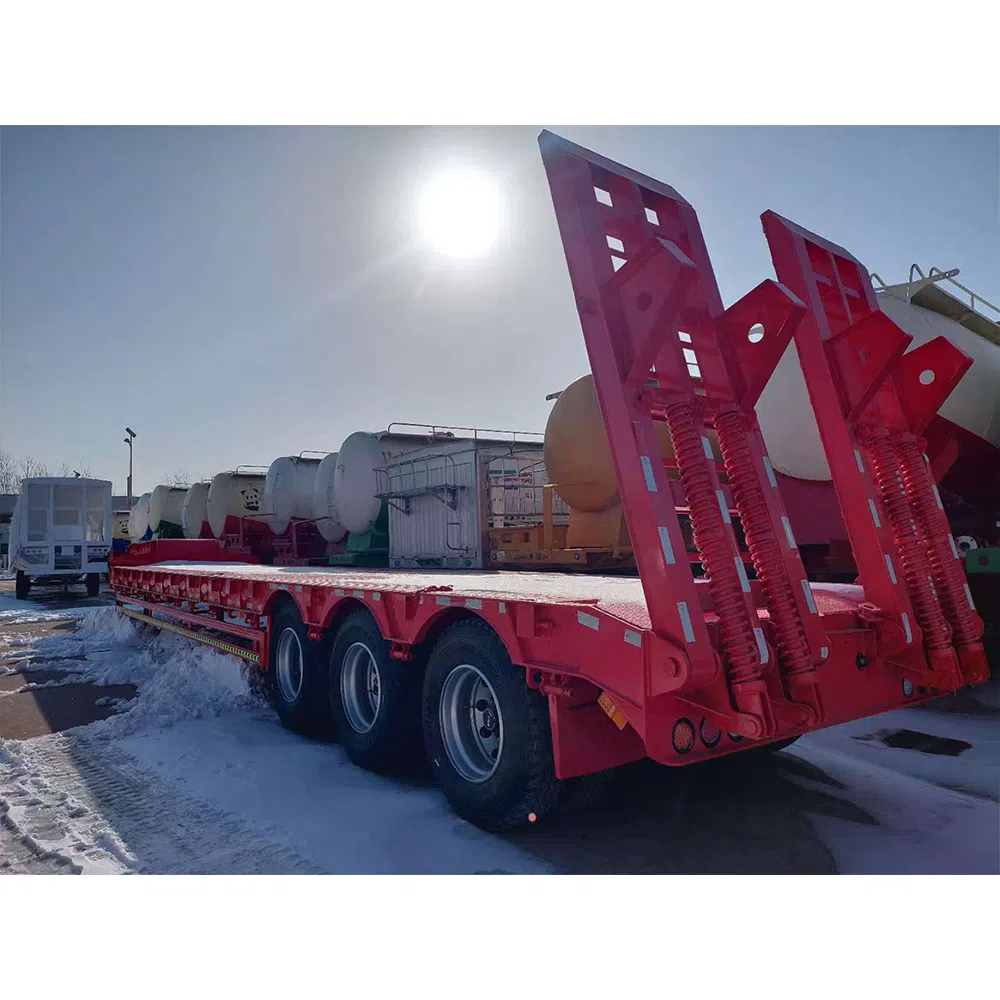

With a low deck height of just 1250 mm, the trailer enables safe and easy loading of tall equipment with a minimal ramp angle. The 4 mm diamond pattern floor offers anti-slip protection, keeping machinery secure during transport.
High Payload & Reliable Suspension
Rated payload of up to 50 tons, meeting the demanding requirements of heavy machinery logistics. The thickened spring suspension provides superior stability, reducing vibration and protecting cargo during transit.
Quality Axles, Tires & Landing Gear
Equipped with Fuhua 13-ton axles and 315/80R22.5 tires, the trailer ensures smooth operation and reliable braking performance. The 28-ton landing gear enables easy coupling and uncoupling operations.
Securing & Safety Features
8 sets of container locks for versatile securing options
Full LED lighting system for excellent visibility and night operation safety
Two spare wheel carriers and a steel tool box for convenient maintenance
Why Choose This Lowbed Semi-Trailer?
It combines rugged construction, high payload capacity, and user-friendly design. Whether you need to move excavators, bulldozers, mining machinery, or heavy industrial equipment, this lowbed semi-trailer is your trusted partner for heavy equipment transportation.
Configuration sheet:
CHASSIS SPECS | |
| Overall Dimension (L×W×H)：13000 × 3000 × 1600 mm | |
| Curb weight | 7,200 kg |
| Rated Payload | 50,000 kg |
| Main Beam | 500 mm height, top plate 18mm, bottom plate 20mm, web 10mm |
| Bottom Plate | 4 mm diamond pattern plate |
| Landing Gear | 28-ton capacity, manual operation |
| Suspension | Heavy-duty thickened spring suspension |
| Spring Leaves | 90 mm width × 13 mm thickness × 10 leaves |
| Axle | Fuhua brand, 13-ton capacity × 3 units, 2180 mm track |
| Tire: | 315/80R22.5, 12 units + 1 spare (optional) |
| Working Platform Dimension | 9200 × 3000 × 1250 mm |
| Electrical System | 24V, 7-core ABS socket, waterproof wiring |
| Tool Box | 1 unit, steel construction |
| Others | / |
| CARRIAGE BODY SPECS | |
| Size and Specs: | / |
| Package | Wax |
Advantages:
We have been special truck manufacturer for more than 32 years. We has professional German Kogel technology, combined with Sinotruk, to create first-class special vehicles, provide trucks owners with the best quality, best price, and the most timely after-sale professional services.
Shipping:
We usually adopt shipping by bulk cargo, flat rack, and Roro ship. We will arrange the most cost-effective transportation mode according to the quantity of products. All trucks will be polished with wax before shipping. We guarantee that all products have gone through strict inspection and are in good condition before shipment. We strive for 100% customer satisfaction on every sale we close.
Delivery time:
20-40 working days after payment receipt confirmed (based on actual quantity).
Packing:
Standard export packing, orcustomized packing as your request.
Professional goods shipping forwarder:
After-sales Service:
1.12months or 100,000km for main parts (engine, axle, body and beam, etc).
2.Technical Support by phone Whatsapp or email around the clock.
3.Lifelong Parts Supports
4.Engineer available service oversea.
