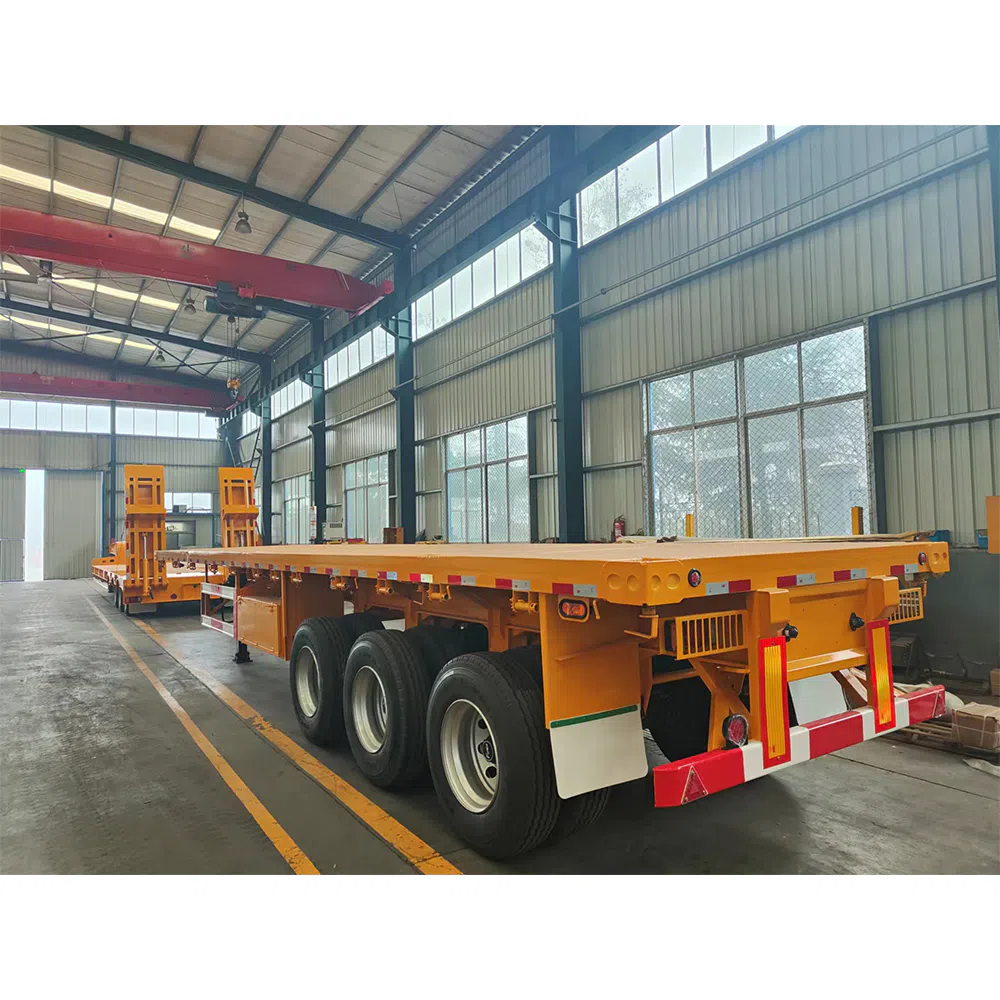

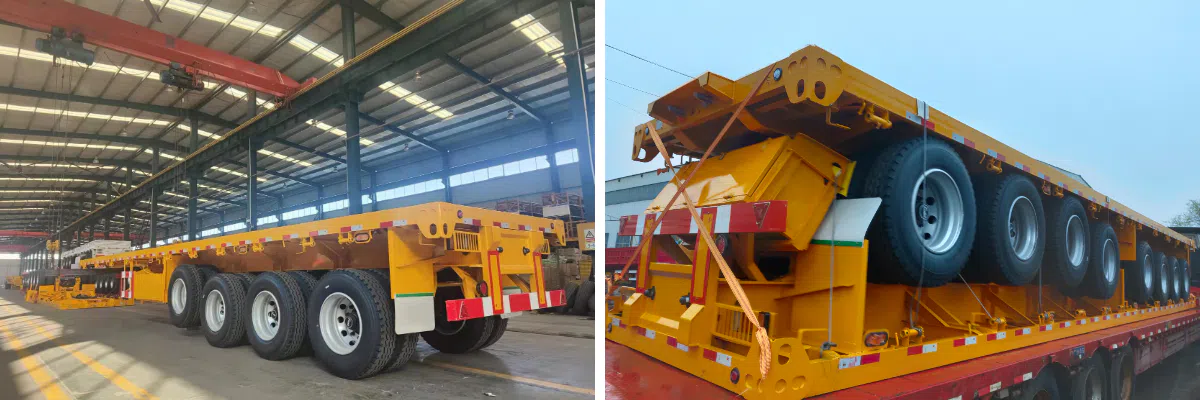

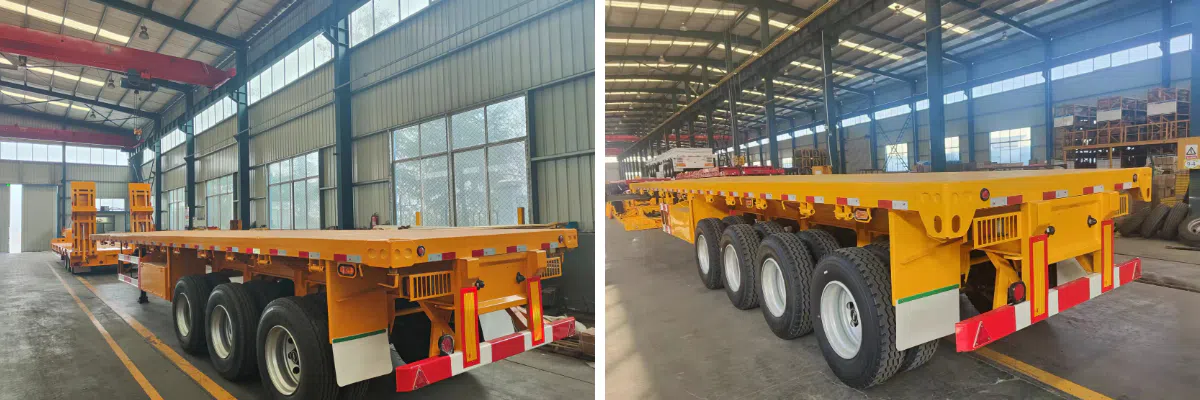

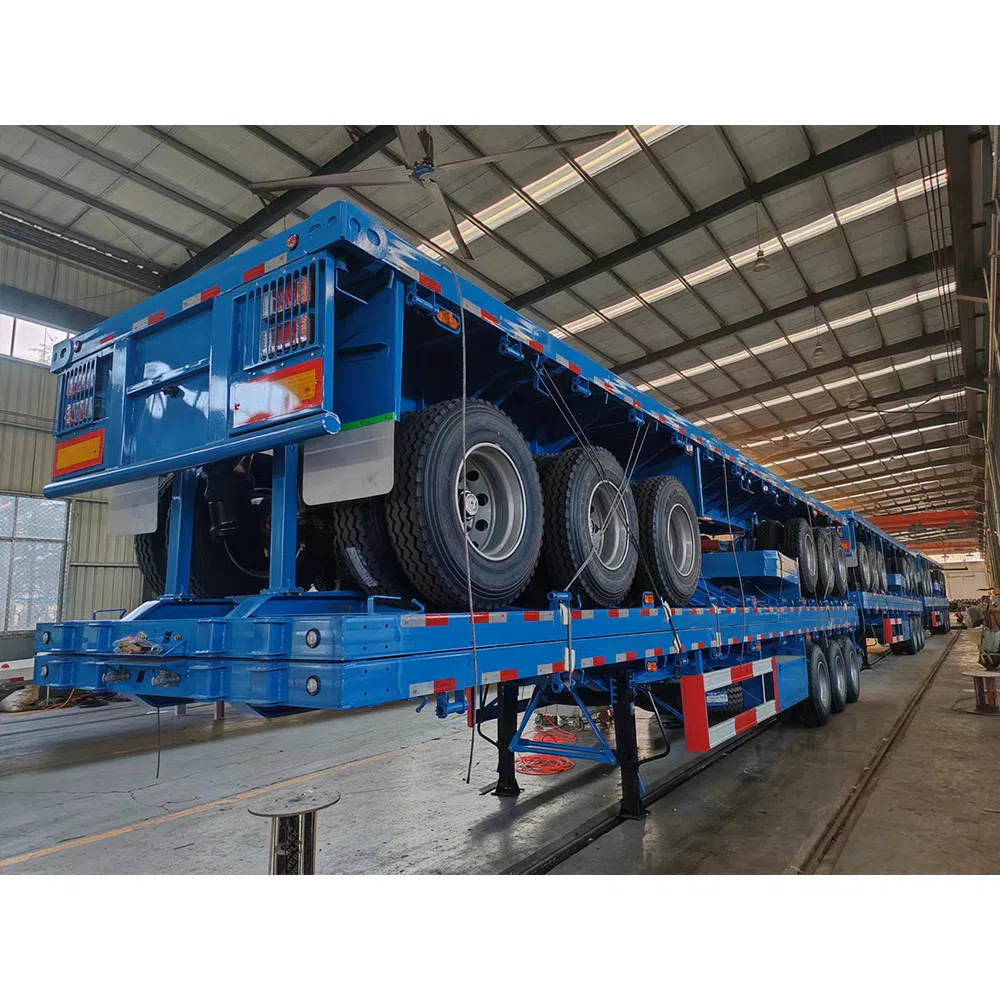

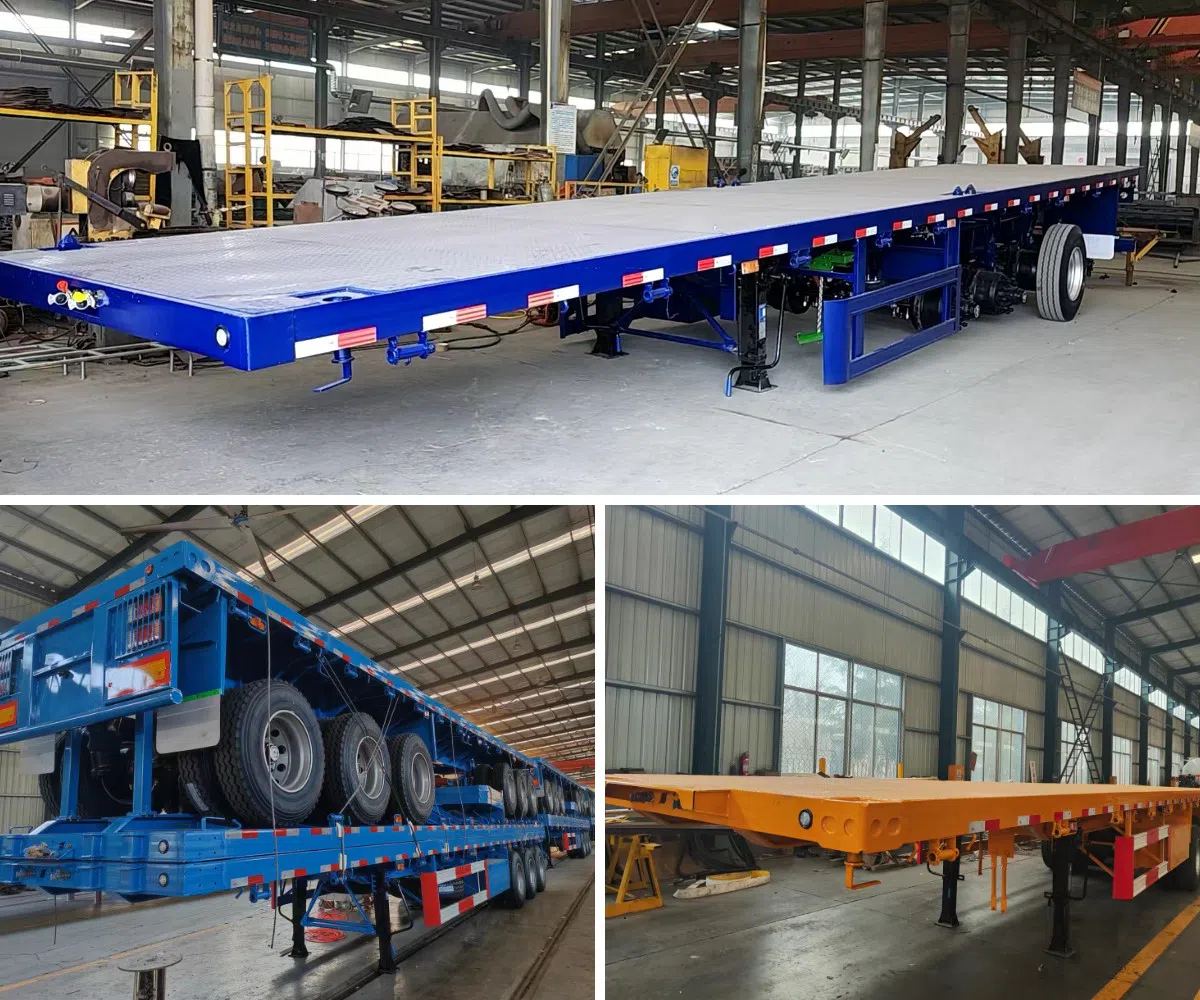

Description:
Flatbed semi-trailers are specifically designed for standard container highway transshipment, port collection and distribution, and multimodal transport. With their lightweight structure, stable load-bearing capacity, and efficient loading and unloading, they are the main transport equipment for logistics companies, ports, and freight forwarding operations. They focus on transporting 20ft and 40ft standard containers, meeting the needs of container transshipment at ports, yards, logistics parks, and on highways.
High-Strength Steel Construction
The trailer is constructed with high-strength steel, providing strong load-bearing capacity, excellent torsional resistance, and fatigue resistance. It is engineered to withstand long-term heavy-load transport and complex road conditions, ensuring reliable performance over years of operation.
Optimized Lightweight Design
The overall structure is rationally designed for a lighter weight, which effectively increases legal payload capacity, reduces fuel consumption, and lowers operating costs – giving fleet operators a higher return on investment.
Specialized Container Locking System
Equipped with specialized container locks (twist locks), the trailer ensures secure fixing of containers during transit while enabling efficient loading and unloading at ports and yards.
Versatile Applications
Whether used for port collection and distribution, railway intermodal transfer, or highway long-haul container transport, this flatbed semi-trailer delivers stable performance and easy operation.
Why Choose This Flatbed Semi-Trailer?
It combines high-strength steel durability, lightweight design for fuel savings, and reliable container locking systems. Optimized for 20ft/40ft standard containers, it is your trusted partner for port, highway, and multimodal container logistics.
Configuration sheet:
Model: Flatbed Trailer | |
CHASSIS SPECS | |
| Curb weight | 8600kgs |
| Load capacity | 30000~60000kgs |
| Axle amount | 2/3/4/5 |
| Brand of Axle | Zhengyang/FUWA |
| Girder height | 500mm, upper wing 14mm, lower wing 16mm, web 8mm |
| Side beam | 16# |
| Color | White |
| Bottom plate | 3mm pattern |
| Tire: | 12R22.5 |
| Drive axle | MCK45ZG |
| Leg | 28T |
| Others | Professional electrical road,Spraying: high-end painting process |
CARRIAGE BODY SPECS | |
| Size | 12500*2500*1600mm |
| Package | Wax |
| There are options for engine,tire,wheelbase,cargo,etc.Please contact us for suitable configurations. | |
Advantages:
We have been special truck manufacturer for more than 32 years. We has professional German Kogel technology, combined with Sinotruk, to create first-class special vehicles, provide trucks owners with the best quality, best price, and the most timely after-sale professional services.
Shipping:
We usually adopt shipping by bulk cargo, flat rack, and Roro ship. We will arrange the most cost-effective transportation mode according to the quantity of products. All trucks will be polished with wax before shipping. We guarantee that all products have gone through strict inspection and are in good condition before shipment. We strive for 100% customer satisfaction on every sale we close.
Delivery time:
20-40 working days after payment receipt confirmed (based on actual quantity).
Packing:
Standard export packing, orcustomized packing as your request.
Professional goods shipping forwarder:
After-sales Service:
1.12months or 100,000km for main parts (engine, axle, body and beam, etc).
2.Technical Support by phone Whatsapp or email around the clock.
3.Lifelong Parts Supports
4.Engineer available service oversea.
Cooperative Commemoration:
