Description

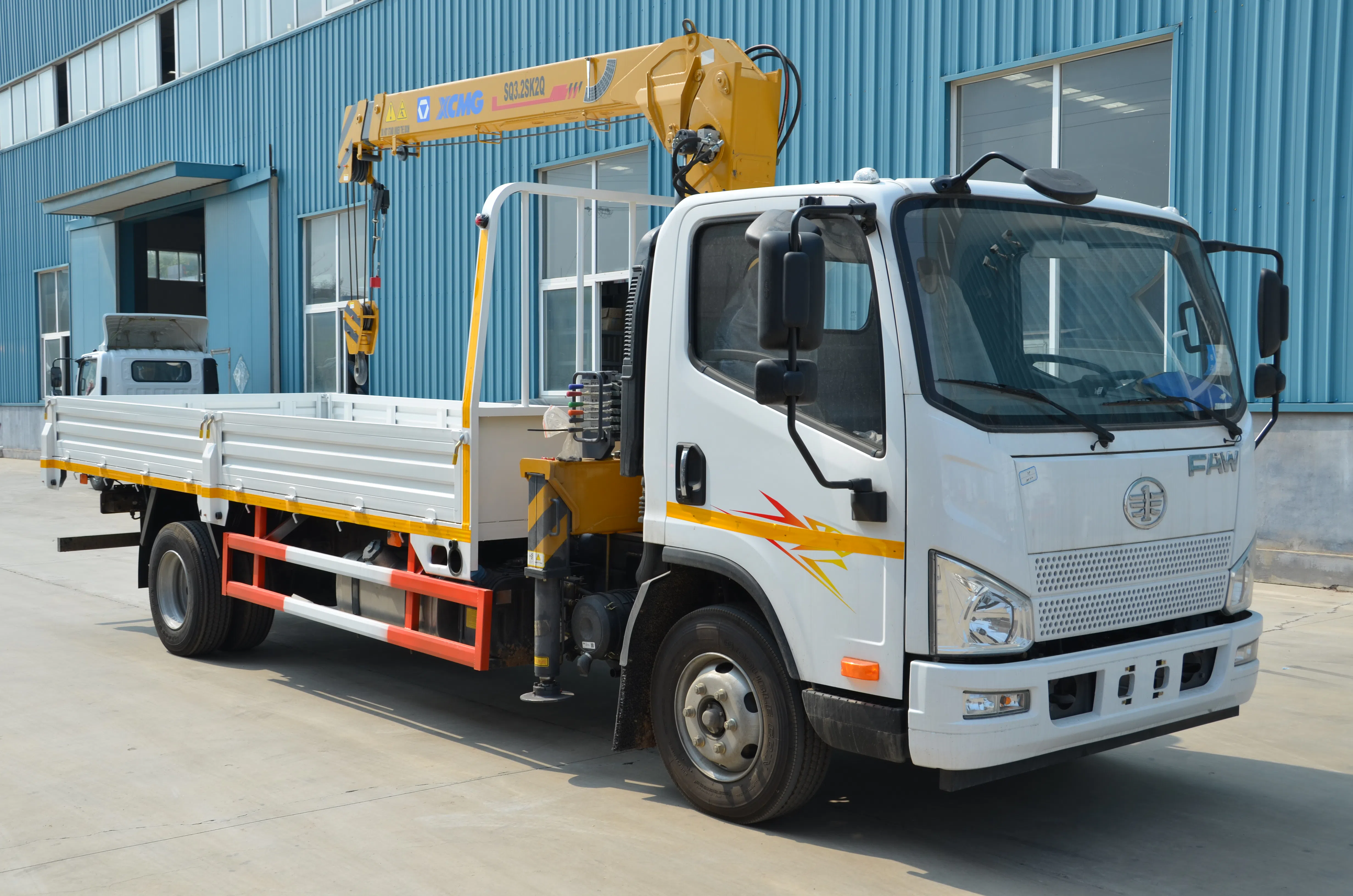

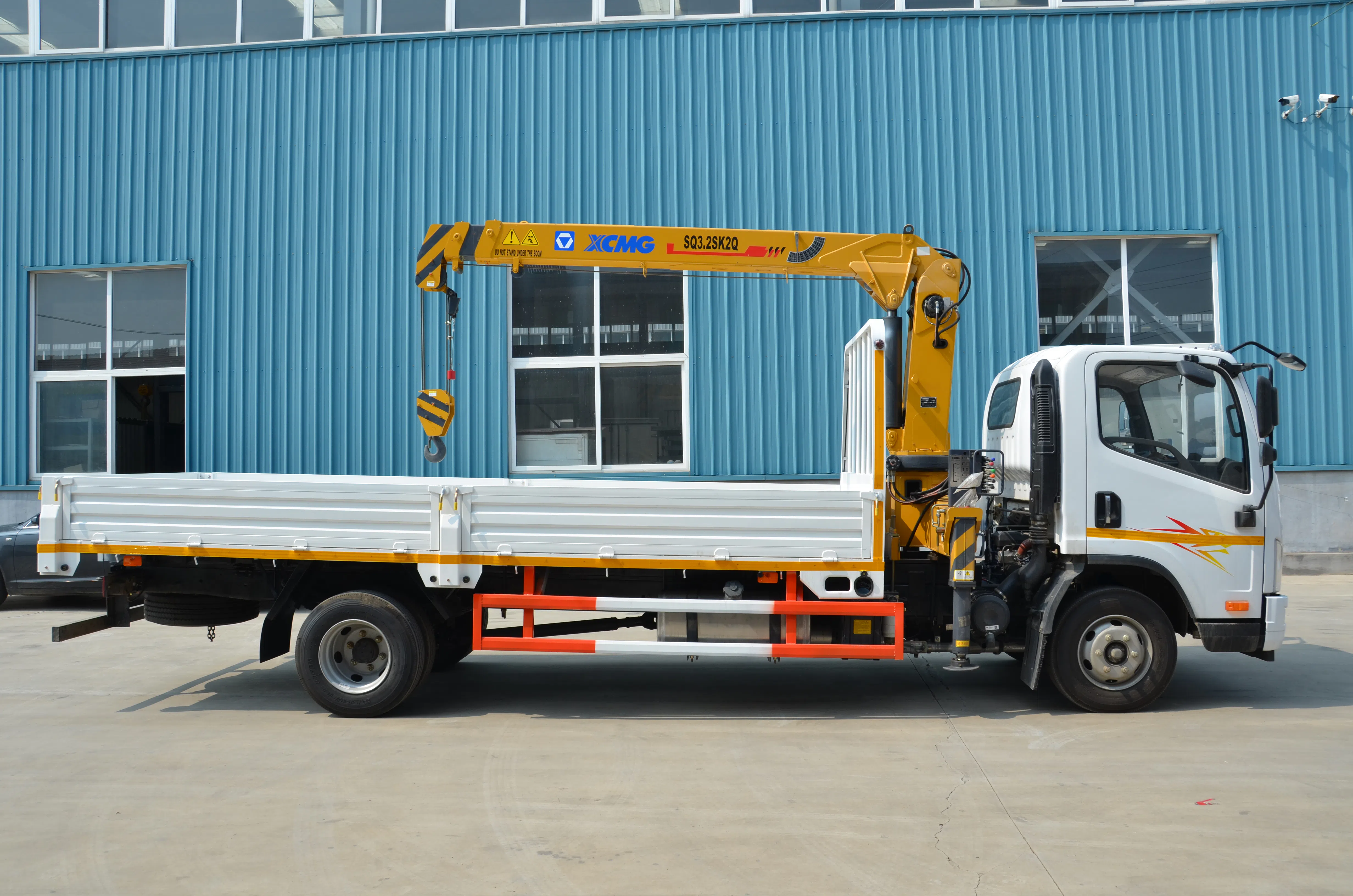

FAW Tiger V (commonly known as Huwei) truck-mounted crane is an integrated lifting and transport equipment modified on the dedicated Tiger VH light truck chassis. It combines cargo lifting and short-distance transportation functions, and is widely suitable for diverse operation scenarios including urban and rural infrastructure construction, municipal maintenance, garden seedling transplantation, building material distribution and factory equipment loading.
The vehicle is equipped with a mature and stable diesel powertrain. The chassis adopts a reinforced frame design with solid and reliable load-bearing performance. Its compact and agile body with a small turning radius can smoothly travel on rural roads, urban streets and narrow construction sites, enabling efficient site transfer and easy adaptation to complex working conditions. The crane is built of high-strength structural steel and matched with a full hydraulic drive system, delivering smooth lifting, steady slewing and precise positioning. Its working radius and lifting height fully meet the demands of medium and small tonnage lifting operations, and it is equipped with multiple safety devices such as a moment limiter and over-hoist protection to ensure safe and reliable operation.
The vehicle retains the loading space of a standard cargo body, realizing integrated "lifting + transportation" operation. No additional lifting equipment or transport vehicles are required, which greatly improves loading, unloading and transportation efficiency and reduces comprehensive operating costs. It supports dual operation modes of cab control and ground control, which is convenient and easy to operate. The cab features wide vision and practical configurations, effectively reducing operators' work intensity. With highly universal spare parts and convenient, economical maintenance, it is a cost-effective work equipment for individual contractors, municipal garden departments and small and medium-sized logistics enterprises.
Configuration sheet
| Model: CA1041P40K50L1BE6A84 | |
| CHASSIS SPECS | |
| Curb weight | 310kgs |
| Total weight | 4495 |
| Drive style | 4×2 |
| Engine: | Quanchai Q23-95E60 / Yunnei D25 series，95-150PS，2.3-2.5L displacement，diesel，Euro 6 emission |
| Transmission: | Wanliyang 5-6 speed manual gearbox |
| Cabin: | Tiger VH single-row cab，2 seats，A/C，power windows，central locking，power steering |
| Color: | Multiple options available |
| Wheelbase: | 2800 / 3300 mm |
| Tire: | 6.50R16 / 7.00R16 14-16PR，6 units |
| Front axle: | 2.2T steering axle，1520mm wheel track |
| Rear axle: | 4.5T drive axle，final drive ratio 5.375，1475mm wheel track |
| Capacity of oil tank: | 100L standard fuel tank |
| Others | Reinforced frame 865×216×75×6mm；leaf springs 3/7+3；air brake system；domestic ABS；engine PTO output；max speed 95km/h；approach angle 15°，departure angle 15° |
| CARRIAGE BODY SPECS | |
| Size and Specs: | Mainstream 3.2T / 4T telescopic boom crane；boom length 9-12m；working radius 6-9m；flatbed cargo box 3400-3800 × 2100 × 600mm；full hydraulic drive；moment limiter；over-hoist protection；dual control mode（cab + ground operation） |
| Package | Wax |
Advantages
We have been special truck manufacturer for more than 32 years. We has professional German Kogel technology, combined with Shacman, to create first-class special vehicles, provide trucks owners with the best quality, best price, and the most timely after-sale professional services.
Shipping
We usually adopt shipping by bulk cargo, flat rack, and Roro ship. We will arrange the most cost-effective transportation mode according to the quantity of products. All trucks will be polished with wax before shipping. We guarantee that all products have gone through strict inspection and are in good condition before shipment. We strive for 100% customer satisfaction on every sale we close.
Delivery time
20-40 working days after payment receipt confirmed (based on actual quantity).
Packing
Standard export packing, orcustomized packing as your request.
Professional goods shipping forwarder.
After-sales Service
1.12months or 100,000km for main parts (engine, axle, body and beam, etc).
2.Technical Support by phone Whatsapp or email around the clock.
3.Lifelong Parts Supports
4.Engineer available service oversea.
