Description:

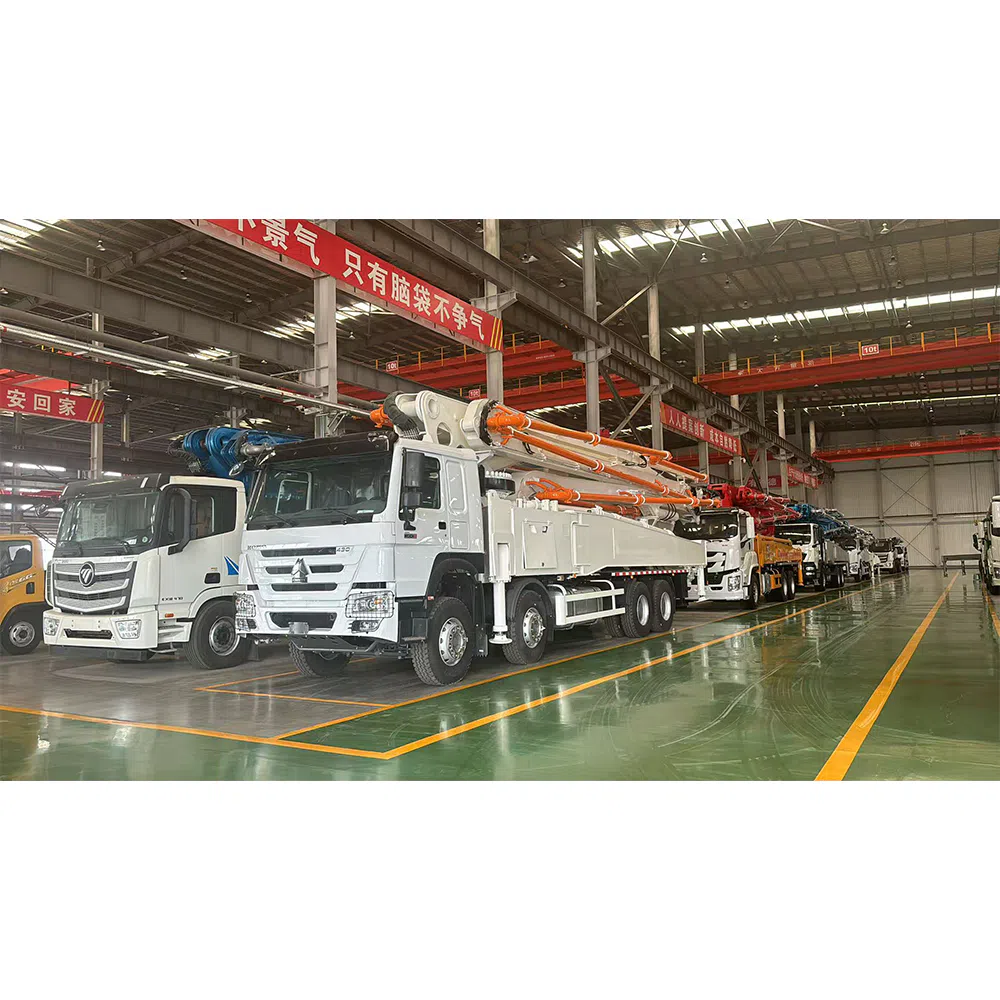

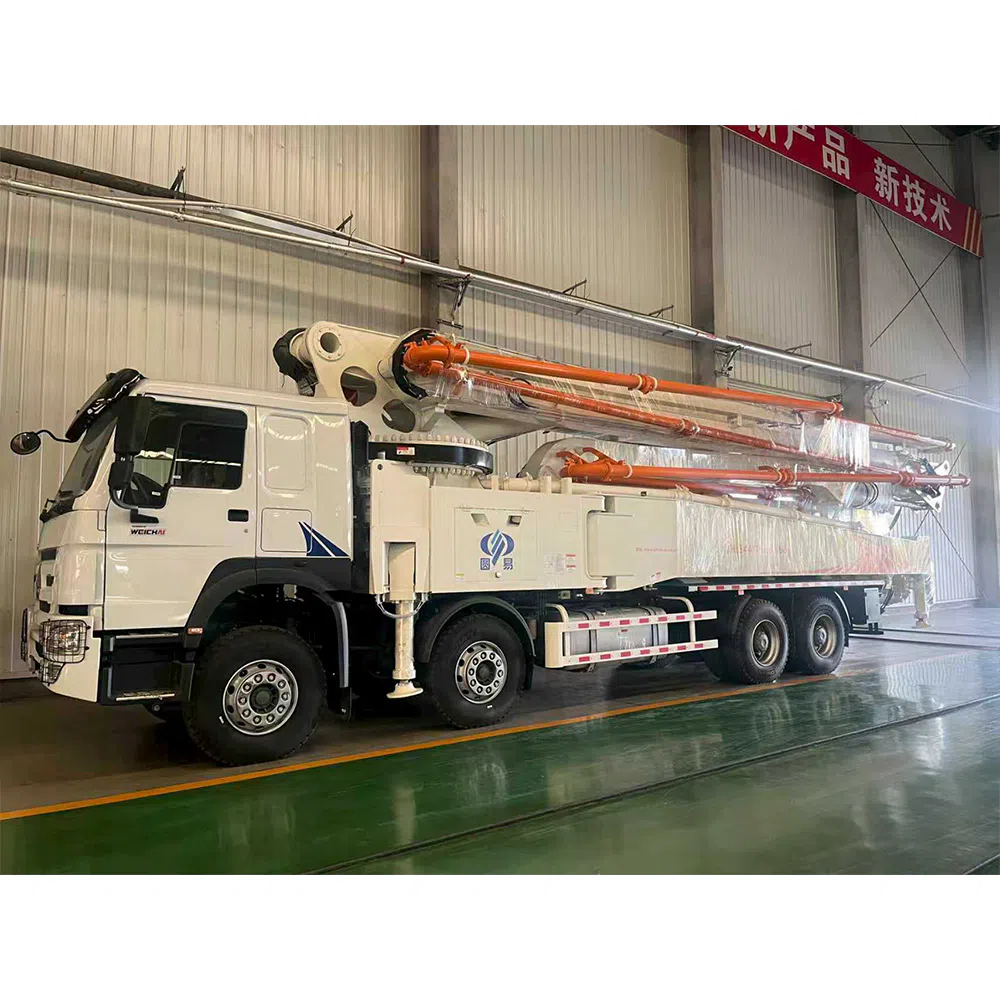

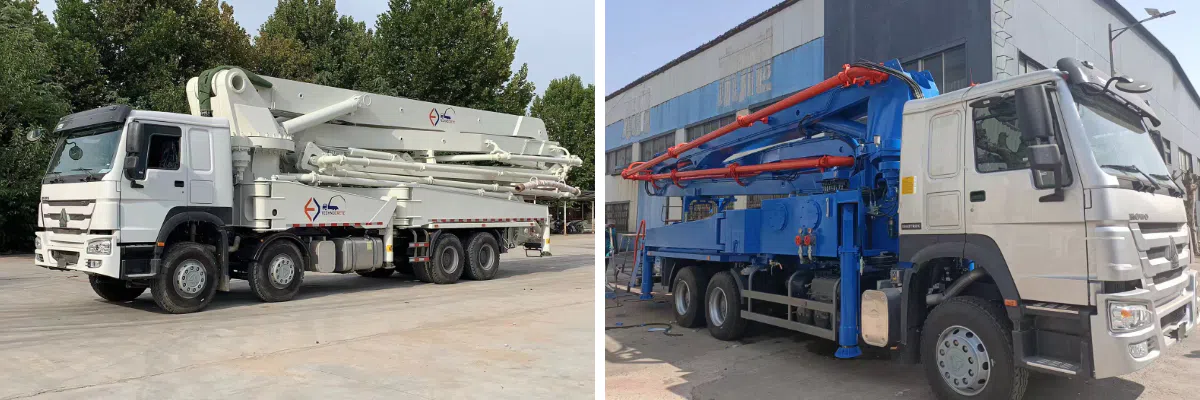

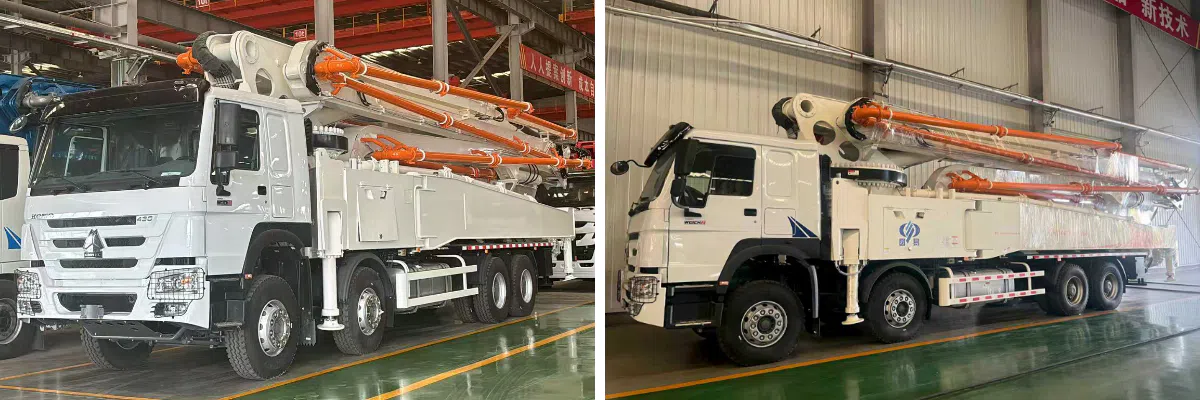

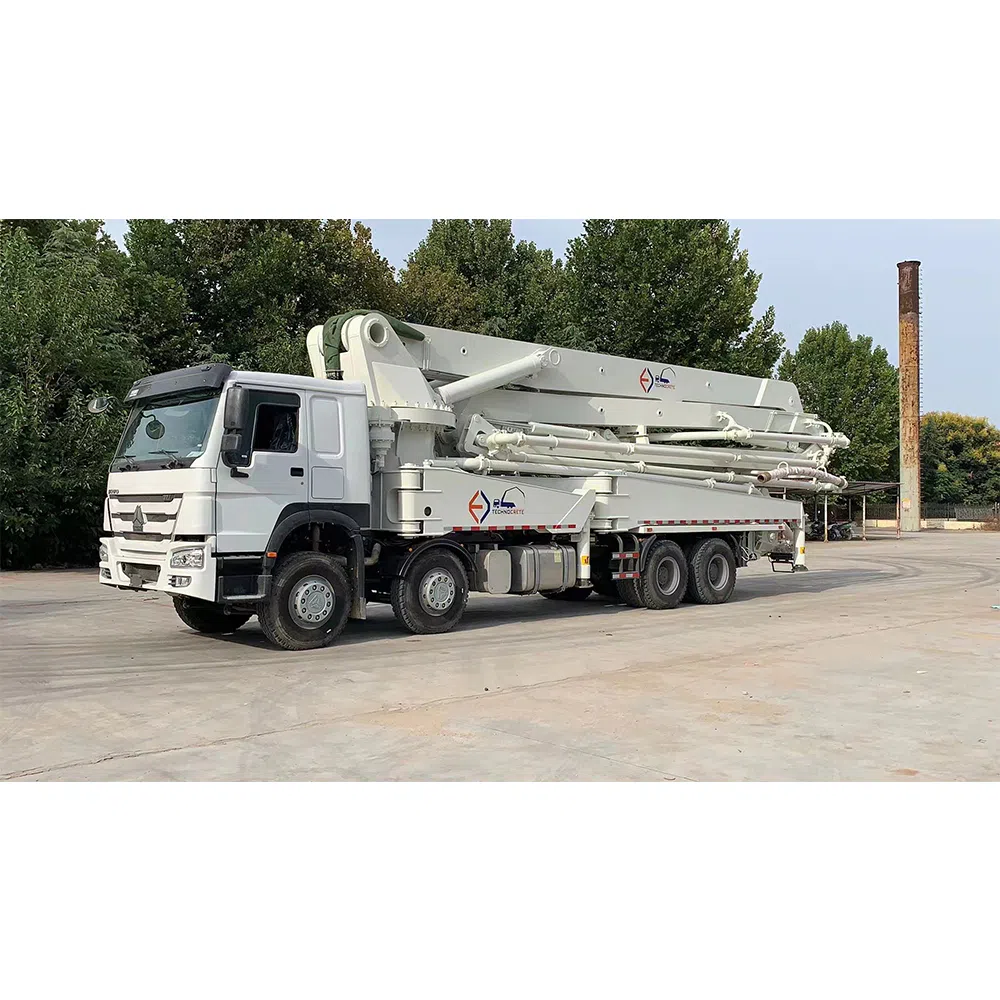

Whether it's supplying concrete for high-rise building construction, facilitating large-scale infrastructure projects, or enabling precise placement in complex urban job sites, the HOWO concrete pump truck delivers outstanding performance with power and reliability.
Powerful Engine & Flexible Chassis Options
Equipped with a high-torque engine ranging from 370 to 460 HP, this concrete pump truck provides strong climbing ability and smooth power take-off for the pumping system. The robust 6×4 or 8×4 drive configuration ensures excellent stability and adaptability, whether working on challenging terrain or maneuvering in congested construction zones.
Advanced High-Efficiency Pumping System
The pumping system is engineered with advanced hydraulic technology, ensuring smooth and continuous concrete flow for high efficiency and durability. Available with boom lengths ranging from 37 to 56 meters, it enables precise concrete placement at various heights and distances, meeting the demands of modern construction projects.
High-Strength Multi-Section Boom
The multi-section boom is manufactured from high-strength steel, offering exceptional flexibility and reach while maintaining stability. Equipped with remote control operation, it allows operators to position concrete accurately from a safe distance, significantly improving on-site safety and operational efficiency.
Driver-Friendly Cabin
The spacious, ergonomically designed cabin features optimized seating, vibration reduction, and noise insulation to minimize driver fatigue during long working hours.
Why Choose the HOWO Concrete Pump Truck?
It combines power, precision, and reliability. Whether for high-rise buildings, large-scale infrastructure, or complex urban projects, the HOWO concrete pump truck is your trusted partner in concrete construction.
Configuration sheet:
Model: ZZ1317N4667B1 | |
CHASSIS SPECS | |
| Curb weight | 42,000kg |
| Total weight | 50,000kg |
| Drive style | 6×4 |
| Engine: | WD615.47, 371HP, Euro 2 |
| Transmission: | HW19710,10 F & 2 R |
| Cabin: | HW76 cab,single sleeper, two seats, A/C |
| Color: | Standard （e.g.white，red) |
| Wheelbase: | 1800+4600+1350mm |
| Tire: | 12.00R20, 12+1 units |
| Front axle: | VGD95,9.5T capacity |
| Rear axle: | ST16/MCP16Z (2×16tons), double-reduction, ratio 4.8–5.73 |
| Capacity of oil tank: | 400L |
| Others | / |
CARRIAGE BODY SPECS | |
| Size and Specs: | Drive mode: Five section, folded, full hydraulic Diameter of conveying pipe:DN125 Section 1 boom rotation:91°,Length 11000mm Section 2 boom rotation:180°,Length 9200mm Section 3 boom rotation:180°,Length 9200mm Section 4 boom rotation:180°, Length 9200mm Section 5 boom rotation:270°, Length 9200mm Rotating range of placing boom: 365° Max. placing height: 51.6M |
| Package | Wax |
Advantages:
We have been special truck manufacturer for more than 32 years. We has professional German Kogel technology, combined with Sinotruk, to create first-class special vehicles, provide trucks owners with the best quality, best price, and the most timely after-sale professional services.
Shipping:
We usually adopt shipping by bulk cargo, flat rack, and Roro ship. We will arrange the most cost-effective transportation mode according to the quantity of products. All trucks will be polished with wax before shipping. We guarantee that all products have gone through strict inspection and are in good condition before shipment. We strive for 100% customer satisfaction on every sale we close.
Delivery time:
20-40 working days after payment receipt confirmed (based on actual quantity).
Packing:
Standard export packing, orcustomized packing as your request.
Professional goods shipping forwarder:
After-sales Service:
1.12months or 100,000km for main parts (engine, axle, body and beam, etc).
2.Technical Support by phone Whatsapp or email around the clock.
3.Lifelong Parts Supports
4.Engineer available service oversea.
