Description:

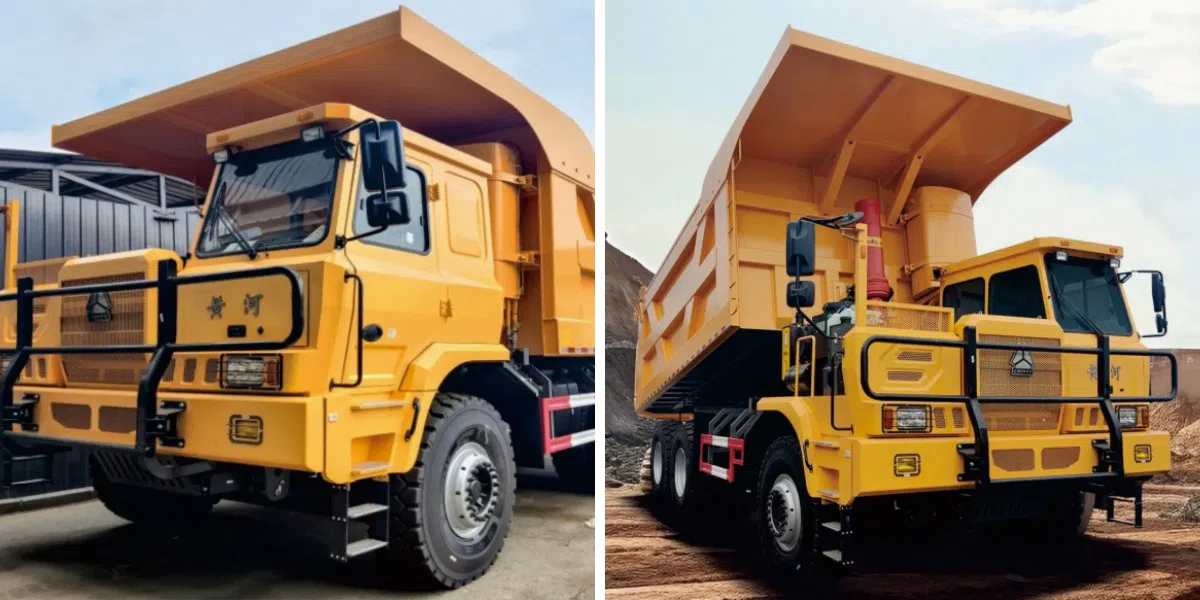

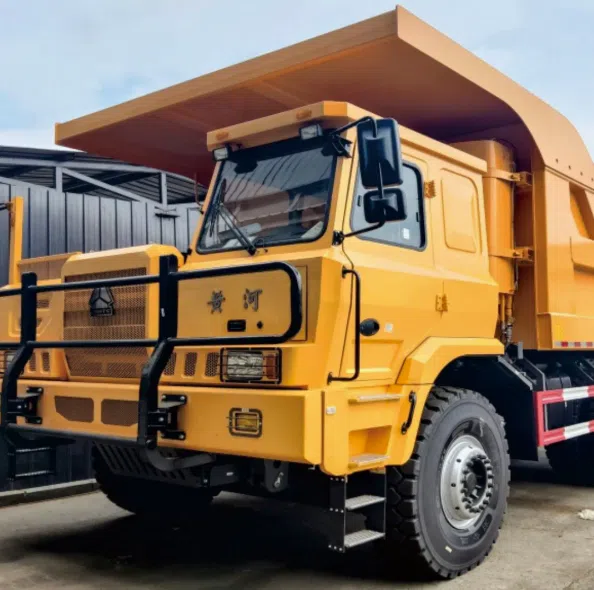

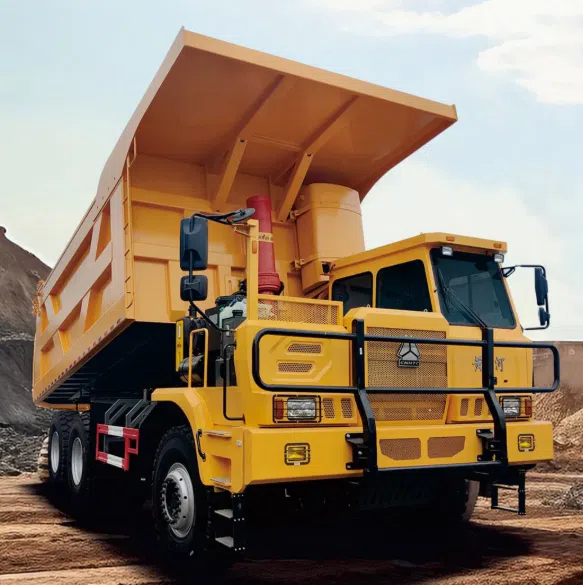

The SINOTRUK 120 Ton Mining Truck (diesel model: ZZ5C0HY404KC3B, with a corresponding pure electric version) is a benchmark heavy-duty equipment designed by China National Heavy Duty Truck Group (SINOTRUK / CNHTC) for large open-pit mines. Engineered for long-term, high-intensity transportation of ore and overburden under extreme off-highway conditions, it serves as core equipment for modern mines to reduce costs, increase efficiency, and achieve green transformation.
Unmatched Powertrain Performance (Diesel Version)
Engine: WP14T765E304 inline 6-cylinder diesel (13.5 L), rated power 562 kW (approx. 765 HP), maximum torque 2,900 N·m
Thermal efficiency: 52.28% with 2000 bar high-pressure fuel injection – delivering exceptional low-speed, high-torque characteristics for steep ramps and heavy loads
Transmission: Fast 8DS260A / 8DS280 8-speed manual, matched for high transmission efficiency and durability
Drive axle: Heavy-duty HDZ40T axle with a final drive ratio of 18.72, providing outstanding climbing ability and long service life
Advanced Suspension & Steering
Front axle: Air-hydraulic suspension for superior ride comfort under heavy loads
Middle & rear axles: Leaf spring suspensions balancing load capacity and driving stability
Full hydraulic steering system for easy and precise maneuverability in confined mine environments
Smart Options
Intelligent safety systems designed for extreme reliability and enhanced operator protection.
Why Choose the SINOTRUK 120 Ton Mining Truck?
It combines massive payload capacity (120 tons), class-leading power (765 HP / 2,900 N·m), proven durability, and a choice of diesel or electric powertrains. Whether you need to maximize productivity in open-pit coal, metal, or aggregate mining, or transition toward sustainable electric haulage, the SINOTRUK 120-ton mining truck is your ultimate partner for cost-effective, high-intensity mining transport.
Configuration sheet:
| Model: ZZ5C5HV404KC3B | |
| CHASSIS SPECS | |
| Curb weight | 40000kgs |
| Total weight | 120000kgs |
| Drive style | 6×4 |
| Engine: | WP14TG765E304 |
| Transmission: | 8DS280 |
| Cabin: | Single berth with A/C |
| Color: | White |
| Wheelbase: | 4000mm |
| Tire: | 16.00R25 |
| Drive axle: | HDZ40T |
| Capacity of oil tank: | 500L |
| Others | / |
| CARRIAGE BODY SPECS | |
| Cargo Body: | 6400*3500*2000mm, Floor 16mm side 14mm,T700/NM450,Front hydraulic lifting |
| Package | Wax |
| There are options for engine,tire,wheelbase,cargo,etc.Please contact us for suitable configurations. | |
Advantages:
We have been special truck manufacturer for more than 32 years. We has professional German Kogel technology, combined with Sinotruk, to create first-class special vehicles, provide trucks owners with the best quality, best price, and the most timely after-sale professional services.
Shipping:
We usually adopt shipping by bulk cargo, flat rack, and Roro ship. We will arrange the most cost-effective transportation mode according to the quantity of products. All trucks will be polished with wax before shipping. We guarantee that all products have gone through strict inspection and are in good condition before shipment. We strive for 100% customer satisfaction on every sale we close.
Delivery time:
20-40 working days after payment receipt confirmed (based on actual quantity).
Packing:
Standard export packing, orcustomized packing as your request.
Professional goods shipping forwarder:
After-sales Service:
1.12months or 100,000km for main parts (engine, axle, body and beam, etc).
2.Technical Support by phone Whatsapp or email around the clock.
3.Lifelong Parts Supports
4.Engineer available service oversea.
