Description

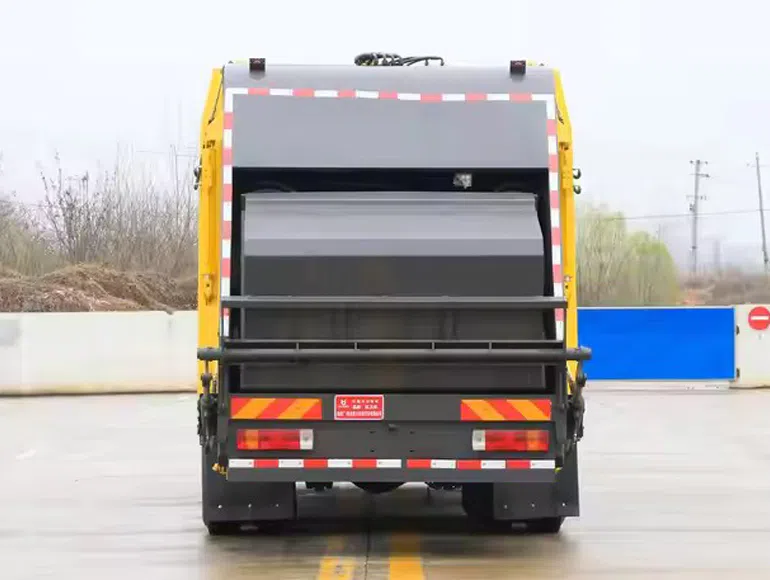

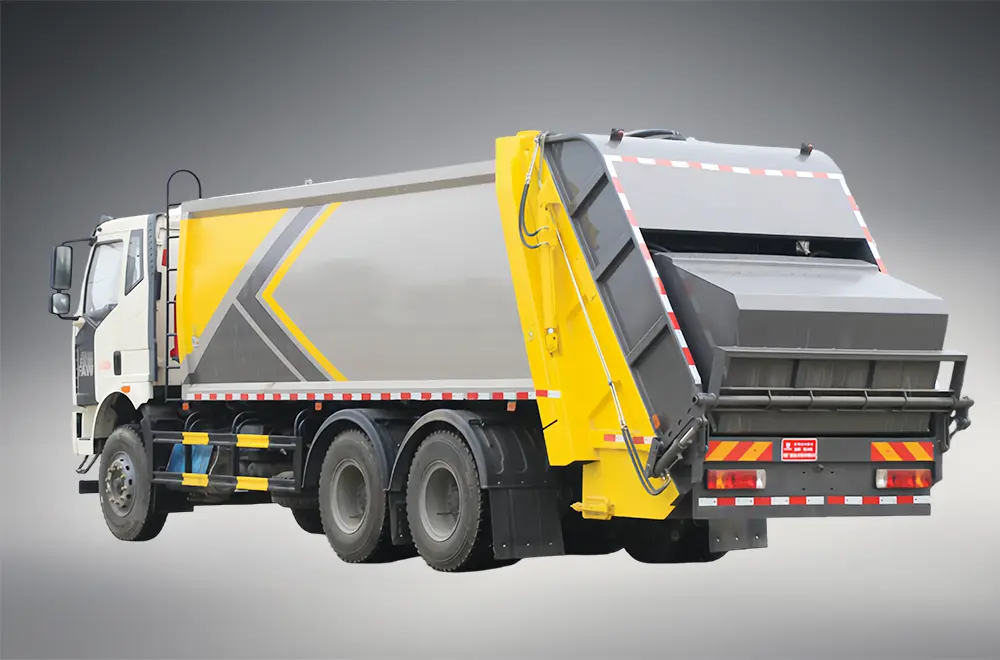

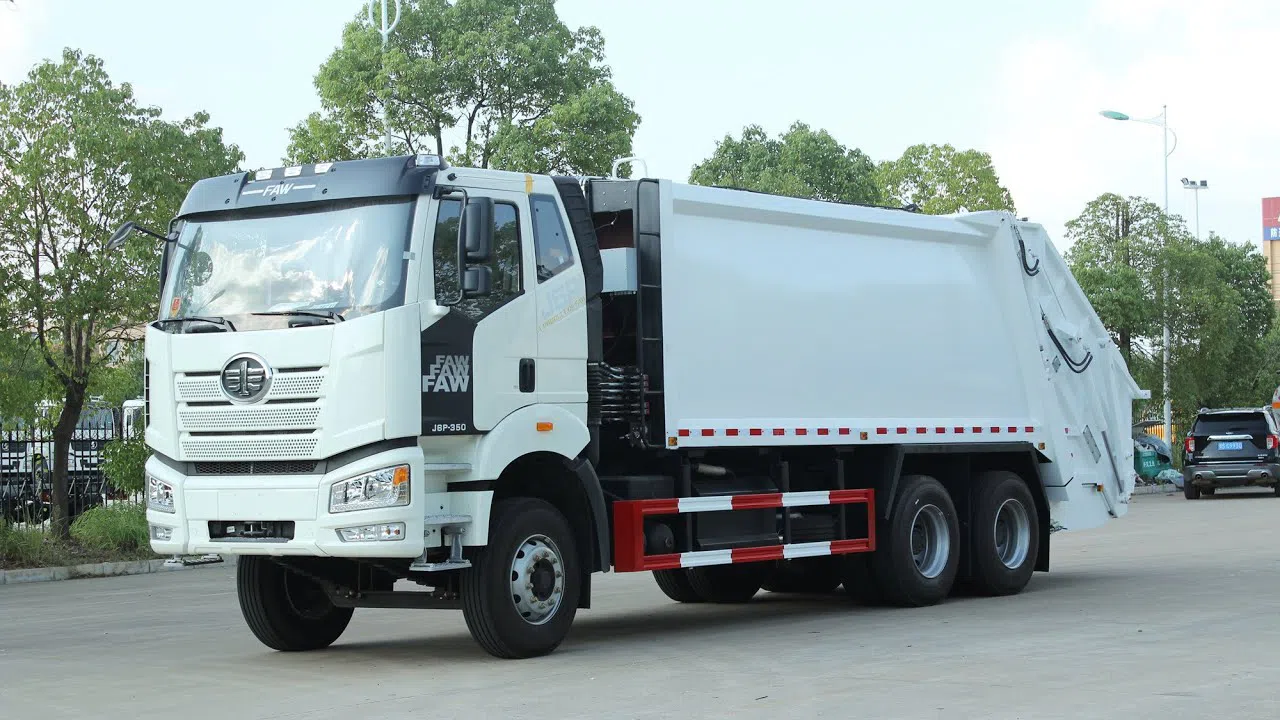

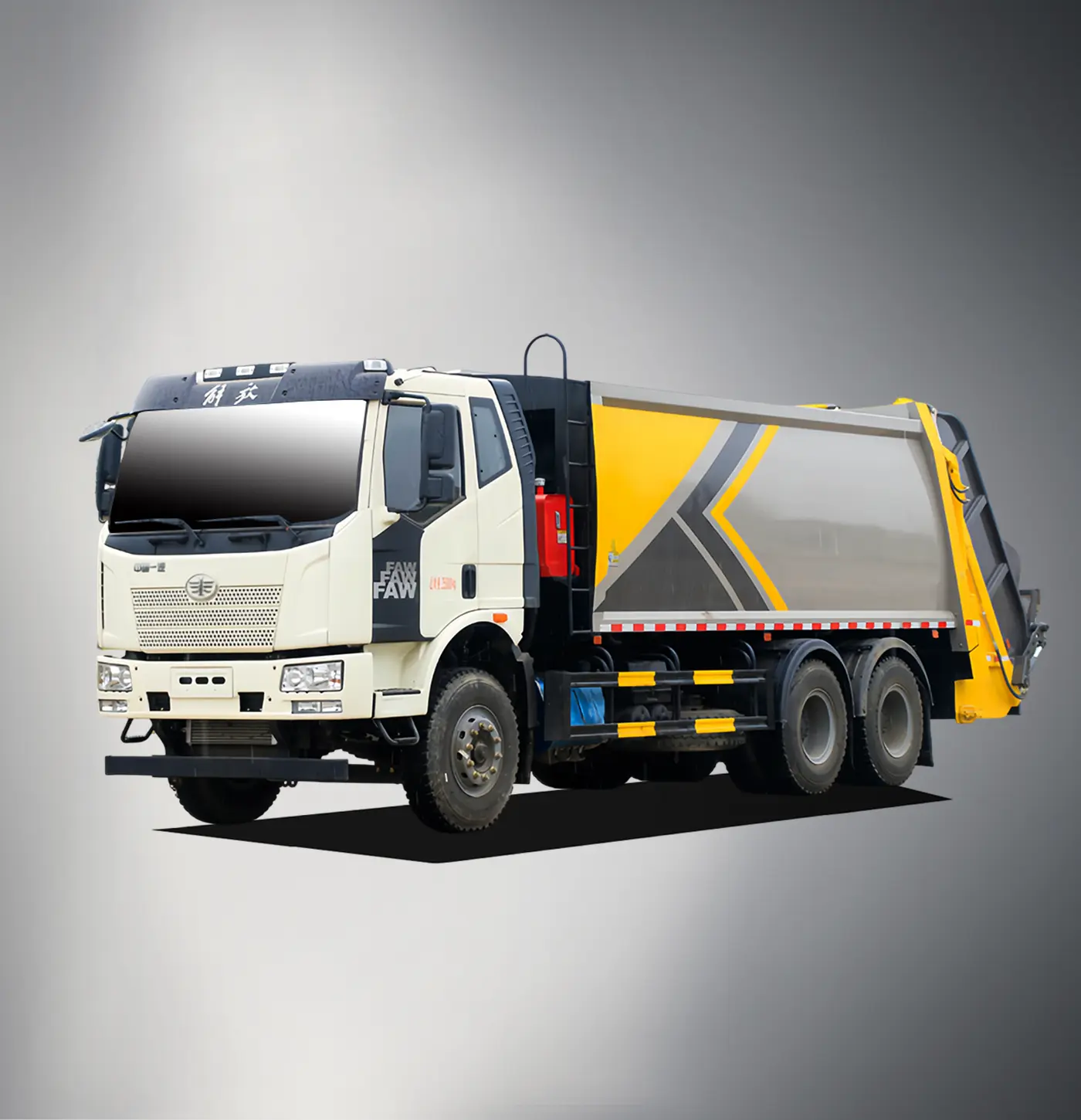

The J6P 6 × 4 compression garbage truck is a professional sanitation vehicle used for the collection and transportation of urban household waste. Equipped with a fully sealed 14 cubic compression box and integrated sewage tank to prevent sewage leakage and odor diffusion. The fully automatic hydraulic compression system can compress high-density garbage, significantly increase loading capacity, and reduce transportation trips. Relying on the mature Liberation J6P 6 × 4 heavy-duty chassis, equipped with a 350 horsepower engine and PTO power take-off system, the power is stable and the load-bearing performance is excellent. Widely used in urban residential areas, parks, industrial zones, and garbage transfer stations. The global supply of accessories is sufficient, the performance is reliable, the maintenance cost is low, and it is suitable for overseas environmental sanitation projects.
Equipped with a Xichai 350 horsepower engine and a 10 speed gearbox with a PTO power take-off; Φ 300 wheel side reduction double axle, 14 cubic sealed compression box, hydraulic compression system, J6P flat top half cab.
Configuration sheet
| Model: CA5250ZYSP66K24L2T1E | |
| CHASSIS SPECS | |
| Curb weight | 14800 kg |
| Total weight | 25000 kg |
| Drive style | Left hand drive |
| Engine: | Xichai CA6DL2-35E3F |
| Transmission: | CA10TAX190M |
| Cabin: | J6P flat top half cab |
| Color: | White |
| Wheelbase: | 4050+1350 mm |
| Tire: | 12.00R20 tyres |
| Front axle: | 7T |
| Rear axle: | Φ 300 wheel side deceleration double rear axle |
| Capacity of oil tank: | 400L |
| Others | Equipped with air conditioning, dual circuit air brake, drum brake, optional ABS, exhaust systemd’s’v |
| CARRIAGE BODY SPECS | |
| Size and Specs: | 9650 × 2550 × 3480 mm |
| Package | Wax |
Advantages
We have been special truck manufacturer for more than 32 years. We has professional German Kogel technology, combined with Shacman, to create first-class special vehicles, provide trucks owners with the best quality, best price, and the most timely after-sale professional services.
Shipping
We usually adopt shipping by bulk cargo, flat rack, and Roro ship. We will arrange the most cost-effective transportation mode according to the quantity of products. All trucks will be polished with wax before shipping. We guarantee that all products have gone through strict inspection and are in good condition before shipment. We strive for 100% customer satisfaction on every sale we close.
Delivery time
20-40 working days after payment receipt confirmed (based on actual quantity).
Packing
Standard export packing, orcustomized packing as your request.
Professional goods shipping forwarder.
After-sales Service
1.12months or 100,000km for main parts (engine, axle, body and beam, etc).
2.Technical Support by phone Whatsapp or email around the clock.
3.Lifelong Parts Supports
4.Engineer available service oversea.
