Description

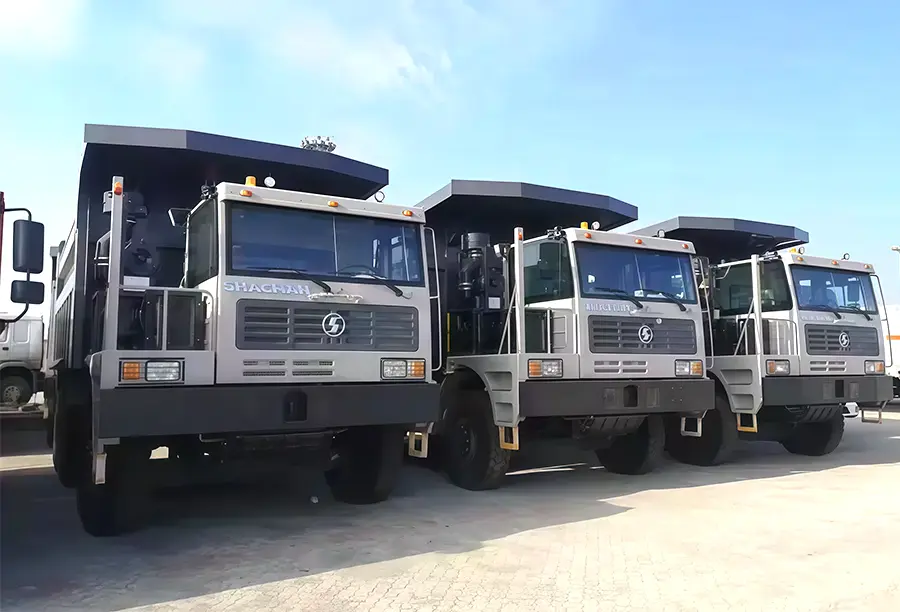

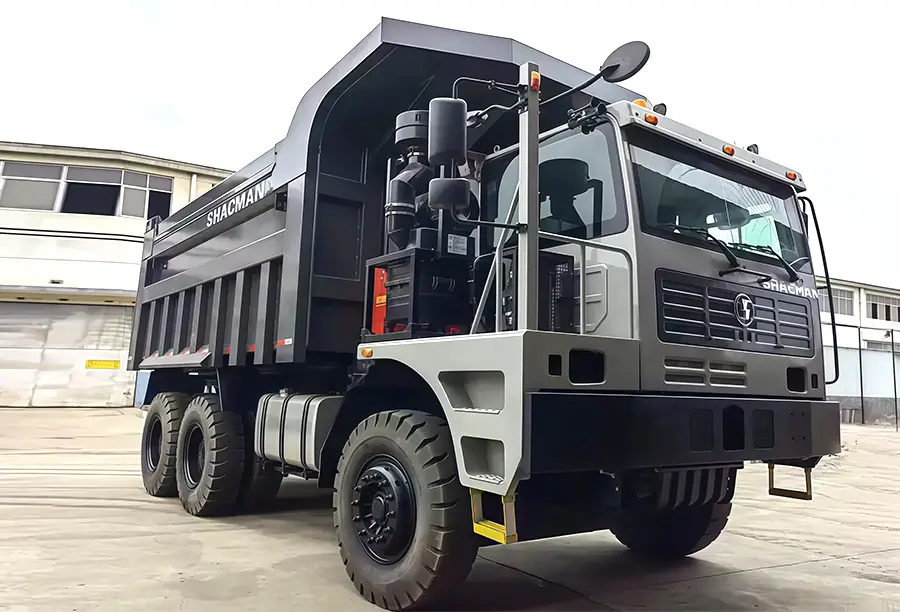

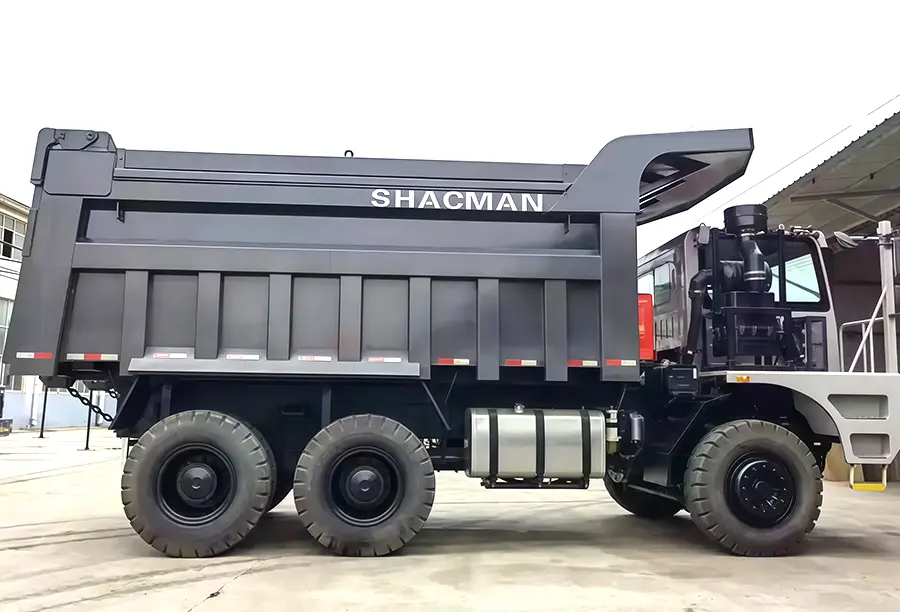

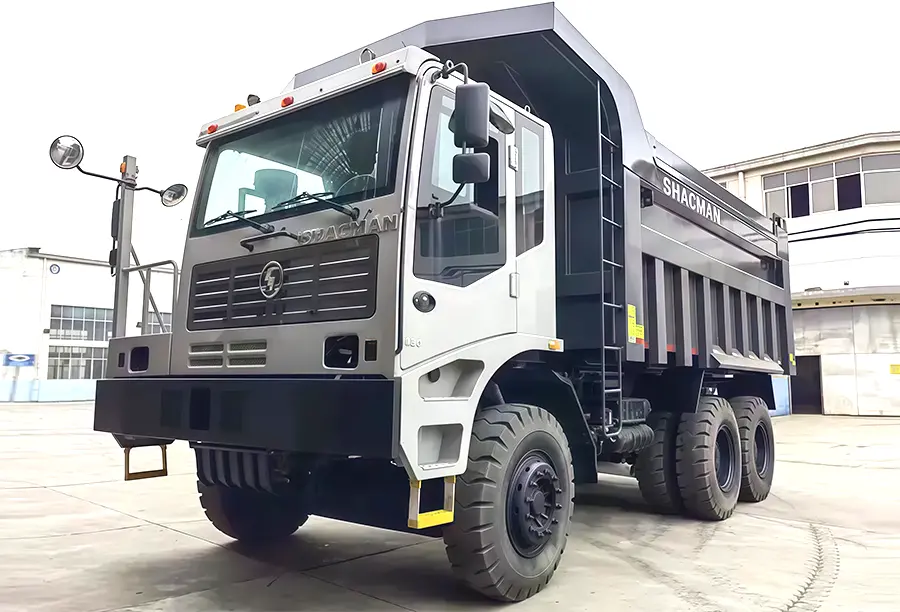

The STL380 90 ton mining dump truck is a non road heavy vehicle designed specifically for open-pit mines, quarries, and large-scale earthwork projects. Equipped with a high-power engine and heavy-duty mining axle, it has strong climbing ability and stable operation under heavy load conditions. The cargo box is made of NM400 wear-resistant steel plate, which is resistant to impact and wear when transporting ores and rocks. The biased mining cab is equipped with ROPS anti roll protection structure to ensure the safety of the driver. The combination of high ground clearance and wide mining tires can adapt to muddy and bumpy road surfaces in mining areas. The products are exported in large quantities to mining areas in Africa, Central Asia, and South America, with reliable equipment and convenient maintenance.
Equipped with a 430 horsepower Weichai engine and a Fast 7SD220 gearbox; Double 35 ton mining rear axle, 5.8-meter NM400 wear-resistant cargo box, ROPS offset cab, 14.00-25 mining tires.
Configuration sheet
Model: STL380 | |
CHASSIS SPECS | |
Curb weight | 29000 kg |
Total weight | 89000 kg |
Drive style | Left hand drive |
Engine: | WP12G430E310，430HP，Euro3 |
Transmission: | Fast 7SD220 |
Cabin: | Offset mining cab with air conditioning, shock-absorbing seats, and anti roll structure |
Color: | olive drab |
Wheelbase: | 3850+1560 mm |
Tire: | 14.00-25 Mining Giant Engineering Tire |
Front axle: | PX20T |
Rear axle: | PX35T ×2 |
Capacity of oil tank: | 450L aluminum alloy fuel tank |
Others | Thickened high-strength wide body frame, air push oil brake, with exhaust brake |
CARRIAGE BODY SPECS | |
Size and Specs: | 8970 × 3504 × 4270 mm |
Package | Wax |
Advantages
We have been special truck manufacturer for more than 32 years. We has professional German Kogel technology, combined with Shacman, to create first-class special vehicles, provide trucks owners with the best quality, best price, and the most timely after-sale professional services.
Shipping
We usually adopt shipping by bulk cargo, flat rack, and Roro ship. We will arrange the most cost-effective transportation mode according to the quantity of products. All trucks will be polished with wax before shipping. We guarantee that all products have gone through strict inspection and are in good condition before shipment. We strive for 100% customer satisfaction on every sale we close.
Delivery time
20-40 working days after payment receipt confirmed (based on actual quantity).
Packing
Standard export packing, orcustomized packing as your request.
Professional goods shipping forwarder.
After-sales Service
1.12months or 100,000km for main parts (engine, axle, body and beam, etc).
2.Technical Support by phone Whatsapp or email around the clock.
3.Lifelong Parts Supports
4.Engineer available service oversea.
