Description

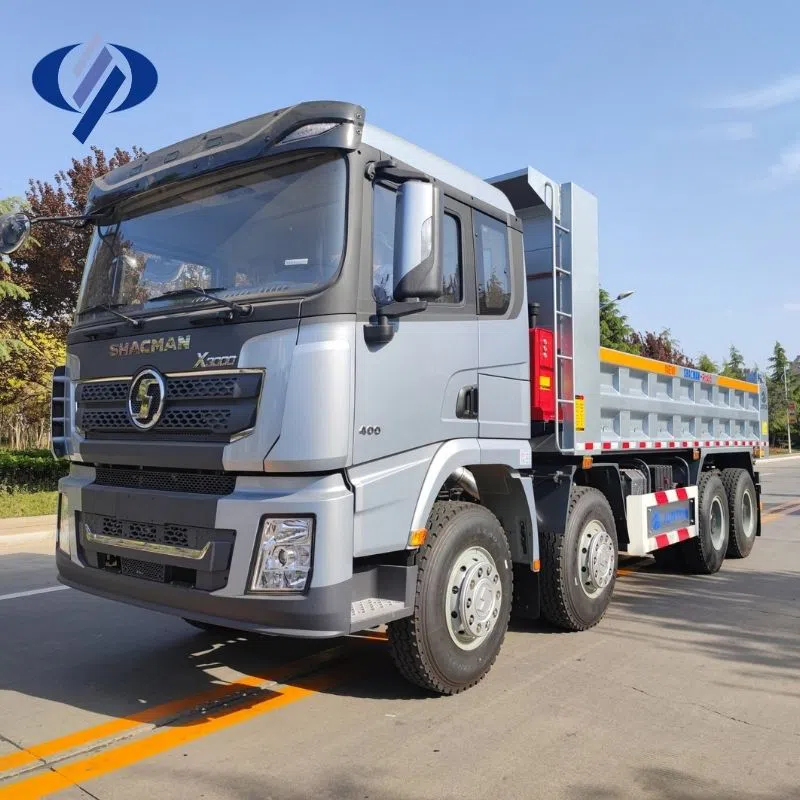

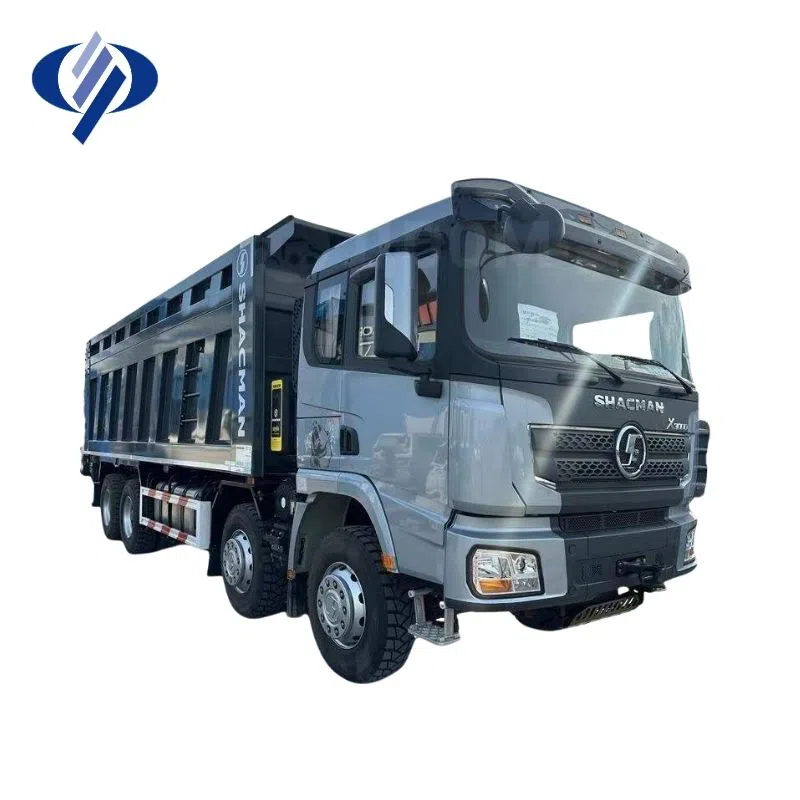

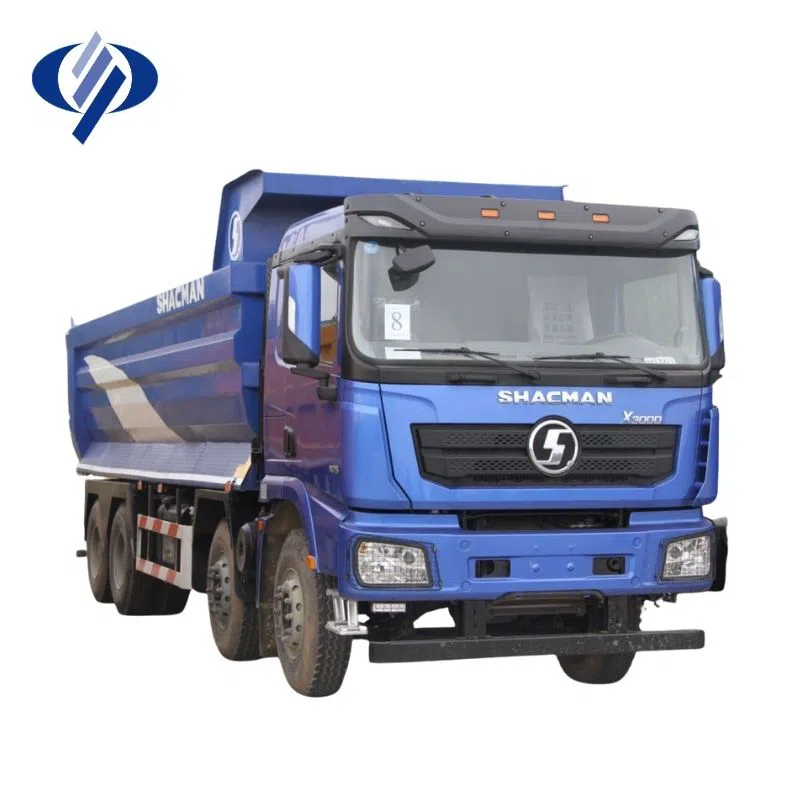

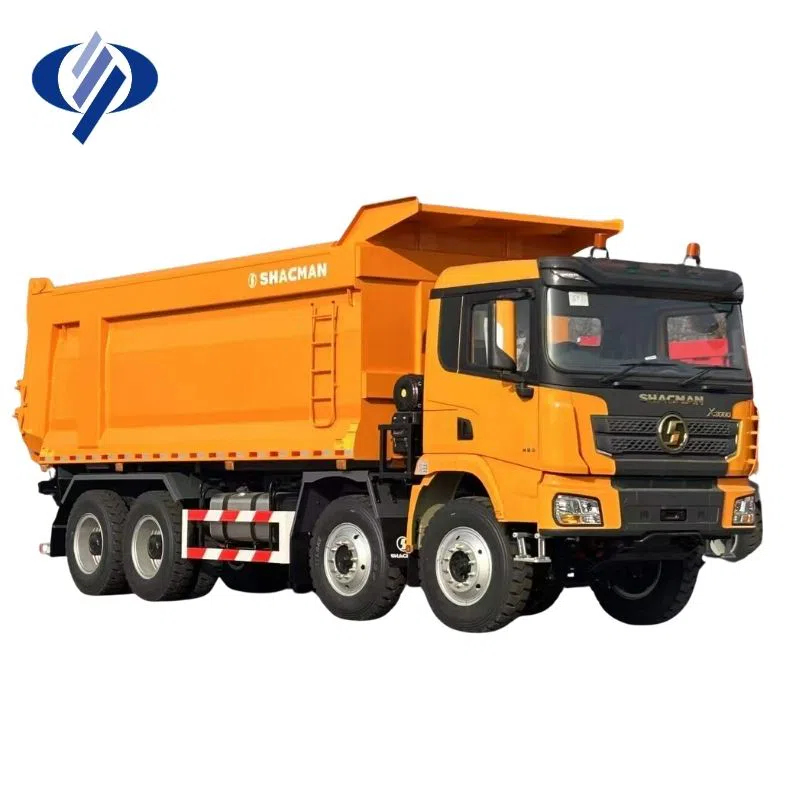

The SHACMAN X3000 6×4 heavy‑duty dump truck is built on proven MAN‑derived heavy‑truck platform, specially engineered for mining, quarry operation, infrastructure construction and earth‑moving projects across Africa, Central Asia and Middle‑East markets . It delivers outstanding loading capacity, rugged durability and stable performance under harsh off‑road, full‑load working conditions for transporting gravel, ore, muck and construction debris .
Power is supplied by Weichai WP12 series inline‑six turbo‑charged intercooled diesel engine, rated 430 HP with peak torque 2000 N·m, compatible with Euro II emission standard widely accepted in emerging markets . Matched with FAST 12JSD200TA‑B 12‑speed manual transmission with heavy‑duty diaphragm spring clutch, the powertrain realizes strong climbing capability and reliable power output even on steep slopes and uneven job‑site roads .
The chassis adopts reinforced double‑layer high‑strength steel frame of 850×300 mm (8+7 mm thickness). HANDE‑MAN 9.5‑ton front steering axle and dual 16‑ton two‑stage reduction rear drive axles with differential locks guarantee great carrying performance under over‑load impact . Multi‑leaf‑spring suspension with shock absorbers adapts to rough terrain. Dual‑circuit air brake system integrates spring‑charged parking brake and engine exhaust brake to improve downhill safety for fully‑loaded driving
Configuration sheet
Model: SHACMAN X3000 8×4 Dump Truck (SX3315MU366) | |
CHASSIS SPECS | |
Curb weight | 15500 kg |
Total weight | 31000 kg |
Drive style | 8×4 |
Engine: | Weichai WP12.430E201, 430HP, Euro II, inline 6 turbo charged intercooled diesel, max torque 2000N·m |
Transmission: | FAST 12JSD200TA B, 12 speed manual with PTO |
Cabin: | X3000 flat top cab, air suspension driver seat, LHD (RHD optional) |
Color: | Yellow / Red / Black (optional) |
Wheelbase: | 1800+3575+1400mm |
Tire: | 12.00R24 radial heavy duty tire, 12 pcs |
Front axle: | HD 9.5T |
Rear axle: | Dual MAN 16 ton two stage reduction axles, with differential lock |
Capacity of oil tank: | 380L steel fuel tank |
Others | Air brake,ABS, exhaust brake, heavy-duty suspension |
CARRIAGE BODY SPECS | |
Size and Specs: | 7000×2300×1500mm, Hardox steel cargo box. |
Package | Nude packing |
Advantages
We have been special truck manufacturer for more than 32 years. We has professional German Kogel technology, combined with Shacman, to create first-class special vehicles, provide trucks owners with the best quality, best price, and the most timely after-sale professional services.
Shipping
We usually adopt shipping by bulk cargo, flat rack, and Roro ship. We will arrange the most cost-effective transportation mode according to the quantity of products. All trucks will be polished with wax before shipping. We guarantee that all products have gone through strict inspection and are in good condition before shipment. We strive for 100% customer satisfaction on every sale we close.
Delivery time
20-40 working days after payment receipt confirmed (based on actual quantity).
Packing
Standard export packing, orcustomized packing as your request.
Professional goods shipping forwarder.
After-sales Service
1.12months or 100,000km for main parts (engine, axle, body and beam, etc).
2.Technical Support by phone Whatsapp or email around the clock.
3.Lifelong Parts Supports
4.Engineer available service oversea.
