Description

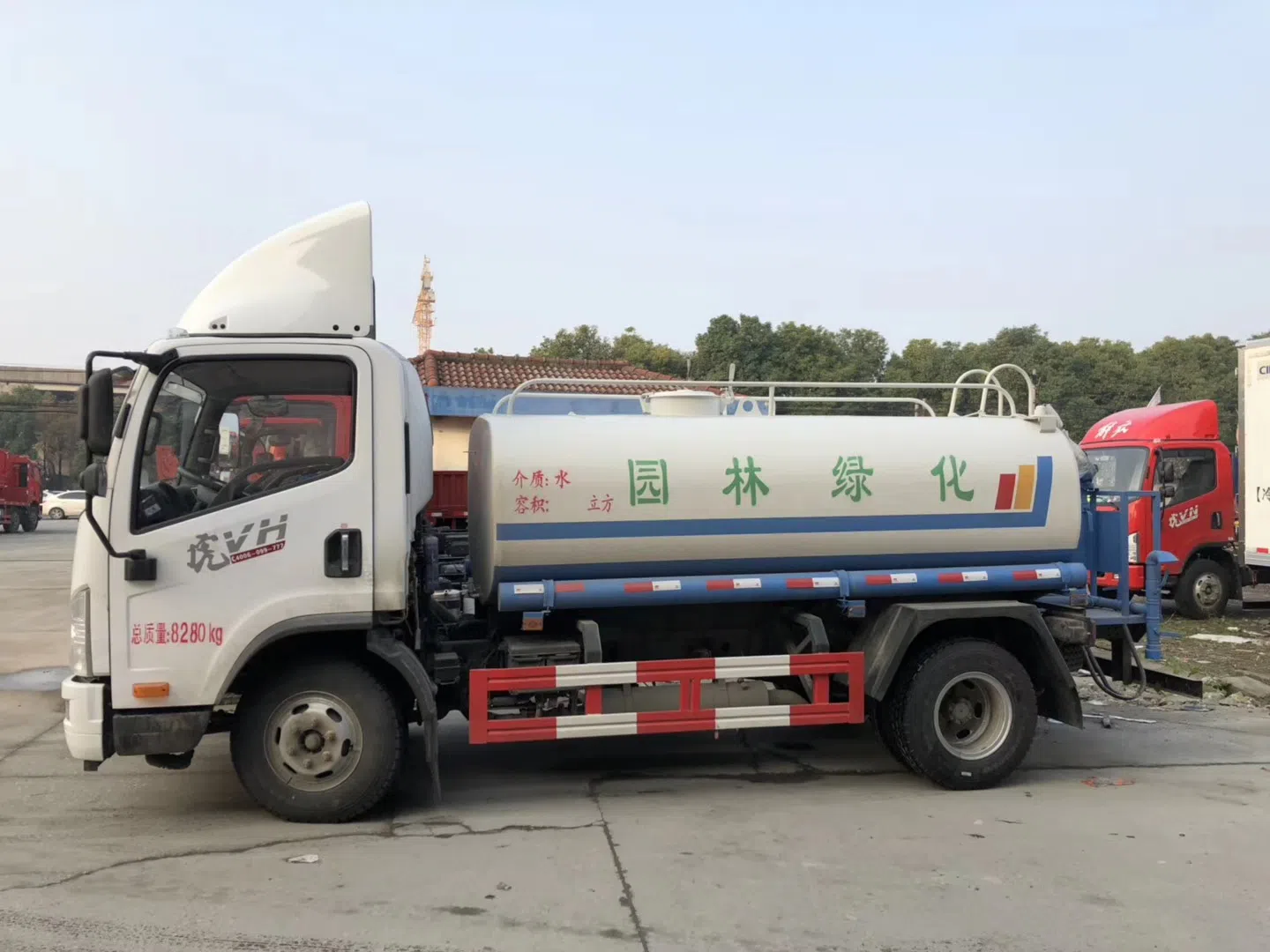

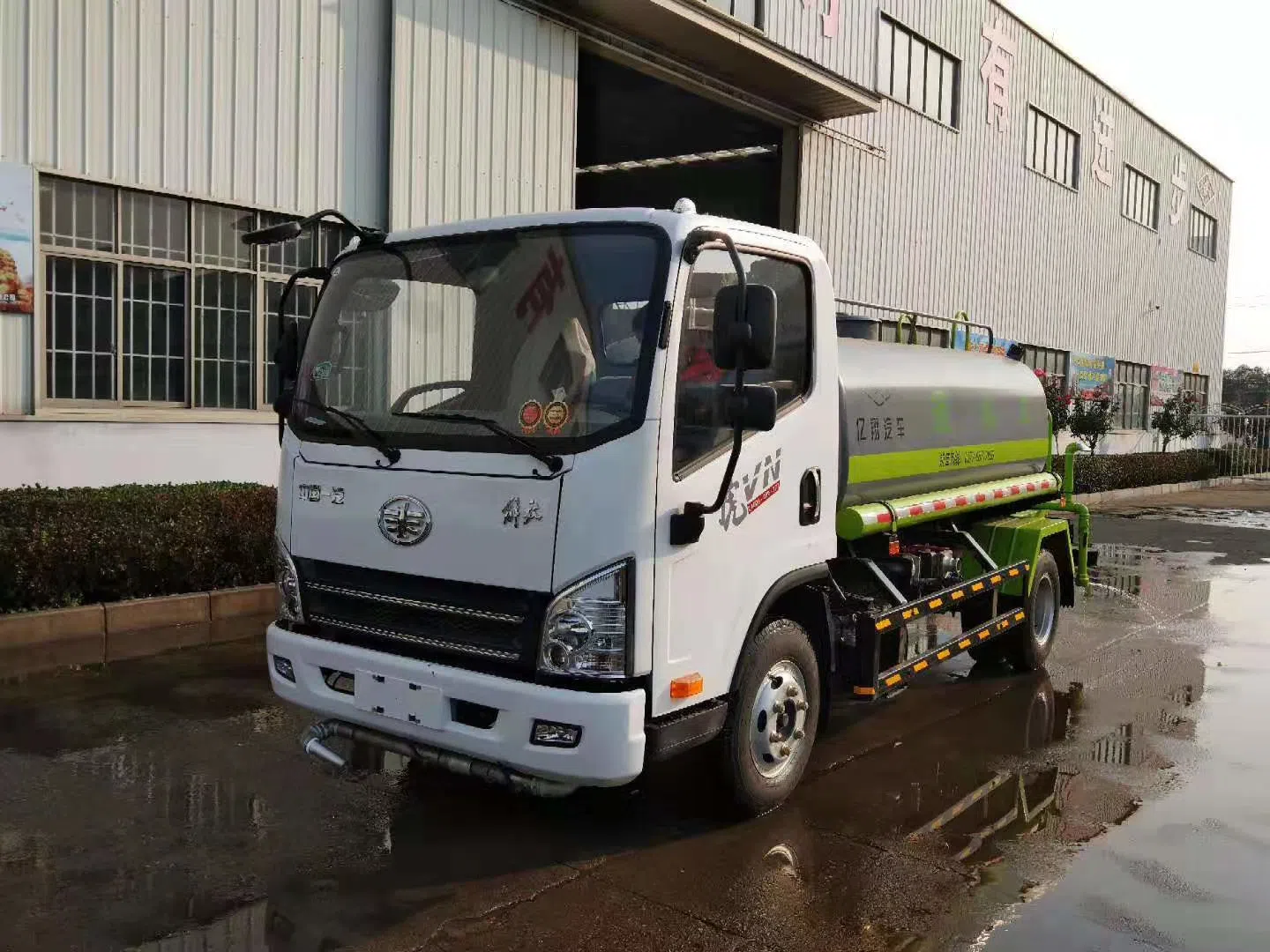

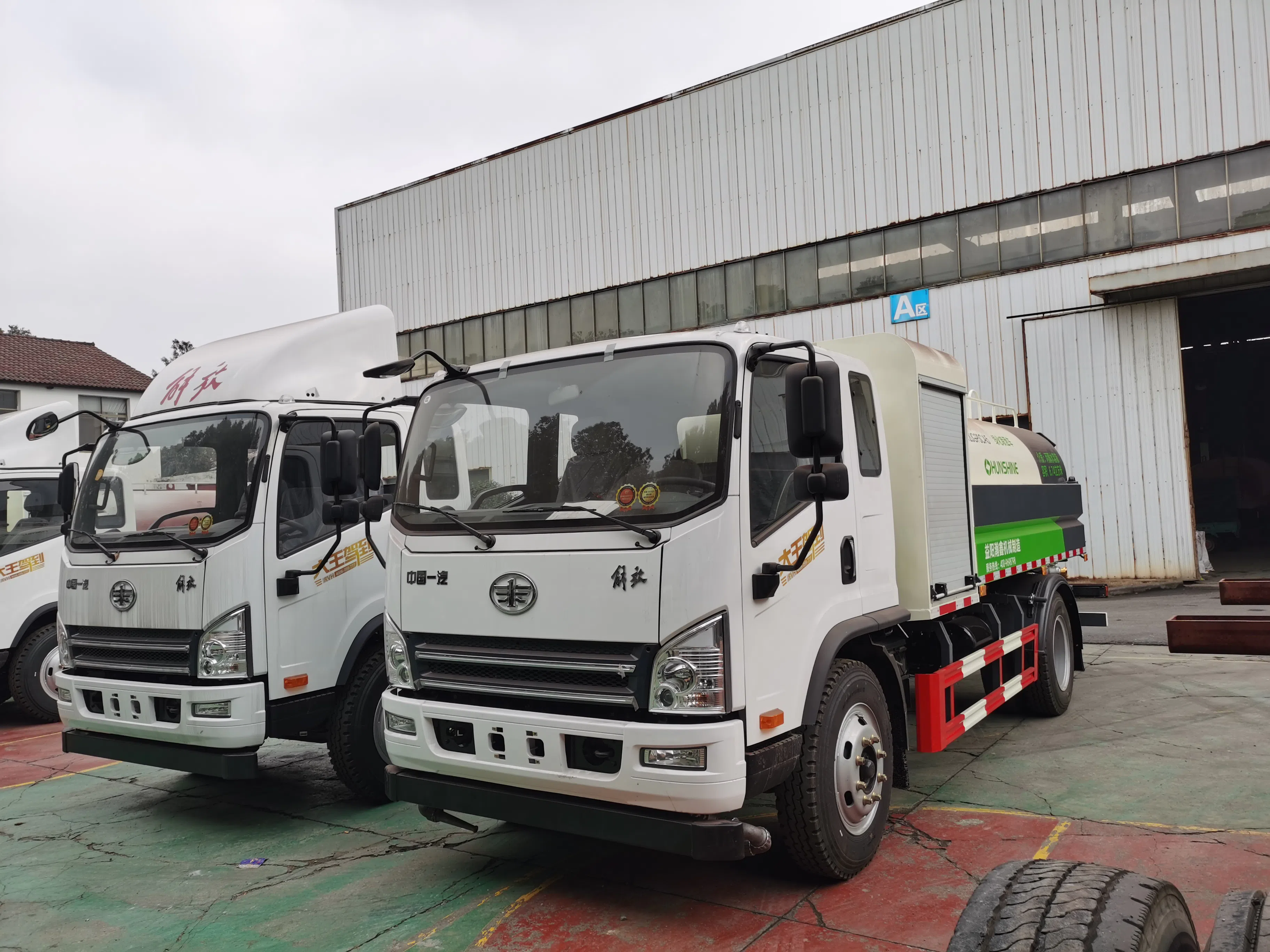

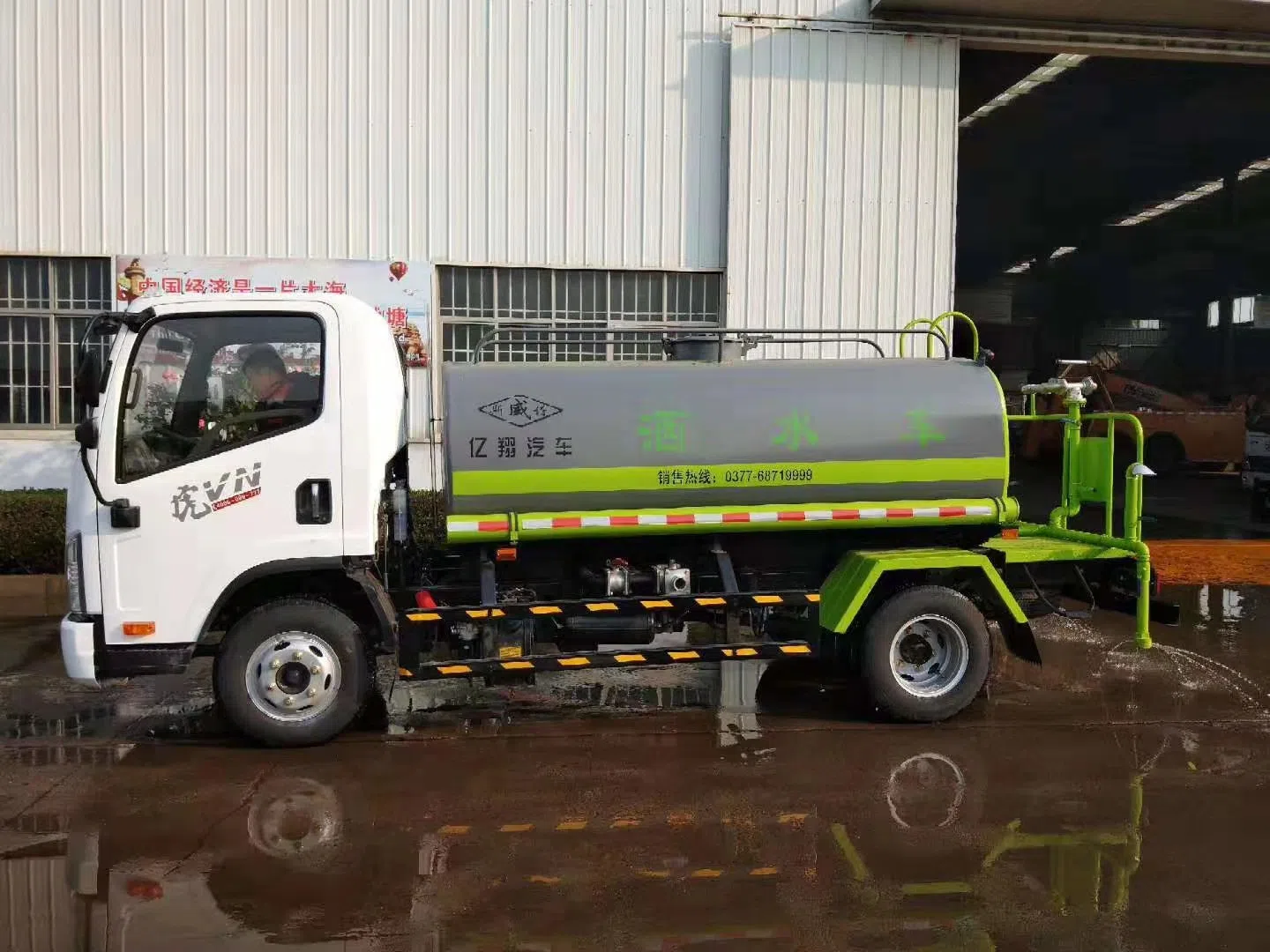

FAW Tiger V (commonly known as Huwei) water sprinkler truck is a medium and small tonnage sanitation vehicle modified on the basis of Tiger VH light truck dedicated chassis. It integrates multiple functions such as road maintenance, green irrigation and dust suppression, and is widely suitable for diverse operation scenarios including urban and rural municipal administration, gardens and industrial parks. The vehicle is equipped with a mature and stable diesel powertrain, with reliable chassis load capacity and good driving smoothness. The tank is made of anti-corrosion and wear-resistant material, with an internal wave-breaking structure to suppress water sloshing and ensure high operation safety. It is standardly fitted with front flush, rear spray, side spray and rotatable high-pressure water cannon, supporting road washing, dust suppression, garden irrigation and emergency auxiliary fire fighting. The spray flow and pattern can be flexibly adjusted with wide coverage and high working efficiency. With a compact, agile body and small turning radius, it can easily navigate narrow streets, community roads and rural highways. The cab features wide vision and user-friendly operation layout, effectively reducing operators' labor intensity. Boasting highly universal spare parts and economical maintenance costs, it is a cost-effective workhorse for sanitation and landscaping services.
Configuration sheet
Model: CA1080P40K17L1E5A84 | |
CHASSIS SPECS | |
Curb weight | 3900kgs |
Total weight | 8000kgs |
Drive style | 4×2 |
Engine: | Cummins ISF3.8s5154, 154PS, Euro 5 emission |
Transmission: | Wanliyang 6G55 gearbox |
Cabin: | Tiger VH flat-top single-row cab (J6F front fascia + J6F seats) |
Color: | Multiple options available |
Wheelbase: | 3900mm |
Tire: | 215/75R17.5 16PR, Double Coin brand |
Front axle: | Qingte 7B9 front steering axle |
Rear axle: | Qingte 1069 welded rear axle, final drive ratio 4.111, wheel track 1740mm |
Capacity of oil tank: | 150L aluminum fuel tank |
Others | Φ350 clutch, 865×216×75×6mm frame, upgraded heavy-duty radiator, leaf springs 3/10+4, air conditioner, power windows + central door lock, domestic ABS, automatic slack adjuster, WABCO valves (relay valve, quick release valve), updated version |
CARRIAGE BODY SPECS | |
Size and Specs: | Tank volume: approx. 3.5 m³ |
Package | Wax |
Advantages
We have been special truck manufacturer for more than 32 years. We has professional German Kogel technology, combined with Shacman, to create first-class special vehicles, provide trucks owners with the best quality, best price, and the most timely after-sale professional services.
Shipping
We usually adopt shipping by bulk cargo, flat rack, and Roro ship. We will arrange the most cost-effective transportation mode according to the quantity of products. All trucks will be polished with wax before shipping. We guarantee that all products have gone through strict inspection and are in good condition before shipment. We strive for 100% customer satisfaction on every sale we close.
Delivery time
20-40 working days after payment receipt confirmed (based on actual quantity).
Packing
Standard export packing, orcustomized packing as your request.
Professional goods shipping forwarder.
After-sales Service
1.12months or 100,000km for main parts (engine, axle, body and beam, etc).
2.Technical Support by phone Whatsapp or email around the clock.
3.Lifelong Parts Supports
4.Engineer available service oversea.
