Description

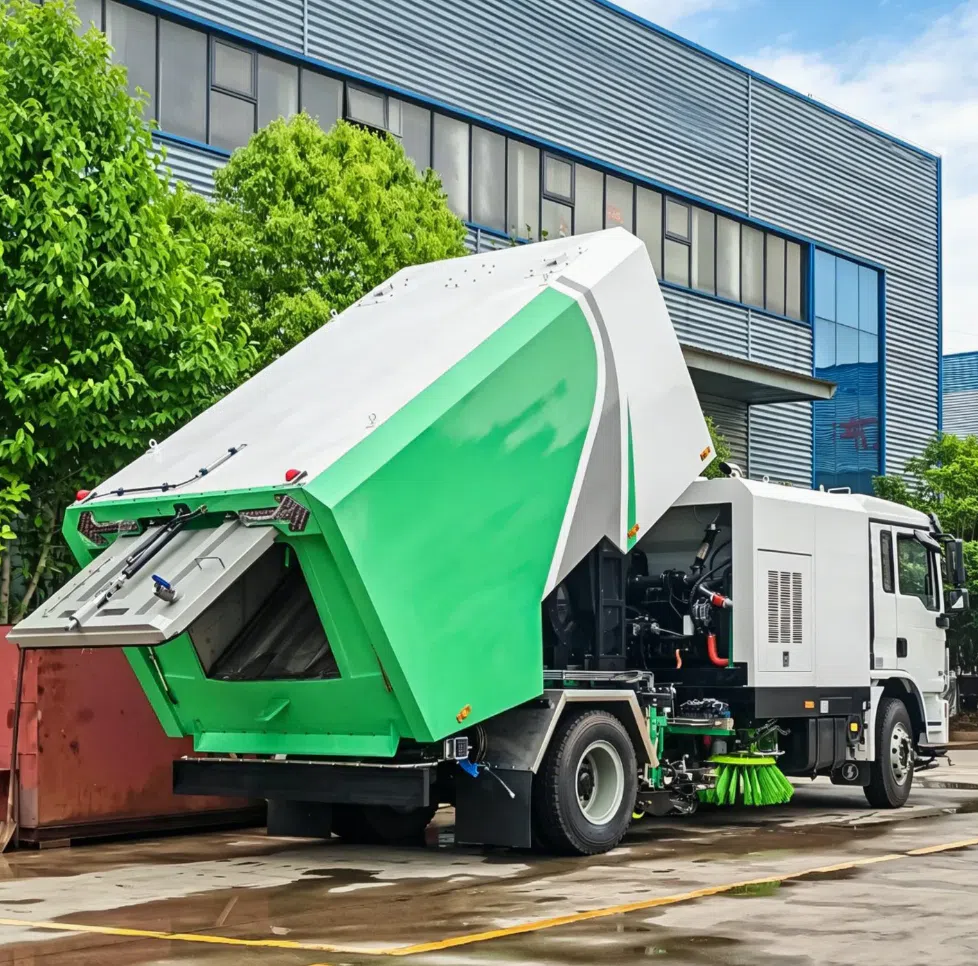

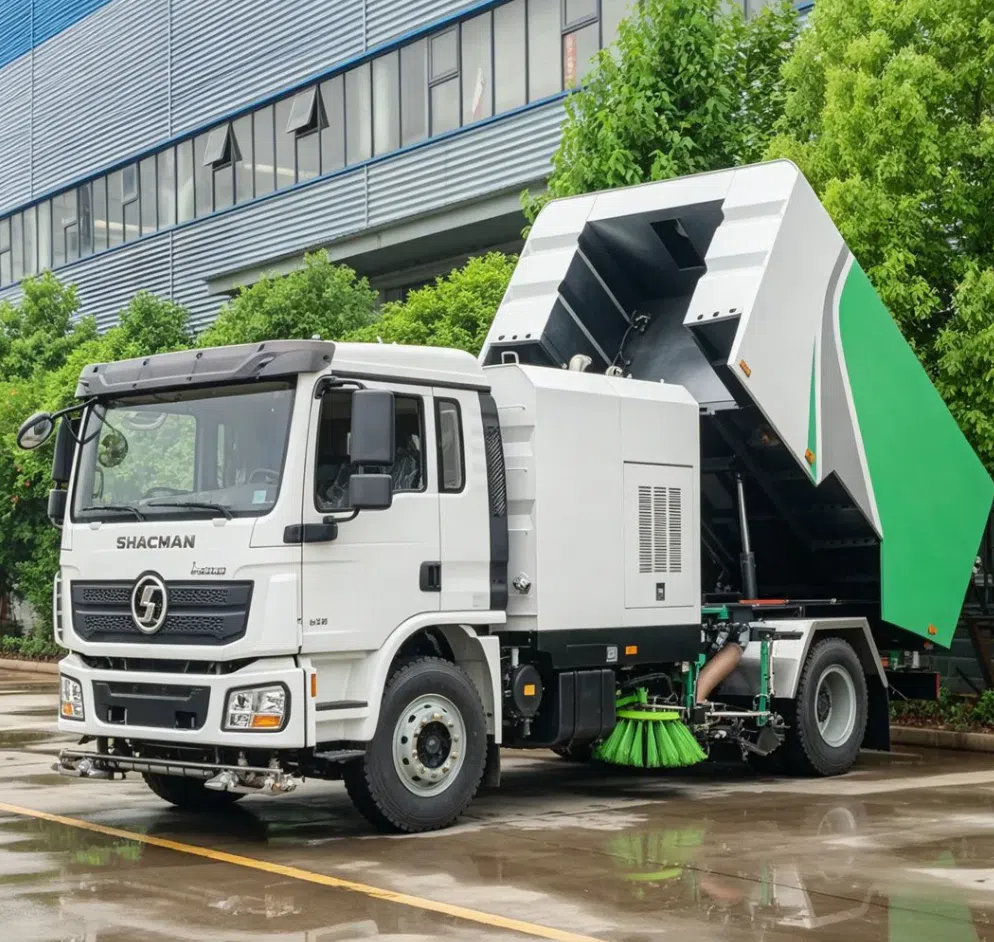

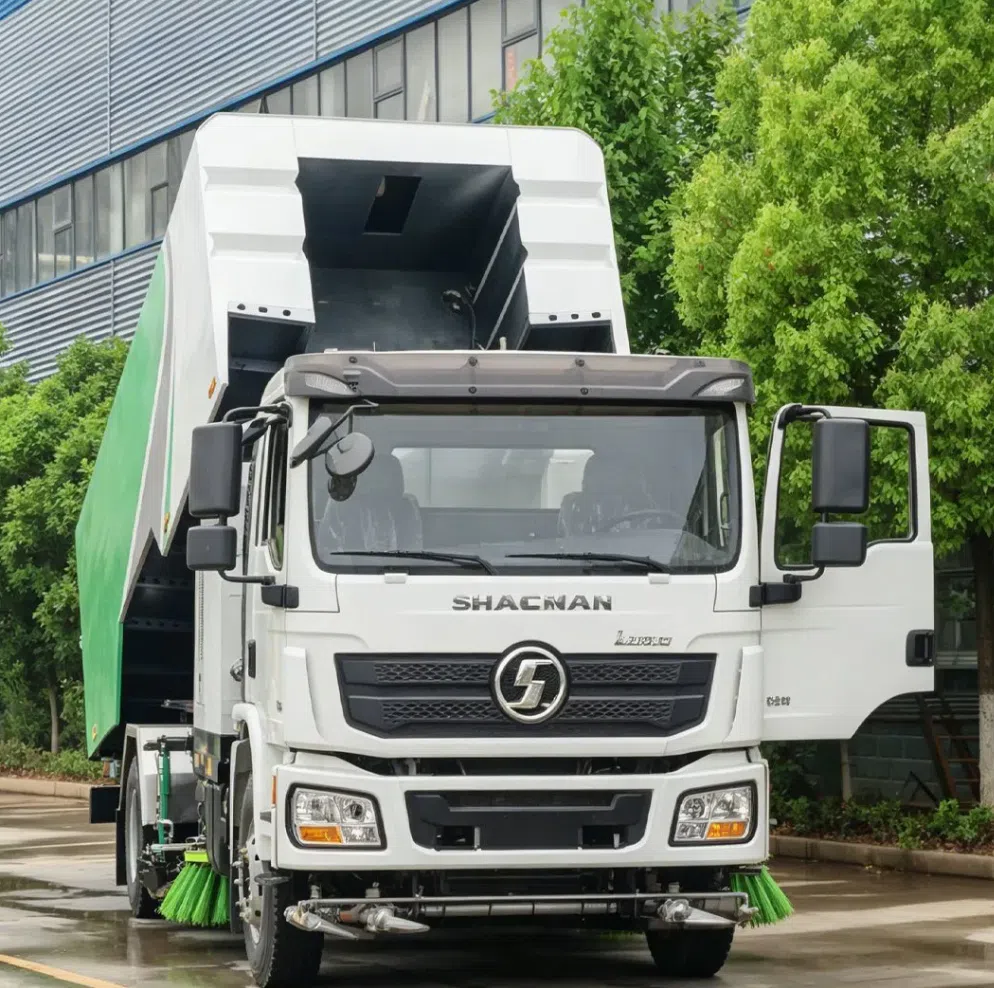

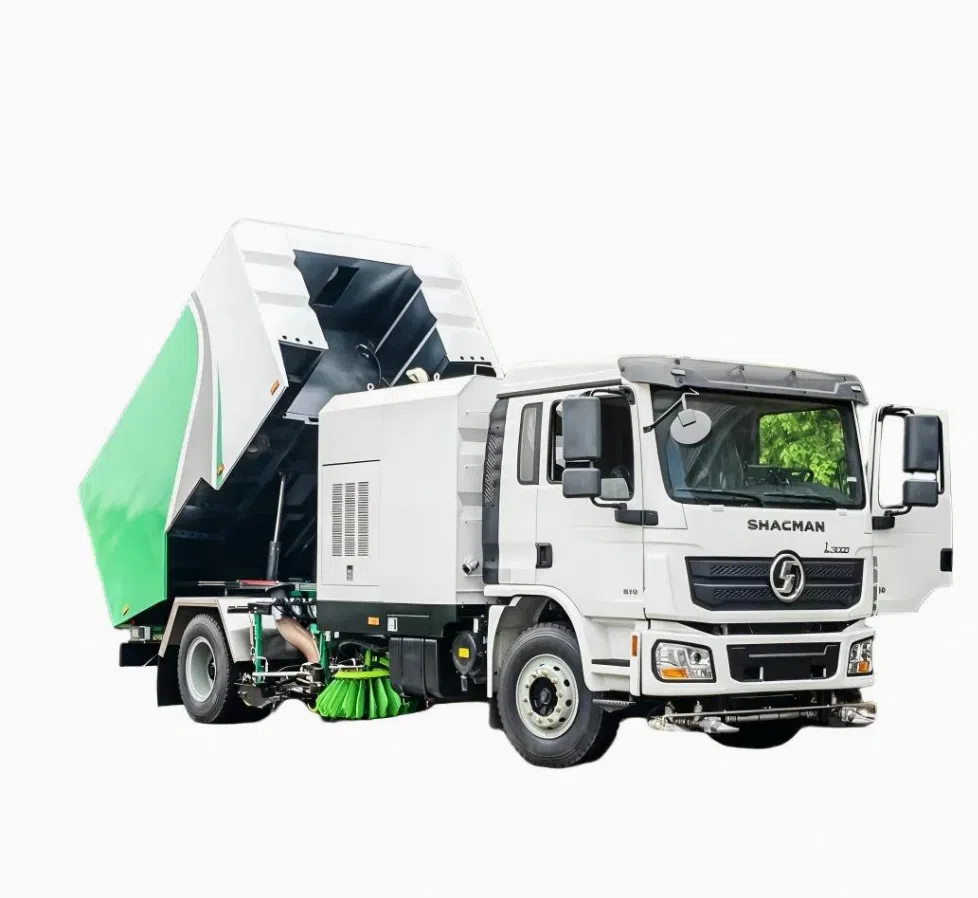

The sweeper truck, also known as a vacuum sweeper or washing-sweeping truck, is a high-efficiency, specialized sanitation vehicle that integrates road sweeping, garbage collection, high-pressure washing, and sewage recovery. As a heavy-duty washing truck designed for efficient street cleaning, it has an 18,000 kg capacity, a 9 CBM water tank for ample water supply, and a 7 CBM garbage tank for efficient waste collection. With dimensions of 9960×2600×2900 mm, it is compact yet powerful for city environments.
SHACMAN road sweeper trucks are available in 4x2, 6x4, and 8x4 configurations, providing superior traction and stability on any terrain. With “heavy truck quality” at their core, they deliver an efficient, reliable, and economical urban cleaning solution.
Their advantages are clear. First, they are robust, durable, and powerful: a robust chassis and reliable engine make them especially suitable for high-intensity, long-term operations. Second, they are highly efficient and versatile, integrating sweeping, washing, and vacuuming while producing no dust; they can also switch flexibly among multiple operating modes to suit different road conditions. Third, they offer excellent environmental adaptability, operating stably with high uptime in extreme cold, extreme heat, or complex road conditions thanks to their excellent chassis and power system. Fourth, they are eco-friendly and cost-effective, achieving superior cleaning results with low water consumption and excellent fuel economy, thereby reducing overall operating costs. Fifth, they are intelligent and user-friendly, equipped with smart control systems for easy operation and simplified troubleshooting while prioritizing operator comfort.
Product features further enhance their performance. Dual front disc brushes (φ800 mm) are paired with a mid-mounted ultra-wide suction nozzle (1800 mm) to ensure no blind spots and thorough waste collection. A CAN bus PLC intelligent control system enables one-key switching from the cabin between modes such as sweep-wash, sweep-only, wash-only, and curb clean.
For safety, the disc brushes and side spray bars feature automatic obstacle avoidance and reset, while rear/side view cameras, audible alarms, and LED warning lights ensure safe operation. In addition, a built-in sewage recovery and filtration system recycles clean water for eco-friendly operation, and the garbage hopper tilts up to 50° for complete discharge.
Configuration sheet
| Model: SHACMAN L3000 SWEEPER TRUCK | |
| CHASSIS SPECS | |
| Curb weight | Approx. 9,300 kg |
| Total weight | 18,000 kg |
| Drive style | 4×2 |
| Engine: | Weichai diesel engine; power output ranging from 210 / 240 / 245 / 285 hp; emission standards Euro 2 / 3 / 5 |
| Transmission: | Manual 6 Gears |
| Cabin: | single cab or one-and-a-half-row cab; standard equipped with A/C, power windows, central lock, etc. |
| Color: | White is the standard color; other colors are customizable upon request |
| Wheelbase: | 4,500 mm |
| Tire: | 10.00R20 |
| Front axle: | 4.8T |
| Rear axle: | 10T |
| Capacity of oil tank: | 200 L |
| Others | Cleaning Process: Cold Water Cleaning; Type: Fast Washing Cleaning; Use: Burnishing; Condition: New; |
| CARRIAGE BODY SPECS | |
| Size and Specs: | 9960 × 2600 × 2900 mm |
Advantages
We have been special truck manufacturer for more than 32 years. We has professional German Kogel technology, combined with Shacman, to create first-class special vehicles, provide trucks owners with the best quality, best price, and the most timely after-sale professional services.
Shipping
We usually adopt shipping by bulk cargo, flat rack, and Roro ship. We will arrange the most cost-effective transportation mode according to the quantity of products. All trucks will be polished with wax before shipping. We guarantee that all products have gone through strict inspection and are in good condition before shipment. We strive for 100% customer satisfaction on every sale we close.
Delivery time
20-40 working days after payment receipt confirmed (based on actual quantity).
Packing
Standard export packing, orcustomized packing as your request.
Professional goods shipping forwarder.
After-sales Service
1.12months or 100,000km for main parts (engine, axle, body and beam, etc).
2.Technical Support by phone Whatsapp or email around the clock.
3.Lifelong Parts Supports
4.Engineer available service oversea.
