Description

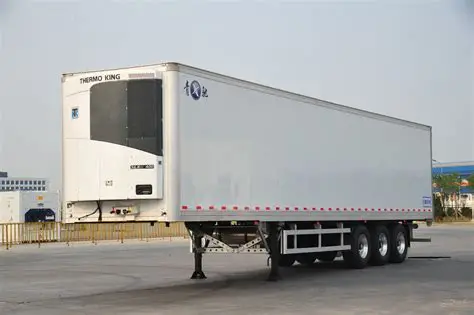

Reefer semi trailer (refrigerated box semi trailer) is cold chain logistics special semi trailer, used for long distance transportation of temperature sensitive goods including fresh fruit, meat, seafood, dairy products and medical supplies. The compartment is constructed by thick polyurethane thermal insulation sandwich panel to reduce internal external heat exchange. Independent refrigeration unit is installed at front end of box body, which can precisely adjust internal temperature ranging from -25℃ to +25℃ to satisfy different cold storage and freezing transport demands. Rear thermal insulated double doors are equipped with high performance sealing strips to minimize cold air loss. Chassis adopts mature 3 axle heavy duty semi trailer frame, matched with leaf spring suspension and ABS braking system, adapting to long distance highway cross border transportation.
Configuration sheet
Model: Refrigerated Box Semi‑trailer | |
CHASSIS SPECS | |
Curb weight | 9100 kg |
Total weight | 40000 kg |
Drive style | / |
Engine: | / |
Transmission: | / |
Cabin: | / |
Color: | White (optional) |
Wheelbase: | 7200+1310+1310 mm |
Tire: | 12.00R20 18PR, 12 pcs + 1 spare tire |
Front axle: | / |
Rear axle: | 3×13T heavy‑duty trailer axle |
Capacity of oil tank: | / |
Others | 90# king pin, ABS, independent refrigeration unit mounting base |
CARRIAGE BODY SPECS | |
Size and Specs: | 13000×2480×2600mm insulated box, temperature range ‑25℃ ~ +25℃, rear double door |
Package | Insulation box surface protected by film, nude packing, refrigeration accessories packed separately |
Advantages
We have been special truck manufacturer for more than 32 years. We has professional German Kogel technology, combined with Shacman, to create first-class special vehicles, provide trucks owners with the best quality, best price, and the most timely after-sale professional services.
Shipping
We usually adopt shipping by bulk cargo, flat rack, and Roro ship. We will arrange the most cost-effective transportation mode according to the quantity of products. All trucks will be polished with wax before shipping. We guarantee that all products have gone through strict inspection and are in good condition before shipment. We strive for 100% customer satisfaction on every sale we close.
Delivery time
20-40 working days after payment receipt confirmed (based on actual quantity).
Packing
Standard export packing, orcustomized packing as your request.
Professional goods shipping forwarder.
After-sales Service
1.12months or 100,000km for main parts (engine, axle, body and beam, etc).
2.Technical Support by phone Whatsapp or email around the clock.
3.Lifelong Parts Supports
4.Engineer available service oversea.
