Description:
Whether it's large-scale dust suppression at mining sites, high-pressure cleaning on major urban highways, or emergency firefighting and irrigation in expansive industrial zones, the HOWO 8×4 water sprinkler truck delivers exceptional performance with power and reliability.
Powerful Engine & Stable 8×4 Drive
Equipped with a high-torque engine ranging from 340 to 460 HP, this water tanker provides strong climbing ability and smooth full-load starts. The robust 8×4 drive configuration ensures superior stability, excellent traction, and adaptability to diverse working environments — from rugged mining sites to city thoroughfares.
High-Capacity & Durable Tank
Built from high-quality carbon steel (Q235) with optimized thickness — 5–6mm for the shell and heads, and 4mm for anti-surge baffles — the tank is designed for durability and stability during transport. Available capacities from 25 to 35 cubic meters, with a corrosion-resistant interior coating for long service life in demanding conditions.
High-Performance Pump & Multi-Function Spraying System

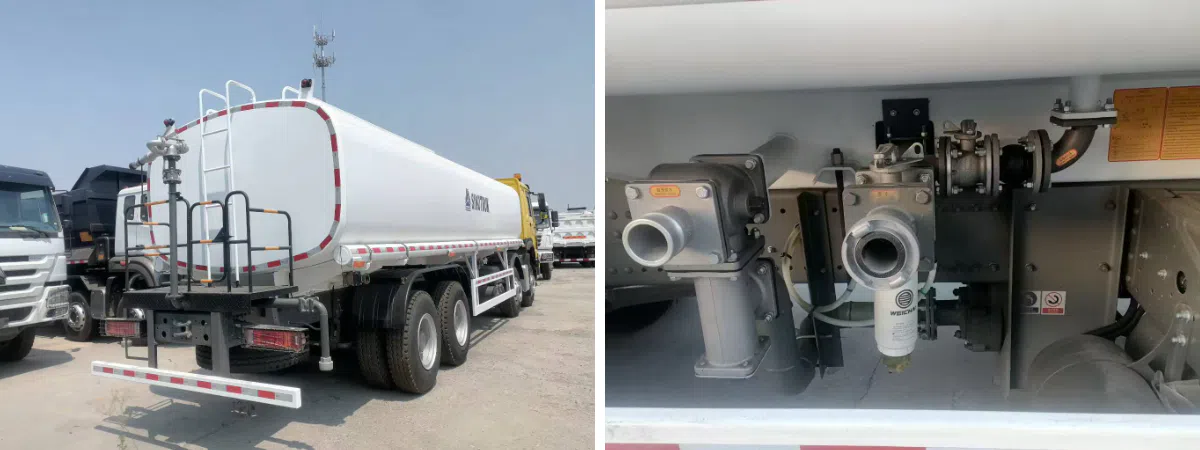

Equipped with a high-performance water pump supporting powerful self-priming and discharge functions. The comprehensive spraying system includes: Front sprinkling、Rear spraying、Side spraying.
High-pressure water cannon (for long-range dust control, firefighting, or irrigation)
These features provide versatile solutions for dust suppression, road washing, greenbelt irrigation, and emergency firefighting needs.
Driver-Friendly Cabin
The spacious, ergonomically designed cabin features optimized seating, advanced vibration reduction, and noise insulation to reduce driver fatigue during long working hours. Large view windows and practical storage spaces further enhance driving experience and safety.
Why Choose the HOWO 8×4 Water TankerTruck?
It combines high capacity, rugged durability, and multi-functional spraying performance. Whether you need a large-scale dust controller for mining, a highway cleaning vehicle, or an industrial zone firefighting support truck, the HOWO 8×4 water sprinkler truck is your trusted partner for dust control and road maintenance.
Configuration sheet:
Model: ZZ1317V4667B1 | |
CHASSIS SPECS | |
| Curb weight | 14000KG |
| Total weight | 40,000 kg |
| Drive style | 8×4 |
| Engine: | WD615.47/WD615.69/WP10.340E22/WP12S400E201,336/340/371/400/430HP, EuroII-V |
| Transmission: | HW19710,10speeds/HW19710,12speeds,with PTO (HW50/HW70) |
| Cabin: | HW76,single berth,right/left-hand drive,A/C |
| Color: | Standard (e.g.White, Red) |
| Wheelbase: | 1800+3200+1400mm / 1800+4575+1400mm |
| Tire: | 12.00R20/12.00R24/12R22.5/315/80R22.5,12+1 pcs |
| Front axle: | VGD95,1×9500KGS capacity |
| Rear axle: | MCX16ZG/HC16,16T capacity(2×1600KGS), double-reduction, ratio 4.63–5.73 |
| Capacity of oil tank: | 400L |
| Others | / |
CARRIAGE BODY SPECS | |
| Size and Specs: | 25CBM Water Tanker,Volume: 25 m³ Shell thickness: 4mm Head thickness: 4mm Bulkhead thickness: 3mm， Front sprinkling and rear spraying |
| Package | Wax |
Advantages:
We have been special truck manufacturer for more than 32 years. We has professional German Kogel technology, combined with Sinotruk, to create first-class special vehicles, provide trucks owners with the best quality, best price, and the most timely after-sale professional services.
Shipping:
We usually adopt shipping by bulk cargo, flat rack, and Roro ship. We will arrange the most cost-effective transportation mode according to the quantity of products. All trucks will be polished with wax before shipping. We guarantee that all products have gone through strict inspection and are in good condition before shipment. We strive for 100% customer satisfaction on every sale we close.
Delivery time:
20-40 working days after payment receipt confirmed (based on actual quantity).
Packing:
Standard export packing, orcustomized packing as your request.
Professional goods shipping forwarder:
After-sales Service:
1.12months or 100,000km for main parts (engine, axle, body and beam, etc).
2.Technical Support by phone Whatsapp or email around the clock.
3.Lifelong Parts Supports
4.Engineer available service oversea.
