Description

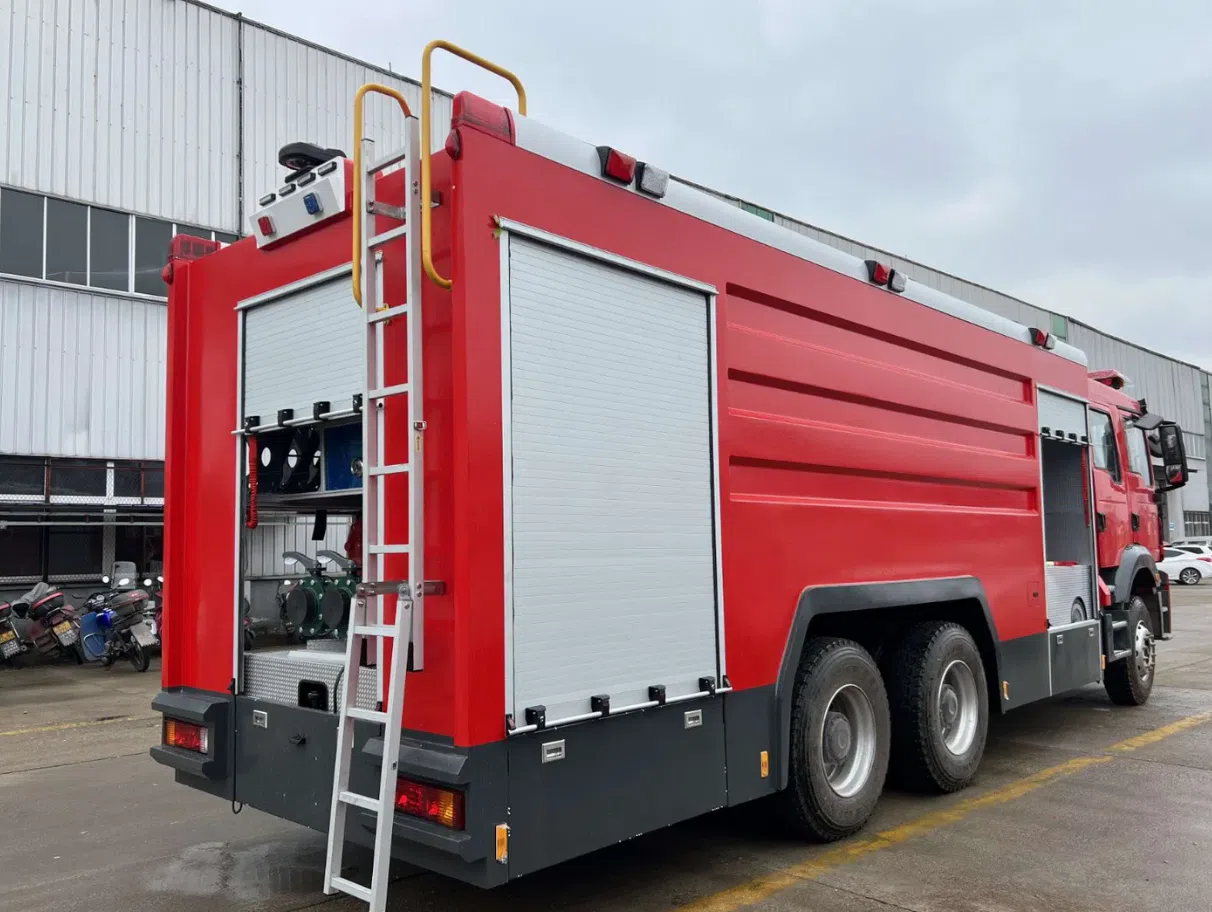

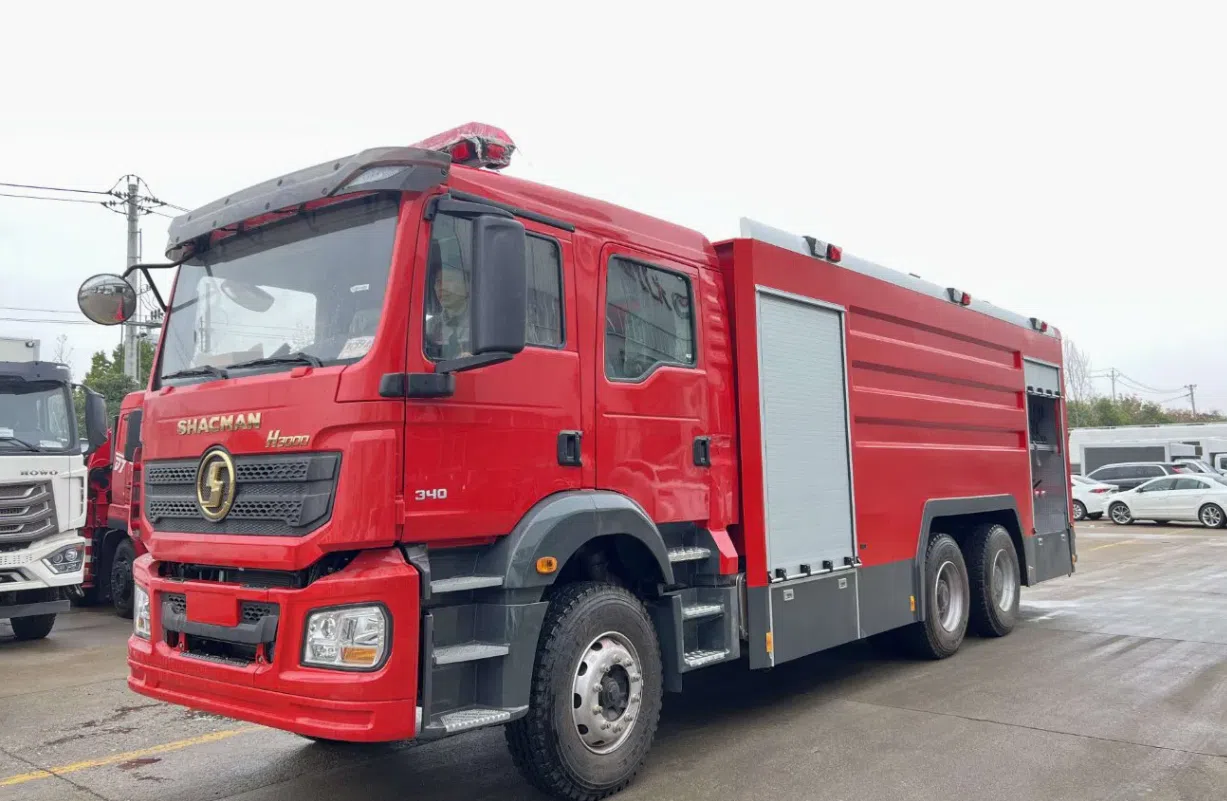

H3000 SX5255GXFMN434 is a 6 × 4 water tank fire truck used for firefighting and emergency rescue in mining areas, construction sites, towns and cities. Equipped with a high-power fire pump and a vehicle mounted fire monitor, the high-pressure water outlet has a long range and quick fire extinguishing response. The large capacity anti-corrosion water tank has sufficient water storage and stable PTO power output. The reinforced chassis reserve is sufficient, the non paved road mobility is excellent, the overseas parts supply is extensive, and the maintenance is simple. It is a special special vehicle for emergency firefighting and rescue of remote infrastructure projects.
Equipped with WP10.340E22 Euro II 340 horsepower engine, wheelbase of 4375+1400mm, 9-speed Fast transmission, 12.00R20 tires, Hande 16 ton dual rear axle with wheel differential lock.
Configuration sheet
| Model: SX5255GXFMN434 | |
| CHASSIS SPECS | |
| Curb weight | 13100 kg |
| Total weight | 25000 kg |
| Drive style | Left hand drive |
| Engine: | WP10.340E22 |
| Transmission: | RTD11509C |
| Cabin: | H3000 flat top extended single bedroom cab |
| Color: | White |
| Wheelbase: | 4375+1400 mm |
| Tire: | 12.00R20 tyres(10＋1） |
| Front axle: | HD 7.5T |
| Rear axle: | HD 16T |
| Capacity of oil tank: | 400L aluminum alloy fuel tank |
| Others | Four point hydraulic suspension, hydraulic main seat, with air conditioning, electric doors and windows, supporting right-hand drive RHD modification |
| CARRIAGE BODY SPECS | |
| Size and Specs: | 9600 × 2490 × 3480 mm，12m³ |
| Package | Wax |
Advantages
We have been special truck manufacturer for more than 32 years. We has professional German Kogel technology, combined with Shacman, to create first-class special vehicles, provide trucks owners with the best quality, best price, and the most timely after-sale professional services.
Shipping
We usually adopt shipping by bulk cargo, flat rack, and Roro ship. We will arrange the most cost-effective transportation mode according to the quantity of products. All trucks will be polished with wax before shipping. We guarantee that all products have gone through strict inspection and are in good condition before shipment. We strive for 100% customer satisfaction on every sale we close.
Delivery time
20-40 working days after payment receipt confirmed (based on actual quantity).
Packing
Standard export packing, orcustomized packing as your request.
Professional goods shipping forwarder.
After-sales Service
1.12months or 100,000km for main parts (engine, axle, body and beam, etc).
2.Technical Support by phone Whatsapp or email around the clock.
3.Lifelong Parts Supports
4.Engineer available service oversea.
