Description:
Whether it's supplying ready-mix concrete for major infrastructure developments, delivering to high-rise building sites, or supporting large-scale commercial and industrial projects, the HOWO 8×4 concrete mixer truck delivers exceptional performance with power and reliability.
Powerful Engine & Stable 8×4 Drive
Equipped with a high-torque engine ranging from 340 to 371 HP, this concrete mixer provides strong climbing ability and smooth full-load starts, ensuring stable operation on challenging terrains and steep job site access roads. The robust 8×4 drive configuration guarantees superior stability, excellent traction, and adaptability to the most demanding construction environments.
High-Capacity & Durable Mixing Drum
The mixing drum is manufactured with optimized thickness — 5mm for the drum shell and 4mm for the blades — ensuring durability and long service life under continuous heavy-duty operation. Available capacities from 12 to 20 cubic meters, the drum features an advanced spiral blade design for homogeneous mixing and minimal concrete residue, meeting the highest standards for concrete quality in large-volume applications.
Heavy-Duty Hydraulic Drive System
Equipped with a heavy-duty hydraulic drive system — including pump, motor, and reducer from internationally recognized brands (Eaton / PMP / Sauer / Rexroth) — it ensures smooth drum rotation and precise discharge control, significantly improving operational efficiency at the job site.

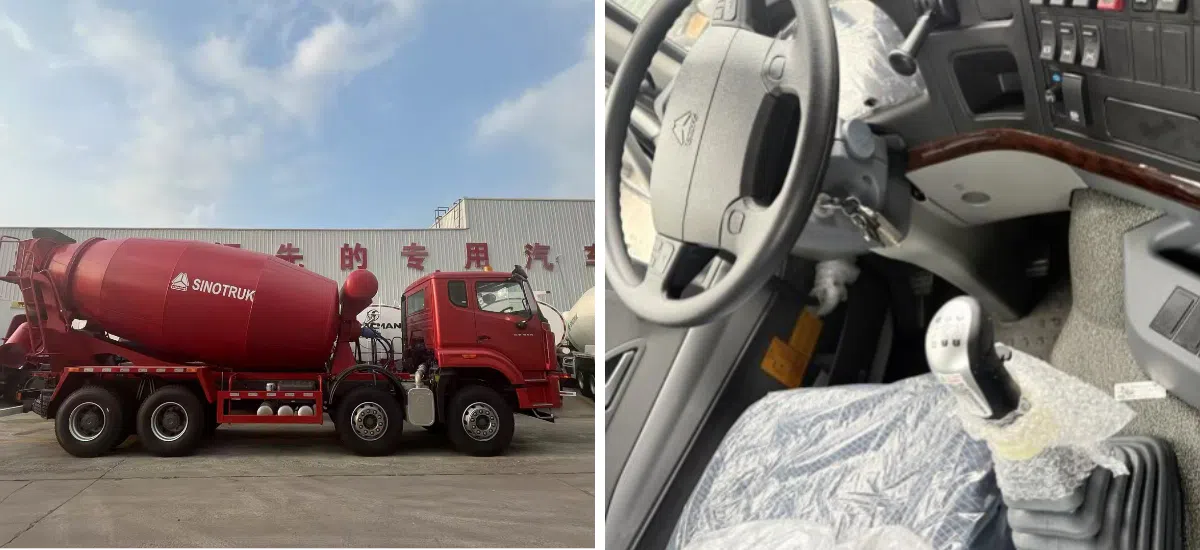

Driver-Friendly Cabin
The spacious, ergonomically designed cabin features optimized seating, advanced vibration reduction, and noise insulation to minimize driver fatigue during long working hours. Large view windows and practical storage spaces further enhance driving experience and safety.
Why Choose the HOWO 8×4 Concrete Mixer Truck?
It combines high capacity, rugged durability, and world-class hydraulics. Whether for major infrastructure, high-rise construction, or large-scale industrial projects, the HOWO 8×4 concrete mixer truck is your trusted partner for large-volume concrete transportation.
Configuration sheet:
Model: ZZ1317N3267B1 | |
CHASSIS SPECS | |
| Curb weight | Approx.14000KG |
| Total weight | 35,000–50,000 kg (GVW) |
| Drive style | 6×4 |
| Engine: | WD615.47/WD615.69/WP10.340E22,336/340/371HP, EuroII-V |
| Transmission: | HW19710, 10F & 2R,with PTO |
| Cabin: | HW76,single berth,right/left-hand drive,A/C |
| Color: | Standard (e.g.White, Red,e.g.) |
| Wheelbase: | 1800+3200+1350mm/1800+3600+1350 mm |
| Tire: | 12.00R20 / 12.00R24，12+1pcs |
| Front axle: | VGD95, 1×9500KGS capacity |
| Rear axle: | MCX16ZG,16T capacity(2×1600KGS), double-reduction, ratio 4.63–5.73 |
| Capacity of oil tank: | 400L |
| Others | / |
CARRIAGE BODY SPECS | |
| Size and Specs: | 14CBM Concrete Tanker,Dry or Batch Concrete Mixer Truck,it can as your requirements |
| Package | Wax |
Advantages:
We have been special truck manufacturer for more than 32 years. We has professional German Kogel technology, combined with Sinotruk, to create first-class special vehicles, provide trucks owners with the best quality, best price, and the most timely after-sale professional services.
Shipping:
We usually adopt shipping by bulk cargo, flat rack, and Roro ship. We will arrange the most cost-effective transportation mode according to the quantity of products. All trucks will be polished with wax before shipping. We guarantee that all products have gone through strict inspection and are in good condition before shipment. We strive for 100% customer satisfaction on every sale we close.
Delivery time:
20-40 working days after payment receipt confirmed (based on actual quantity).
Packing:
Standard export packing, orcustomized packing as your request.
Professional goods shipping forwarder:
After-sales Service:
1.12months or 100,000km for main parts (engine, axle, body and beam, etc).
2.Technical Support by phone Whatsapp or email around the clock.
3.Lifelong Parts Supports
4.Engineer available service oversea.
