Description

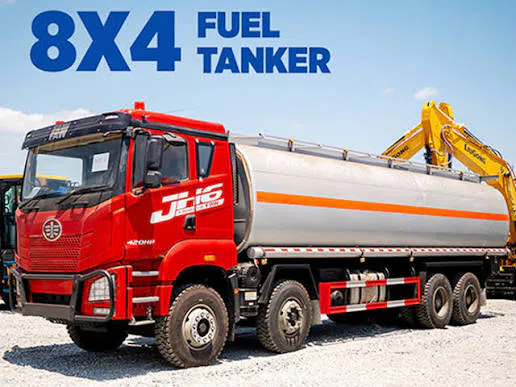

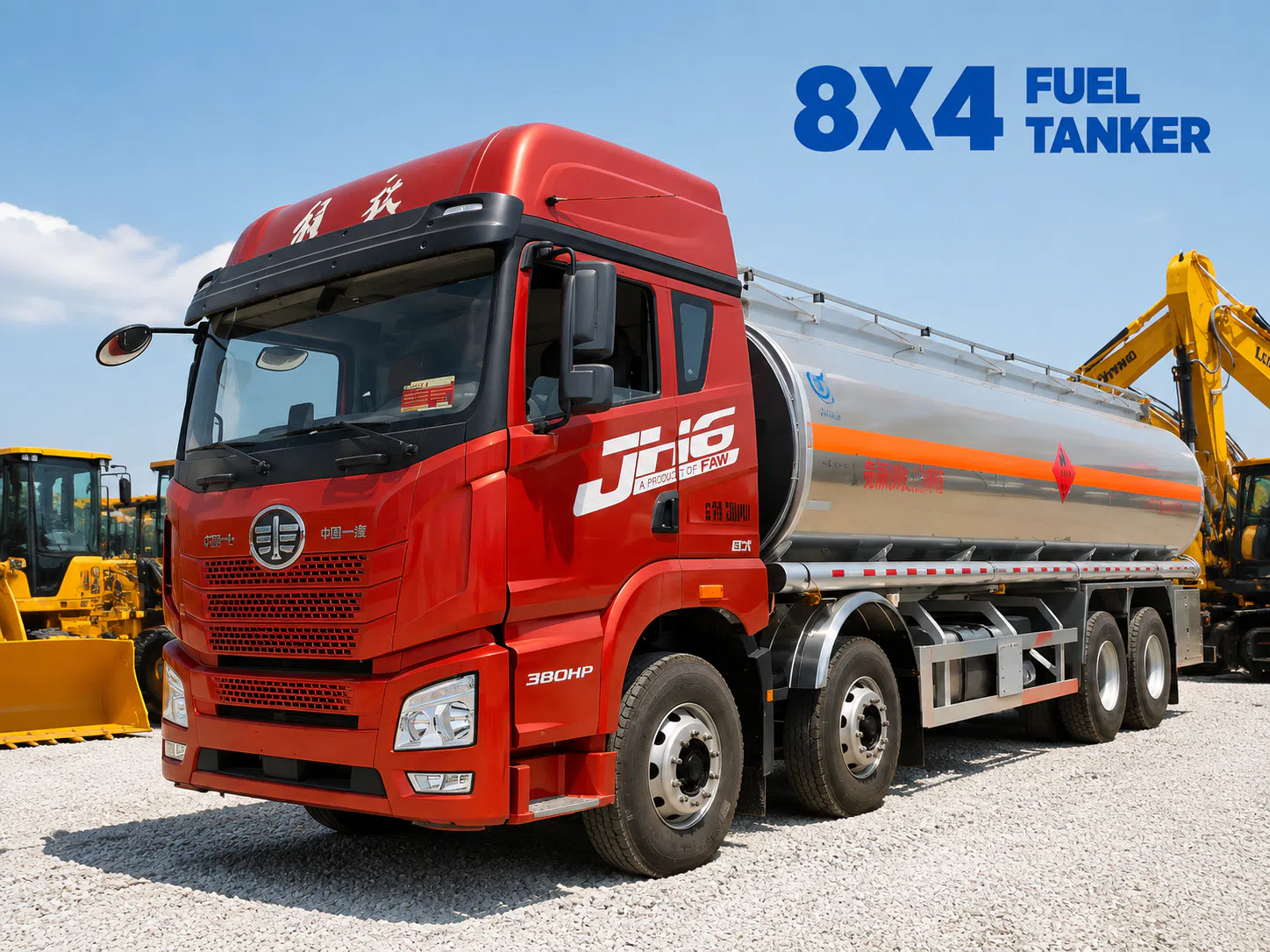

This FAW JH6 fuel tank truck is built on the mature JH6 heavy-duty truck chassis platform, positioned for refined fuel road transportation, gas station fuel delivery, construction site fuel supply and mining operation fueling, serving as professional equipment for hazardous chemical fuel transport and mobile refueling operations.
With strong load-bearing capacity and a stable, reliable powertrain, the chassis adapts to various working conditions including plain trunk roads, suburban highways and unpaved construction site roads, with outstanding safety and durability for high-intensity continuous transport. The upper body is equipped with a national-standard high-quality carbon steel or aluminum alloy tank with a volume range of 10 to 30 cubic meters. Single or multi-compartment configurations are optional for simultaneous transportation of multiple fuel types. It integrates full operation devices including a dedicated oil pump, high-precision flow meter, refueling gun and automatic hose reel, ensuring high loading/unloading efficiency and accurate metering. Multiple wave baffles are installed inside the tank, along with full safety configurations such as anti-overflow probe, static grounding strap, emergency shut-off bottom valve and fire extinguisher, fully complying with hazardous chemical transport regulations and ensuring safe and controllable operation throughout the process.
The spacious cab features ergonomic design and comprehensive comfort configurations, effectively relieving fatigue from long-distance transportation. With high compatibility between chassis and upper body, strong compliance, low failure rate and easy maintenance, it ensures controllable total life cycle operating costs, making it a cost-effective choice for fuel transport and engineering fuel supply units, especially suitable for fuel support demands of various infrastructure, logistics and municipal projects overseas.
Configuration sheet
| Model: CA5350P25K15L5T4EYA80 | |
| CHASSIS SPECS | |
| Curb weight | 12500kgs |
| Total weight | 25000kgs |
| Drive style | 8×4 |
| Engine: | Xichai CA6DM2-42, 420PS, Euro 2 emission |
| Transmission: | FAW CA10TA190F |
| Cabin: | JH6 right-hand drive raised-floor flat-top full-floating cab |
| Color: | Red |
| Wheelbase: | 1900+4600+1350mm |
| Tire: | 13R22.5 18PR |
| Front axle: | 2055 front axle (FAW original) |
| Rear axle: | 300 wheel reduction axle, final drive ratio 5.263 (FAW original) |
| Capacity of oil tank: | 400L aluminum fuel tank |
| Others | Φ430 imported clutch, 180AH battery, 300×80×(8+5)mm frame, special chassis for oil tank truck |
| CARRIAGE BODY SPECS | |
| Size and Specs: | 25 cubic meters, magnesium-aluminum alloy tank, tank body 6mm thick, tank head 7mm thick |
Advantages
We have been special truck manufacturer for more than 32 years. We has professional German Kogel technology, combined with Shacman, to create first-class special vehicles, provide trucks owners with the best quality, best price, and the most timely after-sale professional services.
Shipping

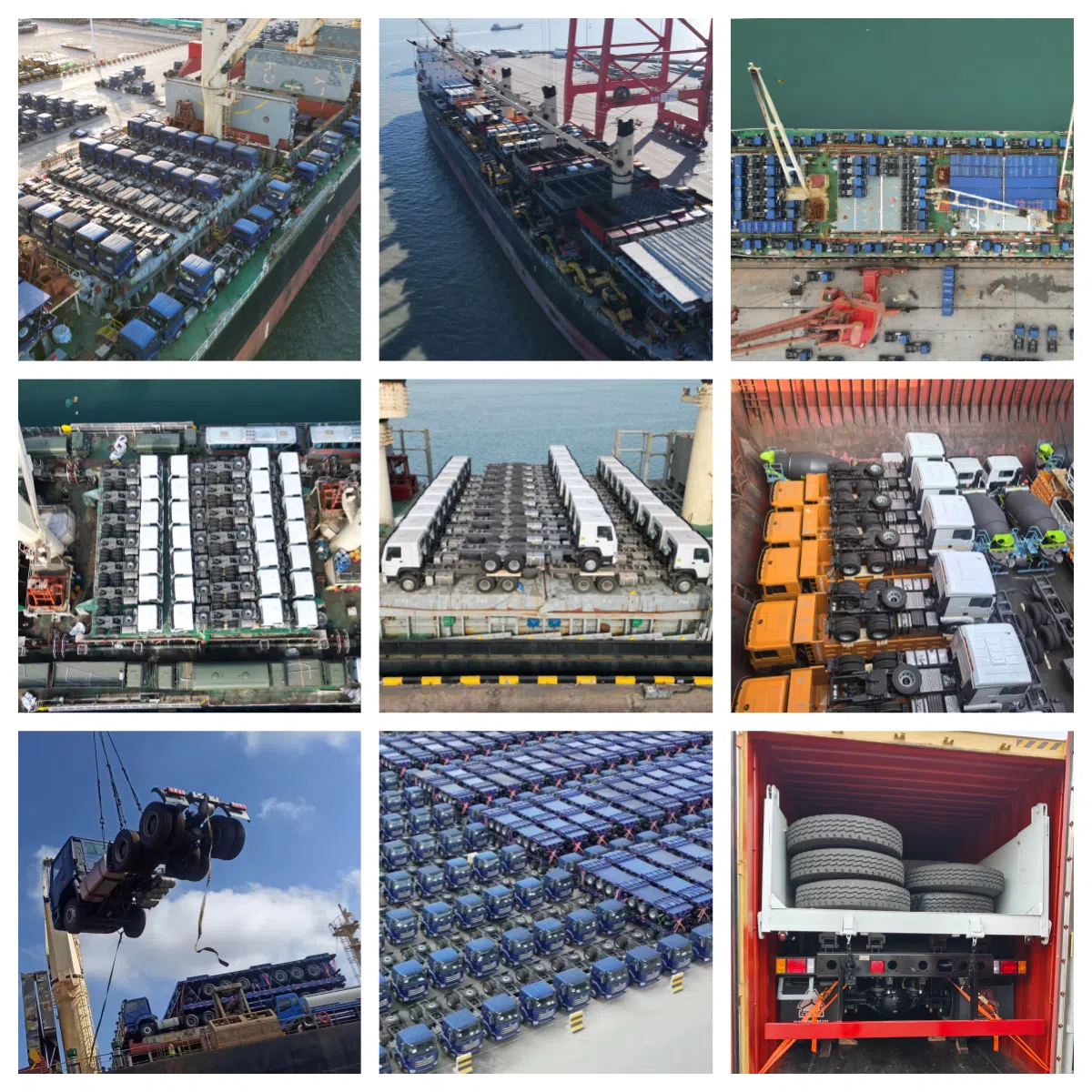

We usually adopt shipping by bulk cargo, flat rack, and Roro ship. We will arrange the most cost-effective transportation mode according to the quantity of products. All trucks will be polished with wax before shipping. We guarantee that all products have gone through strict inspection and are in good condition before shipment. We strive for 100% customer satisfaction on every sale we close.
Delivery time
20-40 working days after payment receipt confirmed (based on actual quantity).
Packing
Standard export packing, orcustomized packing as your request.
Professional goods shipping forwarder.
After-sales Service
1.12months or 100,000km for main parts (engine, axle, body and beam, etc).
2.Technical Support by phone Whatsapp or email around the clock.
3.Lifelong Parts Supports
4.Engineer available service oversea.
Cooperative Commemoration
