Description

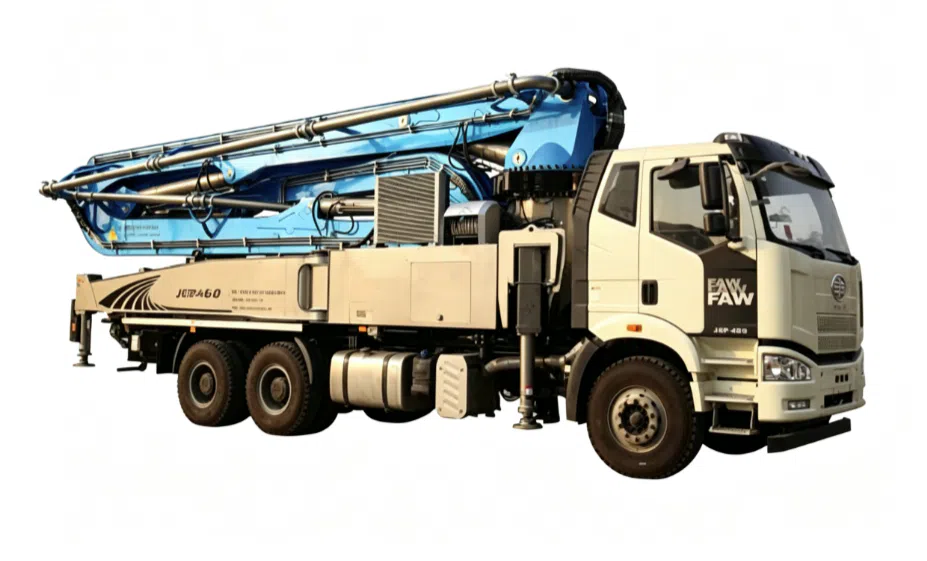

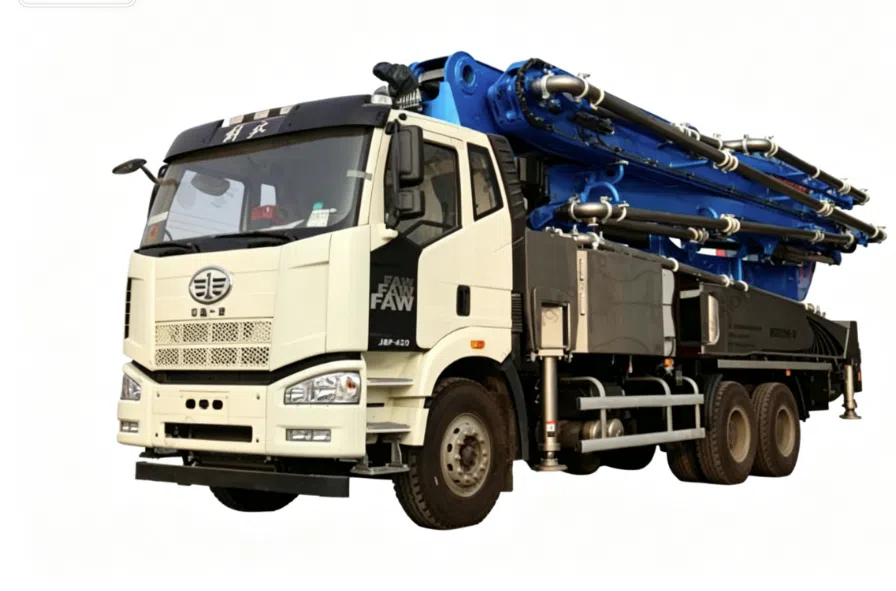

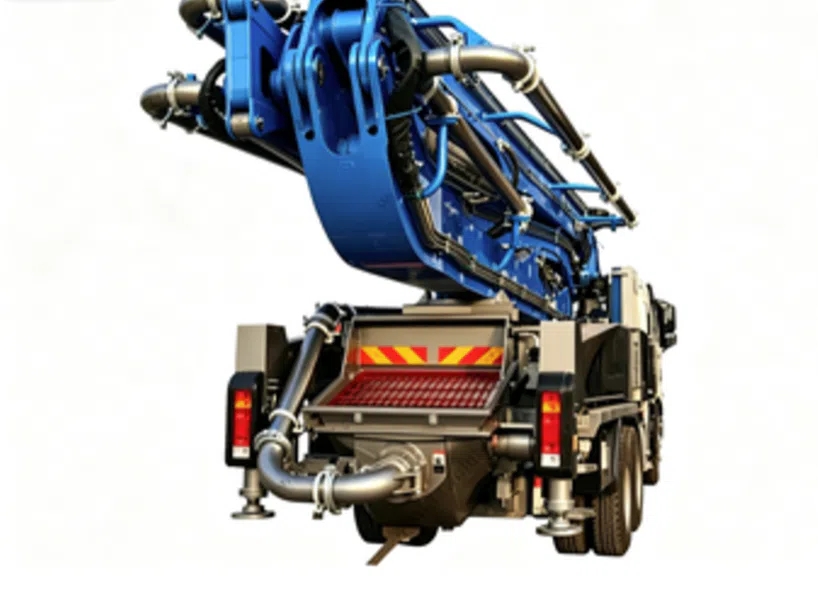

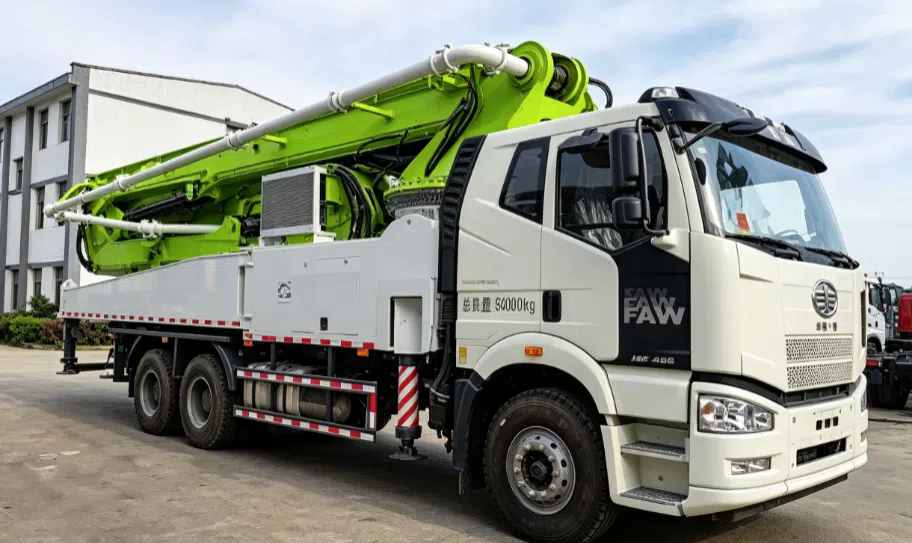

The FAW J6P 6×4 concrete pump truck is a professional construction machine for concrete pouring. It is equipped with a 42m five-section high-strength steel boom, which can reach wide working range and adapt to various building construction scenarios. The powerful hydraulic pumping system delivers stable concrete flow, with maximum output of 120 cubic meters per hour. Built on FAW J6P 6×4 heavy-duty chassis with 350HP engine and PTO power take-off system, it has reliable power performance and strong load capacity. The vehicle is fitted with hydraulic outriggers and wireless remote control for safe and convenient operation. Spare parts supply is sufficient globally, stable performance and low maintenance cost for overseas construction projects.
Equipped with a Xichai 350 horsepower engine and a 10 speed gearbox with a PTO power take-off; Φ 300 wheel side deceleration double axle, 42 meter five section boom, hydraulic support legs, wireless remote control, J6P half cab.
Configuration sheet
| Model: CA5250THBP66K24L2T1E | |
| CHASSIS SPECS | |
| Curb weight | 15600 kg |
| Total weight | 25000 kg |
| Drive style | Left hand drive |
| Engine: | Xichai CA6DL2-35E3F, 350HP, Euro3 |
| Transmission: | CA10TAX190 |
| Cabin: | J6P flat top half cab |
| Color: | White |
| Wheelbase: | 4300+1350 mm |
| Tire: | 12.00R20 tyres |
| Front axle: | 7T |
| Rear axle: | Φ 300 wheel side deceleration double rear axle |
| Capacity of oil tank: | 400L |
| Others | Original air conditioning, dual circuit air brake, drum brake, optional ABS |
| CARRIAGE BODY SPECS | |
| Size and Specs: | 10600 × 2550 × 3980 mm |
| Package | Wax |
Advantages
We have been special truck manufacturer for more than 32 years. We has professional German Kogel technology, combined with Shacman, to create first-class special vehicles, provide trucks owners with the best quality, best price, and the most timely after-sale professional services.
Shipping
We usually adopt shipping by bulk cargo, flat rack, and Roro ship. We will arrange the most cost-effective transportation mode according to the quantity of products. All trucks will be polished with wax before shipping. We guarantee that all products have gone through strict inspection and are in good condition before shipment. We strive for 100% customer satisfaction on every sale we close.
Delivery time
20-40 working days after payment receipt confirmed (based on actual quantity).
Packing
Standard export packing, orcustomized packing as your request.
Professional goods shipping forwarder.
After-sales Service
1.12months or 100,000km for main parts (engine, axle, body and beam, etc).
2.Technical Support by phone Whatsapp or email around the clock.
3.Lifelong Parts Supports
4.Engineer available service oversea.
