Description:

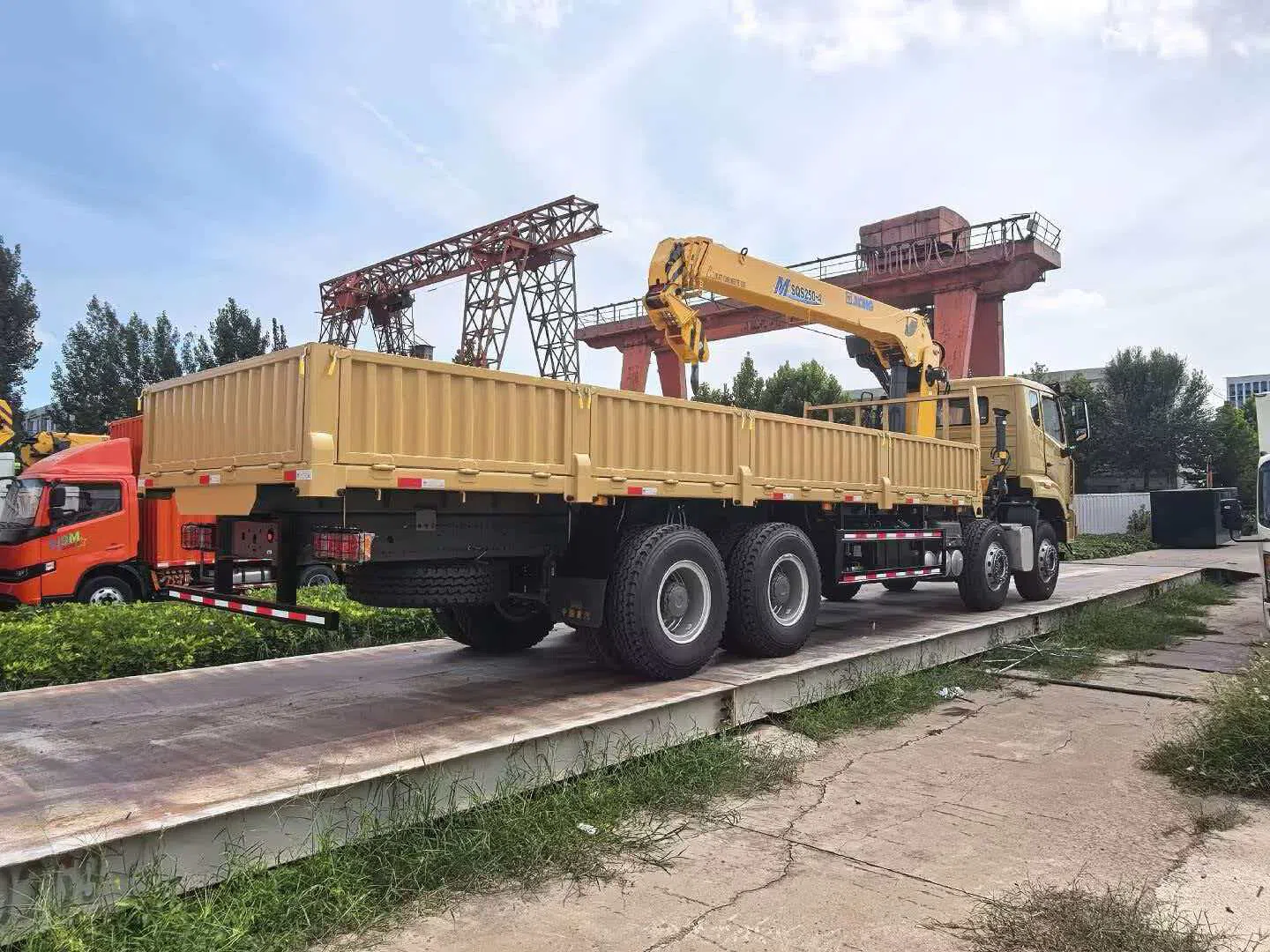

Bear heavy loads with iron arms, march forward with hardcore strength. The HOWO NX 8×4 truck‑mounted crane is professionally engineered for heavy‑duty lifting tasks and all‑round engineering transportation. Built with deep integration of SINOTRUK heavy‑duty chassis and XCMG high‑performance crane, it delivers rock‑solid stability and thunderous power for demanding worksites.
Its chassis is based on the reliable SINOTRUK NX 8×4 heavy‑duty special platform, equipped with a three‑layer through‑reinforced frame and locally four‑layer vertical plates. This robust structure provides excellent torsion and bending resistance, plus outstanding load‑bearing capacity. Matched with a high‑output powertrain, it generates strong low‑speed torque to guarantee smooth heavy‑load startup and stable lifting operations. Adopting dual front‑wheel steering and dual rear‑wheel drive layout with MAN‑technology heavy‑duty axles, the crane truck navigates freely across construction sites, mountainous roads and muddy rough terrains.
Fitted with a standard XCMG straight or folding boom crane, it features a five‑section hexagonal high‑strength boom for extended reach and lifting performance. Dual‑stage hydraulic outriggers offer wide‑span stable support. Safety is fully secured with built‑in moment limiter, overload protection device, hydraulic lock and automatic hook retraction system, enabling reliable full‑condition safety control. The heavy‑duty cargo box integrates lifting and loading functions, supporting multi‑purpose applications to maximize your operational efficiency.
The spacious NX wide‑body cab comes with four‑point suspension, air‑suspension seat, multi‑functional steering wheel and automatic air‑conditioning system, ensuring superior long‑haul driving comfort and reducing operator fatigue. Ideal for engineering construction, equipment relocation, landscape works and emergency rescue missions, this crane truck achieves steady performance thanks to the golden combination of a durable SINOTRUK chassis and top‑tier XCMG crane.
SINOTRUK chassis builds unshakable reliability, while XCMG iron arms unleash powerful lifting capability. The HOWO NX 8×4 truck‑mounted crane establishes a new benchmark for modern heavy‑duty lifting and transportation projects worldwide.
Configuration sheet:
| Model:ZZ1317V466JB1 | |
| CHASSIS SPECS | |
| Drive style | Left hand drive |
| Engine: | WD615.47, 371HP, with EURO 2 engine emission, 9.726L, 6 cylinders In-line |
| Transmission: | HW19710+HW70flange-drivePTO；(10 forward 2 reverse) |
| Cabin: | Howo H77L Cab, with A/C |
| Color: | White |
| Wheelbase: | 4600mm |
| Tire: | 11.00R20/12.00R20/315/80R22.5 tyres(10+1) |
| Front axle: | 9.5T(drum) |
| Rear axle: | 16T(drum) |
| Capacity of oil tank: | 400L |
| Others | Power steer，Exhaust brake and spring brake |
| CARRIAGE BODY SPECS | |
| Model: | XCMG,SQS400D |
| Type: | 16-ton straight boom crane |
| Boom length: | 19.27 meters |
| Cargo box length: | 8000*2300*600 mm |
| thickness: | bottom 3 side 1.5mm |
| Package | Wax |
Advantages:
We have been special truck manufacturer for more than 32 years. We has professional German Kogel technology, combined with Sinotruk, to create first-class special vehicles, provide trucks owners with the best quality, best price, and the most timely after-sale professional services.
Shipping:
We usually adopt shipping by bulk cargo, flat rack, and Roro ship. We will arrange the most cost-effective transportation mode according to the quantity of products. All trucks will be polished with wax before shipping. We guarantee that all products have gone through strict inspection and are in good condition before shipment. We strive for 100% customer satisfaction on every sale we close.
Delivery time:
20-40 working days after payment receipt confirmed (based on actual quantity).
Packing:
Standard export packing, orcustomized packing as your request.
Professional goods shipping forwarder:
After-sales Service:
1.12months or 100,000km for main parts (engine, axle, body and beam, etc).
2.Technical Support by phone Whatsapp or email around the clock.
3.Lifelong Parts Supports
4.Engineer available service oversea.
