Description

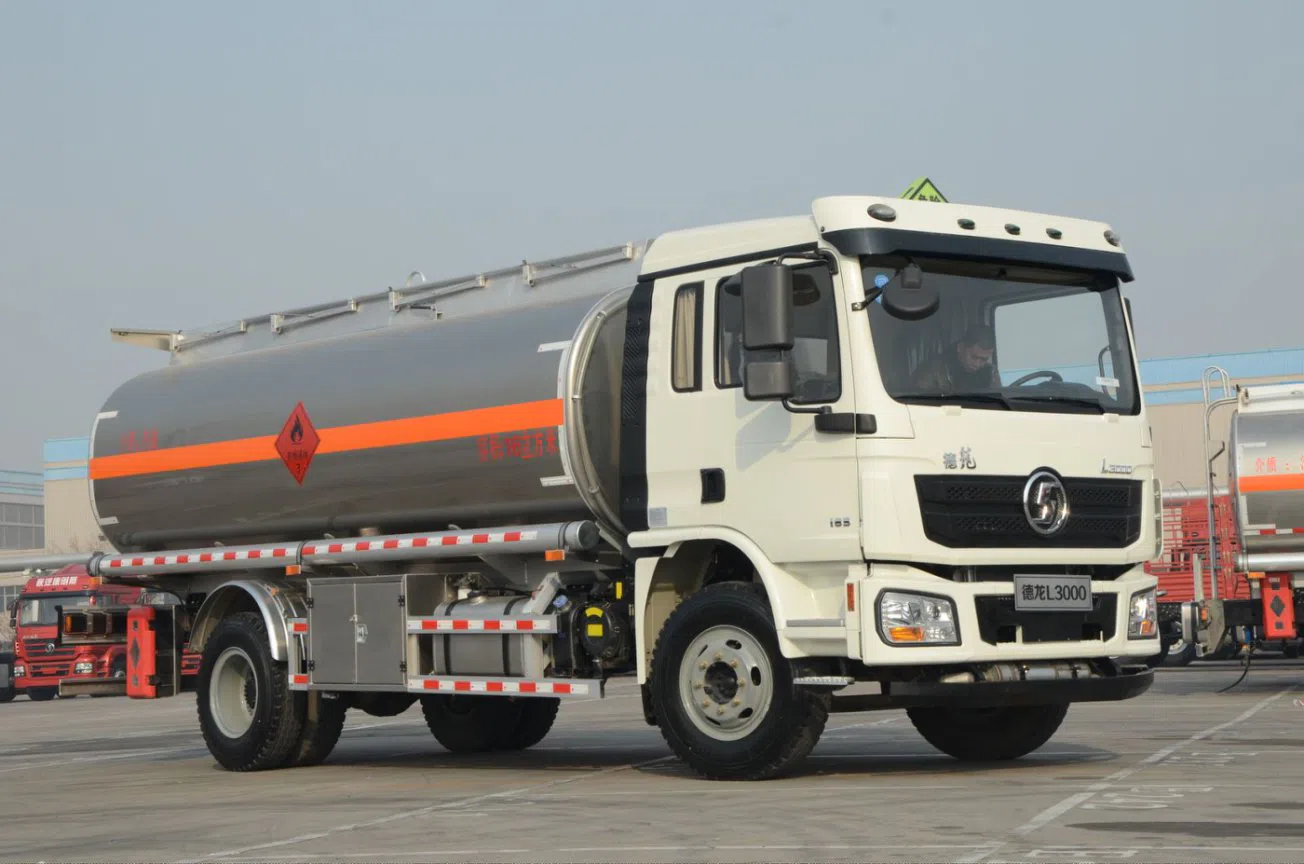

The Shacman L3000 4×2 Oil Tanker Truck is a medium-duty hazardous goods vehicle designed for safe transportation of gasoline, diesel and other light petroleum products. Built on Shacman’s proven L3000 chassis, it features a leak-resistant tank structure and stable 4×2 drive system, complying with international safety standards such as ADR for European markets. It is well-suited for regional fuel distribution, gas station refueling and mining site fuel supply operations across Africa, Southeast Asia and the Middle East.
Boasting great payload performance (10–12 tons) and low operational hazards, this model serves fleet owners and petroleum enterprises with high requirements for dangerous cargo transportation safety.
Leak-Proof Tank Construction
The tank adopts double welded joints and passes 0.1MPa air tightness pressure testing to avoid fuel leakage. Optional internal anti-wave baffles can suppress liquid sloshing during transportation, lowering the risk of rollover when driving on rough roads.
Safety & Compliance Design
It comes with standard safety fittings for hazardous cargo transport: emergency cut-off valve to block fuel supply under accident conditions, static grounding chain for static discharge, and reflective warning markings. ADR certification is available for EU/EEA markets, and the tank welding process meets ISO 3834 quality requirements.
Optimized Power & Agility
Powered by a 240HP Weichai engine generating 900 Nm torque, matched with an 8-speed gearbox, it ensures steady power output even under full load. The 4×2 layout delivers a small turning radius (≤9m), making it easy to maneuver at narrow fuel stations and urban delivery routes.
Region-Oriented Customization
Multiple options are offered to meet local demands: tank capacity from 8KL to 15KL, lightweight aluminum alloy tank material, and various emission standards (Euro 2/3/5). Left-hand drive or right-hand drive versions and climate packages (including fuel tank heaters for cold areas) are available to adapt to different market conditions.
Configuration sheet
| Model: SHACMAN L3000 OIL TANKER TRUCK | |
| CHASSIS SPECS | |
| Curb weight | 6.9t |
| Total weight | 18t |
| Drive style | 4×2 |
| Engine: | WP10；Emission standard: EURO II-EUROV；Rated power (hp): 300/340/380 |
| Transmission: | Model: FAST MT(9/10) |
| Cabin: | Type: Medium-length flat roof；Suspension: Hydraulic suspension；Seat: Air/Hydraulic main seat；Air conditioner: Electric air conditioning |
| Color: | option |
| Wheelbase: | 4600 mm |
| Tire: | 12.00R20 |
| Front axle: | 7.5t |
| Rear axle: | 13t double-stage（Ratio: 5.262） |
| Capacity of oil tank: | 10 m³ |
| Others | Front and rear multi-leaf springs,Economic/Max speed: 50-70/90 km/h |
| CARRIAGE BODY SPECS | |
| Size and Specs: | 8720×2470×3021mm |
| Package | Wax |
Advantages
We have been special truck manufacturer for more than 32 years. We has professional German Kogel technology, combined with Shacman, to create first-class special vehicles, provide trucks owners with the best quality, best price, and the most timely after-sale professional services.
Shipping
We usually adopt shipping by bulk cargo, flat rack, and Roro ship. We will arrange the most cost-effective transportation mode according to the quantity of products. All trucks will be polished with wax before shipping. We guarantee that all products have gone through strict inspection and are in good condition before shipment. We strive for 100% customer satisfaction on every sale we close.
Delivery time
20-40 working days after payment receipt confirmed (based on actual quantity).
Packing
Standard export packing, orcustomized packing as your request.
Professional goods shipping forwarder.
After-sales Service
1.12months or 100,000km for main parts (engine, axle, body and beam, etc).
2.Technical Support by phone Whatsapp or email around the clock.
3.Lifelong Parts Supports
4.Engineer available service oversea.
