Description

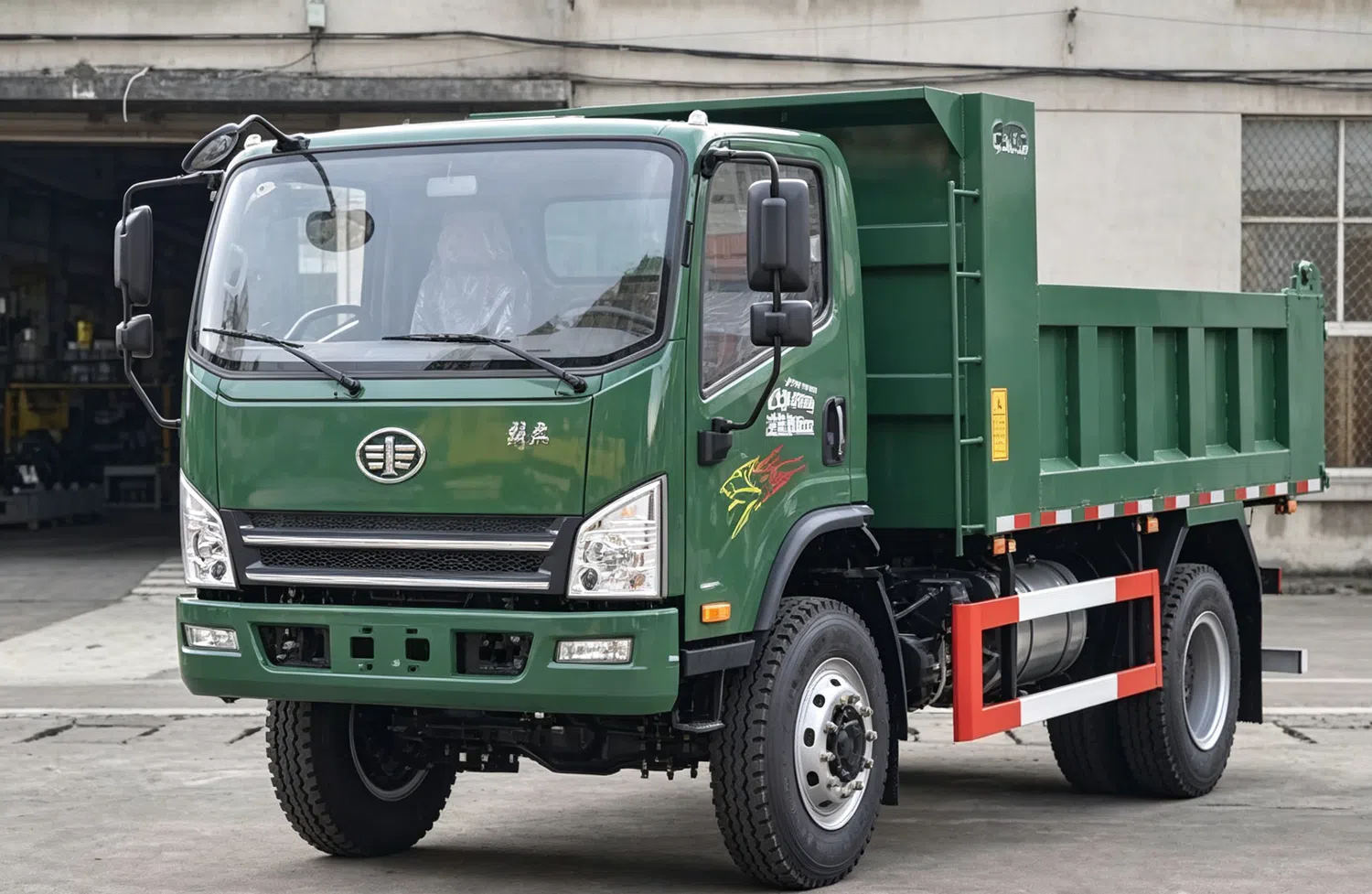

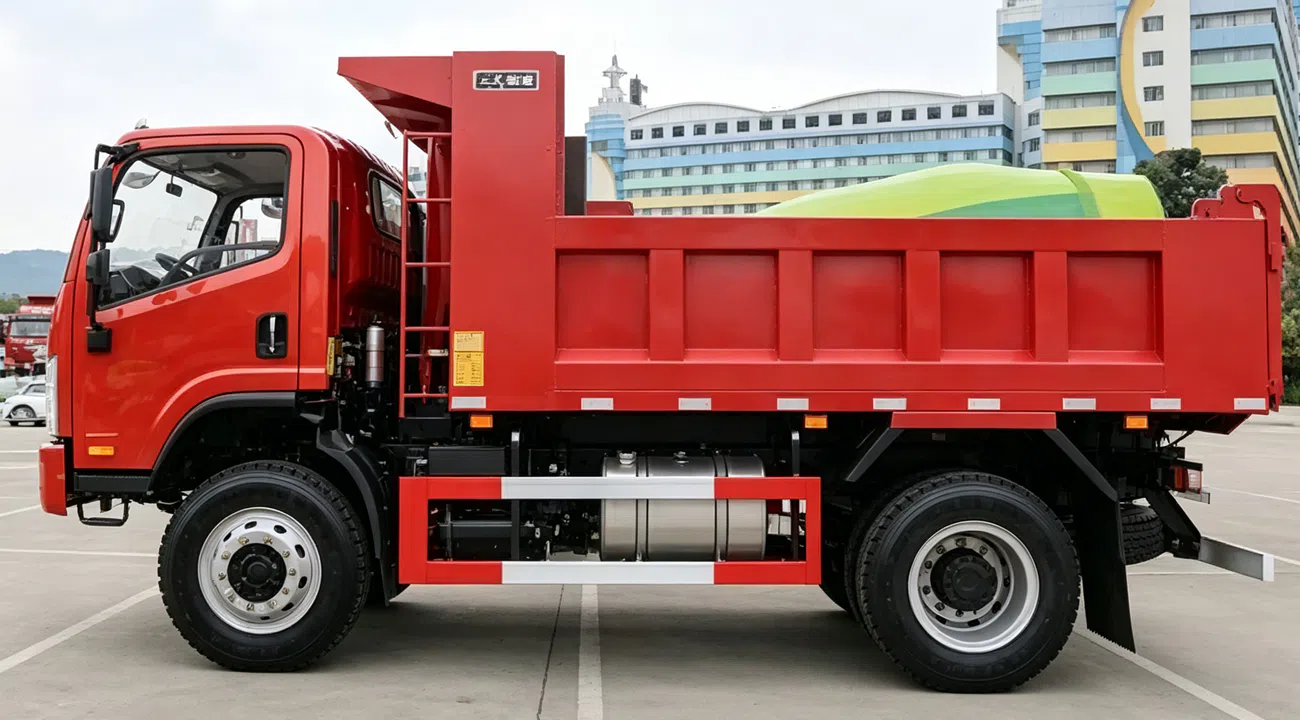

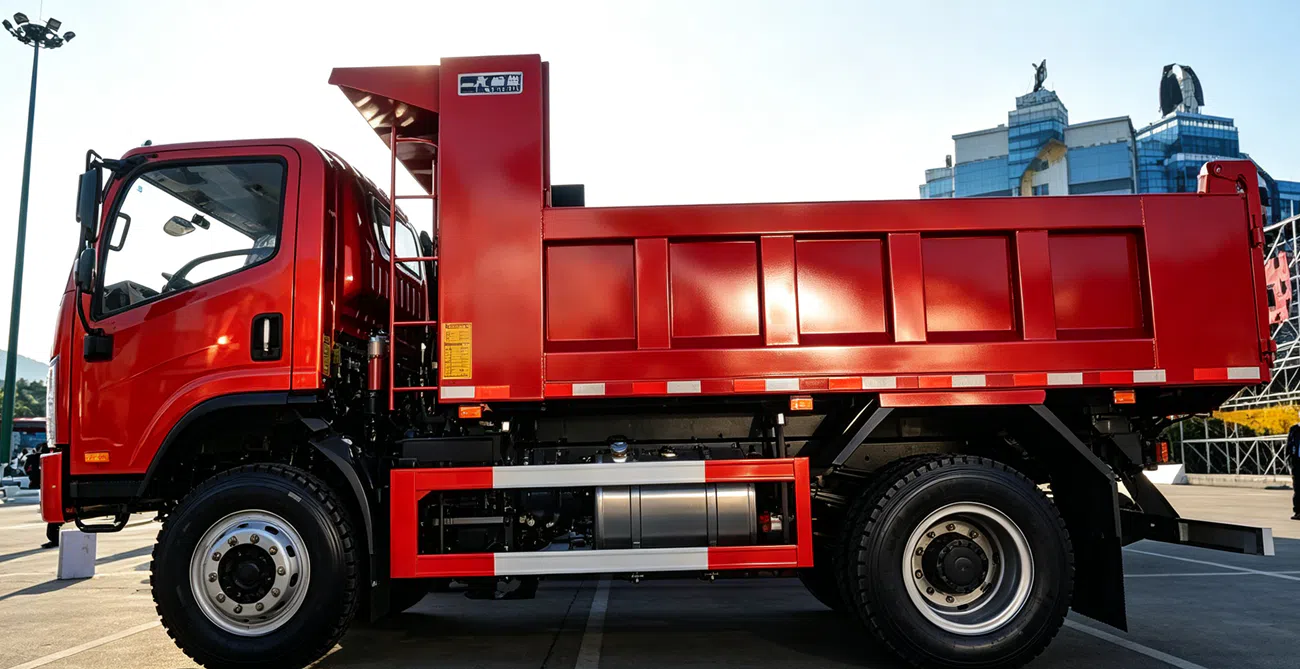

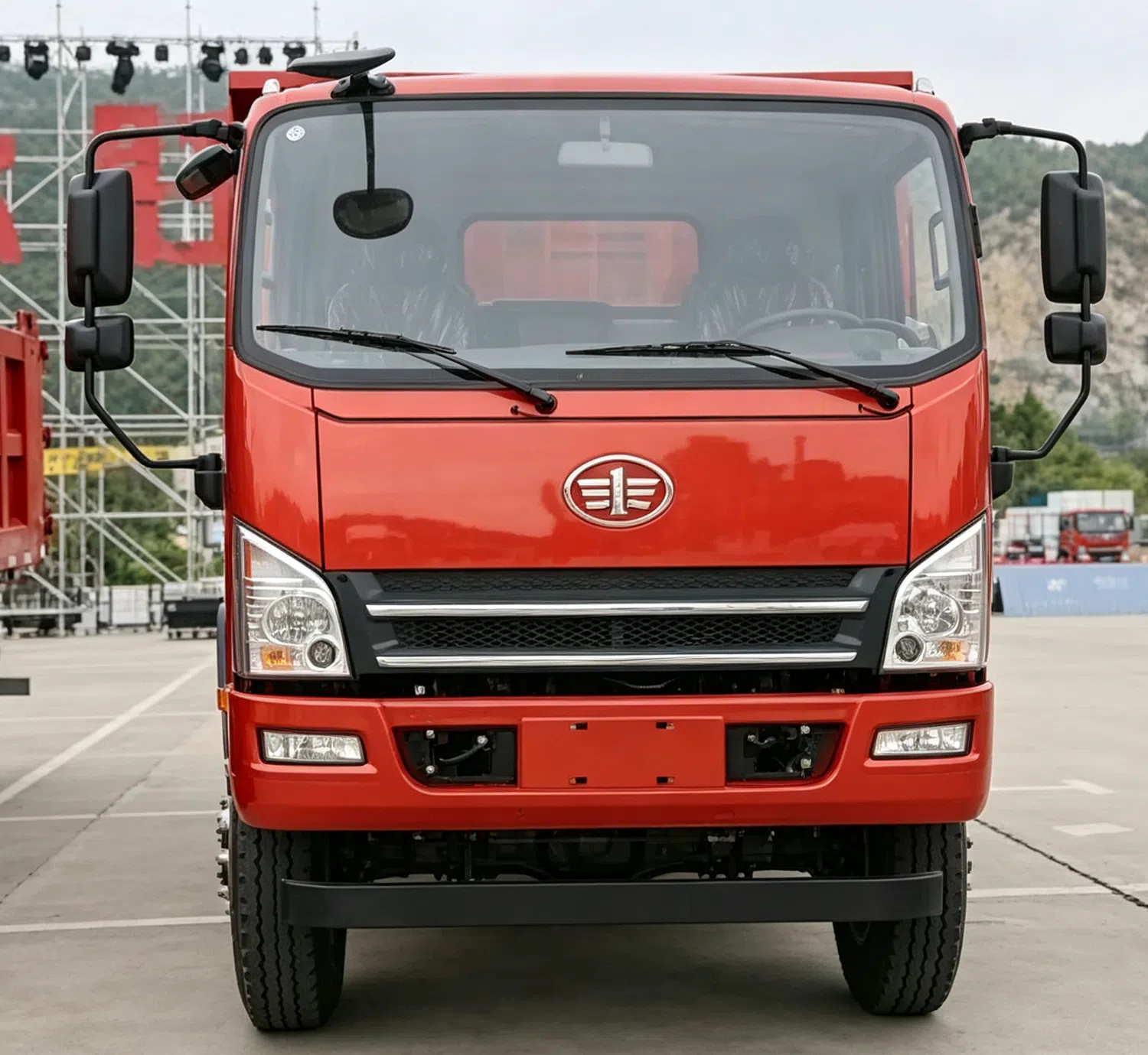

This FAW Tiger V (Huwei) 4×4 dump truck is an off road light duty dumper built for complex unpaved road conditions, focusing on superior passability and all scenario operation capability. It is equipped with a reliable part time four wheel drive system, which can flexibly switch between 2WD and 4WD modes according to road conditions. It delivers sufficient traction and outstanding obstacle crossing ability on harsh surfaces such as muddy roads, steep slopes, mine access roads and forest dirt roads. Matched with an engineering tuned powertrain and reinforced chassis suspension, it features excellent torsion and impact resistance, as well as outstanding heavy load climbing performance, capable of handling material transportation under severe working conditions. The cargo body adopts thickened wear resistant steel plate and a reinforced hydraulic lifting mechanism, ensuring stable and reliable lifting under heavy loads, and adapting to high intensity continuous dumping operations in mountainous and mining areas. With high ground clearance and large approach and departure angles, its passability on complex terrain far exceeds that of ordinary on road dump trucks. The cab features optimized sealing and dustproof performance, adapting to harsh field operating environments. The core chassis components are reinforced for high durability and convenient maintenance, making it dedicated engineering equipment for unpaved scenarios such as mountainous infrastructure, mines and forestry areas. Application scenarios: mountainous infrastructure sand & gravel transportation, short distance mine haulage, forestry earthwork, material transportation for rural road construction projects, and muck removal on muddy construction sites.
Configuration sheet
Model: CA2160P40K8T5E5A84 | |
CHASSIS SPECS | |
Curb weight | 6800kgs |
Total weight | 16000kgs |
Drive style | 4×4 |
Engine: | Yuchai YC4D140-50, 140PS, Euro 5 emission |
Transmission: | Wanliyang 5T46 gearbox + 2FD290 transfer case (part-time 4WD, high/low range shift) |
Cabin: | Tiger VH flat-top single-row cab with mechanical suspension (J6F front face) |
Color: | Multiple options available |
Wheelbase: | 3300mm |
Tire: | 9.00R20 16PR |
Front axle: | Qingte 205 steering drive front axle, 4.2T load capacity, final drive ratio 6.578, wheel track 1779mm, with inter-wheel differential lock |
Rear axle: | 205 rear axle, 8T load capacity, final drive ratio 6.578, wheel track 1708mm, with inter-wheel differential lock |
Capacity of oil tank: | Standard fuel tank |
Others | Φ325 clutch, 795×237×75×(7+4)mm frame, T16 dedicated dump chassis, max speed 80km/h, economic speed 40-50km/h |
CARRIAGE BODY SPECS | |
Size and Specs: | 3800*2200*1000 |
Package | Wax |
Advantages
We have been special truck manufacturer for more than 32 years. We has professional German Kogel technology, combined with Shacman, to create first-class special vehicles, provide trucks owners with the best quality, best price, and the most timely after-sale professional services.
Shipping
We usually adopt shipping by bulk cargo, flat rack, and Roro ship. We will arrange the most cost-effective transportation mode according to the quantity of products. All trucks will be polished with wax before shipping. We guarantee that all products have gone through strict inspection and are in good condition before shipment. We strive for 100% customer satisfaction on every sale we close.
Delivery time
20-40 working days after payment receipt confirmed (based on actual quantity).
Packing
Standard export packing, orcustomized packing as your request.
Professional goods shipping forwarder.
After-sales Service
1.12months or 100,000km for main parts (engine, axle, body and beam, etc).
2.Technical Support by phone Whatsapp or email around the clock.
3.Lifelong Parts Supports
4.Engineer available service oversea.
