Description：

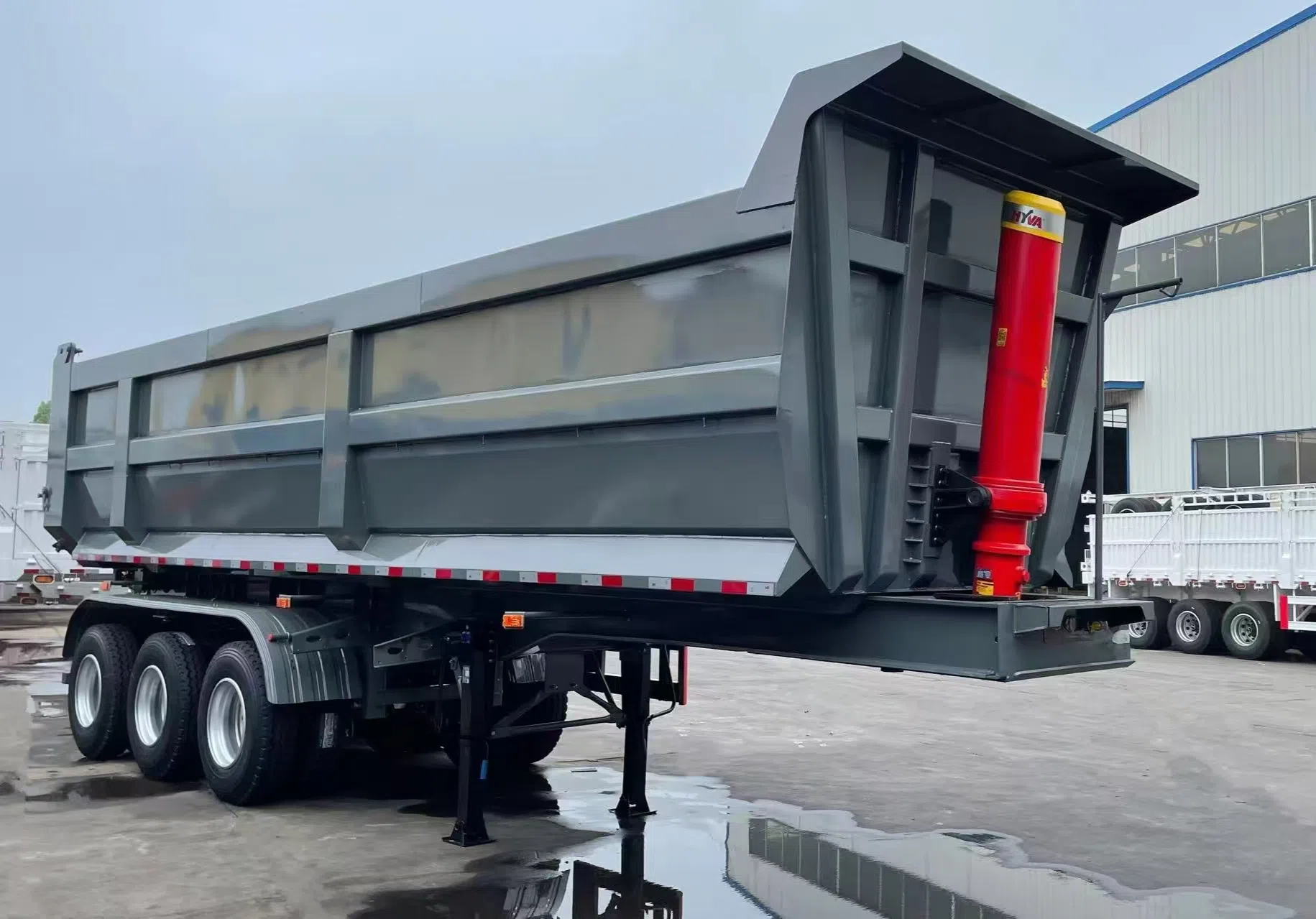

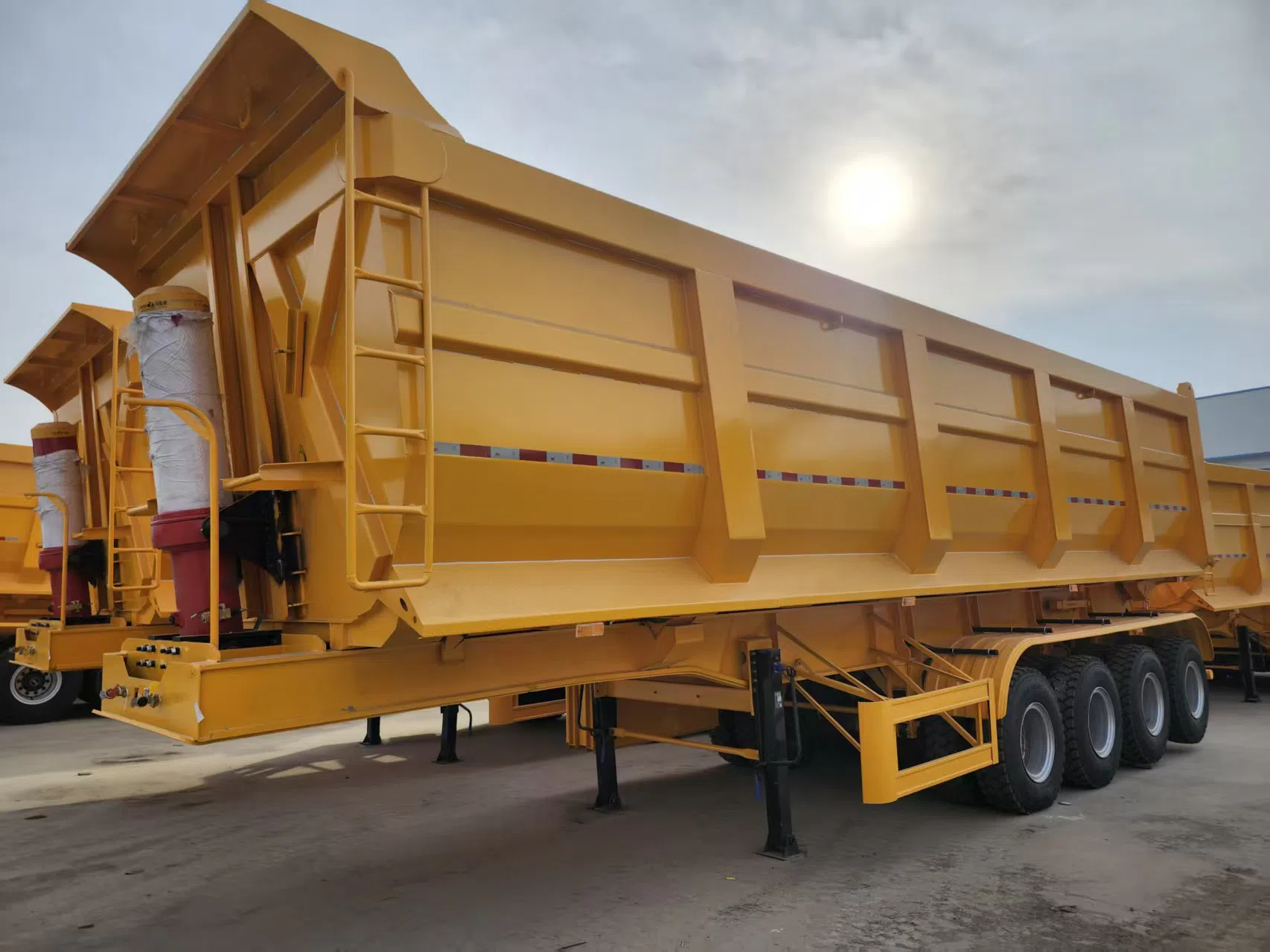

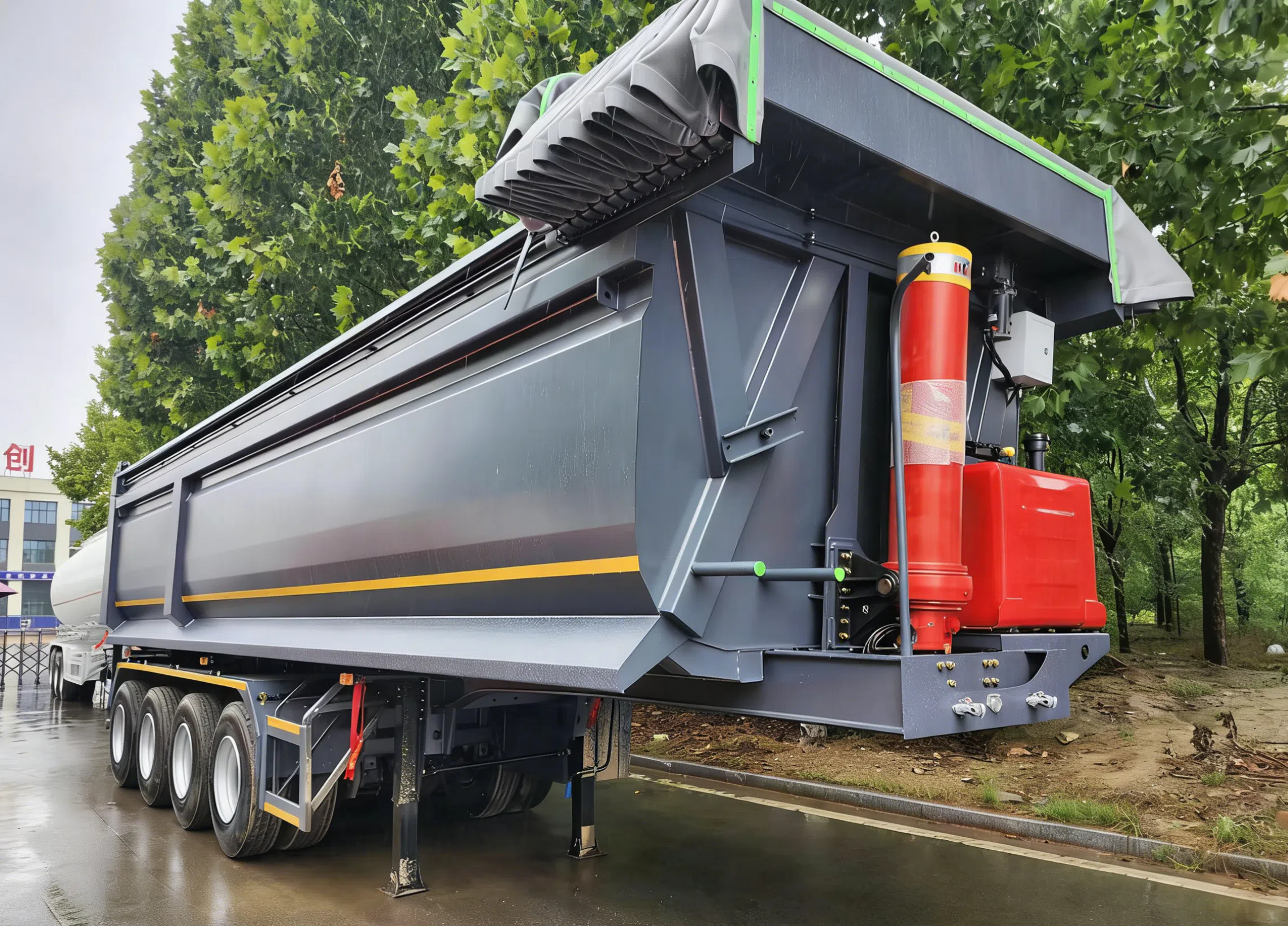

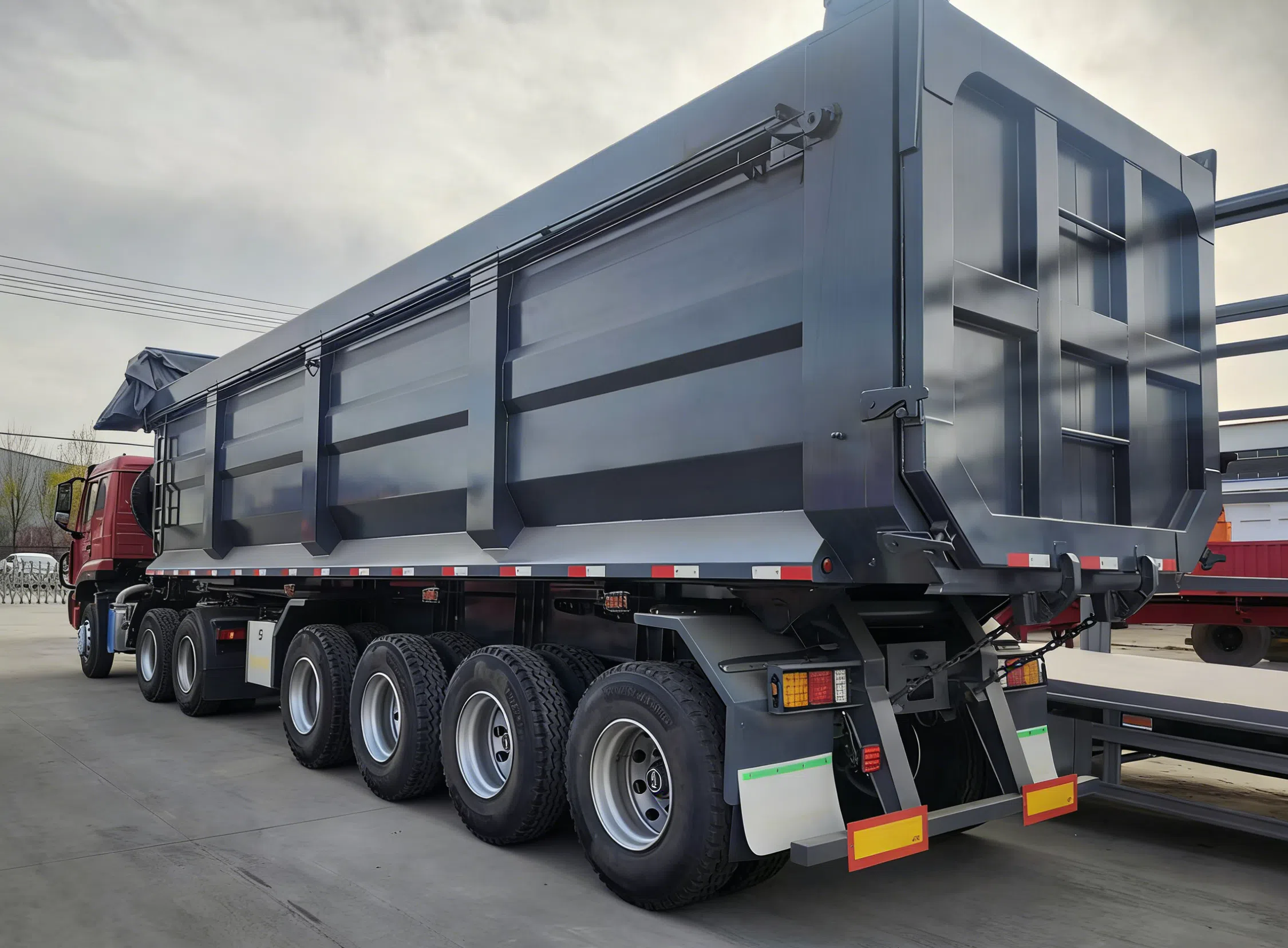

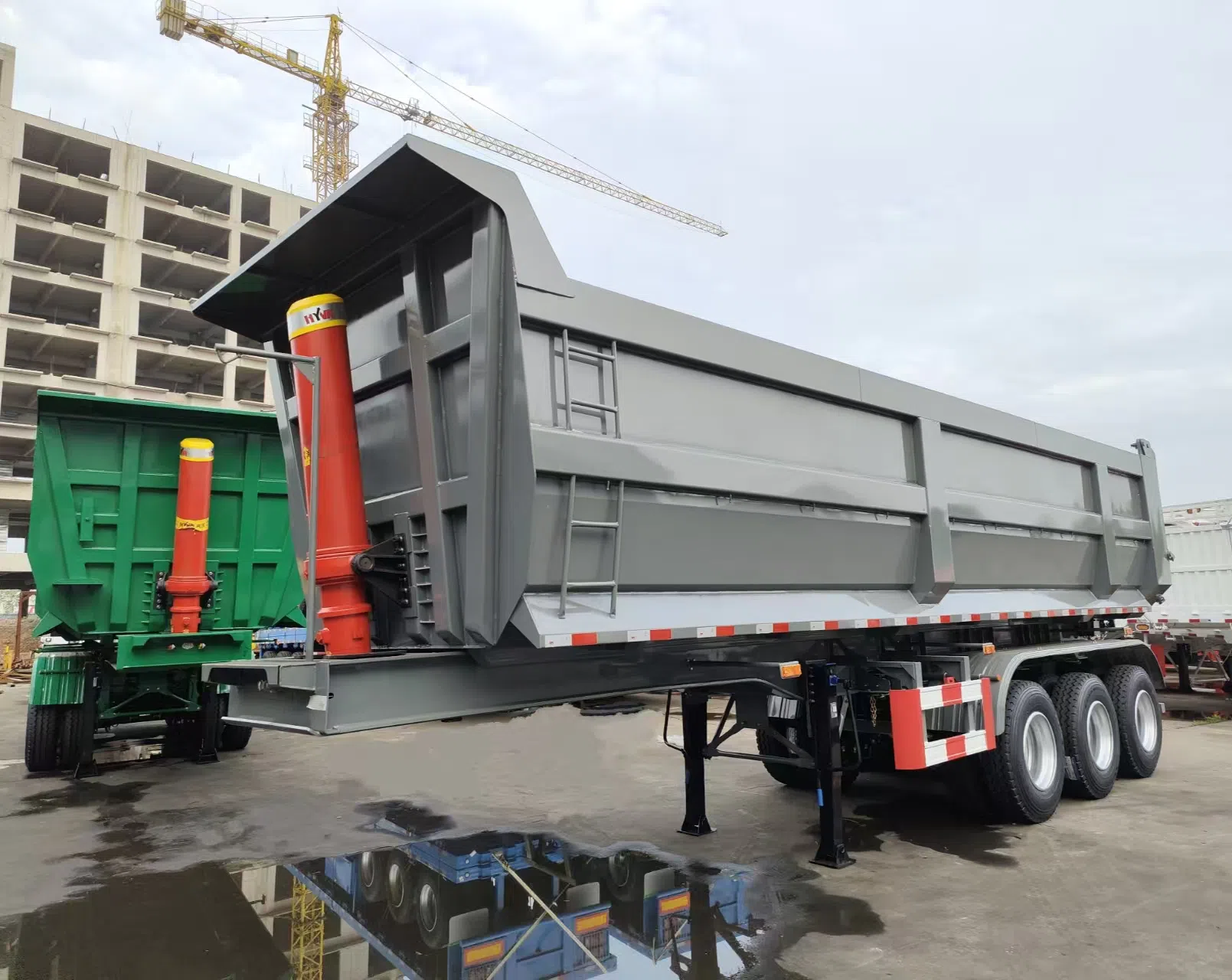

Dump trailer: Designed specifically for unloading large quantities of bulk materials, dump semi-trailers, also often called tipper trucks or rear-dump trucks, are heavy-duty transport equipment designed for efficient transport and rapid unloading of bulk materials. A key feature of dump trucks is their powerful hydraulic lifting mechanism, which allows the entire cargo box to tilt and dump the cargo directly onto the ground. They are indispensable in industries such as mining, construction, quarrying, and agriculture, where the rapid transport of large quantities of sand, gravel, coal, or construction waste is crucial.
Dump truck bodies are typically constructed from high-strength materials to withstand the impact of excavator loading and the abrasion of sliding materials. The floor is much thicker than the side panels and is usually reinforced with internal bracing to prevent bending under load. The body shape is designed for smooth material unloading, featuring sloping side panels and a completely flat floor.
A significant feature of dump trucks is their powerful hydraulic system. This system is designed to lift tens of tons of material in seconds and is equipped with safety locks to prevent accidental descent during maintenance.
In summary, the dump semi-trailer is a machine designed for pure functionality and powerful performance. It transforms simple hydraulic principles into a high-speed material handling solution. With its robust, wear-resistant body, powerful lifting mechanism, and stable three-axle chassis, it provides the construction and mining industries with the most efficient material handling tool, capable of transporting large quantities of material at a time.
Configuration sheet:
| 4 Axles Dump Trailer | |
| CHASSIS SPECS | |
| Inner Dimensions: | 9500*2300*1800mm |
| Overall Dimensions: | 10200*2500*4000mm |
| Capacity: | 40CBM |
| Material: | T700 high-strength steel |
| Thickness of Cargo Body: | Floor 8mm Side 6mm |
| Thickness of Main Beam: | Upper 20mm, bottom 20mm, middle 16mm |
| Axles: | 16tons*4 |
| Tire: | 12.00R20*16 |
| Traction pin: | 90# (3.5'') |
| Plate spring : | 10 pieces (Widened and thickened) |
| Suspension: | Mechanical suspension |
| Lifting system: | Domestic 240 hydraulic cylinder |
| Color: | Optional |
| Package | Wax |
Advantages:
We have been special truck manufacturer for more than 32 years. We has professional German Kogel technology, combined with Sinotruk, to create first-class special vehicles, provide trucks owners with the best quality, best price, and the most timely after-sale professional services.
Shipping:
We usually adopt shipping by bulk cargo, flat rack, and Roro ship. We will arrange the most cost-effective transportation mode according to the quantity of products. All trucks will be polished with wax before shipping. We guarantee that all products have gone through strict inspection and are in good condition before shipment. We strive for 100% customer satisfaction on every sale we close.
Delivery time:
20-40 working days after payment receipt confirmed (based on actual quantity).
Packing:
Standard export packing, orcustomized packing as your request.
Professional goods shipping forwarder:
After-sales Service:
1.12months or 100,000km for main parts (engine, axle, body and beam, etc).
2.Technical Support by phone Whatsapp or email around the clock.
3.Lifelong Parts Supports
4.Engineer available service oversea.
Cooperative Commemoration:
